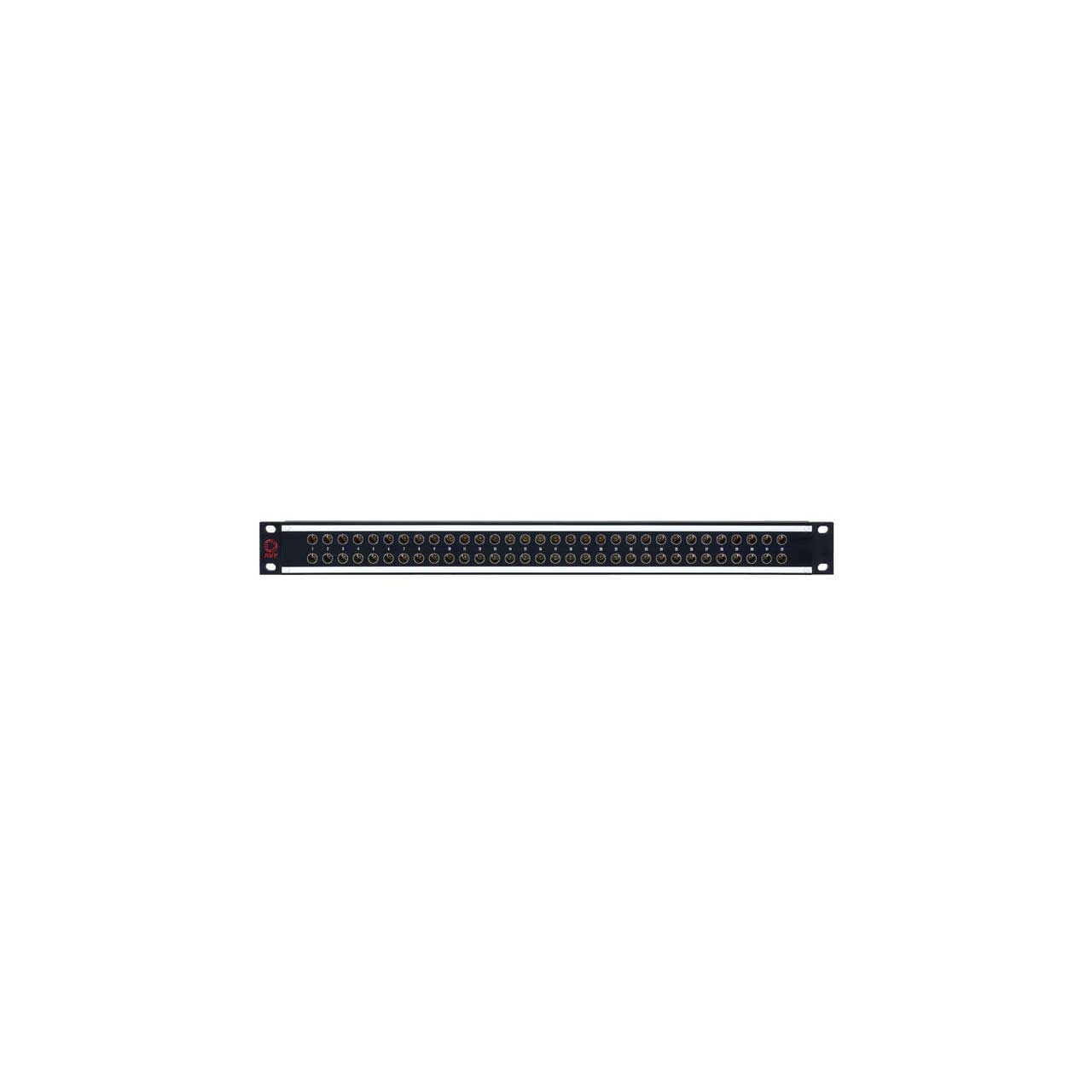

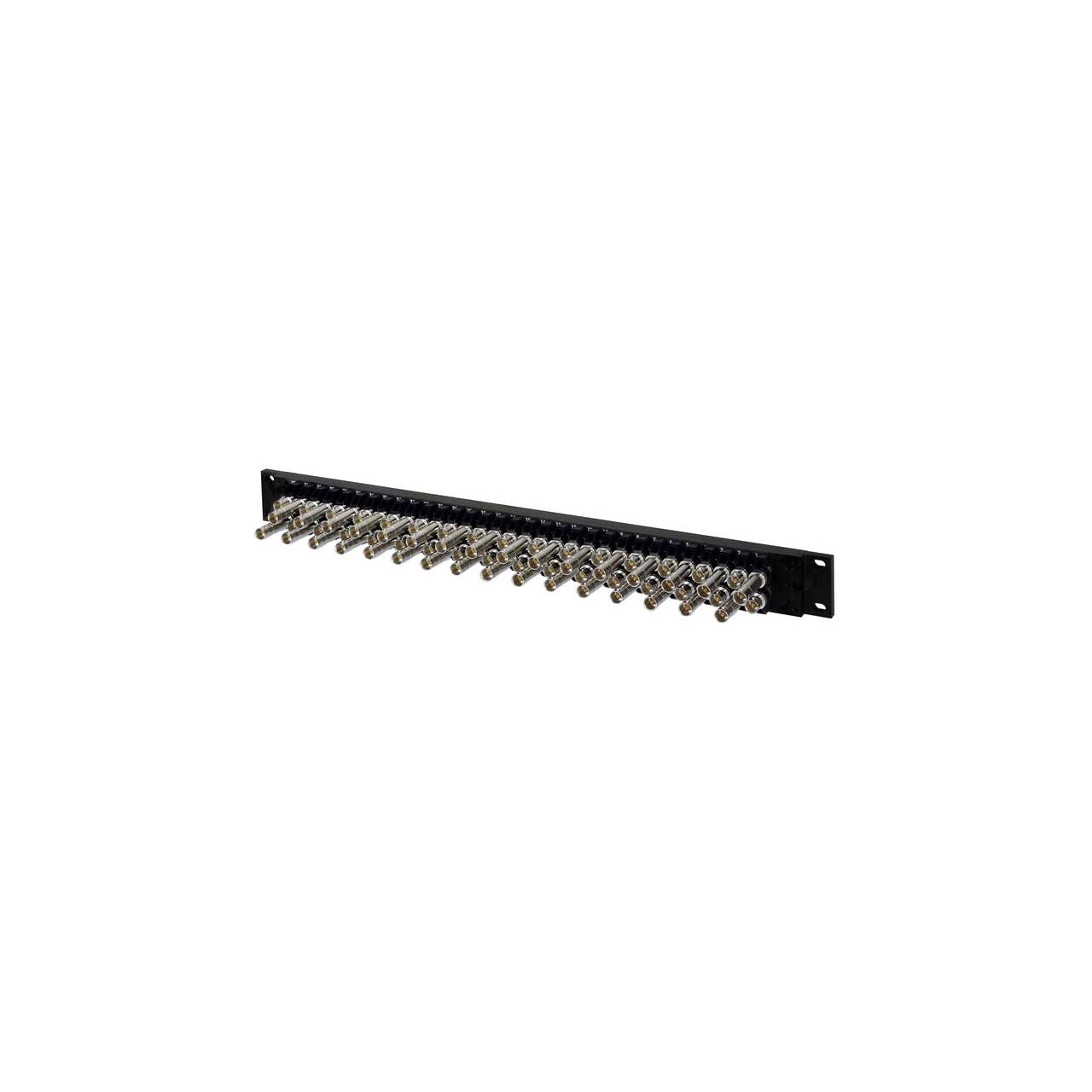

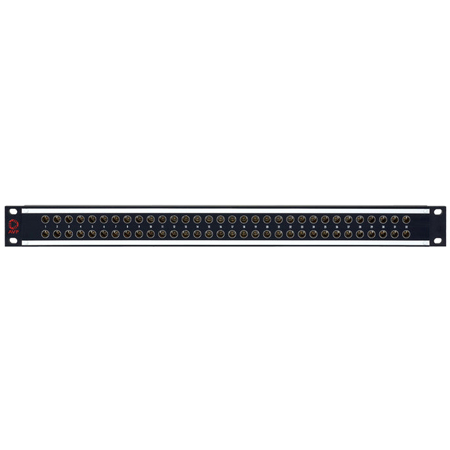

AVP AV-G226E1-AE8KS-BZ 1 RU UHD 4K/8K E Series 20GHz Video Patch Panel - 2 x 26 - Non-Normaled - Non-Terminating

ITEM #: AV-G226E1AE8KSBZ MFG #: AV-G226E1-AE8KS-BZ

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
AVP
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,085.00

Our Price:

$976.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AV-G226E1-AE8KS-BZ - Overview

The AVP E series is a high performance 4K/8K video patching system. Rated for 20GHz, high bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K & 8K video applications, in all patch states.

  • Features:

    • 24GHz, high bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K & 8K video applications
    • Compliant with SMPTE 292M, 424M, ST2081-1
    • Meets and exceeds SMPTE ST2082-1:2015 (Society of Motion Picture and Television Engineers® 12 Gb/s Signal/Data Serial Interface - Electrical)
    • Also suitable for L Band


  • Specifications:

    • Contact Resistance: Inner Conductor =5mΩ Outer Conductor ≥3mΩ
    • Insulation Resistance: ≥10GΩ
    • Voltage: 1KVef/60Hz
    • Impedance (BNC): 75Ω
    • Return Loss: >20dB/3GHz+ >0.3dB/3GHz
    • Mating Cycles: ≥2500

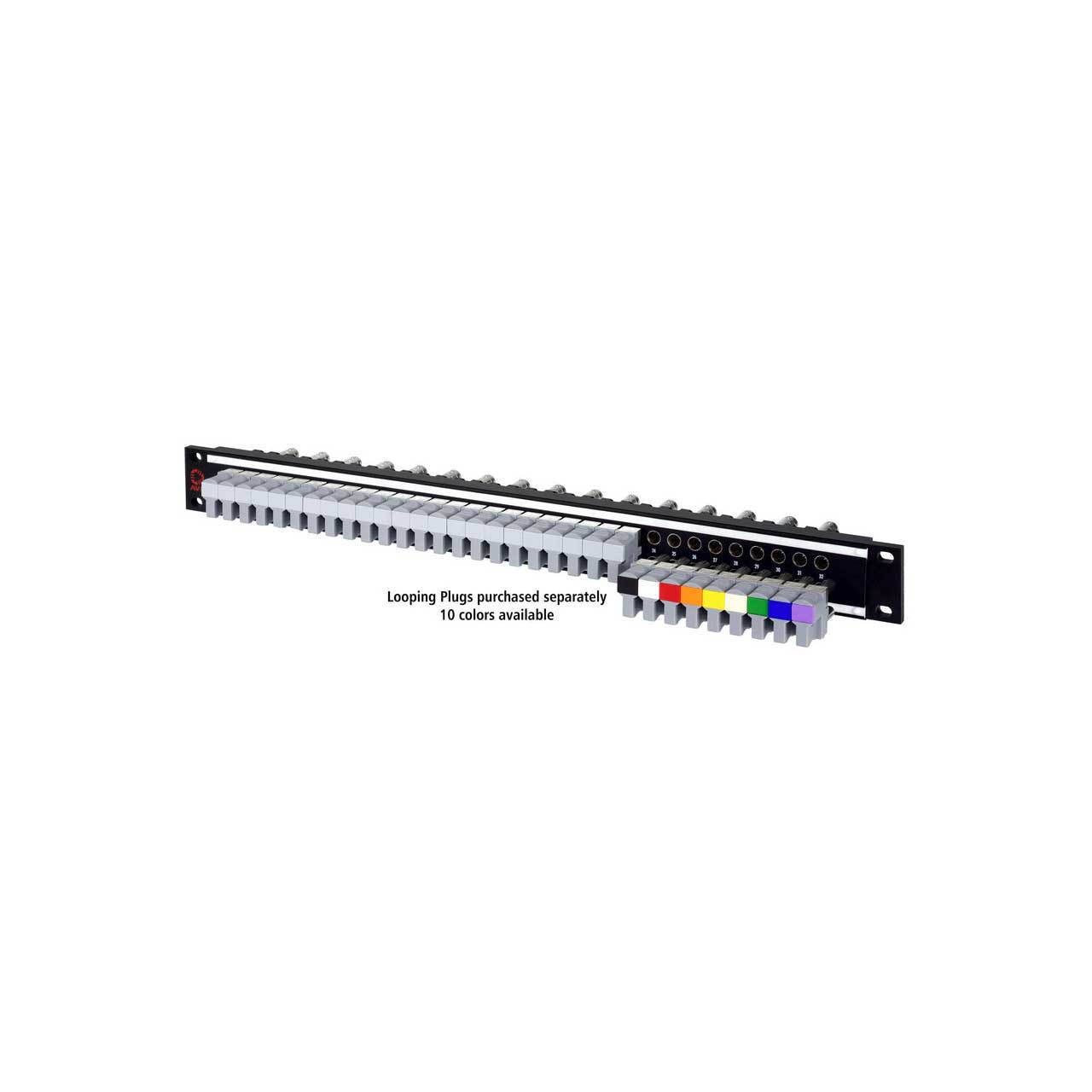

    • Force to Engage: Looping Plug 15 N Straight Plug 10 N
    • Thermal & Climatic Characteristics:
      *(DIN IEC 68-1 40/155/21)
      Storage & Operating Temperature: -40° to 149°F (-40° to 65°C)
      Moisture resistance according to MIL Spec. 202


  • Item Includes:

    • 1x AV-G226E1-AE8KS-BZ 1 RU Video Patch Panel - 2 x 26 - Non-Normaled - Non-Terminating


  • Warranty:

    • 5 Year Warranty
