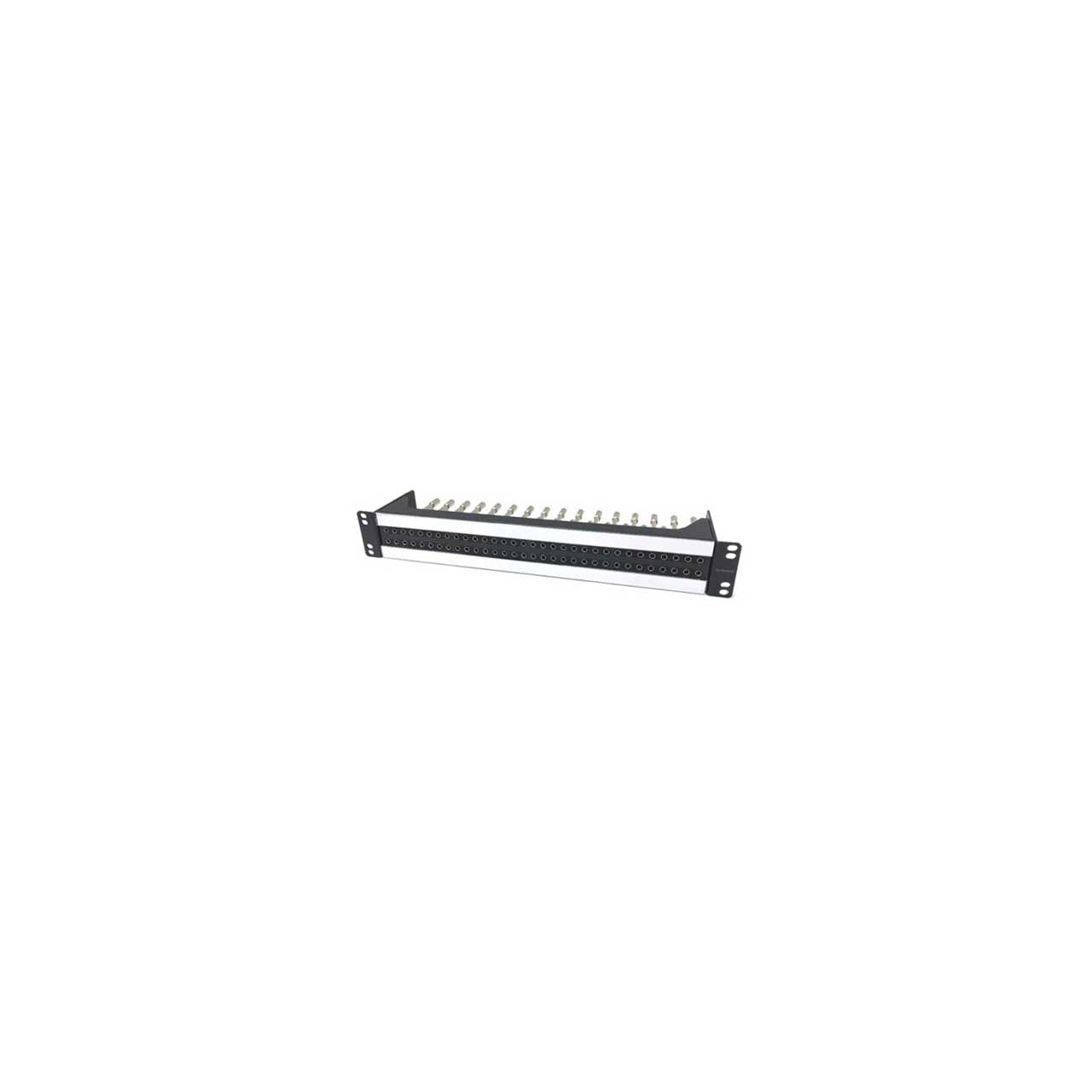

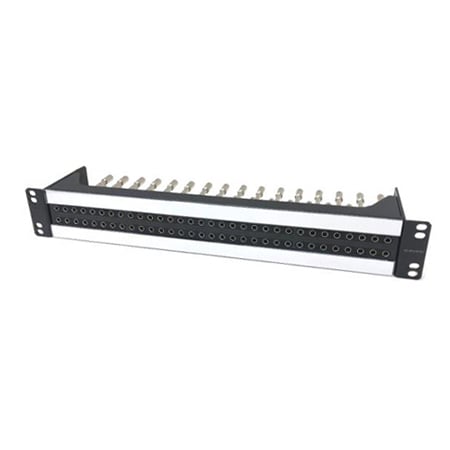

Canare 32MCKA-ST-2U 12G-SDI Staggered Micro Video Patchbay - 2RU - Normal Through

Name: Canare 32MCKA-ST-2U 12G-SDI Staggered Micro Video Patchbay - 2RU - Normal Through
Brand: Canare
SKU: 32MCKA-ST-2U
Price: 2822.95 USD
Availability: InStock

ITEM #: 32MCKA-ST-2U MFG #: 32MCKA-ST-2U

Canare

List Price:

$3,439.70

Our Price:

$2,822.95

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

32MCKA-ST-2U - Overview

Canare 32MCKA-ST-2U is a 75 ohm Staggered Video Patchbay. It features 32-across 12G-SDI video patching solutions with newly upgraded staggered dual video jacks, 2x32 2RU patchbays, patch cords, and accessories. This reliable product line meets and exceeds SMTPE ST 2082-1 with low return loss. 1.5RU/2RU with high visibility designation strips.

Note1: Be sure to use with Canare Micro Video Patch Cords.
Note2: Not compatible with other plug/patch cables.
Note3: 32MCKA series cannot use with dual video jack `MCVJK-STW/STS'. Be sure to use with `MCVJKA-STW/S'.

Features:
- 12G-SDI: SMPTE ST 2082-1 compliant.
- 32 channels of I/O into 2 RU.
- Staggered BNC rear jacks with vertical stud position.
- Improved visibility of the position mark on the BNC plug body.
- Dust-proof shutter.
- Suitable patch cord: Canare Micro patch cord `MCVPC**'.
- Included a sheet of channel designator for easy identification.
- Can be recessed 0.98" (25 mm*)
- * Option: 1 RU can be recessed 50/75 mm by changing the mounting brackets to 'M-MA1U02A(2)'.
Specifications:
- Applicable Standards: ANSI/EIA-310-D - EIA 1 Rack Unit 19 x 1.75in (482.6 x 44.45mm)
- Designation Strips: Size: 426 x 8.5mm x t0.2 - Channel Pitch: 13.05mm
- Jack Loaded: MCVJKA-STW - MCVJKA-STS - 32 pieces each
- Environment: RoHS2 Category 11 Compliant
- Net Weight (Product Only): 6.17 lbs - 2.8 kg
- Gross Weight (Product and Packaging): 7.71 lbs - 3.5kg
- Dimensions: 24.60 x 7.48 x 2.75" (625 x 190 x 70mm
Item Includes:
- 1x 32MCKA-ST-2U - 12G Video Patchbay - 2RU - Normal Through
