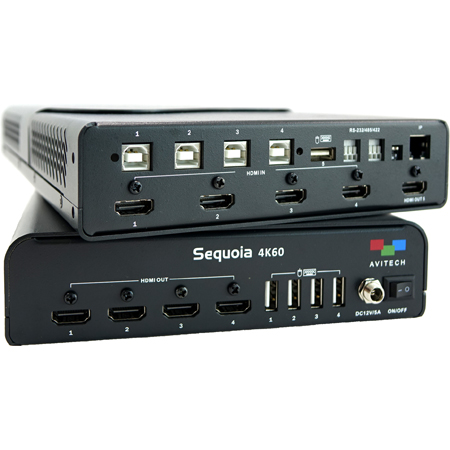

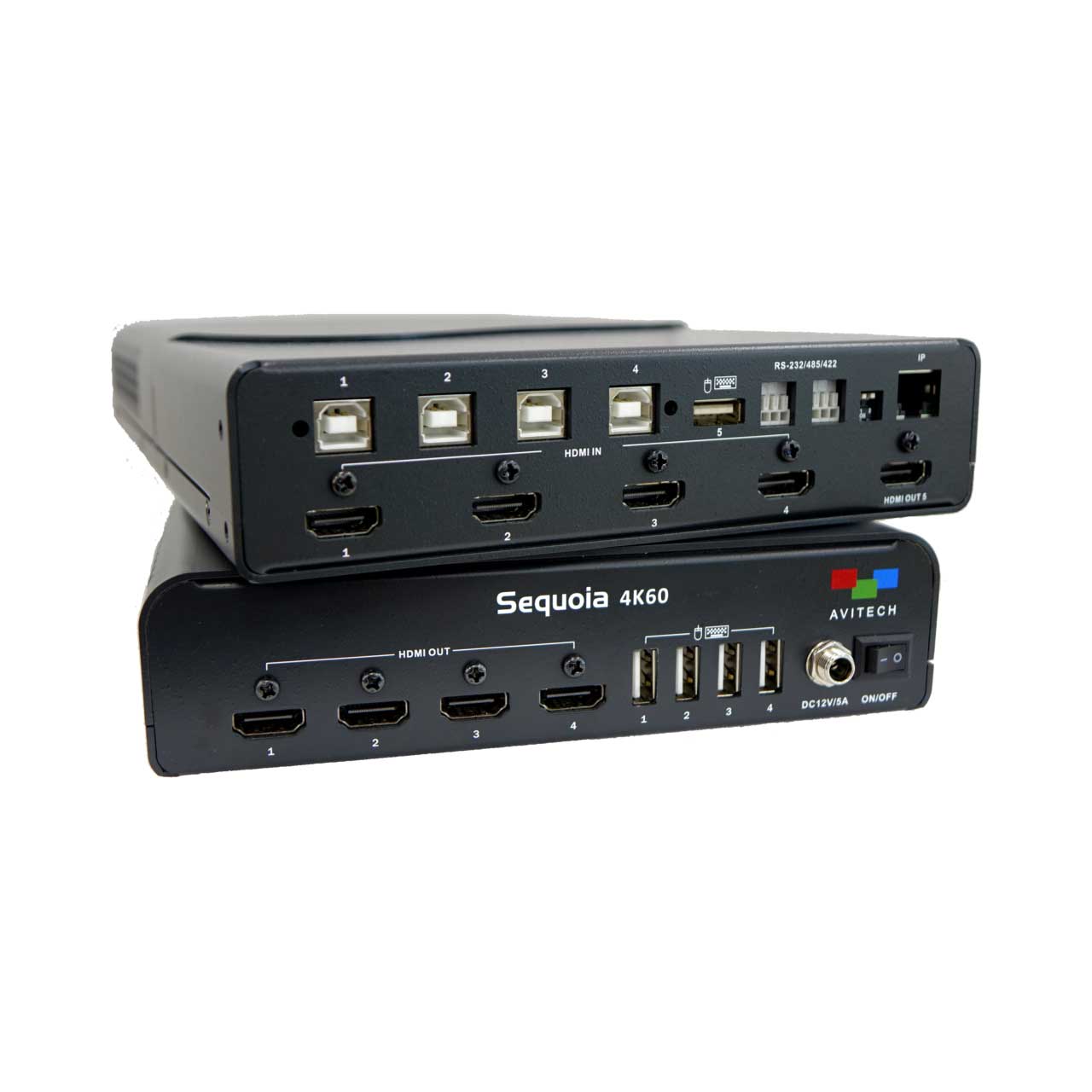

One of Avitech's newest 4K60 solutions, the Sequoia 4K60 is a 4-in-5-out 4K60 4:4:4 multi-functional video processor with multiview, seamless matrix switch, KVM, video wall control, and multi-touch touchscreen support. The half-width 1RU chassis has four HDMI 2.0 input ports and five HDMI 2.0 ports for 4K60 UHD output, with four USB-B ports for computer sources and five USB-A ports for mouse/keyboard and other HID control, perfect for applications with multiple workstations such as control rooms, operations centers, communications rooms, and more.
Fully plug-and-play with automatic configuration, scaling, and signal detection, the Sequoia 4K60 is easy to set up and use, with simple mouse controls to change the window layout and size, fullscreen any window, and seamlessly switch between different sources. The Sequoia 4K60 has a multi-user workstation mode with one multiview output and four independent single-view outputs, and dual workstation mode with two independent multiview outputs and three independent single-view bypass outputs.

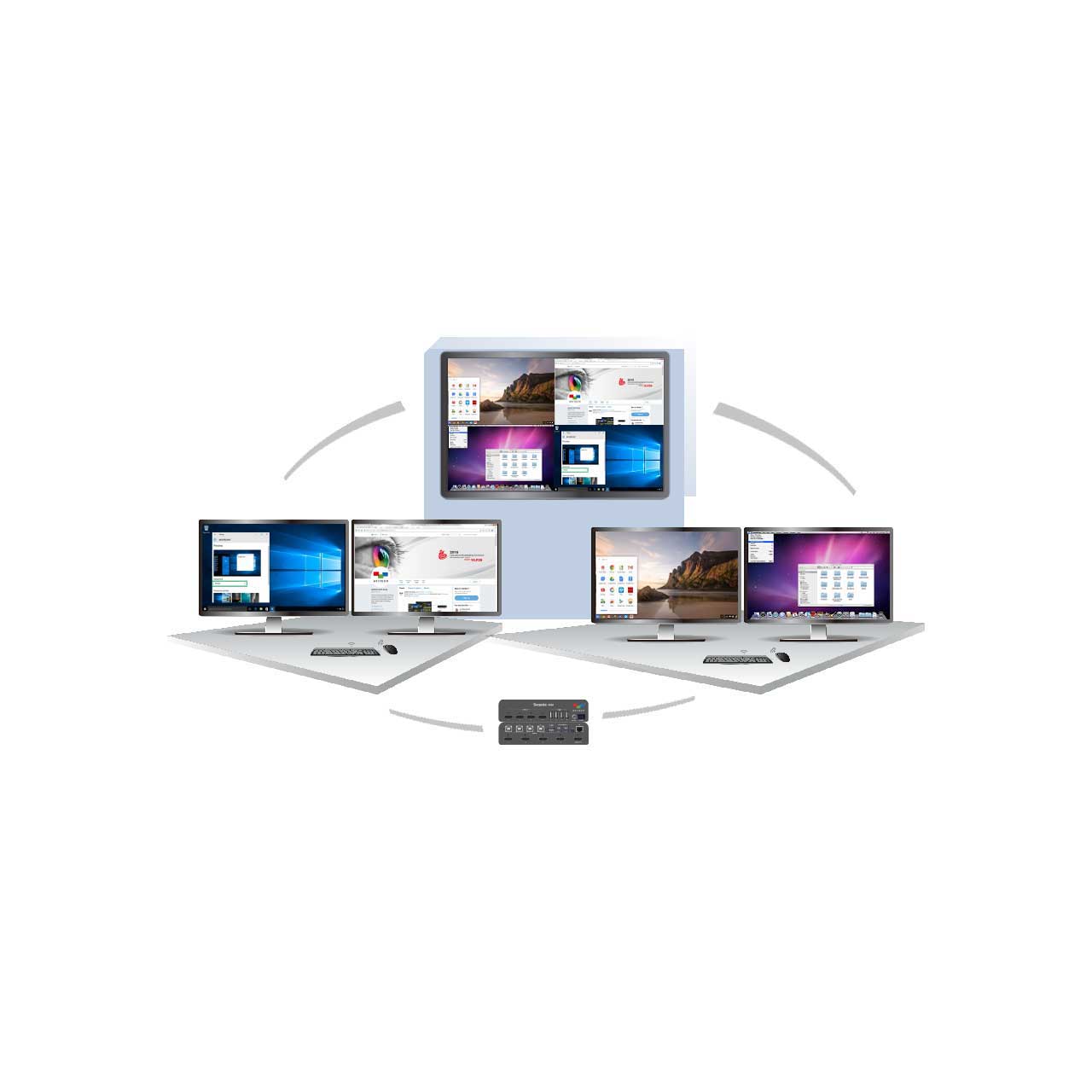

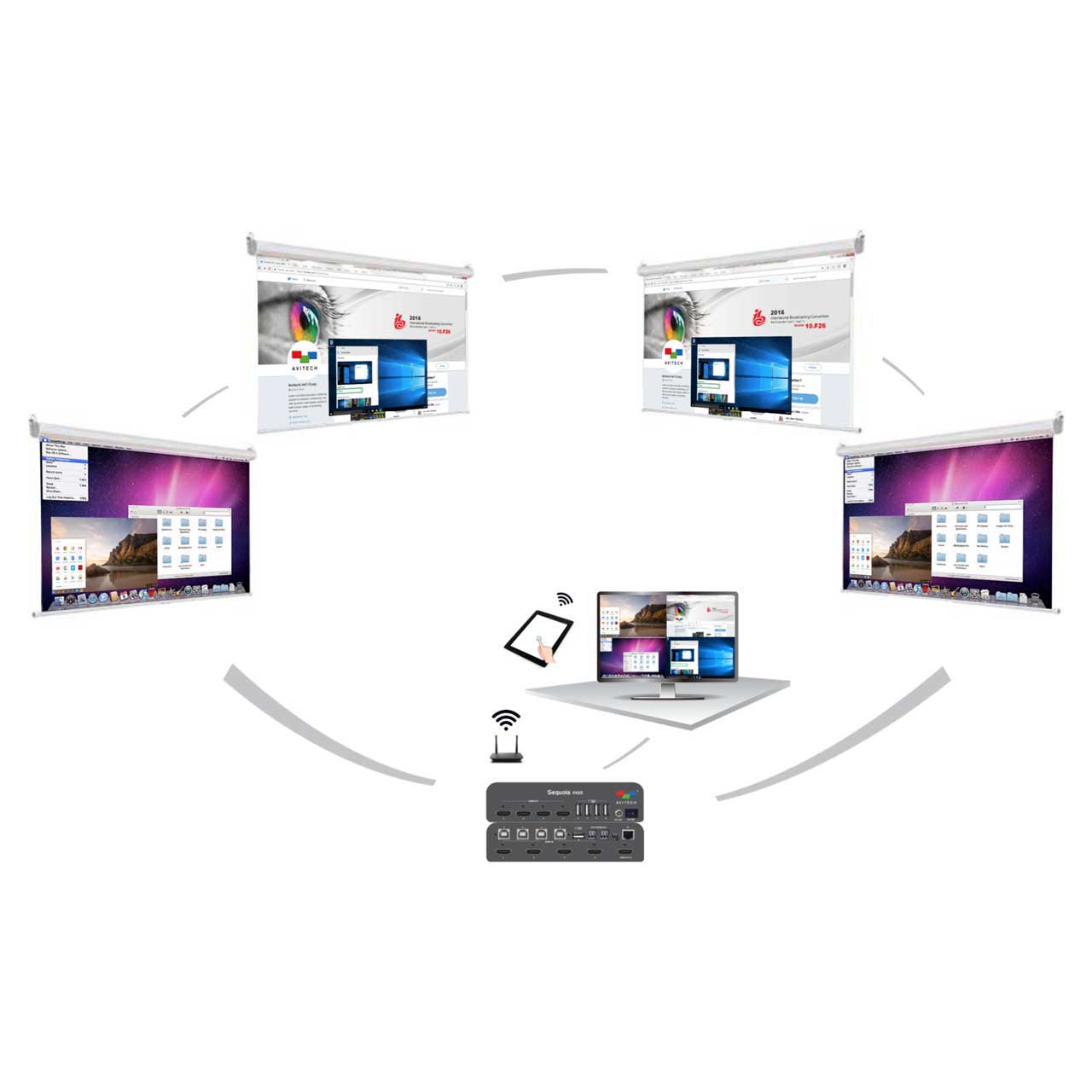

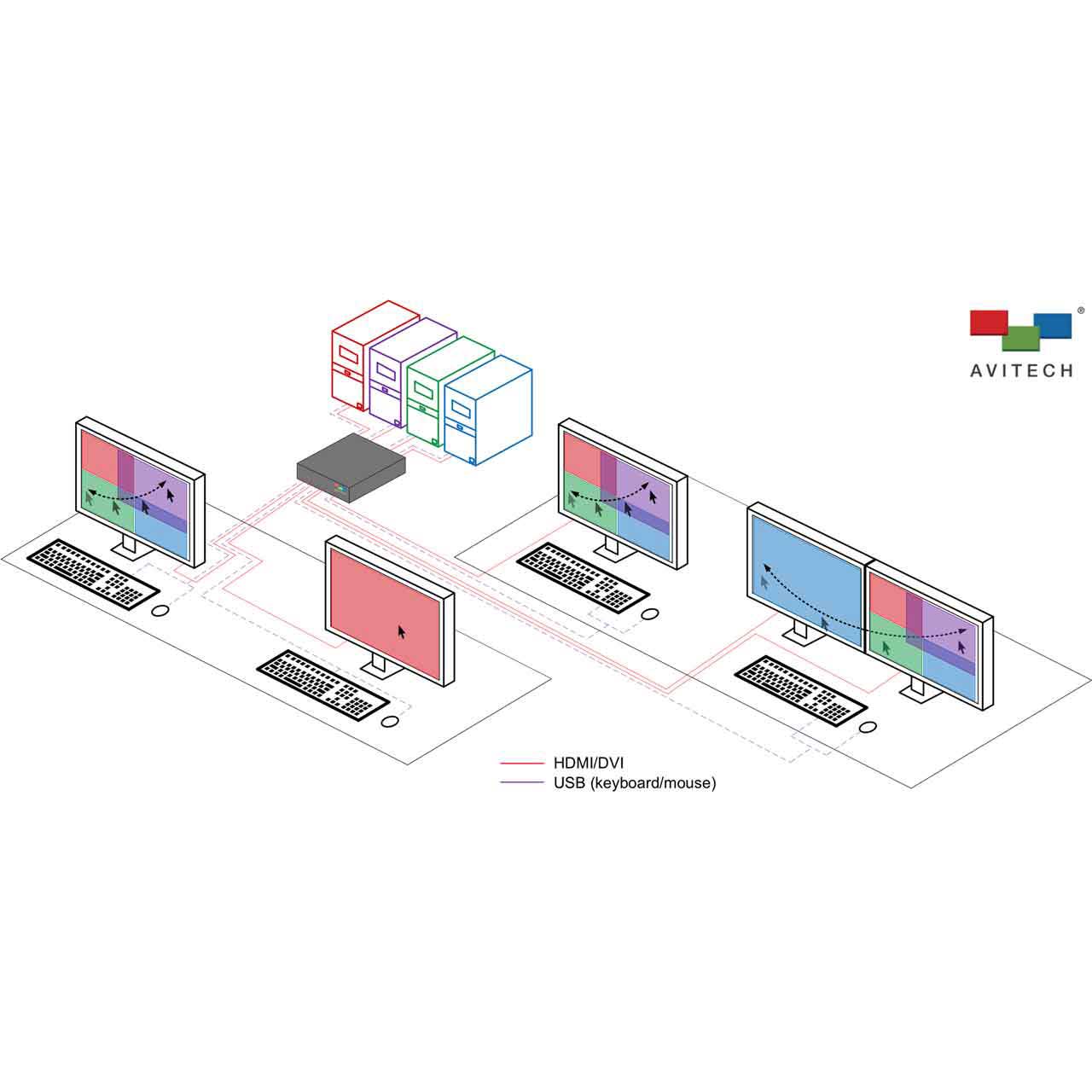

Workstation Collaboration
The Sequoia 4K60 facilitates collaboration in a variety of user scenarios with Plug & Play auto configuration of multiple user workstations. Five 4K60 HDMI outputs can provide duplicate multiview display, and freely switching independent single-view. With USB-A ports for keyboard/mouse operation, a user group can work on a single computer or multiple systems simultaneously. Ideal for initial ideation to final design in a workplace, coordinated crucial operations in a command and control situation room, and more.

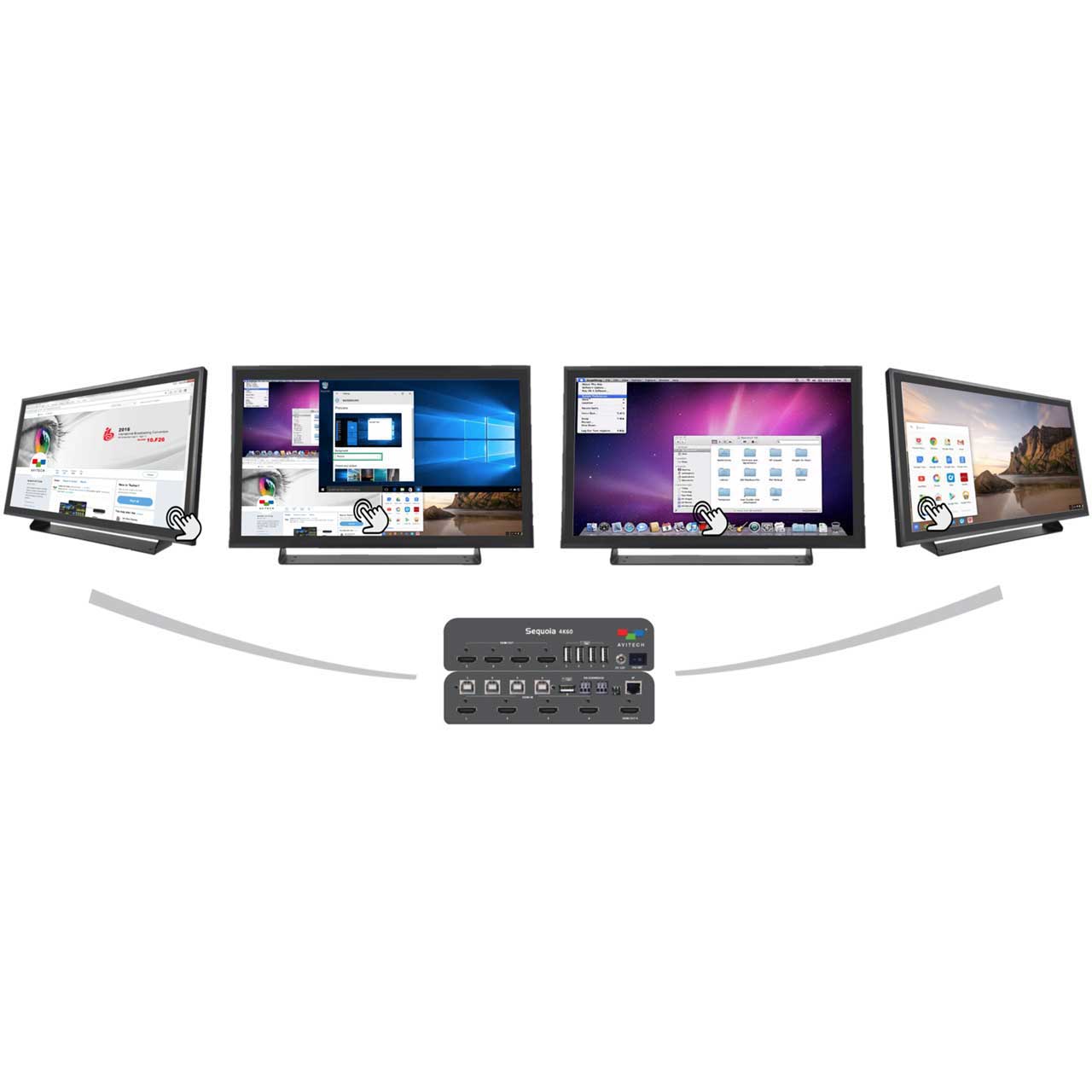

Multi-Touch Multiple Screen Operation
Up to five concurrent HDMI 2.0 outputs and USB-A ports enable the Sequoia 4K60/4K60L to connect up to five 4K UHD multi-touch screens. Operation on all four UHD sources can be shared among multiple touch tables or touch monitors. During collaborative operation, multiple users can view and control the same systems in real time, enabling prompt and effective communication between team members for time-sensitive tasks.
