VigilLink VLIP-H5HDK-EC 1G H.265 1080p@60HZ AVoIP Transmitter with Videowall Processing / KVM / IR

ITEM #: VGL-VLIP-H5HDKEC MFG #: VLIP-H5HDK-EC

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$650.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLIP-H5HDK-EC - Overview

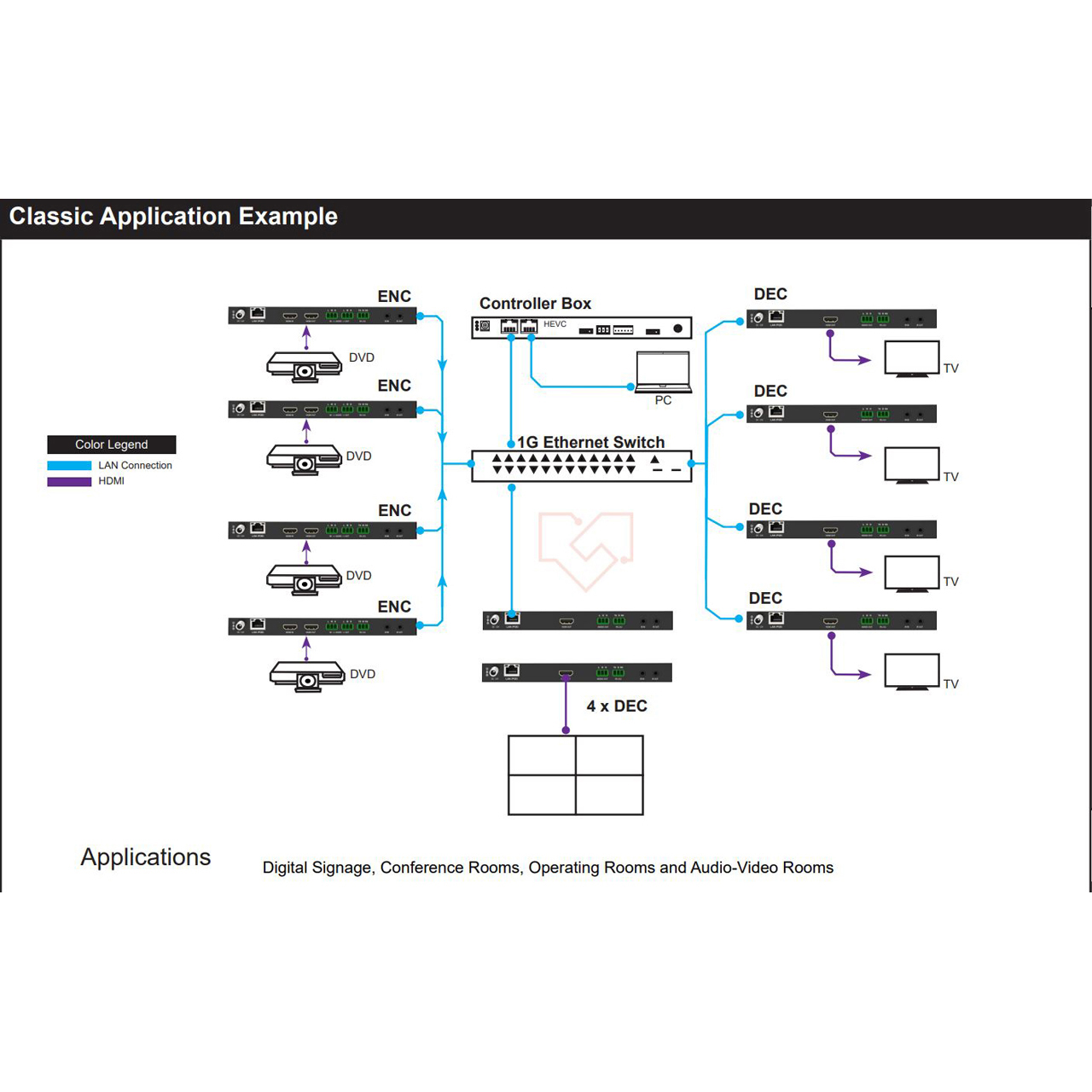

This VigilLink VLIP-H5HDK-EC AV over IP product distributes multiple HD contents to multiple HD display devices over a 100M/1G Network Switch. It offers configurable high quality, low-bandwidth H.265/H.264 configurable compression video and supports resolution up to 1920x1200@60Hz 4:4:4. Signal transmission distance can be extended up to 328ft/100m via CAT5E/6/6A/7 cable. The encoder supports HDMI local loop output. The product supports analog audio embedding and extracting. It also supports USB/KVM function, bidirectional IR/RS-232 control (pass-through & Guest mode), and single-machine control (without a Controller Box, matrix switching can be realized with panel buttons, local IR, or RS-232 control).

  • Features:

    • Standard H.265 Encoding/Decoding 100m/1G managed network switch
    • HDMI 1.4b, HDCP 1.4 compliant
    • Supports up to 1080p @60Hz (4:4:4) and 1920x1200 @60Hz
    • 1080p @60Hz encoding and decoding
    • Supports audio embedding and extracting
    • Supports USB KVM, two-way IR, and RS-232
    • Available with seamless switching, Matrix, and Video Wall
    • Encoder supports HDMI Loop out
    • Encoder built-in H.264 stream for video preview
    • Standard PoE supported (802.3af PD device)
    • Supports Button, IR, RS-232, TCP/IP, Web GUI control
    • Available with security management
    • Works with IP controller box VLIP-H51G-CTRL VLIP-H5HDK-DC - Decoder


  • Specifications:

    • HDMI Compliance: HDMI 1.4
    • HDCP Compliance: HDCP 1.4
    • Video Bandwidth: 4.95Gbps
    • Video Compression Standard: H.265/H.264
    • Transmission Distance: 100m (CAT5E/6/6A/7)
    • IR Level: 12Vp-p (CAT5E/6/6A/7)
    • IR Frequency: Wideband 20 k - 60 KHZ
    • Video Resolution: Up to 1920x1200@60Hz 4:4:4
    • Color Space: RGB (4:4:4), YCbCr (4:4:4), YCbCr (4:2:2)
    • Color Depth: Input: 8-bit, 10-bit, 12-bit (1080p@60Hz)
    • Output: 8-bit
    • Audio Formats: LPCM 2CH (32/44.1/48KHz)

      Connection

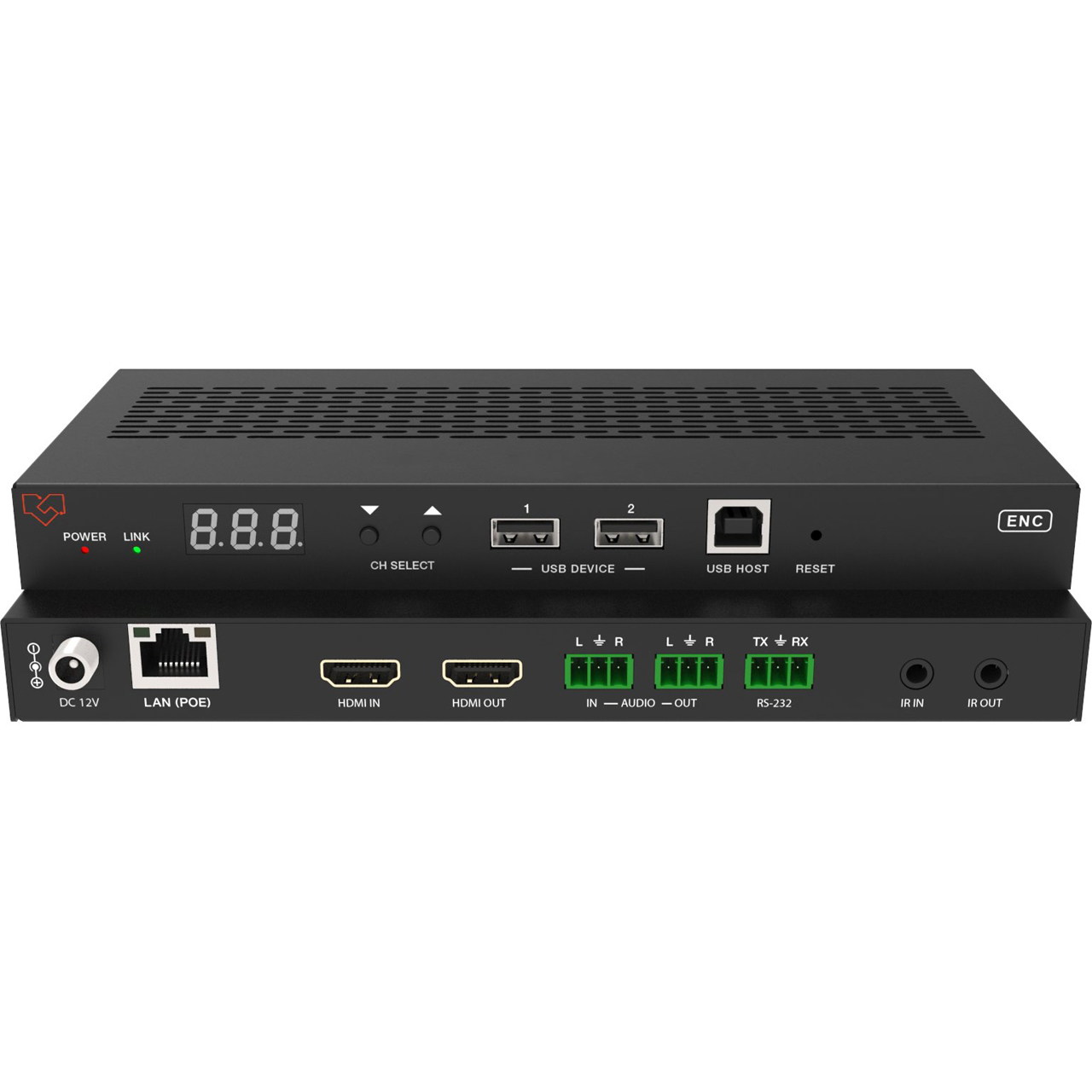

    • Encoder:
      1x HDMI IN [Type A, 19-pin female]
      1x HDMI OUT [Type A, 19-pin female]
      1x AUDIO IN [3-pin phoenix connector]
      1x AUDIO OUT [3-pin phoenix connector]
      1x RS-232 [3-pin phoenix connector]
      1x LAN [RJ45 connector, POE]
      1x IR IN [3.5mm audio jack, 12V IR]
      1x IR OUT [3.5mm audio jack, 12V IR]
      1x USB Host [Type B, 4-pin female]
      2x USB Devices [Type A, 4-pin female]

      Mechanical
    • Housing: Metal enclosure
    • Color: Black
    • Dimensions: 3.74 x 8.03 0.85" (204 x 95 x 21.5mm)
    • Weight: 2lbs (468g)
    • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A
    • Power Consumption: 4.08W
    • Operating Temperature: 14 - 113°F (-10 - 45°C)
    • Storage Temperature: -4 - 140°F (-20 - 60°C)
    • Relative Humidity: 20 - 90% RH (No condensation)


  • Item Includes:

    • 1x 2K60 over IP 100M/1GbE Encoder
    • 3x 3-pin Phoenix Connector (3.81mm, male)
    • 1x IR Blaster Cable (1.5 meters)
    • 1x IR Receiver Cable (1.5 meters)
    • 4x Machine Screw (KM3, 4mm)
    • 2x Mounting Ear
    • 1x 12V/1A Locking Power Adapter
    • 1x User Manual


  • Warranty:

    • 6 Years
