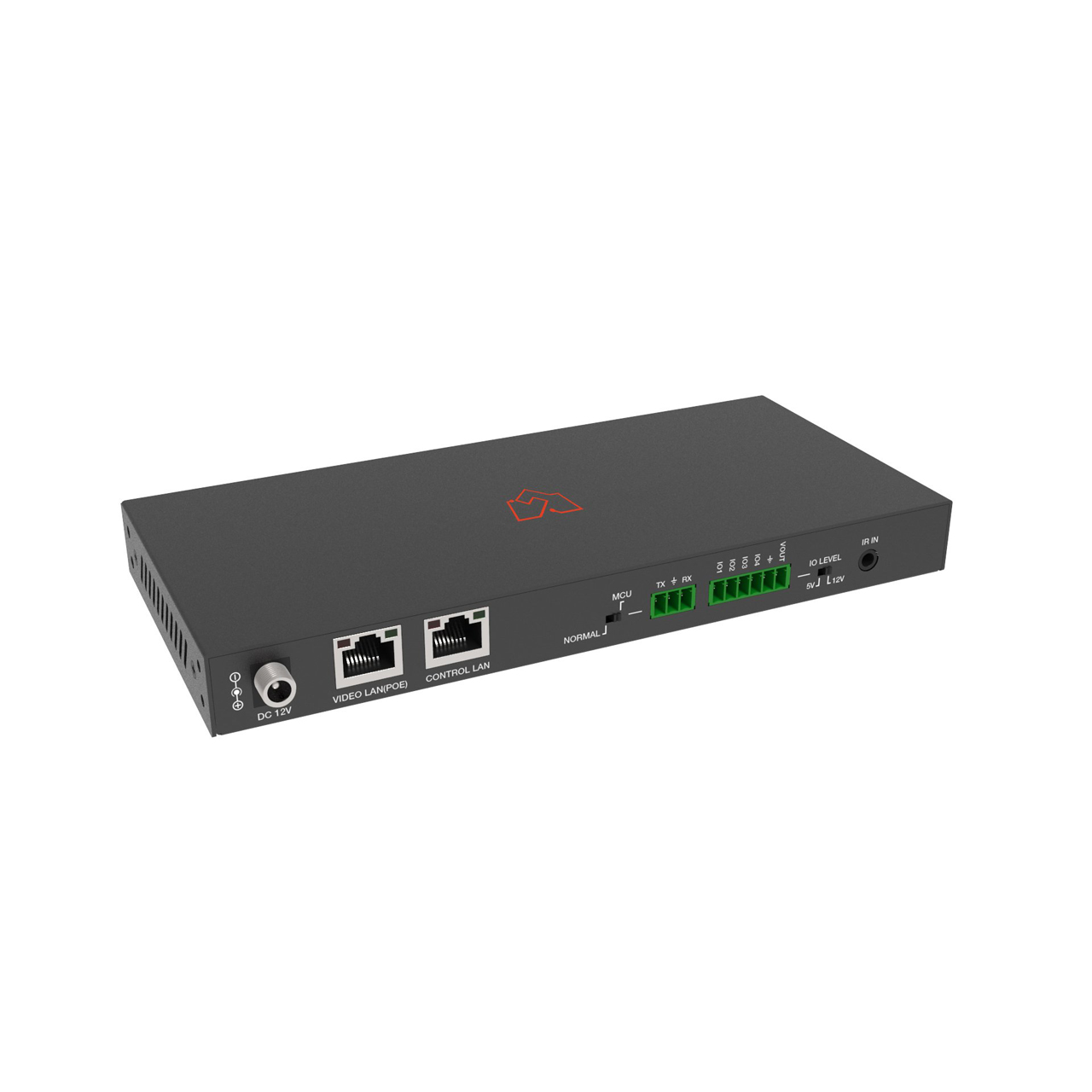

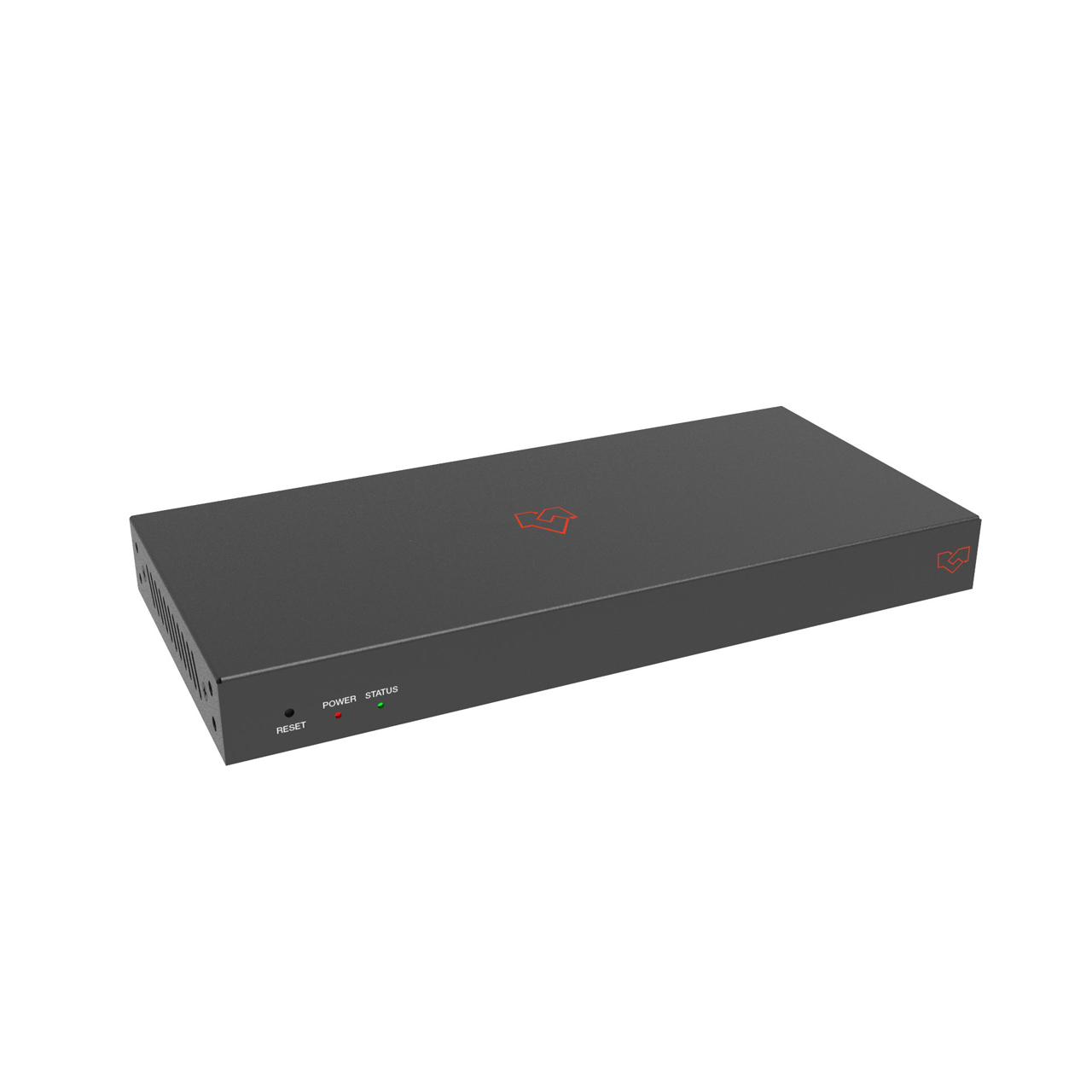

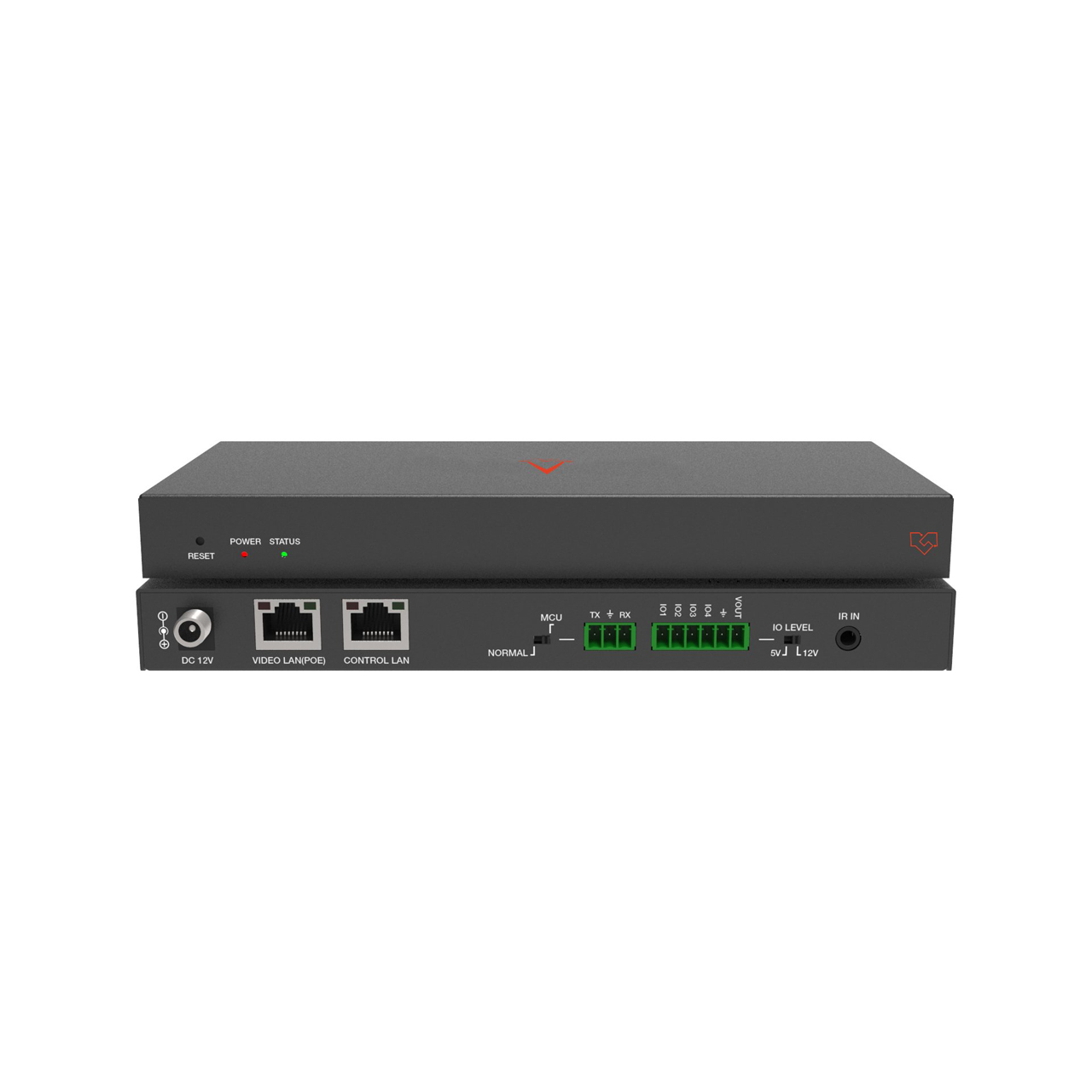

VigilLink VLIP-H51G-CTRL AVoIP H2.65 Controller for VigilLink VLIP-H5HDK-EC and VigilLink VLIP-H5HDK-DC

ITEM #: VGL-VLIPH51GCTRL MFG #: VLIP-H51G-CTRL

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$514.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLIP-H51G-CTRL - Overview

The VigilLink VLIP-H51G-CTRL Video over IP Controller is used to control and manage H.264/H.265 IP products. It supports dual 100M network ports, which can realize dual network isolation of the Control network and Multicast video distribution network. It has its own built-in Web GUI, and TCP and RS-232 control are supported. Supporting POE function and wide band 12V IR signal receiving.

  • Features:

    • Easy to create projects, control, and manage the system
    • HTTPS, SSH security compatible
    • Built-in Web GUI control interface, supporting Drag & Drop operations
    • Supports image preview
    • Supports video, audio, RS-232, IR, KVM control, and management of the distributed system
    • Dual network ports (VIDEO LAN port supports POE function) to isolate
    • Controls and Multicast networks.
    • Supports LAN/RS-232 port control and third-party central control
    • Supports IR signal receiving (3.5mm audio jack, 12V level)
    • 4 channel GPIO control ports (5V/12V optional level)
    • Multiple circuits protection, lightning protection, and ESD design
    • Reliable system design, ensuring 24/7 usage


  • Specifications:

    • Network Bandwidth: 100M
    • Transmission Distance: 100m CAT 5E/6/6A/7
    • Control Ports:
      - 2x 100M LAN [RJ45 connector] [VIDEO LAN support POE]
      - 1x IR IN [3.5mm audio jack, 12V level]
      - 1x DIGITAL I/O [6-pin 3.81mm phoenix connector]
      - 1x RS-232 [3-pin 3.81mm phoenix connector]
    • Dimensions: 3.86 x 8.03 0.83" (204 x 98 x 21mm)
    • Housing: Metal Enclosure
    • Color: Black
    • Weight: 2.20lbs (509g)
    • Power Supply: 12V/1A
    • Power Consumption: 4.5W
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (No condensation)


  • Item Includes:

    • 1x Video over IP Controller
    • 1x 20kHz-60kHz 12V IR Receiver Cable (1.5 meters)
    • 1x 3-pin 3.81mm Phoenix Connector (Male)
    • 1x 6-pin 3.81mm Phoenix Connector (Male)
    • 2x Mounting Ears
    • 4x Machine Screws (KM3*6)
    • 1x 12V/1A Locking Power Adaptor
    • 1x User Manual


  • Warranty:

    • 6 Years
