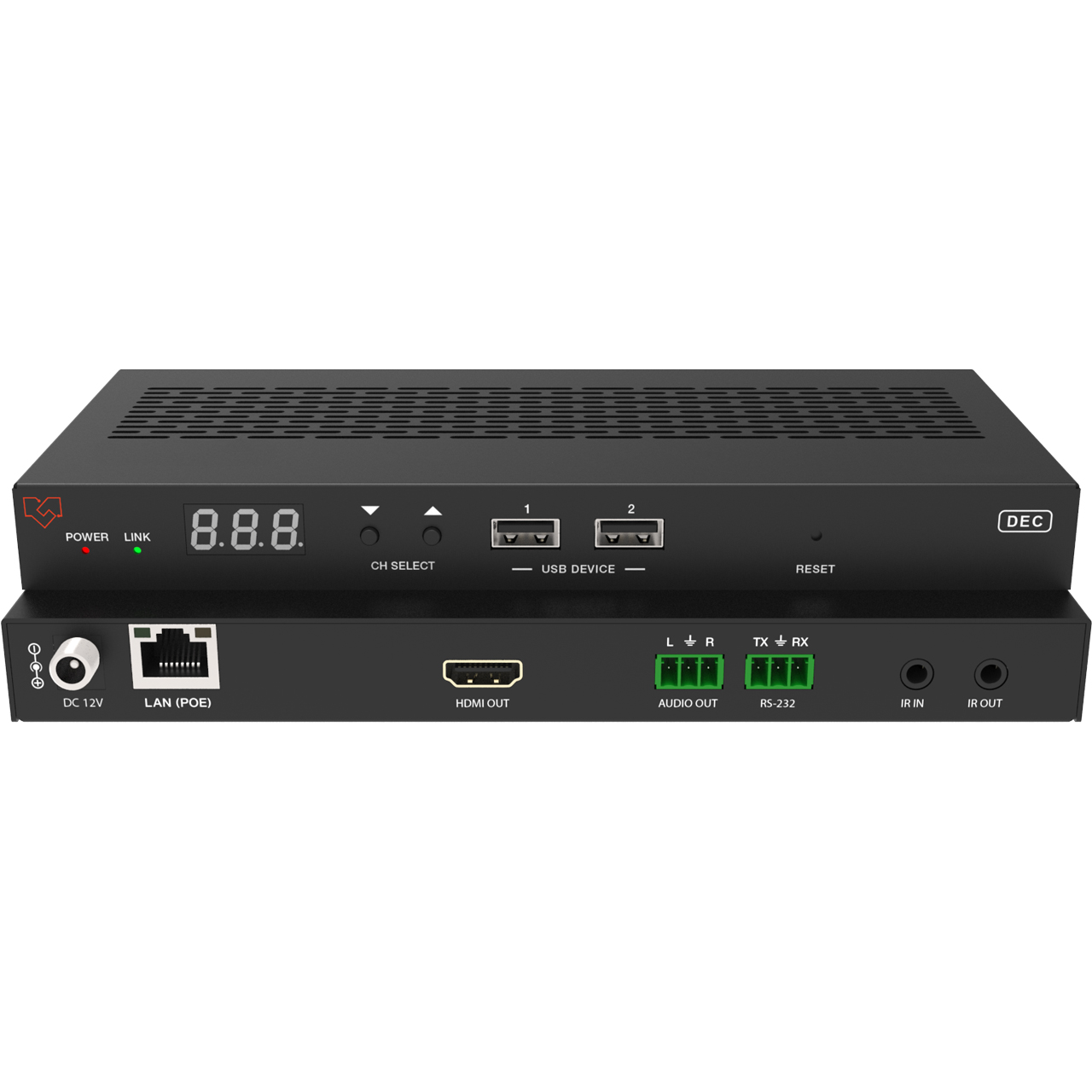

VigilLink VLIP-H5HDK-DC 1G H.265 1080p@60HZ AVoIP Receiver with Videowall Processing / KVM / IR

VLIP-H5HDK-DC - Overview

• Features:

  • HDMI 1.4 and HDCP 1.4 compliant
  • Video resolution up to 1920x1200@60Hz 4:4:4
  • Supports 4.95Gbps video bandwidth
  • Signal transmission distance can be extended up to 328ft / 100m via CATE/6/6A/7 cable
  • Supports point-to-point signal extension
  • Supports signal distribution, multicast mode, distributed matrix, and video wall (up to 9x9) functions over a 1G Network Switch mode)
  • Intelligent video wall class management makes it achievable for wall-in-wall or novel layout of wall configurations
  • Support LPCM 2.0CH (32/44.1/48KHz) audio format
  • The encoder supports HDMI local loop output
  • Supports audio embedding and extracting
  • Supports USB/KVM function (one to one & one too many), and bidirectional
  • IR/RS-232 control (pass-through & Guest
  • Support mainstream and Substream encoding modes
  • Stream parameters can be set via API commands
  • Controlled via panel buttons, IR, RS-232, TCP/IP, Web GUI and Controller Box
  • Supports POE function (802.3af Class 3, PD mode)
  • Smart networking design for easy and flexible installation


• Specifications:

  • HDMI Compliance: HDMI 1.4
  • HDCP Compliance: HDCP 1.4
  • Video Bandwidth: 4.95Gbps
  • Video Compression Standard: H.265/H.264
  • Transmission Distance: 100m (CAT5E/6/6A/7)
  • IR Level: 12Vp-p (CAT5E/6/6A/7)
  • IR Frequency: Wideband 20 k - 60 KHZ
  • Video Resolution: Up to 1920x1200@60Hz 4:4:4
  • Color Space: RGB (4:4:4), YCbCr (4:4:4), YCbCr (4:2:2)
  • Color Depth: Input: 8-bit, 10-bit, 12-bit (1080p@60Hz), Output: 8-bit
  • Audio Formats: LPCM 2CH (32/44.1/48KHz)

    Connection

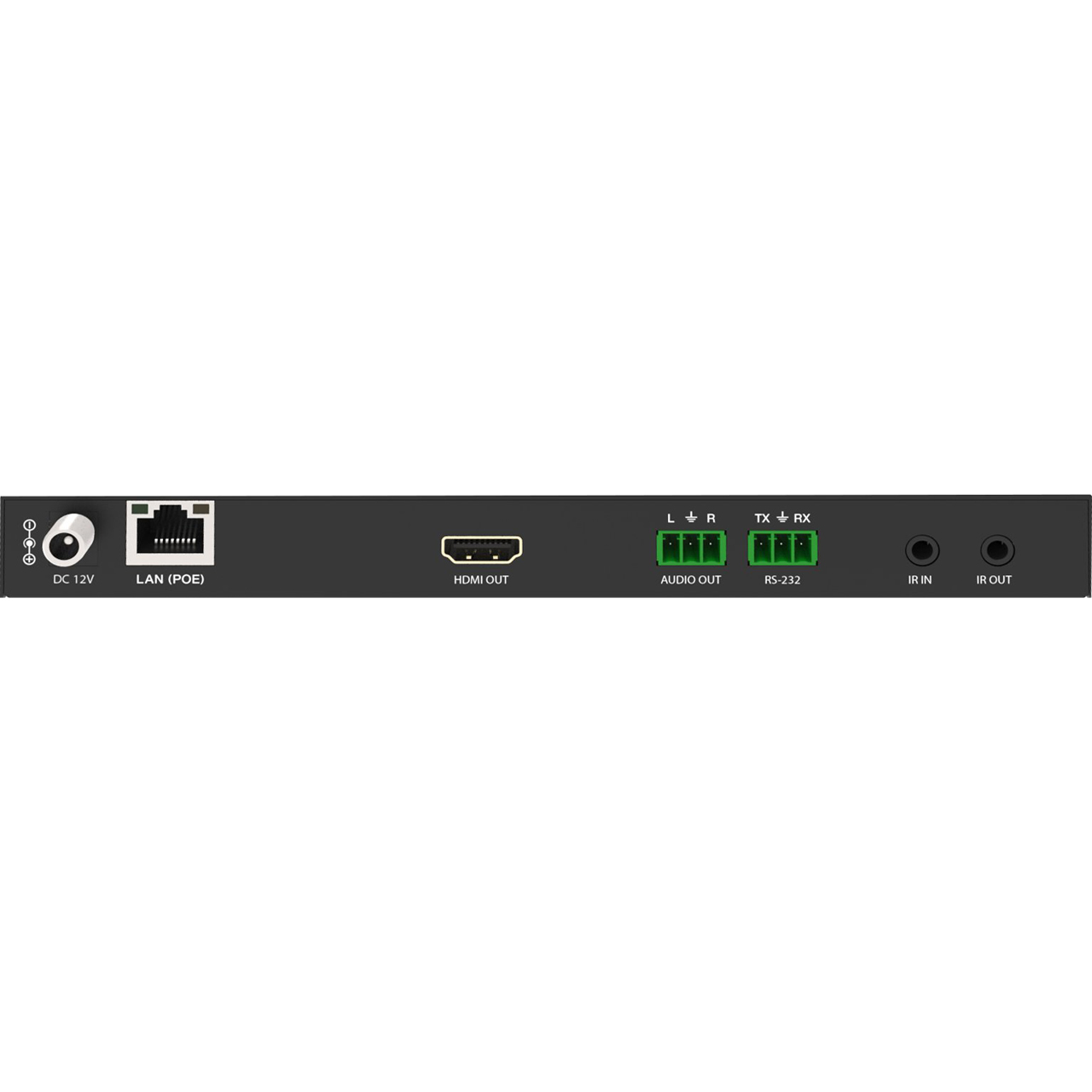

  • Encoder:
    1x HDMI OUT [Type A, 19-pin female]
    1x LAN [RJ45 connector, POE]
    1x AUDIO OUT [3-pin phoenix connector]
    1x RS-232 [3-pin phoenix connector]
    1x IR IN [3.5mm audio jack, 12V IR]
    1x IR OUT [3.5mm audio jack, 12V IR]
    2x USB Devices [Type A, 4-pin female]nbsp

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 3.74 x 8.03 0.85" (204 x 95 x 21.5mm)
  • Weight: 2lbs (468g)
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A
  • Power Consumption: 4.08W
  • Operating Temperature: 14 - 113°F (-10 - 45°C)
  • Storage Temperature: -4 - 140°F (-20 - 60°C)
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 2K60 over IP 100M/1GbE Decoder
  • 2x 3-pin Phoenix Connector (3.81mm, male)
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Receiver Cable (1.5 meters)
  • 4x Machine Screw (KM3, 4mm)
  • 2x Mounting Ear
  • 1x 12V/1A Locking Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
