Belden 9534 CMG Rated Computer EIA RS-232 Cable SR-PVC 4x24AWG TC - Chrome - 500 Ft

Name: Belden 9534 CMG Rated Computer EIA RS-232 Cable SR-PVC 4x24AWG TC - Chrome - 500 Ft
Brand: Belden
SKU: BL-9534-500
Price: 649.87 USD
Availability: PreSale

ITEM #: BL-9534-500 MFG #: 9534 060500

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$728.75

Our Price:

$649.87

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9534 060500 - Overview

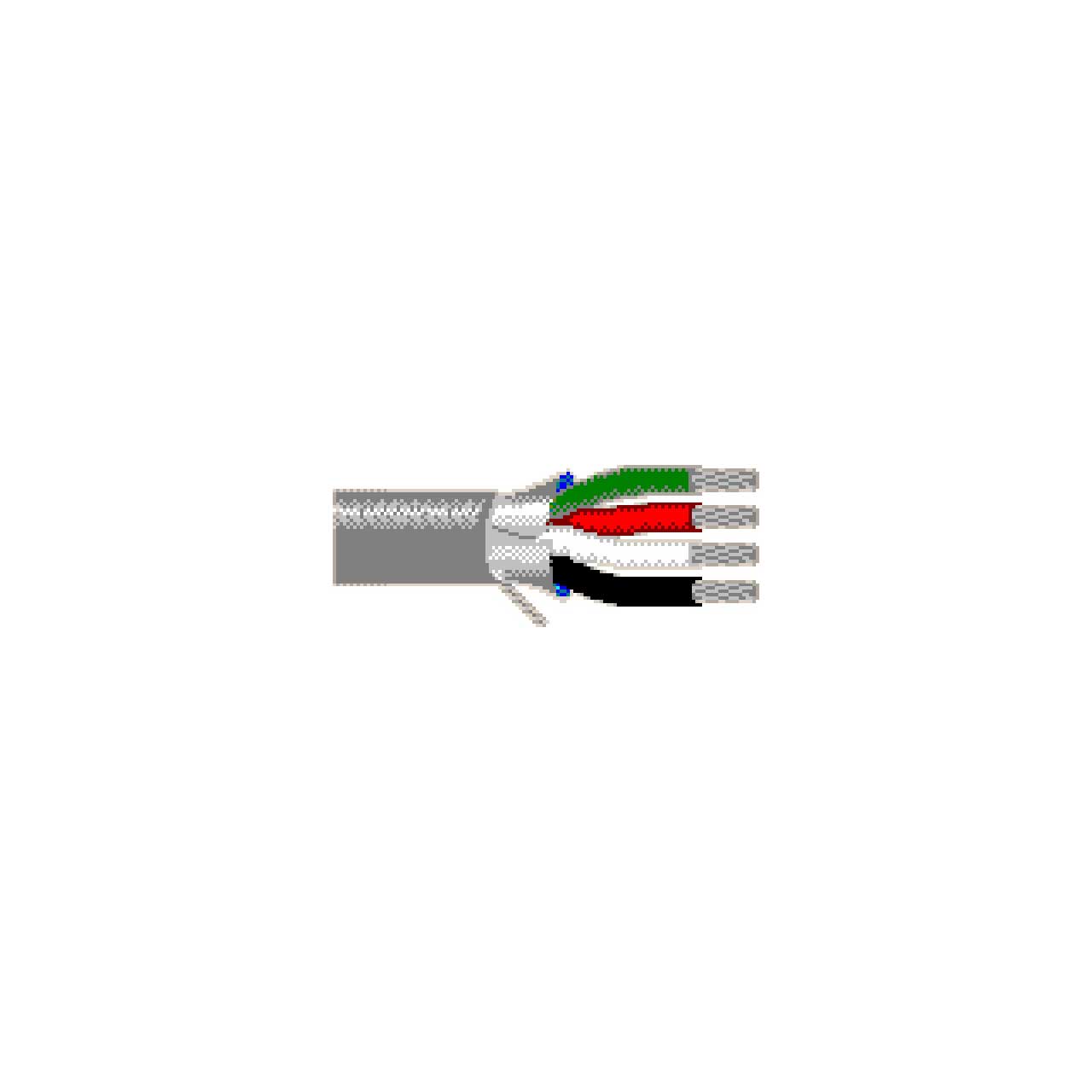

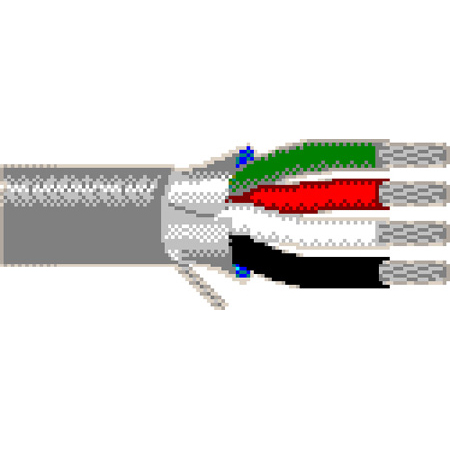

Belden 9534 is a Computer EIA RS-232 Cable. It features 4, 24 AWG stranded (7x32) tinned copper conductors, with PVC insulation in an overall Beldfoil® shield (100% coverage) with a 24 AWG stranded tinned copper drain wire, in an SR (Semi-Rigid) PVC jacket.

With proven reliability and performance backed by a 10-year no-cost warranty, these utility-grade essentials will outlast alternative options-even in the most demanding environments.

Applications
RS-232 Applications
Computer Communications
Low Voltage Analog Signals (4-20mA, 0-10V, ...)
Low Voltage Digital Control (24V, .)
Line Level Audio; Panel Wiring

Features:
- Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
- Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
- Lower Capacitance: Strong signal transmission over extended distances
- Increased Flexibility: Finely stranded conductors offer easier installation
Specifications:
- Conductor Element: Conductor(s)
- Total Number of Element: 4
- Conductor Size: 24 AWG
- Stranding: 7x32
- Conductor Material: TC - Tinned Copper
- Insulation Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
- Insulation Nom. Thickness: 0.011 in (0.28 mm)
- Nom. Insulation Diameter: 0.044 in (1.1 mm)
- Insulation Color Code: Black, White, Red, Green
- Outer Shield Type 1: Tape - Bi-Laminate (Alum+Poly) - 100%
- Outer Shield Drainwire Type: 24 AWG (7x32) TC
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Thickness: 0.032 in (0.81 mm)
- Outer Jacket Nom. Diameter: 0.184 in (4.67 mm)
- Overall Cable Diameter (Nominal): 0.184 in (4.67 mm)
- UL Voltage Rating:300 V (CMG), 300 V (UL AWM 2464)
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Item Includes:
- 9534 CMG Rated Computer EIA RS-232 Cable SR-PVC 4x24AWG TC - Black - 500 Ft
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825255123

9534 060500 - Recommended Accessories

Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell
C9PSM
Our Price: $7.33
LXS31 In-line 3-Pin DIN Male Cable End Connector
LXS31
Our Price: $3.35
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
SpoolMaster CC Wire Spool Cart Caddy
SPMA-CC
Our Price: $310.00
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

9534 060500 - Reviews

9534 060500 - Attachments

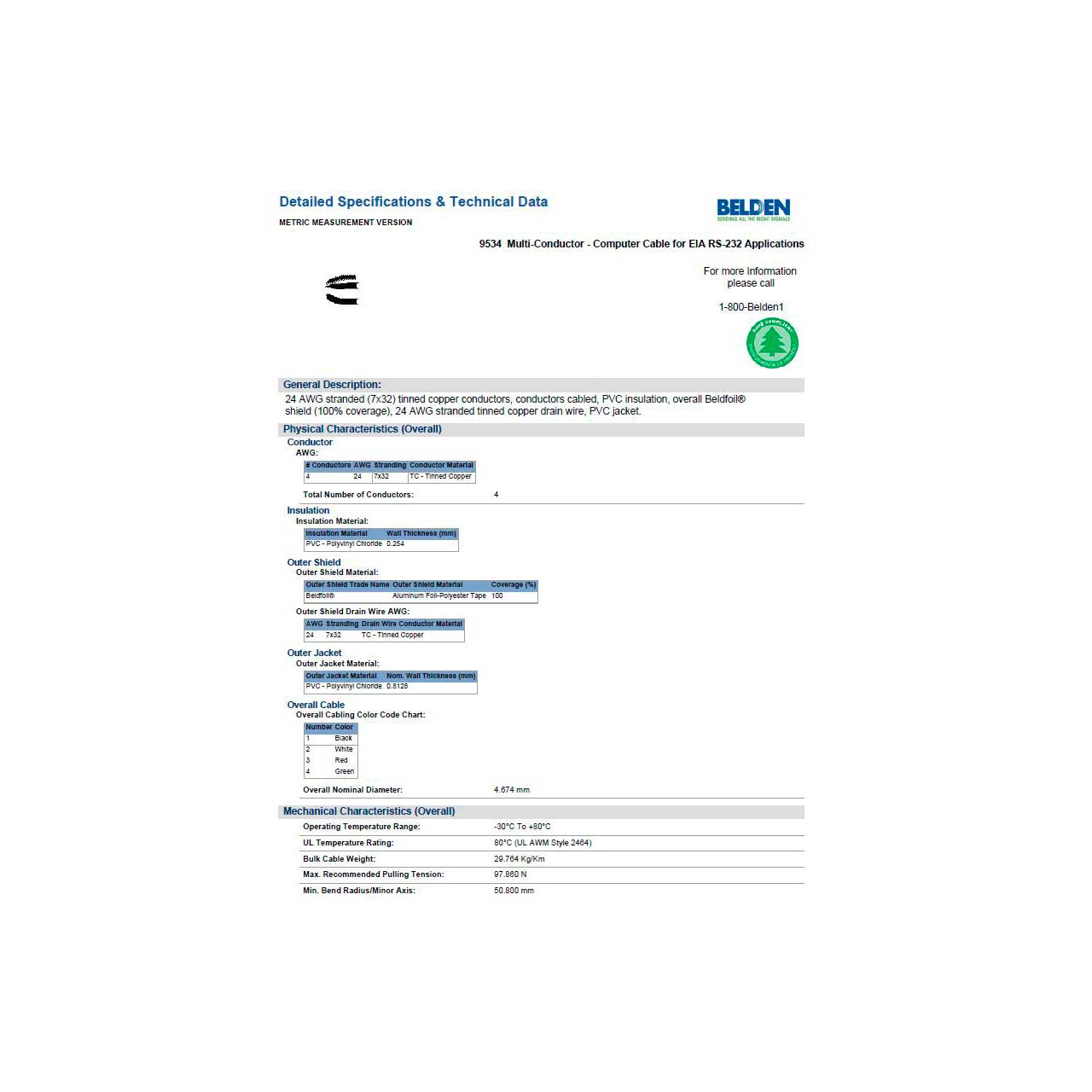

9534 Spec Sheet
