Sescom 22AWG Balanced Analog Audio Cable 3-Pin XLR Female to 3-Position Pluggable Phoenix Plug - 1 Foot

ITEM #: SES-ACON-6001 MFG #: SES-ACON-6001

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$18.95

Our Price:

$17.49

Availability: In Stock
iAvailability Description Popup


SES-ACON-6001 - Overview

Make the quick connection between your 3-pin phoenix jacks and standard XLR mics and snakes with the Sescom ACON 6000 series of XLR to 3-pin pluggable phoenix block adapter cables. Perfect for quick integration of snake cables to front of house mixers and installed mic mixers featuring 3-pin terminal block jacks. Also great as a mating cable between the Shure SCM800.

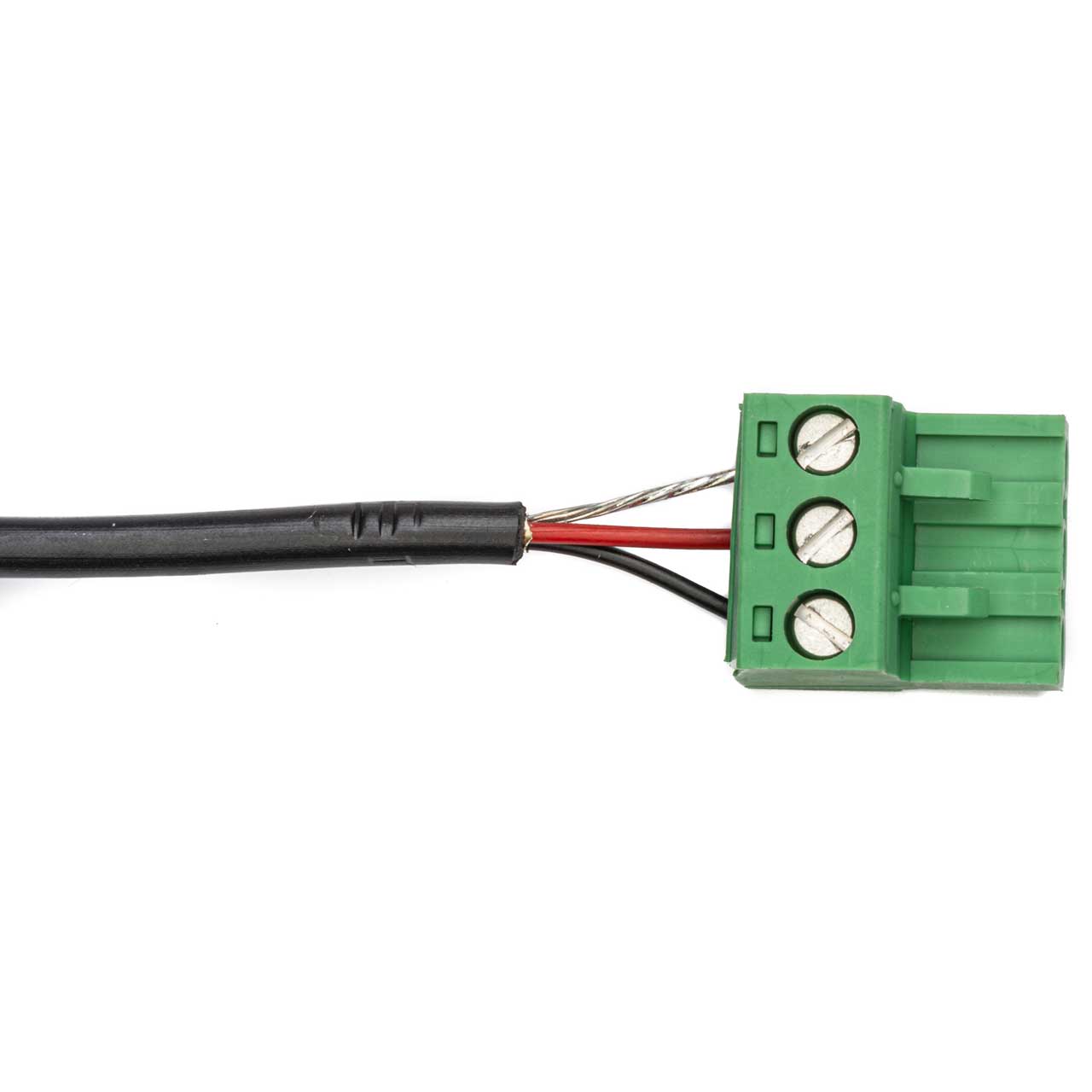

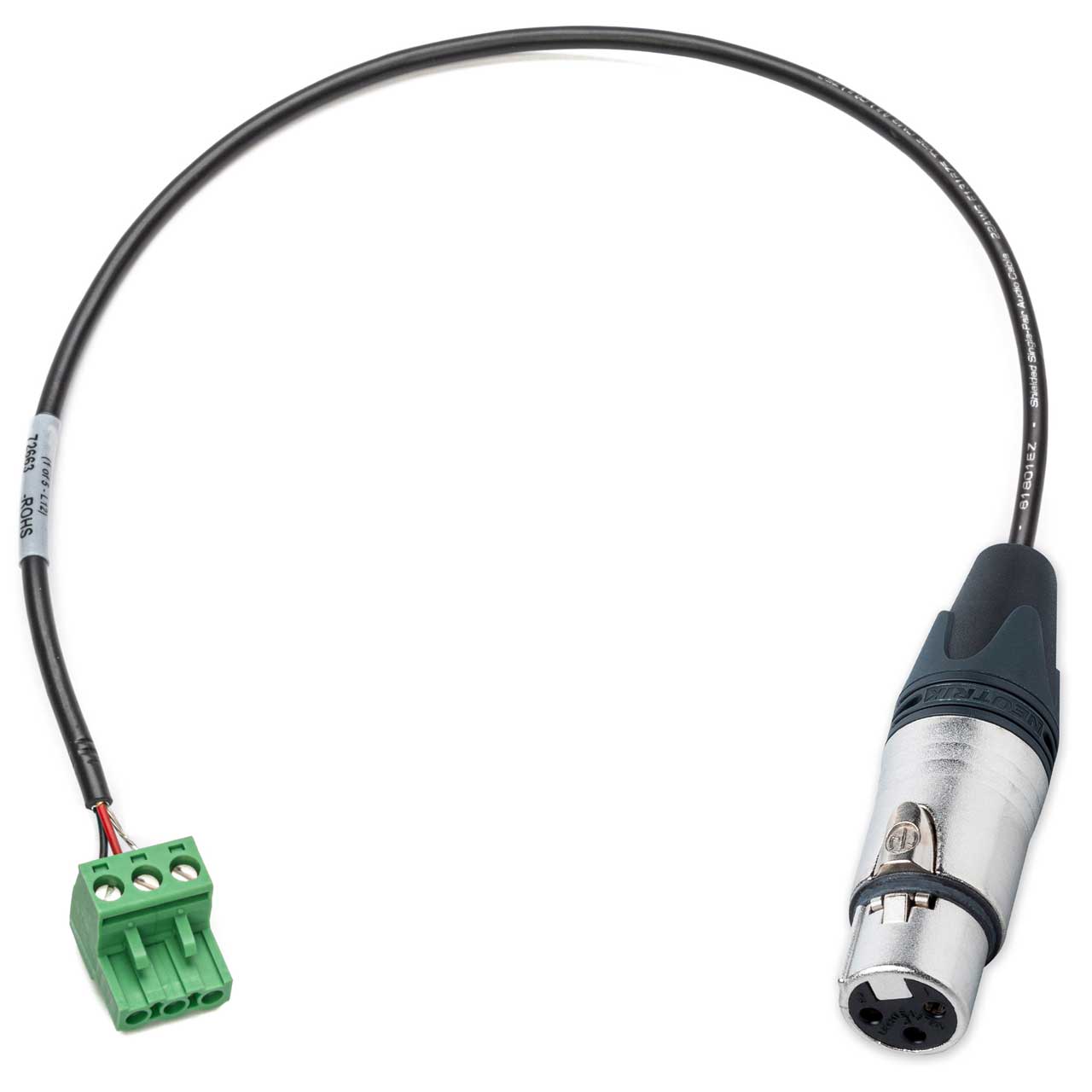

The Sescom ACON 6000 series features stripped and tinned leads terminated into a 3-pin pluggable phoenix connector on one end and a Neutrik 3-pin female XLR on the opposite end. A one-foot tail provides plenty of flexibility for seamless integration. The SES-ACON-6003 and SES-ACON-6004 each have a mating set of 3-pin Phoenix connectors that offer simplified termination for either standard or inverse Phoenix plugs for even more applicational flexibility. Hand crafted in our shop and ready for install!

  • Features:

    • Easy Adapters for Audio Installations
    • No Soldering Required
    • 3 Stripped and Tinned Leads
    • One-foot Tails Offer More Flexibility
    • Rugged Neutrik XLR Connector to 3 Position Pluggable Terminal Block
    • 22 AWG Balanced Analog Audio CMR Cable
    • Low Attenuation & Superior Noise Rejection

  • Specifications:

    • Gepco Audio Cable:
    • Nom O.D: 0.138in (3.51mm)
    • Insulation Material: PE
    • Insulation Thickness: 0.008in (0.203mm)
    • Shield Material/Coverage: Foil/100%
    • Jacket Material: PVC
    • Capacitance between conductors: 26 pF/ft
    • Capacitance between conductor to shield: 48 pF/ft
    • Conductor DCR: 15.3 Ω/Mft

      Neutrik Connectors:
    • Capacitance between contacts: ≤ 4 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 10 GΩ (initial)
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles

      Phoenix Connector:
    • Pitch: 5.08 mm
    • Contact Resistance: 1.3 mΩ
    • Nom Voltage: 320 V

  • Warranty:

    • 1 Year
