AVMATRIX SC1221-12G HDMI 2.0 to 12G-SDI 4K60 Broadcast Converter

Name: AVMATRIX SC1221-12G HDMI 2.0 to 12G-SDI 4K60 Broadcast Converter
Brand: AVMATRIX
SKU: AVMX-SC1221-12G
Price: 199.00 USD
Availability: PreSale

ITEM #: AVMX-SC1221-12G MFG #: SC1221-12G

AVMATRIX

List Price:

$219.00

Our Price:

$199.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SC1221-12G - Overview

Effortlessly Converting 4KBbroadcast Quality, Bringing Every Frame to Life with Unmatched Clarity

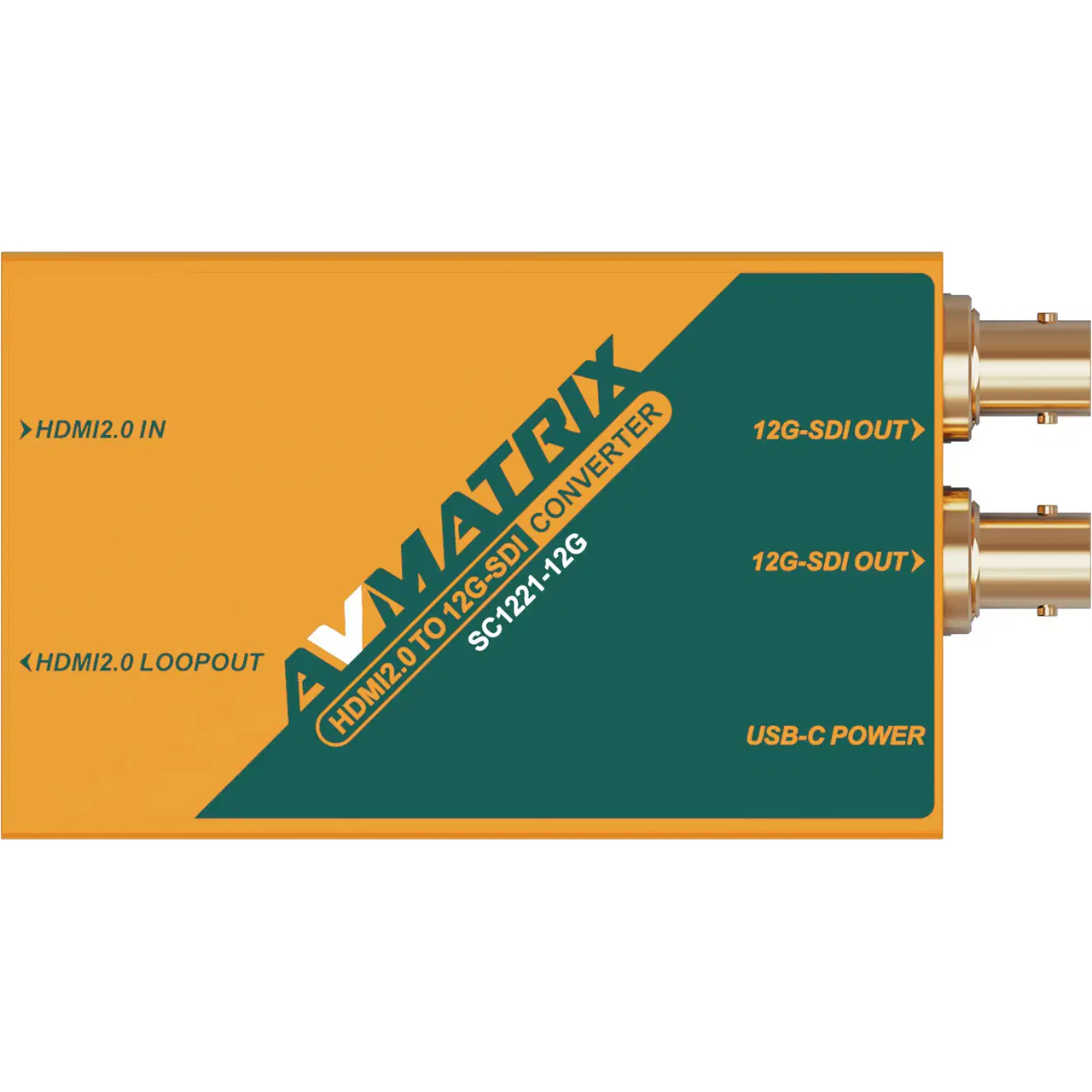

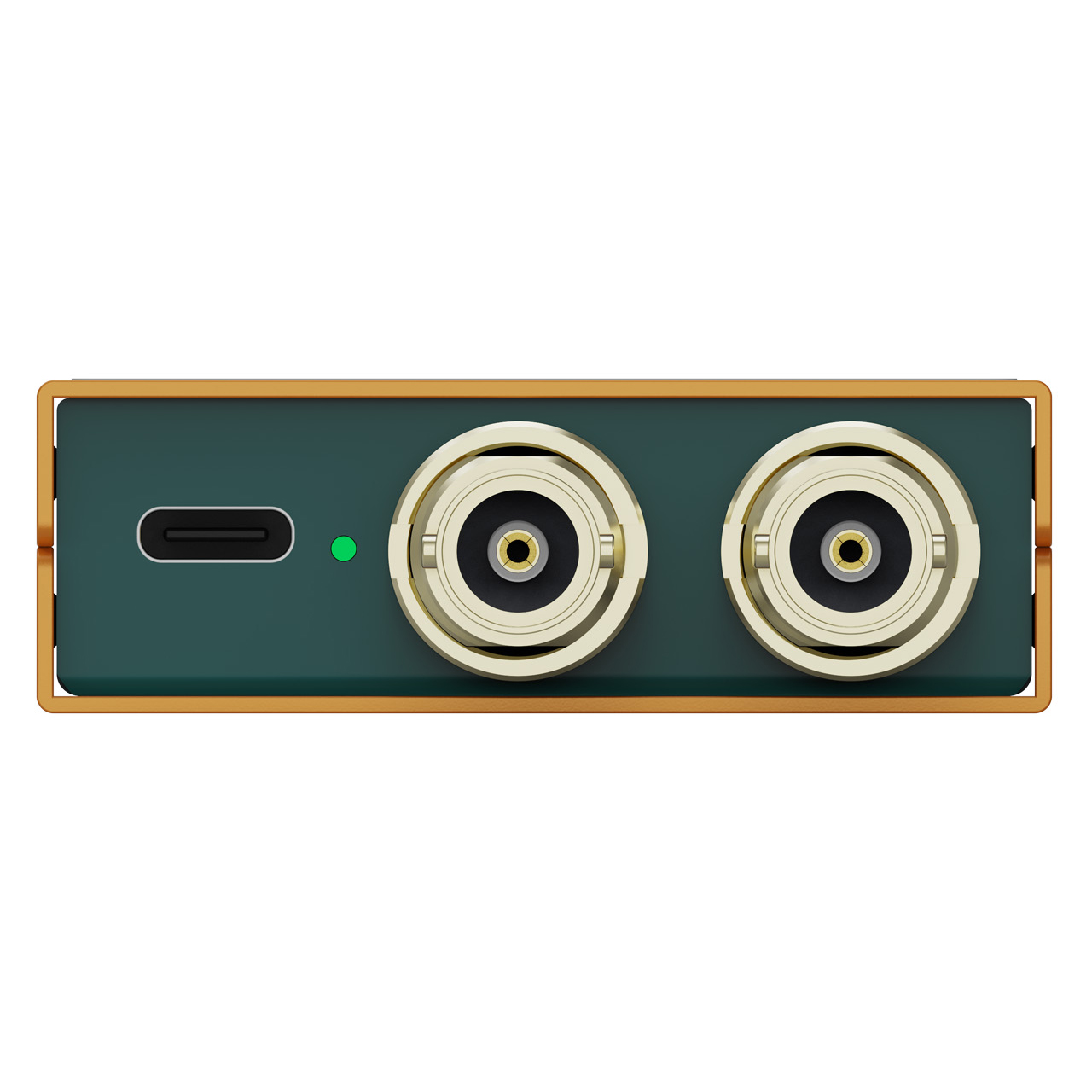

The AVMATRIX SC1221-12G comes with one 4K HDMI input and two 12G-SDI outputs, supporting HD/3G/6G/12G-SDI video formats. There are two SDI outputs to meet the needs of multiple devices monitoring the same picture at the back end.

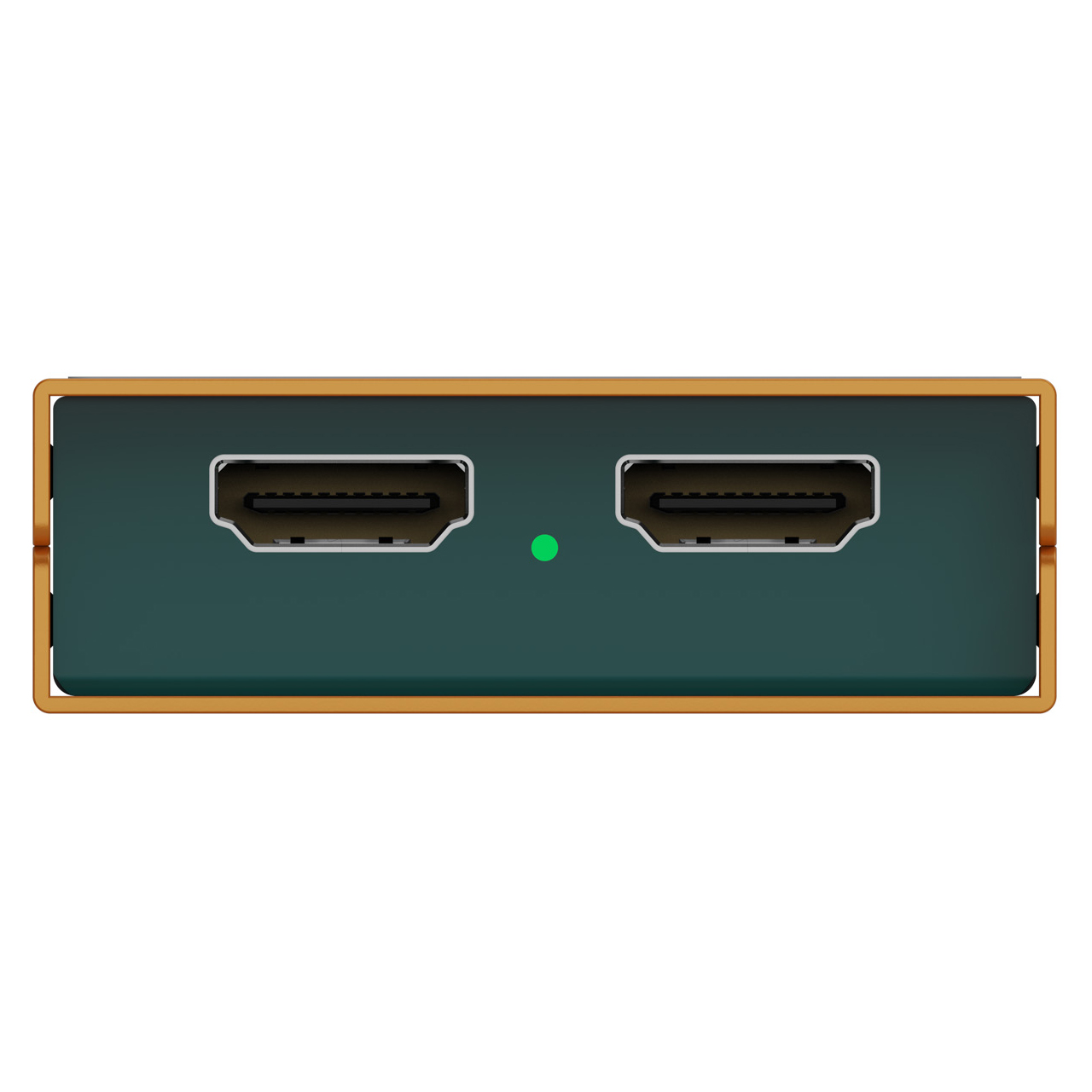

The converter has a 4K HDMI loop-out that can transmit the 4K HDMI video to an addintional display. There are also SDI outputs for user to monitor simultaneously.

The converter features advanced auto-detection technology, seamlessly matching your HDMI input to the SDI output. It supports a wide range of input and output resolutions, including crystal clear 4K@60 (4096x2160).

Features:
- 4K HDMI to 12G-SDI Convert & Split
- 4K HDMI Loop-out
- Up to 4K60 resolution
- USB Type-C Power
- Video & power signal LED indicators
Specifications:
- Input
- HDMI Video Input: 1x HDMI 2.0

  Output
- SDI Video Output: 2x HD/3G/6G/12G-SDI
- HDMI Video Loop Output: 1x HDMI 2.0

  SDI Formats
- SDI Output Format Support:
  - (12G) 4096x2160p 60/59.94/50
  - (12G) 3840x2160p 60/59.94/50
  - (6G) 4096x2160p 30/29.97/25/24/23.98
  - (6G) 3840x2160p 30/29.97/25/24/23.98
  - (HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
  - (HD) 1920x1080i 60/59.94/50
  - (HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
- SDI Video Rate: HD/3G/6G/12G-SDI
- SDI Compliance: SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M
- SDI Color Space and Precision: YCbCr4:2:2 10bits

  HDMI Formats
- HDMI Input Format:
  - (4K) 4096x2160p 60/59.94/50/30/29.97/25/24/23.98
  - (4K) 3840x2160p 60/59.94/50/30/29.97/25/24/23.98
  - (HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
  - (HD) 1920x1080i 60/59.94/50
  - (HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
- HDMI Color Space and Precision:
  - (4K) RGB 4:4:4 8bits
  - (4K) YCbCr 4:2:2 8bits, 10bits, 12bits
  - (4K) YCbCr 4:4:4 8bits
  - (4K) YCbCr 4:2:0 10bits, 12bits
  - (HD) RGB 4:4:4 8bits, 10bits, 12bits
  - (HD) YCbCr 4:2:2 8bits, 10bits, 12bits
  - (HD) YCbCr 4:4:4 8bits, 10bits, 12bits
  - (HD) YCbCr 4:2:0 8bits, 10bits, 12bits
- HDMI Compliance: CTA-861-G

  Power
- Power: USB Type-C
- Power Consumption: ≤6.5W (5V 1.3A)
- Voltage Range: 5V

  Physical
- Dimension (LxWxH): 4.23" x 2.28" x .74" (107.6mm x 58mm x 19mm)
- Weight: 0.518lbs (235g)
- Operating Temperature: 32°F - 140°F (0°C - 60°C)
- Storage Temperature: 0% - 90% non-condensing
Item Includes:
- 1x AVMATRIX SC1221-12G HDMI 2.0 to 12G-SDI 4K Broadcast Converter
Warranty:
- 2 Year Limited Warranty
GTIN:
6950821602825
