AVMATRIX SE2017 SDI/HDMI High-Definition Encoder and Recorder with USB-C Capture

ITEM #: AVMX-SE2017 MFG #: SE2017

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AVMATRIX
Free Shipping with $49 Minimum Order

List Price:

$369.00

Our Price:

$349.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SE2017 - Overview

Record, stream and capture!

The AVMATRIX SE2017 is a high-definition audio and video encoder that can compress and encode SDI and HDMI video and audio sources into IP streams. These streams can then be transmitted to a streaming media server via a network IP address for live broadcasting on platforms such as Facebook, YouTube, Ustream, Twitch,and Wowza. It also supports USB and SD card recording feature, and it provides SDI and HDMI video source loop-out for easy monitoring on another monitor.

Excellent Recording
Experience exceptional recording flexibility with this encoders integrated recorder. Record professional-grade video (up to 1080p60Hz, 32Mbps) onto USB or an SD card, eliminating the need for an external setup.

Multi-Platform Live Streaming
This ecoder adapts to your needs with support for multiple streaming protocols such as RTSP, RTMP(s), SRT, and HTTP-FLV.

Share your content with up to 6 platforms simultaneously using both main and sub-streams.

  • Features:

    • Record, stream and capture multi-function three-in-one
    • HDMI and SDI inputs and loopout
    • Line audio input embedded
    • Encoding bit rate up to 32Mbps
    • USB/SD card recording, MP4 and TS file format, up to 1080P60
    • Multiple streaming protocols: HTTP, RTSP, RTMP, UDP, SRT
    • USB-C capture, support up to 1080P60
    • Supports POE and DC power


  • Specifications:

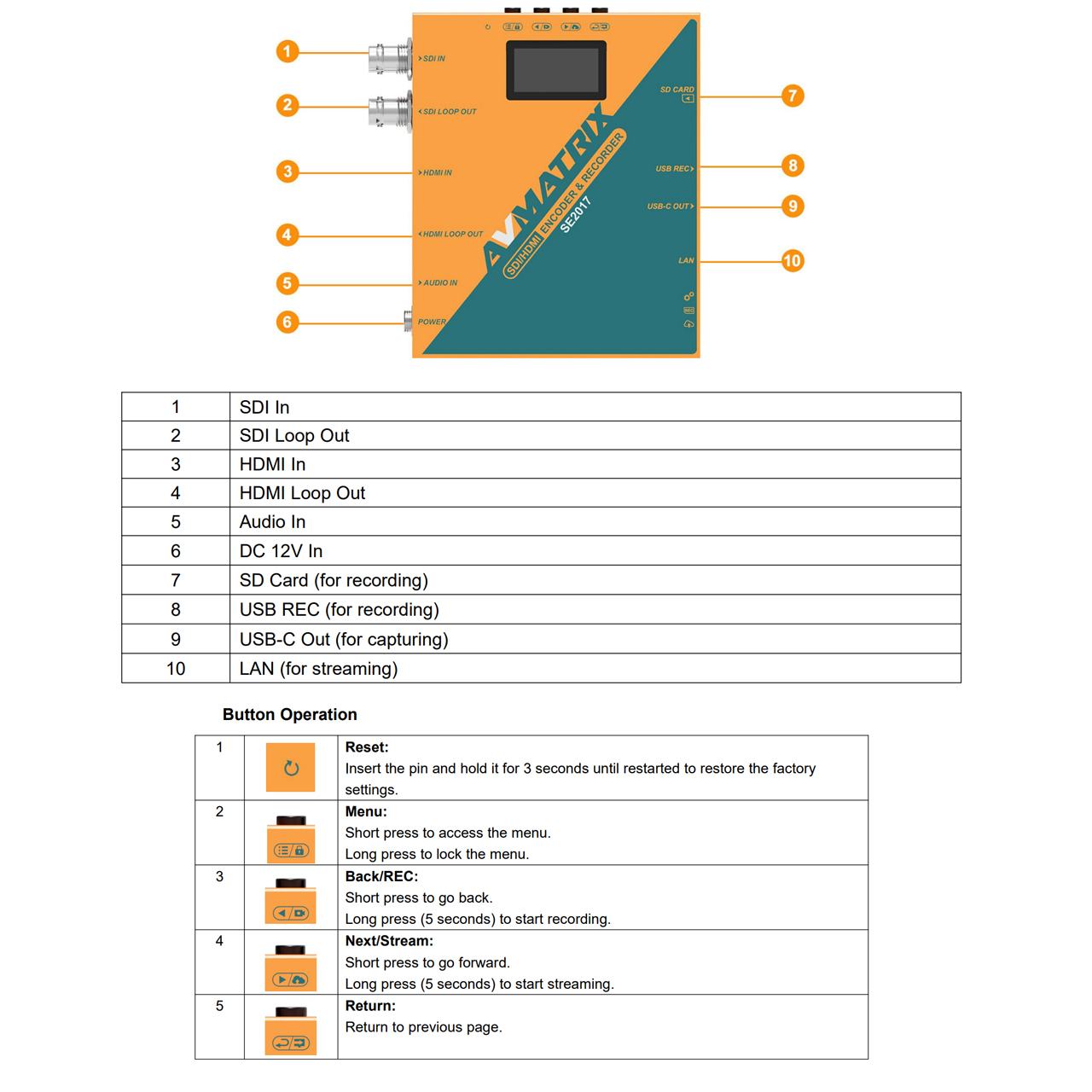

      Connections
    • Video Input:
      - x1 HDMI Type A
      - x1 SDI
    • Video Loop Out:
      - x1 HDMI Type A
      - x1 SDI
    • Analog Audio In: x1 3.5mm (line in)
    • Network: x1 RJ-45 (100/1000Mbps self-adaptive Ethernet)

      Record
    • REC SD Card Format: FAT32/exFAT/NTFS
    • REC U Disk Format: FAT32/exFAT/NTFS
    • REC File Segment: 1/5/10/20/30/60/90/120mins
    • Recording Storage: SD Card/USB Disk

      Standards
    • HDMI In Format Support:
      - 1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1080i 50/59.94/60
      - 720p 60/59.94/50/30/29.97/25/24/23.98
      - 576i 50, 576p 50
      - 480p 59.94/60
      - 480i 59.94/60
    • SDI In Format Support:
      - 1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1080i 50/59.94/60
      - 720p 60/59.94/50/30/29.97/25/24/23.98
      - 525i 59.94
      - 625i 50
    • USB Capture Out: Up to 1080p 60Hz
    • Video Bitrate: Up to 32Mbps
    • Audio Coding: ACC
    • Audio Encoding Bitrate: 64/128/256/320kbps
    • Encoding Resolution: 1920x1080, 1280x720, 720x480
    • Encoding Frame Rate: 24/25/30/50/60fps

      Systems
    • Network Protocols: RTSP, RTMP(S), SRT(LAN), HTTP-FLV, Unicast, Multicast
    • Configuration Management: Web configuration, Remote upgrade

      Others
    • Power: DC 12V 0.38A, 4.5W
    • PoE Support: PoE(IEEE802.3 af), PoE+(IEEE802.3 at), PoE++(IEEE802.3bt)
    • Temperature:
      - Working: -4°F - 140°F (-20°C - 60°C)
      - Storage: -22°F - 158°F (-30°C - 70°C)
    • Dimension (LxWxD): 4.09" x 4.92" x 0.96" (104mm x 125.5mm x 24.5mm)
    • Weight:
      - Net Weight: 1.21lbs (550g)
      - Gross Weight: 2lbs (905g)
    • Accessories: 12V 2A power supply


  • Item Includes:

    • 1x AVMATRIX SE2017 SDI/HDMI Encoder & Recorder
    • 1x 12V 2A power supply
