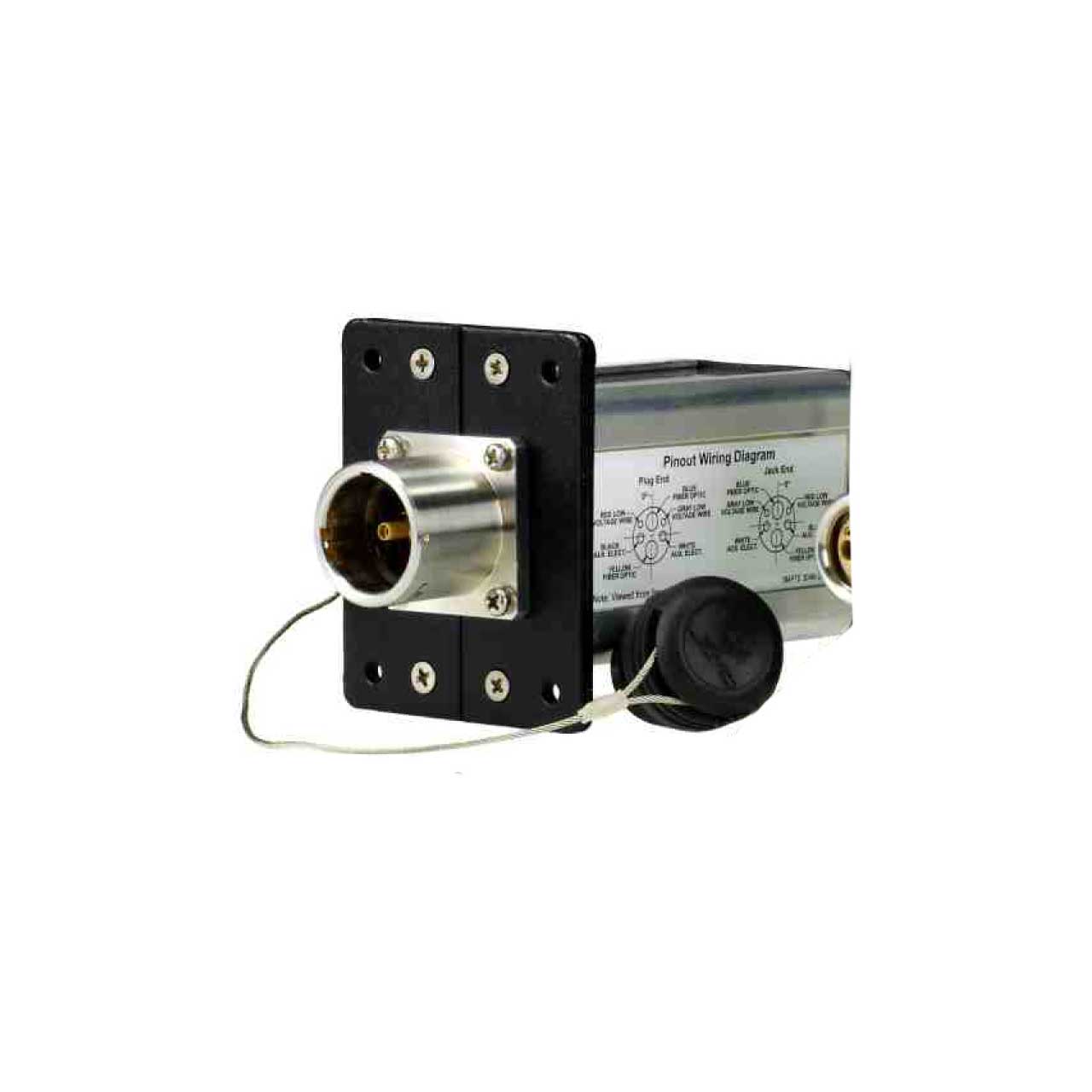

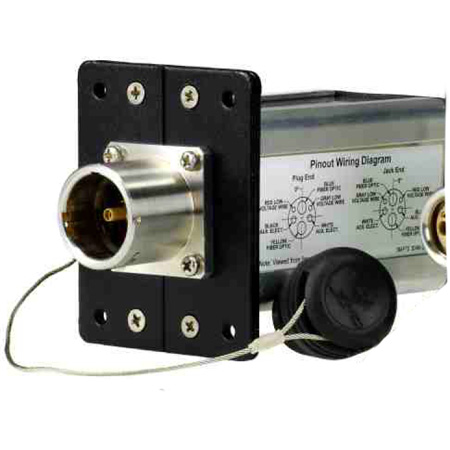

AVP MB8FM-LS-LC Module - LEMO Socket SMPTE 304M Camera Connector - Square Flange

MB8FM-LS-LC - Overview

• Features:

  • Conform to SMPTE 304M-2003 Standard
  • Feature Lemo® Connectors for Ultimate Reliability
  • 6 Position and 8 Position Panel Configurations Available
  • Include 60" (1.5m) Electrical Connector Mating Cable


• Specifications:

  • General
  • Wavelength: 1100 nm - 1350 nm
  • Insertion Loss: 0.5 dB maximum
  • Return Loss: Better than -45 dB

    Electrical
  • Auxiliary Elec. Contacts:
    Voltage: 600VAC
    Current: 10A
  • Low-Voltage Contacts:
    Voltage: 42VAC or 60VDC
    Current: 1A

    Environmental
  • Operating Temperature: -4° to 140°F (-20° to +60°C)
  • Storage Temperature: -40° to 185°F (-40° to +85°C)
  • Humidity: <95% RH (at +40°C)
  • RoHS: Compliant
