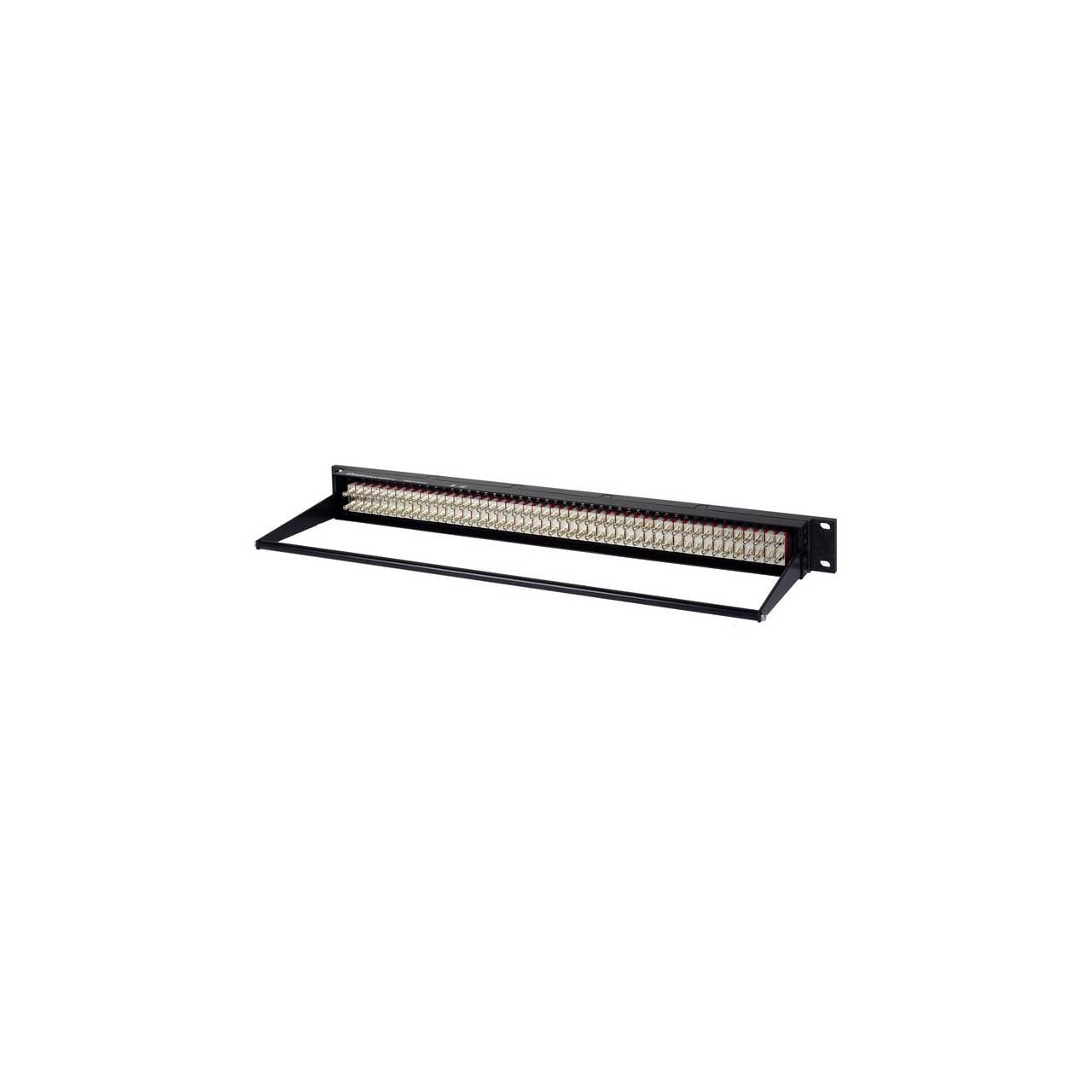

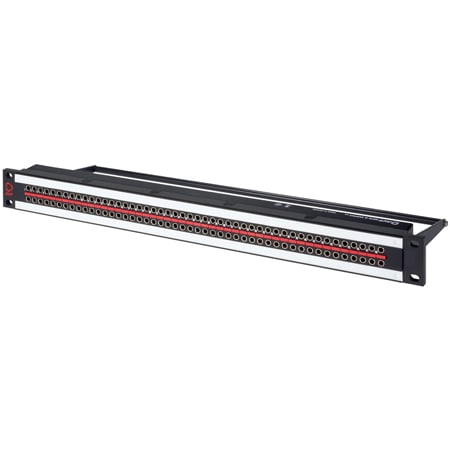

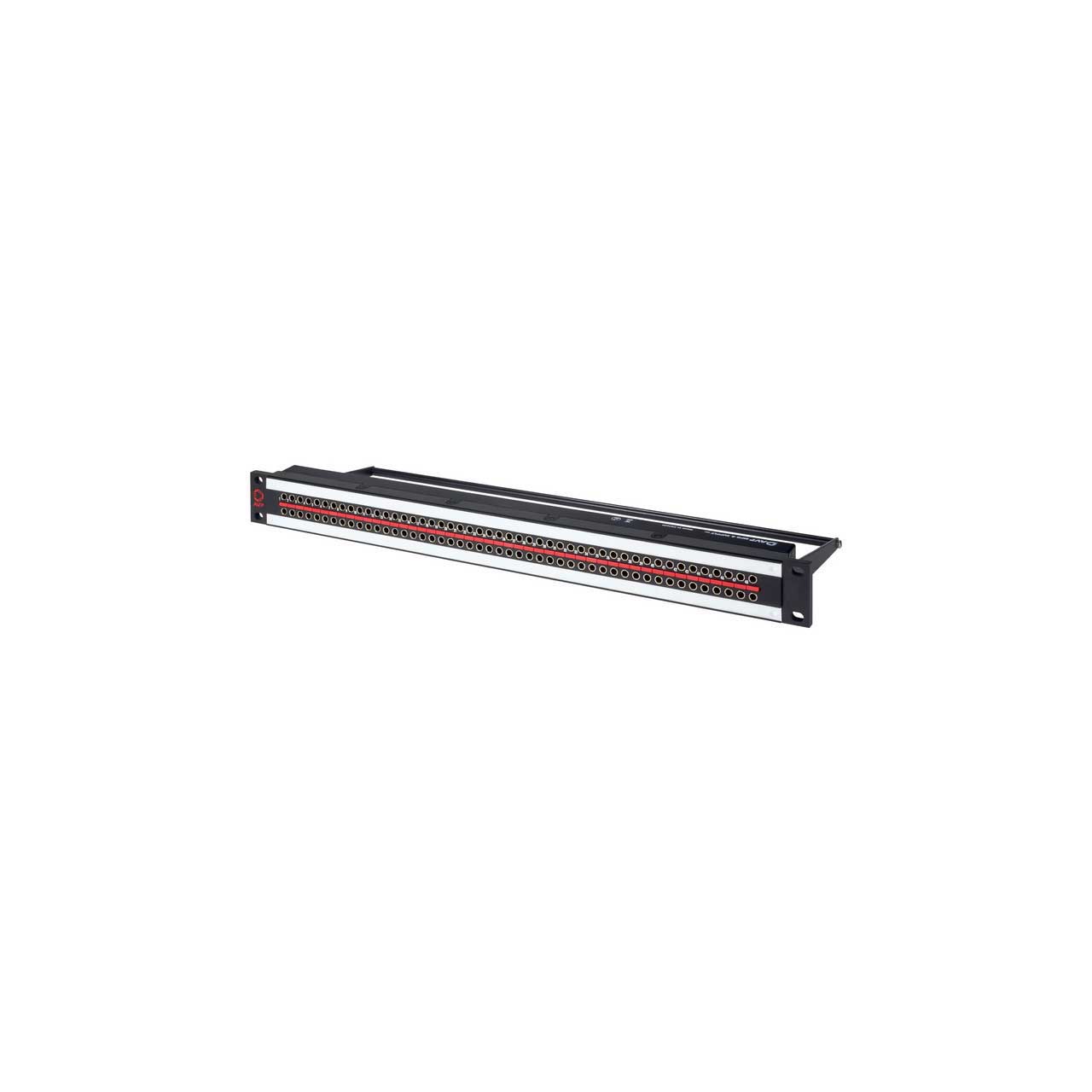

AVP AV-U248E1-UHN75R2-B31 1RU Mini-BNC UHD Micro 12G Video Patch Panel - 2 x 48 - Normaled - Terminated with Cable Bar

ITEM #: AVU248E1U75R2B31 MFG #: AV-U248E1-UHN75R2-B31

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
AVP
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$6,871.00

Our Price:

$6,183.90

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AV-U248E1-UHN75R2-B31 - Overview

UHD Micro 12G Series Patch Panels are extremely versatile and allow for high bandwidth video applications with exceptionally low return loss. Each panel is tested and guaranteed to exceed SMPTE requirements.

  • Features:

    • 12GHz, high bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, & 4K/8K video applications
    • Compliant with SMPTE 292M, 424M, ST2081-1 & ST2082-1
    • Return Loss of 7dB or greater at 12.0GHz
    • Isolation: 45dB or greater at 6.0GHz
    • AVP color-coded, numbered and patented designation to maximize viewable area
    • Lifetime Warranty
    • Also suitable for L Band


  • Specifications:

    • Material:
    • Housing: Copper Alloy, Nickel Plated
    • Center Contacts: Copper Alloy, Gold Plated
    • Springs: Copper Alloy, Gold Plated
    • Insulators: Teflon and Thermoplastic

      Mechanical:
    • Vibration: Per Mil-Std. 202, Method 201
    • Insertion Force: 9 lbs Max.
    • Withdrawal Force: 2 lbs Min.
    • Life Cycle: 20,000 Typical

      Electrical:
    • Meets SMPTE 2082-1
    • Characteristic Impedance: 75 Ohms
    • Contact Resistance: < 50 Milliohms

      Environmental:
    • Temperature: Operating: -40 C To 65 C, Storage: -40 C To 65 C
    • Thermal Shock: Per Mil-Std. - 202, Method 107
    • Moisture & Humidity: Per Mil-Std. - 202, Method 106
    • Salt Spray: Per Mil-Std. - 202, Method 101
    • RoHS: Compliant


  • Item Includes:

    • 1x AV-U248E1-UHN75R2-B31 - 1RU - 2 x 48 - Normaled - Terminated w/ Cable Bar


  • Warranty:

    • Lifetime Warranty on Jacks
    • 5 Year Warranty on Panel
