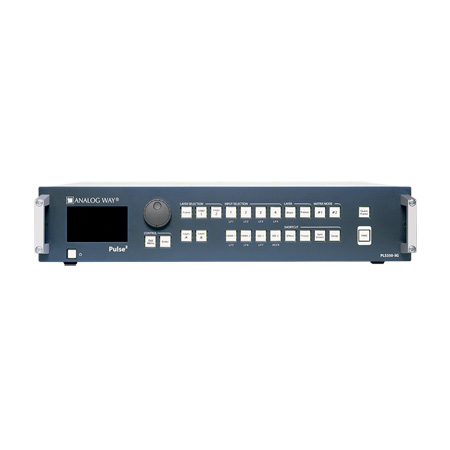

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AWA-PLS350-3G

PULSE2-3G - Overview

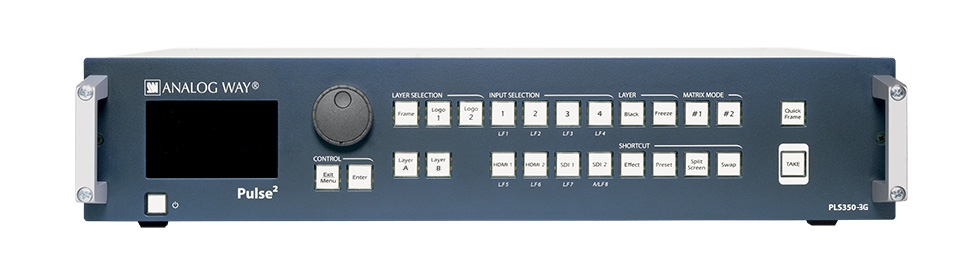

The Analog Way Pulse2-3G (Midra) is a hi-resolution mixer seamless switcher with 8 inputs and Native Matrix mode.

Pulse2 at a glance:

New Midra platform
New Remote Control Software: RCS2 (Windows, Mac & Linux)
Very fast processing and switching
Low frame delay
2 operating modes: Mixer and Native Matrix modes
Up to 2 layers on Frame Background
Full audio digital compliant on DVI-D & HDMI Plugs
Advanced Audio Management with the RCS2
Audio fast Routing mode
Quick Frame mode
Direct Swap function
Direct Split function
New EDID management on 6 inputs
Ability to read and display the output EDIDs
New Deinterlacing processing
Custom output formats
New Freeze features (Input/layer/screen)
Ability to modify the Program in real time without using the Preview
New Dynamic Fit
Capability to switch between any input plugs (14 plugs available)
New 3D filter for SDTV composite sources
Outputs fully resizable
Video output (CVBS, YPbPr, 3G-SDI)

  • Features:

    • KEY FEATURES:
    • Seamless inputs
    • 2 outputs (Program and Preview)
    • 1 x 3G/HD/SD-SDI output plug useable as video output or Program clone

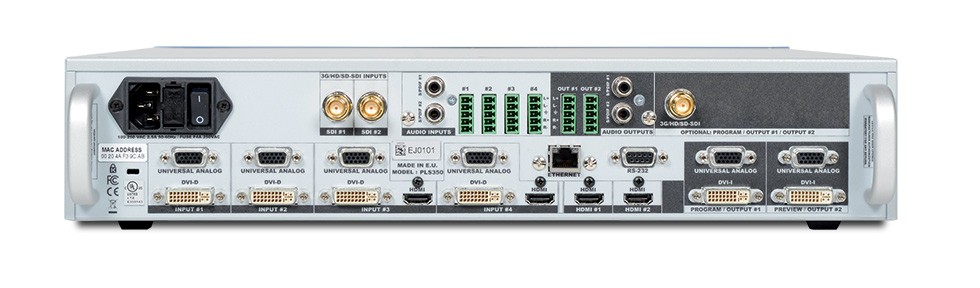

    • 14 input plugs available (4 x DVI-D, 4 x HDMI, 4 x Universal Analog & 2 x 3G/HD/SD-SDI)
    • Computer formats up to 2K/2048x1152
    • All live layers: Fully resizable
    • Dynamic layer (Moving from A to B) with Flying, Zooming or Cropping
    • Layer: Pan & Zoom resizing up to 1000%
    • Layer: Open/Close animation
    • Layer: Border and Shadow (Edge: 1 Color, 1 Width, 1 Height)
    • Transitions: Fade (Dissolve), Cut, Wipe and Slide
    • All audio inputs can be embedded or deembedded on all plugs
    • Audio breakaway mode
    • Audio Top layer mode
    • Audio fast Routing mode
    • Audio Delay Compensation
    • Balanced stereo audio on all outputs
    • 2 S/PDIF inputs and 2 S/PDIF outputs
    • Internal test patterns
    • Chroma/Luma Key and Titling
    • 8 Memory Presets per output (64 via RCS2)
    • 8 Full Frames, 8 Logo Memories & 1 animated Logo
    • HDCP Compliant

    • OPERATING MODES:
    • 2 operating modes: Mixer and Native Matrix modes
    • Seamless switching with full Preview in Mixer mode with 1 layer
    • Seamless switching in Native Matrix mode
    • 1 Title on Live Background in Mixer
    • 1 layer on Still Background in Mixer mode
    • 1 layer on Live Background in Mixer mode
    • 2 layers on Still Background in Mixer mode
    • 1 Live Background in Native Matrix mode

    • CONTROLLERS for PULSE2:
    • RCS2: Remote Control Software
    • VRC300: High-End Remote Controller Vertige
    • ORC50: Remote Controller Orchestra
    • RK-350: Remote Keypad
    • Crestron's Modules: 2 or 3-Series
    • AMX's Modules


  • Specifications:

    • DIMENSIONS:
    • D 15.75''x W 17.3'' x H 3.46''
    • D 400 mm x W 440 mm x H 88 mm
    • WEIGHT:
    • 6.3kg
    • 13.9lbs
    • POWER SUPPLY:
    • 100-240 VAC; 2.5A; 50/60Hz; 100W


  • Item Includes:

    • 1 x Power Supply Cord
    • 1 x Ethernet crossover cable
    • 1 x Remote Control Software (RCS2)
    • 1 x Set of 6 audio 5-pin screw terminals
    • 1 x Front Rack Ears
    • 1 x User Manual (PDF version)
    • 1 x Quick Start Guide


  • Warranty:

    • 3-year warranty on parts and labor back to factory.
