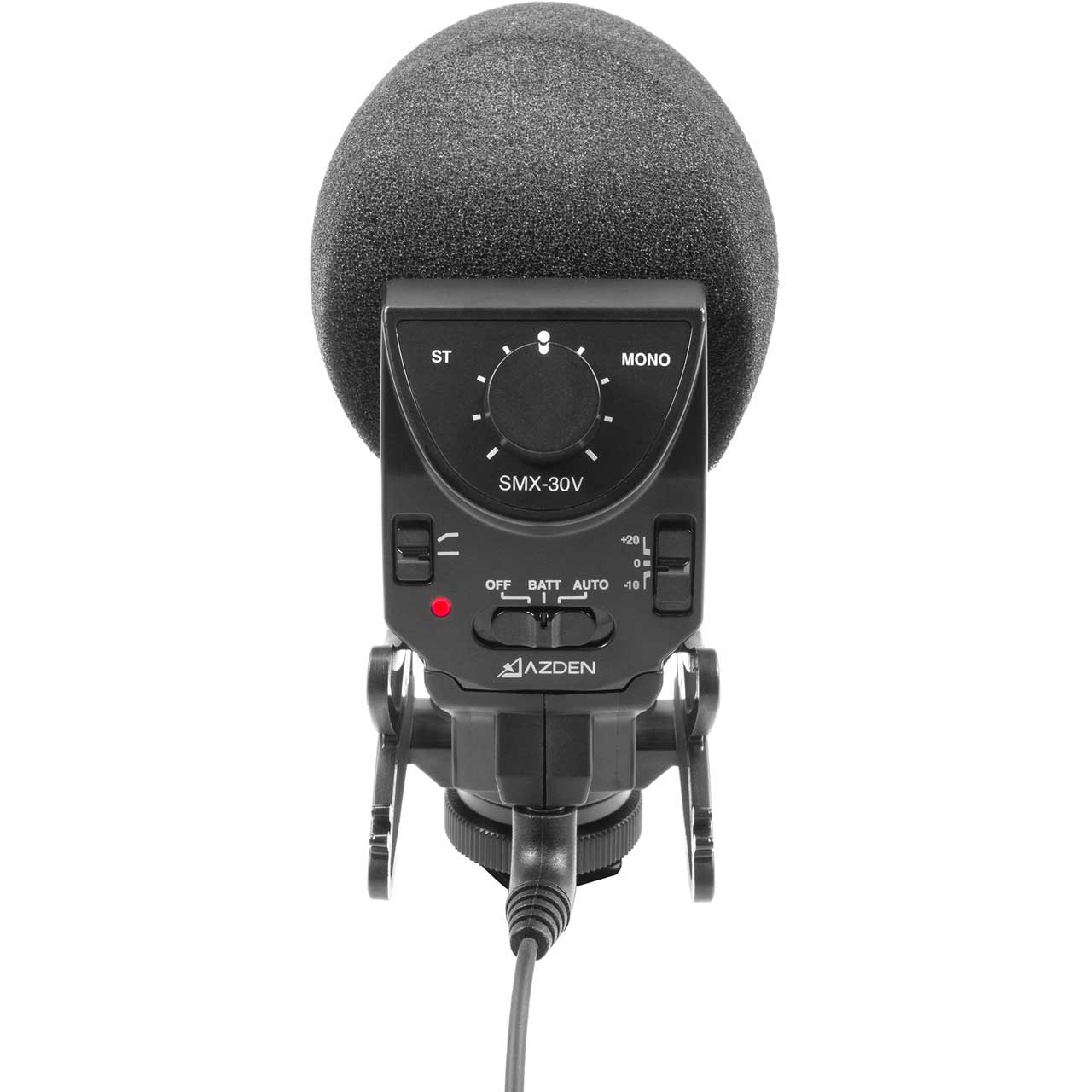

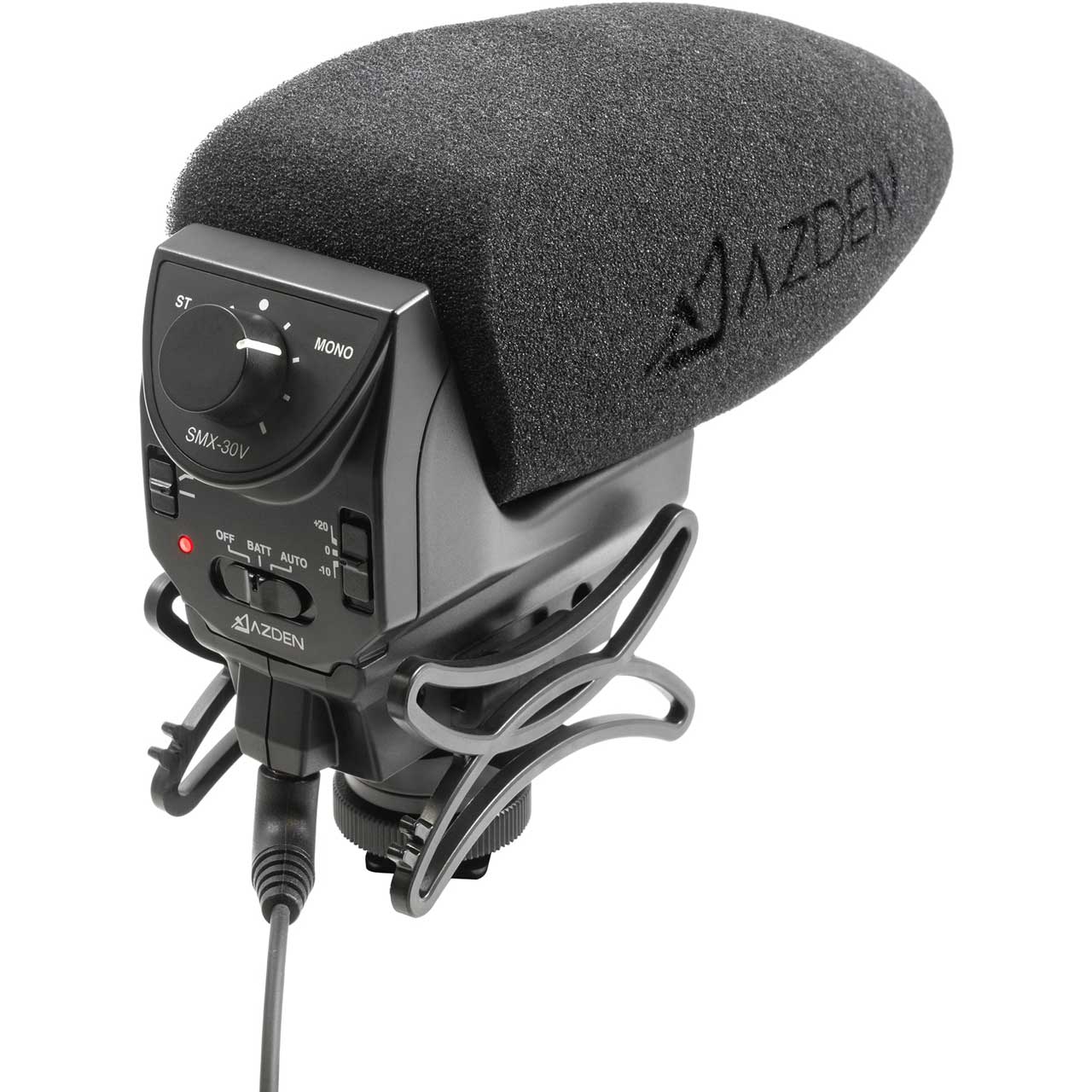

Azden SMX-30V Stereo/Mono Mixable Video Shotgun Microphone

ITEM #: AZ-SMX-30V MFG #: SMX-30V

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-SMX-30V

SMX-30V - Overview

With the SMX-30V, Azden takes their innovation of a switchable stereo/mono microphone to another level by incorporating a mixing dial. The first video microphone of its kind, the SMX-30V lets the user choose from using 100% of the stereo microphone, 100% of the mono-shotgun microphone, or any mix in between. Recording a dialogue scene but want to incorporate some of the environment's ambience Mix in a little of the stereo microphone. Recording a musical performance but want to tighten up the center stereo image Mix in some audio from the mono-shotgun microphone. The possibilities are endless!

A Dual Microphone With Complete Control

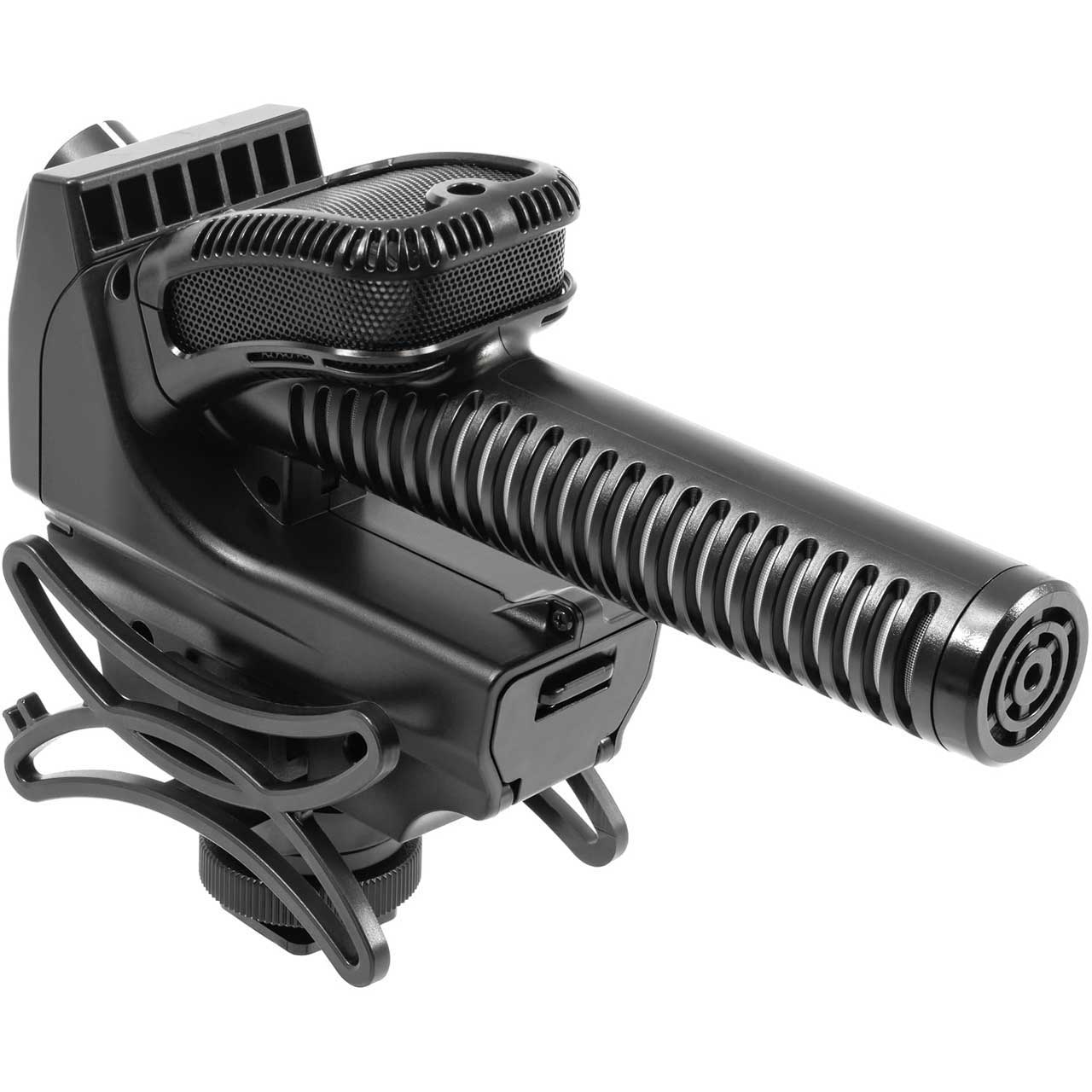

The SMX-30V is like having a stereo microphone, a shotgun microphone and an audio mixer all combined into one unit. To achieve this, there are three microphone elements in total: two located at the top, angled at 90§ for capturing a realistic stereo image, and one inside a 4.5-inch long interference tube for directional audio capture. Combined with a stepless mixing knob, you have complete control over how much signal from each microphone to send to your camera.

Swiveling Shock-Mount
Another unique feature on the SMX-30V is the swiveling shock-mount, which enables rotation of the microphone 30§ to the left or right. This is a handy feature any time your sound source is not centered in-frame, allowing you to aim the microphone at your subject, thereby getting the most direct sound possible. In addition, the mount itself is designed to absorb vibrations and isolate the microphone from handling noise. The bottom of the mount allows for attachment to a standard camera cold-shoe slot, or via a ¬"-20 threaded stud.

Improved Battery Life
Battery life in the SMX-30V has been improved over the previous model to last up to 100 hours on a pair of alkaline AA batteries.(Batteries sold separately)

Detachable Output Cable
Audio output via a 3.5 mm mini-jack provides flexibility to connect various third party audio cables. A high-quality, coiled microphone output cable is included with the microphone.

  • Features:

    • Mix audio together from the stereo and mono-shotgun microphones
    • Or set the mixing dial to 100% stereo or 100% mono
    • Stepless variable mixing potentiometer
    • Swivel mount adjusts aim of microphone up to 30§ to the left or right
    • +20dB gain booster alleviates noise produced by low-quality camera preamps
    • -10dB pad for loud sound environments
    • Auto power mode turns microphone on/off with camera
    • Low-cut filter selectable at 60 Hz, 3 dB/octave
    • Detachable audio output cable
    • Integrated shock-absorbing shoe-mount with 1/4"-20 thread
    • 10 year warranty with registration

  • Specifications:

    • Polar Pattern: Mono: Super-Cardioid Stereo: Cardioid (90§)
    • Freq Resp: 40 Hz - 20k Hz
    • Sensitivity: -38 dB @ 1kHz
    • Dyn Range: 118 dB
    • S/N Ratio: 82 dB, 1k Hz@1Pa
    • Max Input Level: 126 dB SPL (1kHz@ 1% T.H.D.)
    • Max Output Level: +10.2 dBu
    • Output Imp: 75Ω
    • Power Req: AA batteries x2
    • Output Conn: 3.5 mm Stereo mini-jack
    • Power Switch: Off, Battery, Auto
    • Gain Control: -10 dB, 0 dB, +20 dB
    • Low-Cut Filter: 60 Hz, 3 dB/octave
    • Dims: 47 mm x 111 mm x 154 mm
    • Weight: 160 g
    • Accessories: Windscreen, Carrying Pouch, Stereo 3.5 mm Audio Cable

  • Item Includes:

    • 1x SMX-30V Video Microphone
    • 1x Windscreen
    • 1x Carrying Pouch
    • 1x Stereo 3.5 mm Audio Cable

  • Warranty:

    • 10 Year Warranty with Registration
