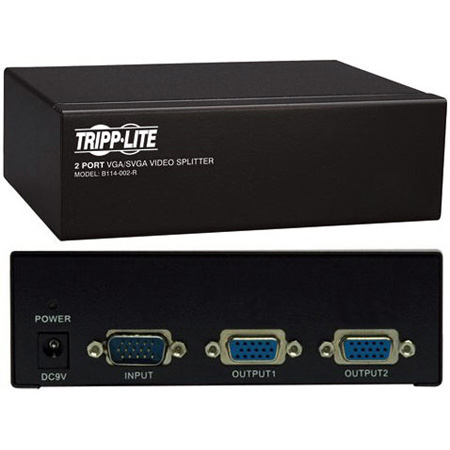

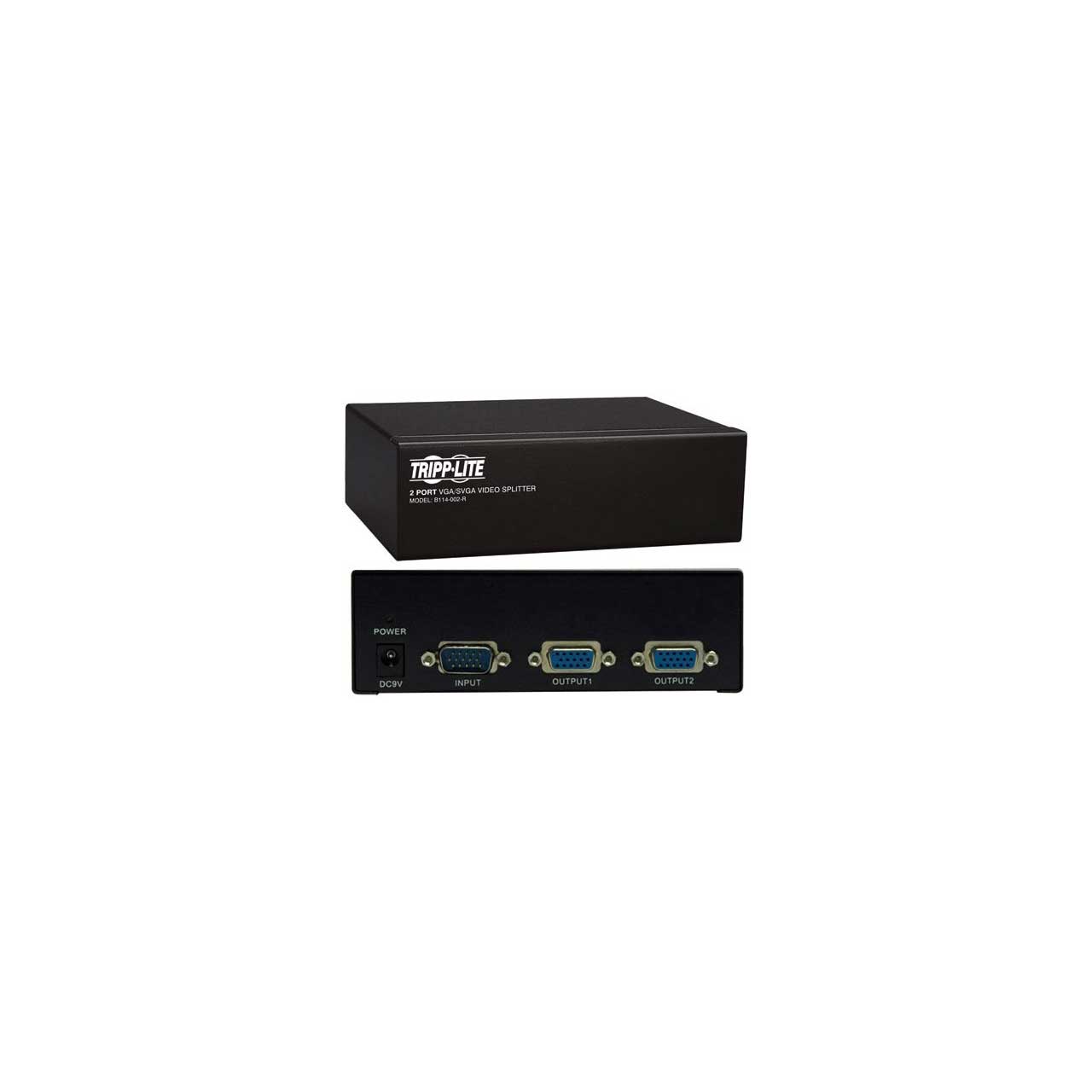

Tripp Lite B114-002-R VGA/SVGA 350MHz Video Splitter 2 Port HD15 M/2xF

Name: Tripp Lite B114-002-R VGA/SVGA 350MHz Video Splitter 2 Port HD15 M/2xF
Brand: Tripp Lite
SKU: B114-002-R
Price: 35.00 USD
Availability: PreSale

ITEM #: B114-002-R MFG #: B114-002-R

Tripp Lite

List Price:

$49.92

Our Price:

$35.00

Quantity Pricing

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

B114-002-R - Overview

Tripp Lite's B114-002-R 2-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-002-R splitters together.

System Requirements
Computer with a HD15 port
VGA/SVGA monitor
The B114-002-R can only be cascaded to other B114-002-R splitters

Features:
- Simultaneously display video on 2 VGA/SVGA monitors
- Ideal for video presentations or sharing information with multiple users
- A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source
- The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
- 350Mhz Bandwidth Support
- Cascade up to 3 levels of B114-002-R splitters together to increase the number of connected monitors
- Rugged, fully shielded metal housing
Specifications:
- Input
- Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.4A
- External Power Supply Output Specs (V / A): 9V / 1A
- External Power Supply Cord Length (ft.): 5
- External Power Supply DC Barrel Connector Specs: OD: 5.5 x 2.1 x 12mm, Positive Pin, Negative Sleeve
- External Power Supply Plug(s): NEMA 1-15P North America
- External Power Supply Certifications: FCC; UL; cUL; RoHS

  User Interface, Alerts & Controls
- LED Indicators: Green (Power)

  Physical
- Color: Black
- Material of Construction: Iron
- Shipping Dimensions (hwd / in.): 2.40 x 9.80 x 5.80
- Shipping Weight (lbs.): 1.50
- Unit Dimensions (hwd / in.): 1.7 x 5.2 x 3.7
- Unit Packaging Type: Box
- Unit Weight (lbs.): 1.00

  Environmental
- Operating Temperature Range: 32 to 122 F (0 to 50 C)
- Storage Temperature Range: -4 to 140 F (-20 to 60 C)
- Relative Humidity: 0% to 80% RH, Non-Condensing
- BTUs: 6.1 BTU/Hr
- Power Consumption (Watts): 1.8

  Communications
- Signal Range (ft.): 210

  Connections
- Ports: 2
- Side A - Connector 1: HD15 (MALE)
- Side B - Connector 1: (2) HD15 (FEMALE)
- Connector Plating: Nickel

  Port Expansion
- Max Distance (Between any 2 Units): 246ft (75m)
- Max Number of Ports (Entire Chain): 32

  Features & Specifications
- Max Supported Video Resolution: 2048 x 1536 @60Hz
- Driver Required: No
- EDID Compatible: Yes
- Technology: VGA/SVGA
Item Includes:
- 1x B114-002-R VGA/SVGA Video Splitter - 2 Port
- 1x DC Power Adapter, 9V, 0.8A
- 1x User Manual
System Requirements:
- Computer with an HD15 port
- VGA or SVGA monitor with HD15M cable
GTIN:
0037332124890
