Barco R9861632USB1 ClickShare Bar Core Video Bar for Wireless Conferencing with One Gen 4 ClickShare Button

Name: Barco R9861632USB1 ClickShare Bar Core Video Bar for Wireless Conferencing with One Gen 4 ClickShare Button
Brand: Barco
SKU: BARC-R9861632US1
Price: 2450.00 USD
Availability: PreSale

ITEM #: BARC-R9861632US1 MFG #: R9861632USB1

Barco

Our Price:

$2,450.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

R9861632USB1 - Overview

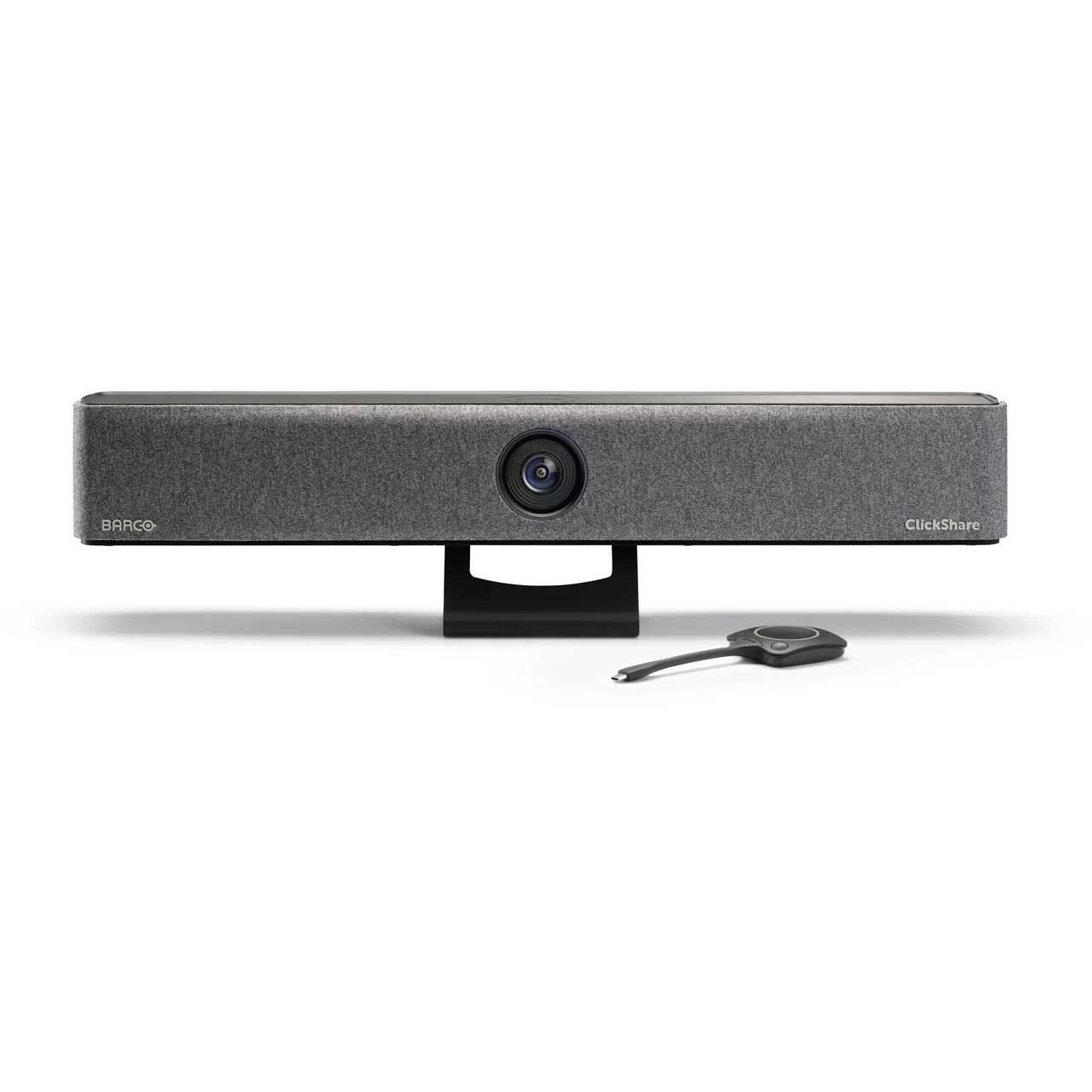

Video bar for engaging, effortless wireless conferencing

The Barco ClickShare Bar Core is a carbon-neutral, all-in-one video bar that enables engaging, effortless wireless conferencing in small and medium-sized meeting rooms with any video conferencing platform. This solution ensures meeting participants feel heard and seen thanks to its high-quality AV capabilities while offering simplified installation and reduced Total Cost of Ownership.

Please Note: The ClickShare Bar Core is only compatible with Generation 4 ClickShare Buttons. One is included with this product.

Features:
- Crystal-clear, high-quality stereo audio
- Advanced AI-powered 4K camera: group framing and composition view
- Simplified installation
- Sound investment: fewer interventions, minimized downtime, future-proof platform
- Carbon-neutral product
Specifications:
- Operating System: Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App)
- System Requirements: For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS Ventura latest build Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 11 latest build or Mac OS latest build
- Video Outputs: 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2)
- Video Inputs: N/A

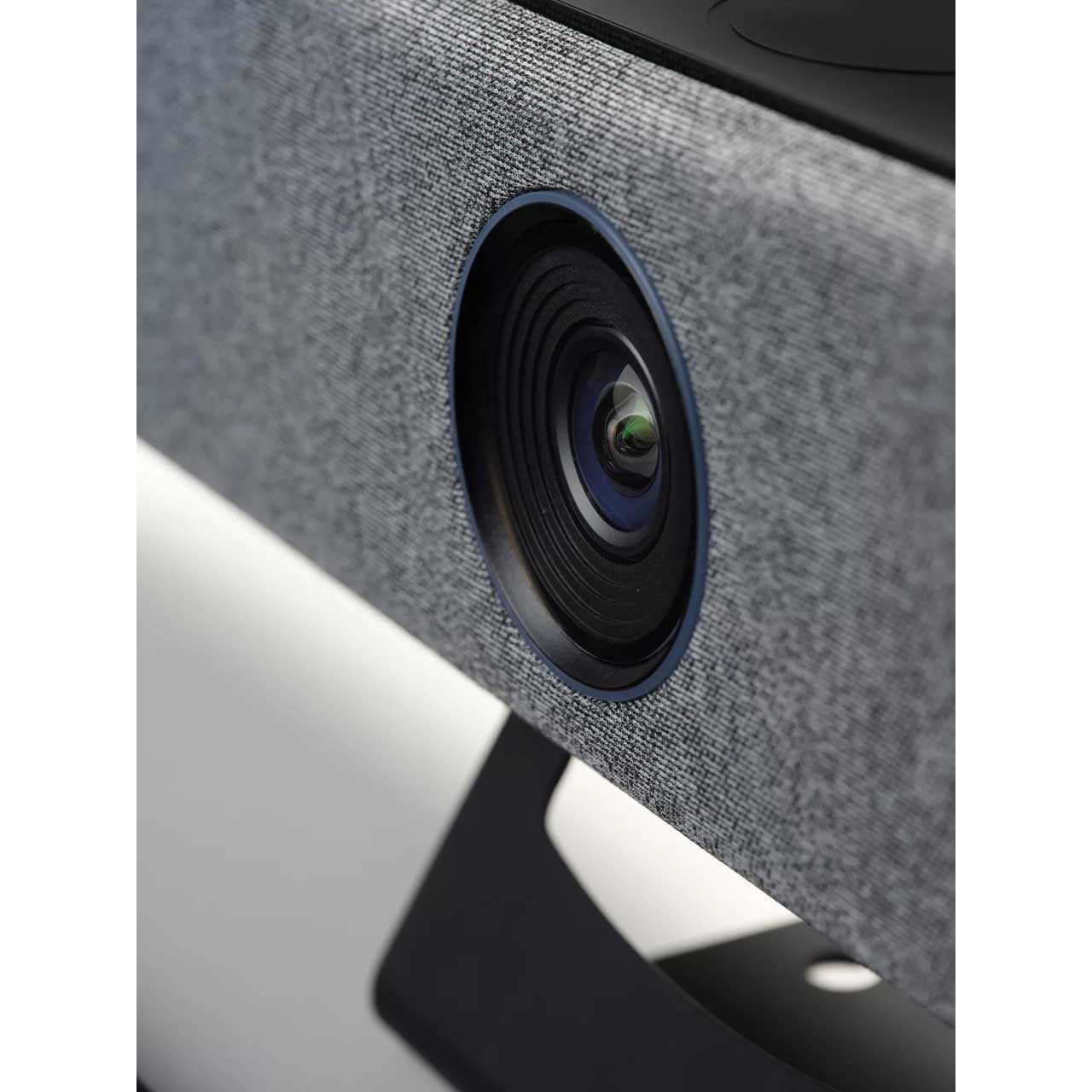

- Camera: 4K camera, 3x zoom/ePTZ, 120FOV
- Camera: AI Group framing and composition mode with up to 4 people
- Audio Output: 2x 10W full duplex and stereo speakers, 8 Ohms impedance
- Audio Pickup: 6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range up to 15 feet / 4.5 meters
- ClickShare Buttons: 1
- ClickShare App: Desktop & Mobile
- Native Protocols: Airplay, Google Cast, Miracast (available mid 2024)
- Noise Level: Fanless
- Authentication Protocol: WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
- Wireless Transmission Protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
- Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Bar
- Frequency Band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries in network integration mode)

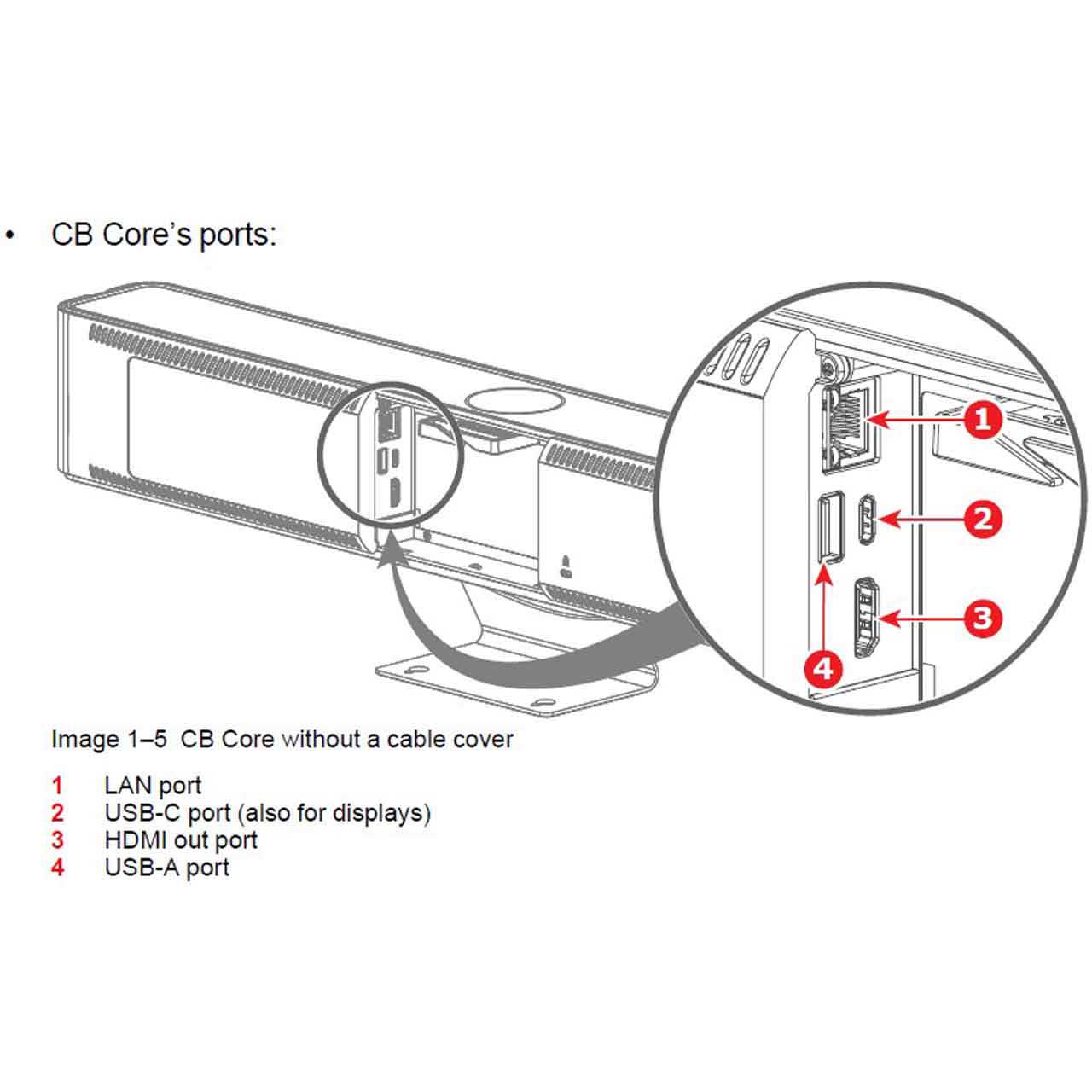

- Connections: 1x USB-C 3.1 (DP) to screen, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)
- Temperature Range: Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
- Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, noncondensing
- Anti-Theft System: Kensington lock (back and bottom)
- Certifications: FCC/CE
- Touch Screen Support & Interactivity: No
- Wireless Conferencing: via App or Button
- Local View: Yes
- Network Connection: LAN & WiFi
- Management and Reporting: Yes
Item Includes:
- 1x Generation 4 ClickShare Button
Warranty:
- 1 year standard, 5 years coverage via SmartCare
