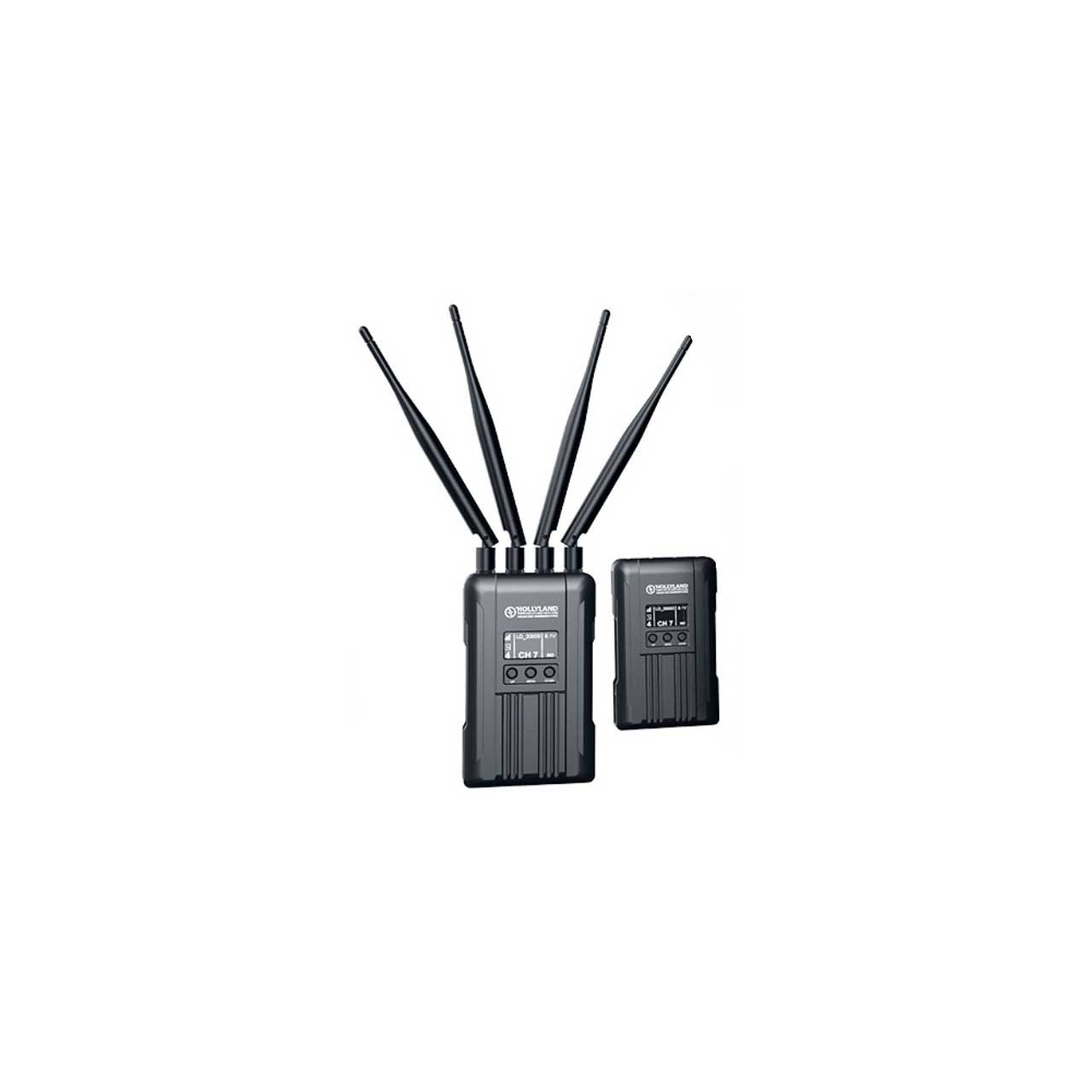

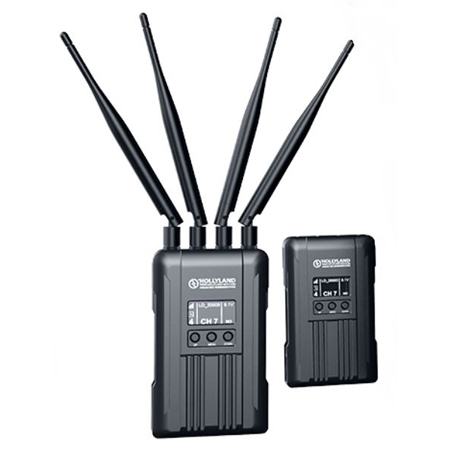

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Hollyland
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,399.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HL-SYSCOM 421S TX - Overview

The Hollyland SYSCOM 421S is the wireless HD Video transmission system which can achieve 4 transmitters on the same RF Channel with strong anti-interference capability. The lowest latency is 0.07s. It has a transmission range about 1800ft with a clean line of sight (LOS) when the receiver is connected to 4 transmitters at most. SYSCOM 421S supports up to 1080P 60Hz image resolution. The transmitters are equipped with L-series battery plate and the receiver is equipped with V-mount large capacity battery. Both transmitters and receiver also can power by DC adapter.

Typical Applications
Weddings
Music Concerts
Sports Events
Church Services
Exhibitions
Conferences
Government/Corporate Events
Government Meetings
School Celebrations/Ceremonies

  • Features:

    • 1800ft Transmission Range
    • The Lowest Achievable Latency without Interference is under 0.1s
    • 5.1-5.9 GHz Band Width, Supports Frequency Configuration for Different Territories
    • Supports 4 SDI Input and HDMI Input, 4SDI Output and HDMI Output
    • 4 Transmitters Use the Same Wireless Channel with Strong Anti-Interference Ability

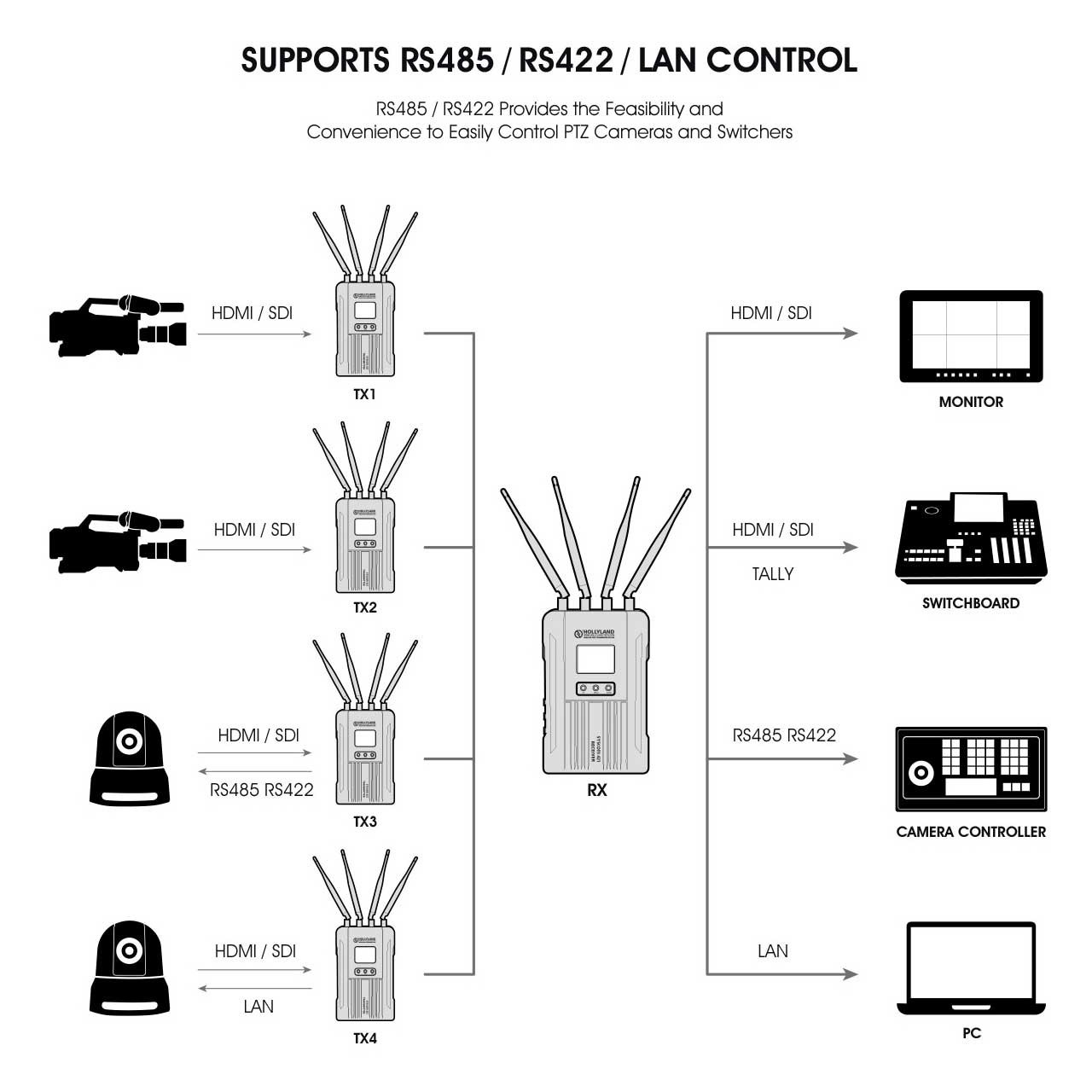

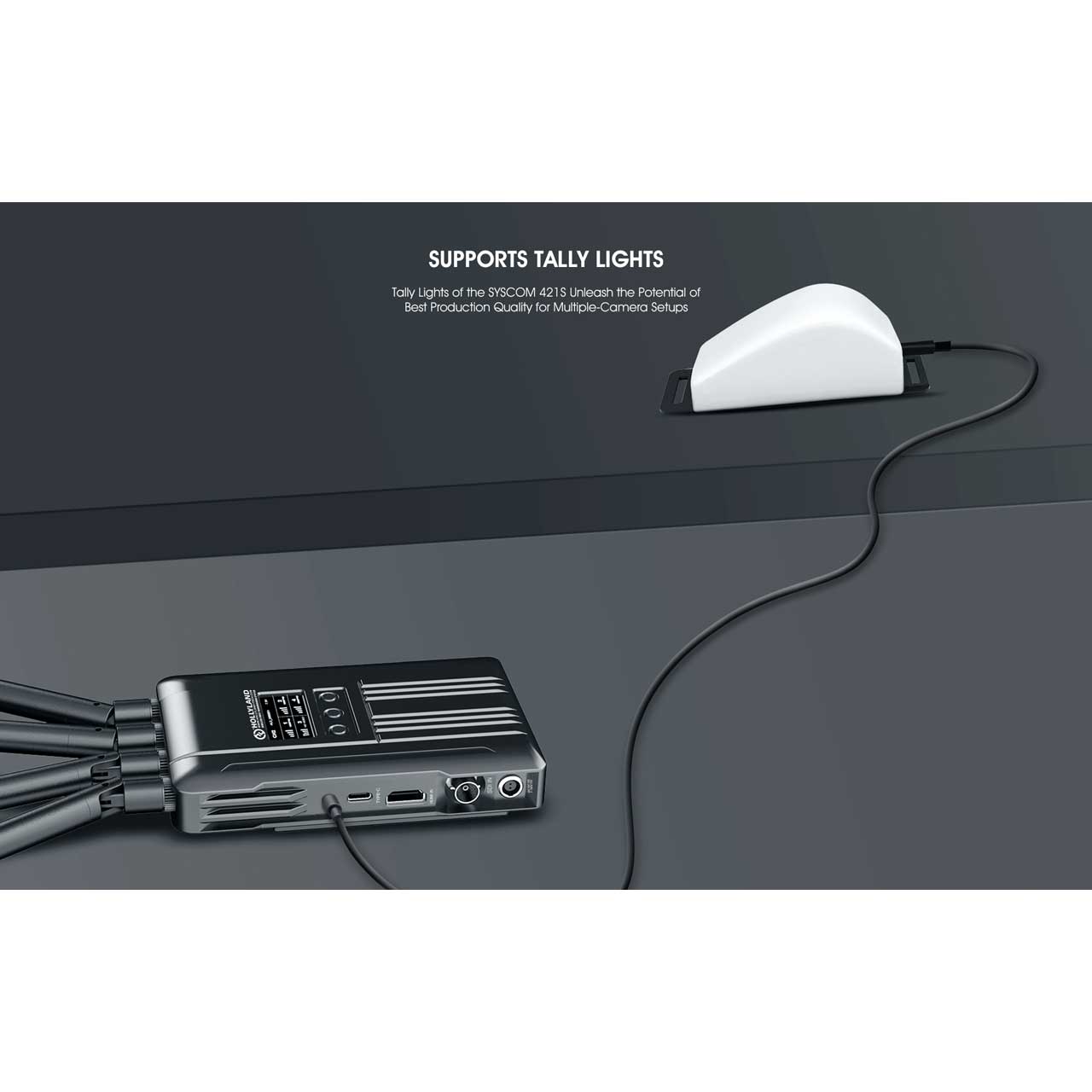

    • Supports TALLY and RS485/RS422 Control
    • Transmitter Supports 7-36V DC Wide Voltage Input
    • Receiver Supports 18-36V DC Wide Voltage Input
    • Stable & Reliable Industrial Metal Case
    • With RJ45 Interface, Supports Network Pass Through between Transmitter and Receiver, and Achieves RTSP Pull and Push Streaming


  • Specifications:

    • Interface
    • SDI Input (BNC Female)
    • HDMI Input (Type A Female)
    • 3.5mm TALLY Output
    • Antenna Interface*4 (RP-SMA Male)
    • DC Power Input
    • USB Type-C
    • LAN
    • RS485/RS422

      Input/Output Video Format
    • HDMI: 480p60Hz, 576p50Hz, 720p50/60Hz, 1080p24/25/30/50/60Hz
    • SDI: 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz

    • Bandwidth: 40MHz
    • Lowest Transmission Latency: <0.1s
    • Receiver Sensitivity: -90dBm
    • Transmission Power: Max 22dBm
    • Frequency: 5.1~5.9HGz
    • Power: 7~36V DC
    • Power Consumption: <12W
    • Weight: 15.22oz (431.5g)(without antenna)
    • Dimensions: 3.46 x 1.18 x 5.66" (88mm x 30mm x 144mm)(without antenna)


  • Item Includes:

    • 1x Transmitter
    • 5x 5GHz Antenna
    • 1x User Manual
    • 1x 7-Inch Magic Arm
    • 1x OTG Cable
    • 1x DC Conversion Cable
    • 1x RS485/RS422 Interface Cable


  • GTIN:

    0191460002755
