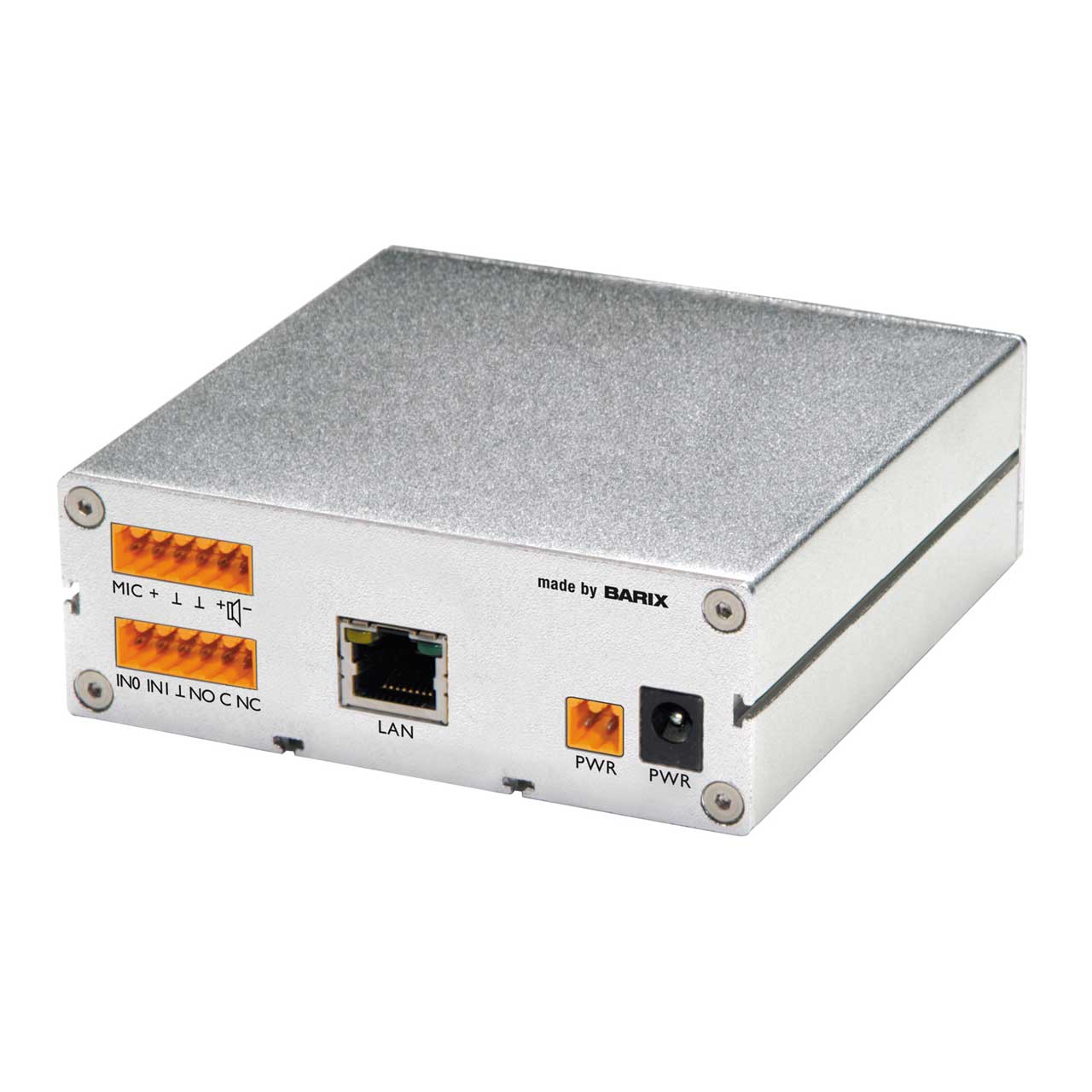

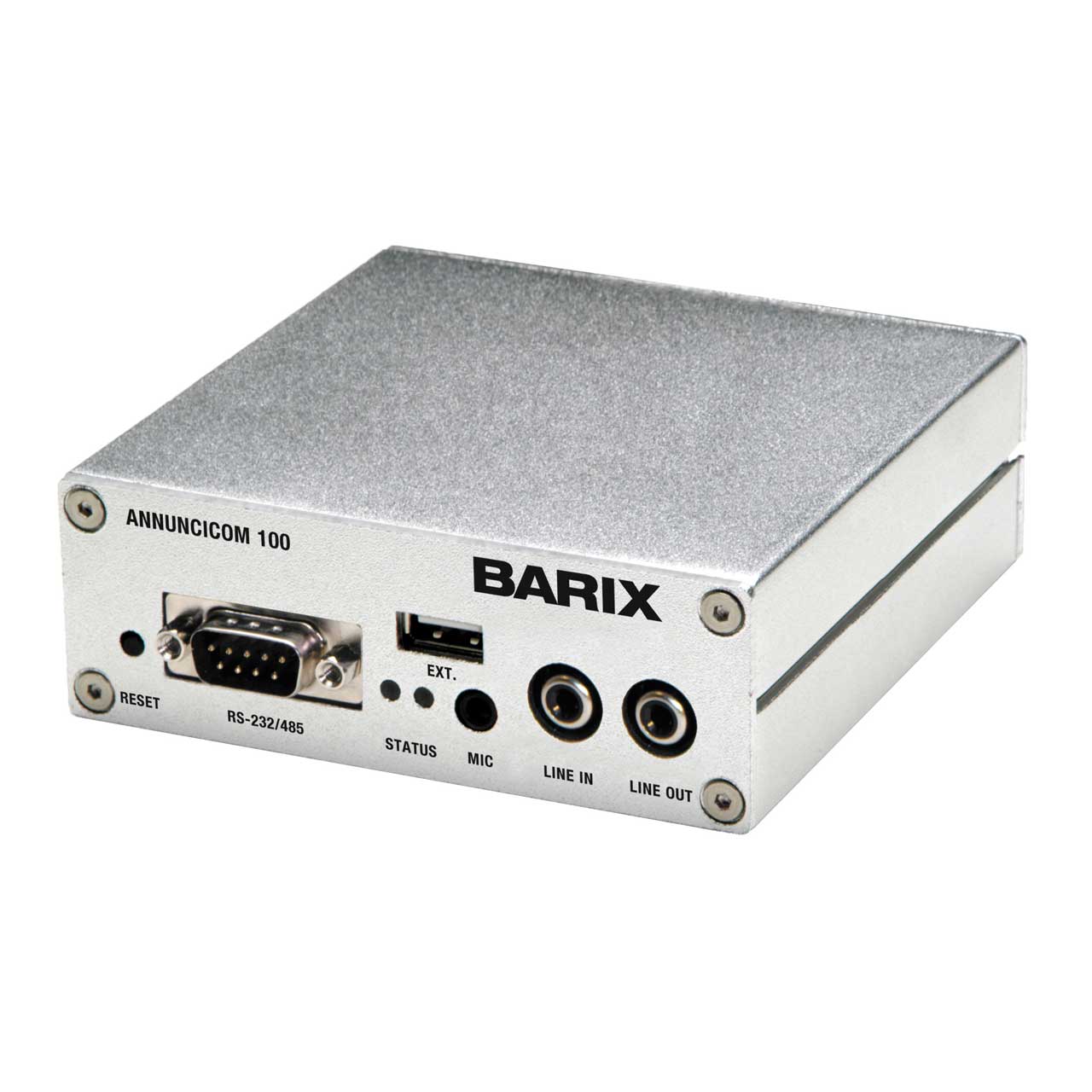

Barix Annuncicom 100 IP Paging and Intercom Device

2006.9063 - Overview

• Features:

  • MP3, G.711, G.722*, PCM Encoding
  • MP3, G.711, G.722*, PCM Decoding
  • Shoutcast/Icecast Source capability
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Microphone Input
  • Line Level Input
  • Line Level Output
  • Amplified Output 2W (8Ohm)
  • Relay Output (1)
  • Contact Closure Input (2)
  • RS-232 Serial Port (1)
  • RS-485 Serial Port (1)
  • Supply Voltage (16..30VDC or 48VDC)


• Specifications:

  • Electrical 9 to 30 VDC, 12 to 24 VAC, 8 Watt max. on screw
  • terminal block and 2.1mm barrel connector
  • Ethernet
  • 10/100Mbps auto,
  • RJ-45 connector with integrated Link /Activity LED
  • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast
  • capableMicrophone Input
  • On detachable screw terminal block and 3.5 mm (1/8“*) Jack
  • 3 pin TRS, with bias power 2.7VDC
  • Analog Line Input (mono)
  • Line level input, 2k Ohm input impedance on RCA
  • 2.2 VPP max, adjustable in sensitivity
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 87 dB, SNR -87 dB, THD <0.01% (-3dBFS)**
  • Analog Line Output (mono)
  • Line level output, 40..60 Ohm output impedance on RCA
  • Output level software controllable
  • Full scale output voltage: 3 dBu, 3 VPP
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 94 dB, SNR -94 dB, THD <0.03 % (-3dBFS)**
  • RS-232 and RS-485 Interfaces
  • On 9-pin Sub-D connector
  • 300..230‘400 Baud asynchronous, tunneling or local control
  • Speaker Output
  • On detachable screw terminal block
  • Suggested speaker impedance 4 to 32 Ohm
  • 1 Watt max @ 8 Ohm (2 W max @ 4 Ohm)
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 80dB, SNR -80dB, THD <0.15% (-3dBFS)**
  • MTBF
  • calculation 560 000h (according to MIL217F at 25ÝC)
  • Mechanical
  • Aluminum case, 390 g
  • Dimensions 108 x 38 x 125 mm (4.25 x 1.5 x 4.92 inch)
  • rack and wall mountable using accessories
  • Audio formats
  • Format Encode Decode
  • PCM y y
  • G.711 y y
  • G.722* y y
  • MP3 VBR, CBR* VBR, CBR*
  • Model comparison
  • Model Supply PoE USB AIPHONE AMP
  • 50 (48VDC) Y - - 5WATT
  • 100 9..30 VDC - Y - 2WATT
  • 12..24 VAC
  • 155 24..48 VDC - - - 5.5WATT
  • 200 16..30 VDC Y Y Y 8WATT
  • 48 VDC
  • 16..24 VAC
  • 1000 24..48 VDC - - - -
  • Discrete I/O
  • On detachable screw terminal block:
  • 1 relay output with normally closed and open contacts,
  • 30V 0.5A (AC & DC)
  • 2 discrete / dry contact inputs
  • * Hardware revision 2 only
  • ** depends on used codec, best results @48kHz PCM


• Item Includes:

  • Annuncicom 100, Power supply, RCA adapter for earphone, screw block terminals


• GTIN:

  7640113550639
