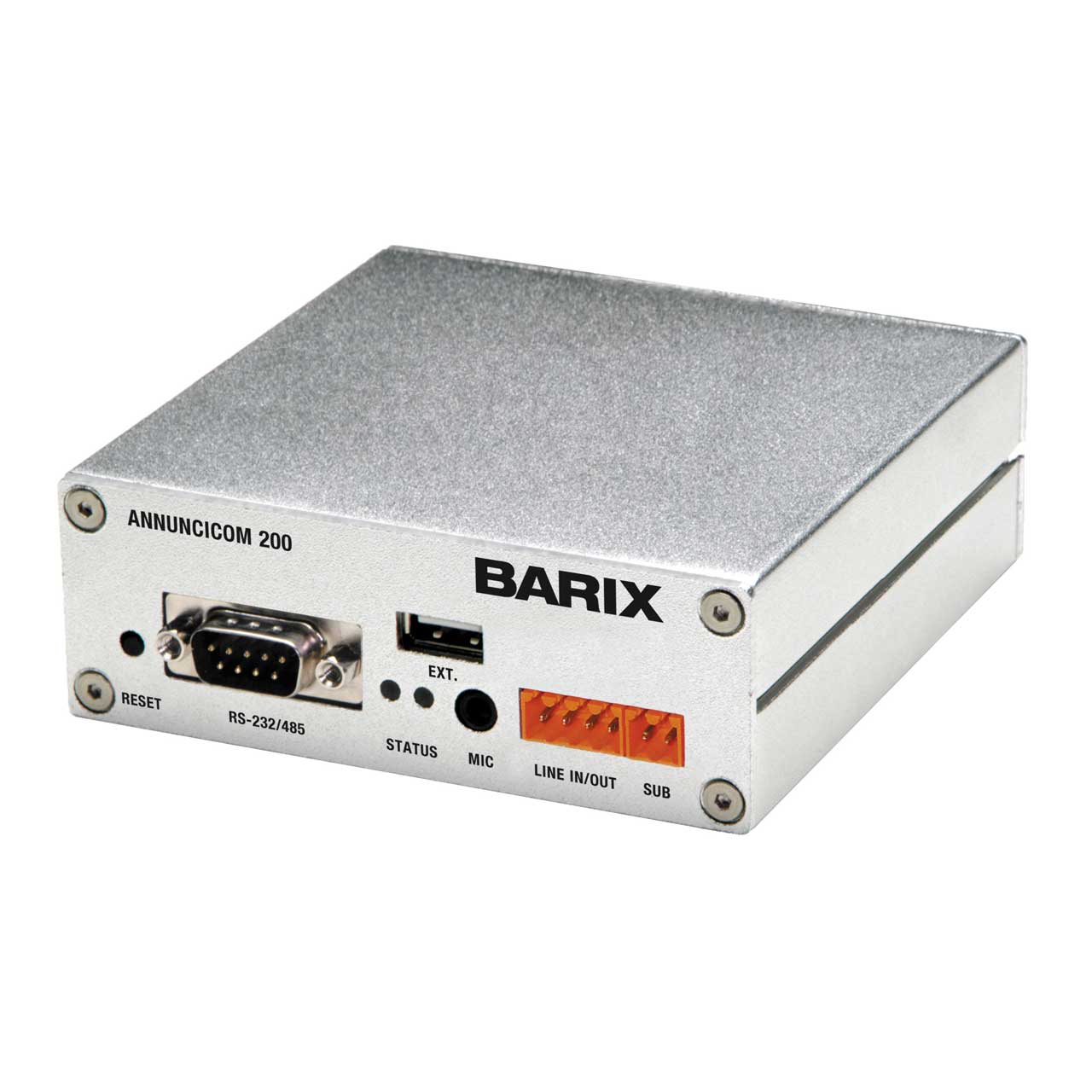

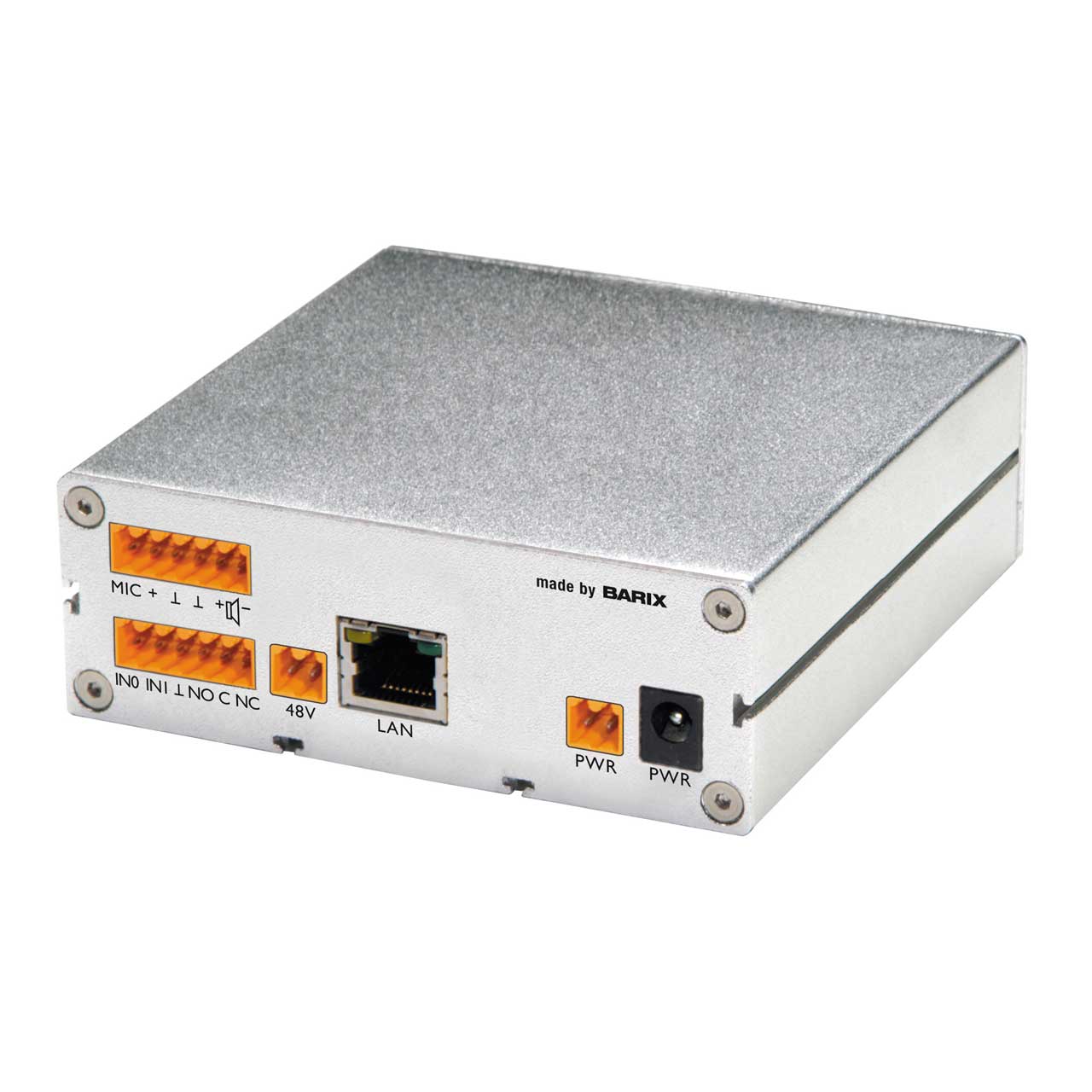

Barix Annuncicom 200 IP Paging and Intercom Device w/o PS

2008.909 - Overview

• Features:

  • MP3, G.711, G.722*, PCM Encoding
  • MP3, G.711, G.722*, PCM Decoding
  • Shoutcast/Icecast Source capability
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Microphone Input
  • Line Level Input
  • Line Level Output
  • Amplified Output 8W (8 Ohm)
  • Relay Output (1)
  • Contact Closure Input (2)
  • RS-232 Serial Port (1)
  • RS-485 Serial Port (1)
  • Isolated Power Supply Input (PoE or ext)
  • Supply Voltage (16..30VDC or 48VDC)
  • Aiphone Door Station Interface (IE/JE series)


• Specifications:

  • Electrical
  • 16 to 30 VDC, 16 to 24 VAC, 12 Watt max. on screw
  • terminal block and 2.1mm barrel connector
  • 802.3af PoE 48 VDC, 12 Watt max. on RJ-45 connector
  • and on screw terminal block
    Ethernet
  • 10/100Mbps auto,
  • RJ-45 connector with integrated Link/Activity LED
  • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast capable
    Microphone Input
  • On detachable screw terminal block and 3.5 mm (1/8")
  • Jack 3 pin TRS, with bias power 2.7VDC
    Aiphone sub interface
  • For Aiphone ,IE" door stations, on screw terminal block
    Analog Line Input (mono)
  • Line level input, 2k Ohm input impedance on on screw
  • terminal block, 2.2 VPP max, adjustable in sensitivity
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 87 dB, SNR -87 dB, THD <0.01% (-3dBFS)**
    Analog Line Output (mono)
  • Line level output, 40..60 Ohm output impedance on screw
  • terminal block, output level software controllable
  • Full scale output voltage: 3 dBu, 3 VPP
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 94 dB, SNR -94 dB, THD <0.03 % (-3dBFS)**
    RS-232 and RS-485 Interfaces
  • On 9-pin Sub-D connector
  • 300..230`400 Baud asynchronous, tunneling or local control
    Speaker out
  • On detachable screw terminal block
  • Suggested speaker impedance 8 to 16 Ohm
  • 8 Watt max @ 8 Ohm
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 80dB, SNR -80dB, THD <0.15%
  • (-3dBFS)**
    Mechanical
  • Aluminum case, 420 g
  • Dimensions 108 x 38 x 125 mm (4.25 x 1.5 x 4.92 inch)
  • rack and wall mountable using accessories
    Discrete I/O
  • On detachable screw terminal block:
  • 1 relay output with normally closed and open contacts,
  • 30V 0.5A (AC & DC)
  • 2 discrete / dry contact inputs
    MTBF
  • calculation min. 370 000h (according to MIL217F at 25°C)
  • * Hardware revision 2 only
  • ** depends on used codec, best results @48kHz PCM


• Item Includes:

  • Annuncicom 200, screw block terminals


• GTIN:

  7640113550905
