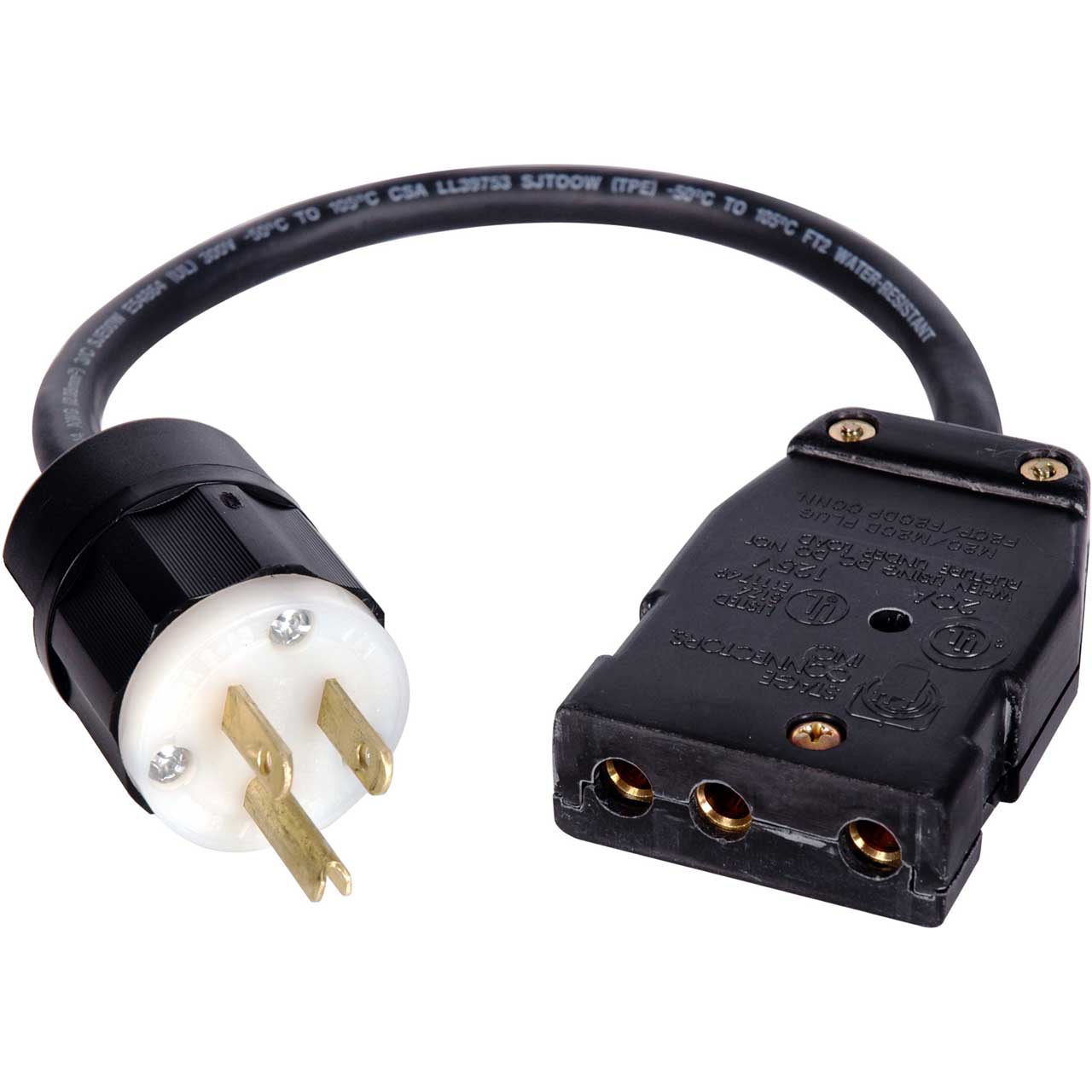

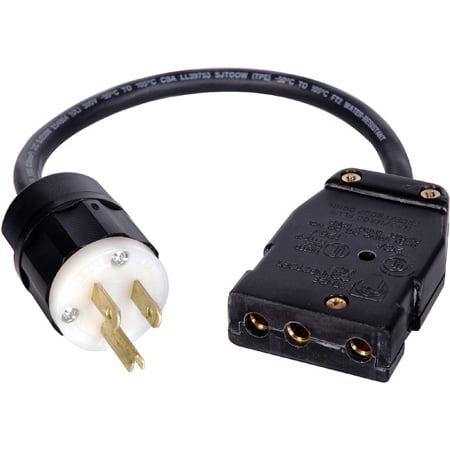

Laird 3-Prong 12/3 15-Amp AC Male to Female Stage Pin Connector Adapter Cable - 2 Foot

BATE-HUB1 - Overview

• Features:

  • Leviton NEMA 5-15 15-Amp and Bates Stage Pin connectors
  • Standardized, heavy, rubber-jacketed cable suitable for dry, moist, or wet rooms and outdoor use
  • Resistant to oil, ozone, weathering effects, greases, water, sun, and UV radiation
  • Flammability Rated HB or better UL94


• Specifications:

  • 12/3 TP Cable:
  • Type: SJOOW
  • Nom Outer Diameter: 11.45mm
  • Outer Jacket: Black Rubber (CPE)
  • Insulation: Rubber (EPR)
  • Number of conductors x AWG: 3x12
  • Min. Bend Radius:
    -Flexing: 4.76in
    -Static: 2.85in
  • Temp. Range Flexing: -4°F to 194°F (-20°C to +90°C)
  • Temp. Range Static: -40°F to 194°F (-40°C to +90°C)
  • Max. Operating Temp of Conductor: 194°F (+90°C)
  • Nominal Voltage: AC U 300 V
  • Test Voltage Conductor: 2500V
  • Carrying Capacity: 25 Amps
  • Weight: 0.14lbs/ft (217kg/km)

    Leviton 5-15 Connectors:
  • Amperage: 15 Amp
  • Current Interrupting: Certified for full rated current
  • Dielectric Voltage: Withstands 2000V per UL498
  • Voltage: 125 VAC
  • Back Cover: Thermoplastic
  • Body Material: Impact modified Nylon
  • Cord-Clamp: Nylon
  • Clamp Insert: Nylon
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)

    Bates Stage Pin Connector:
  • Max Amperage: 20 Amps
  • Max Voltage: 125V
  • Housing Material: Thermoplastic
  • Contact Material: Brass
  • Temperature Rating: -4°F to 284°F (-20°C to 140°C


• Warranty:

  • 1 Year
