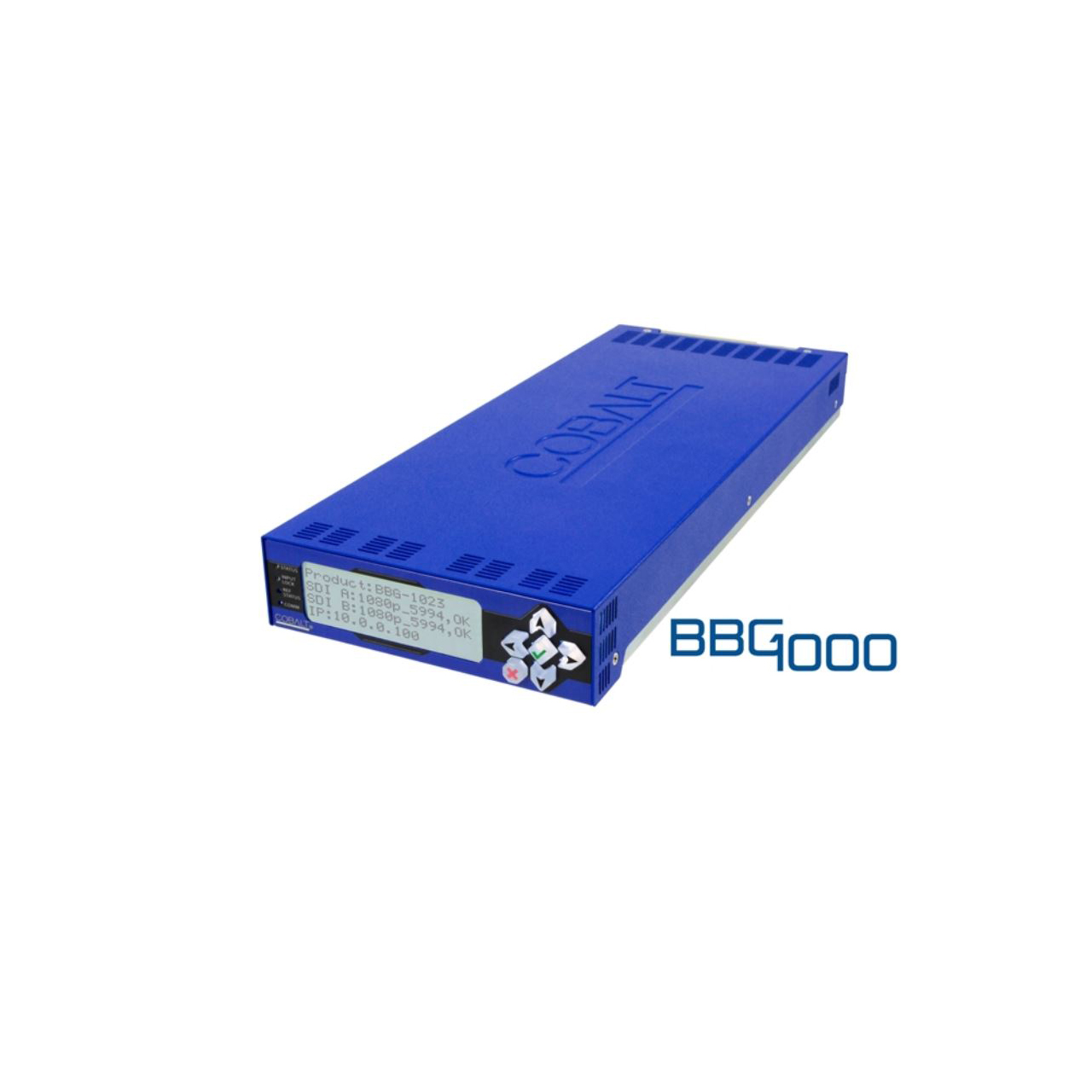

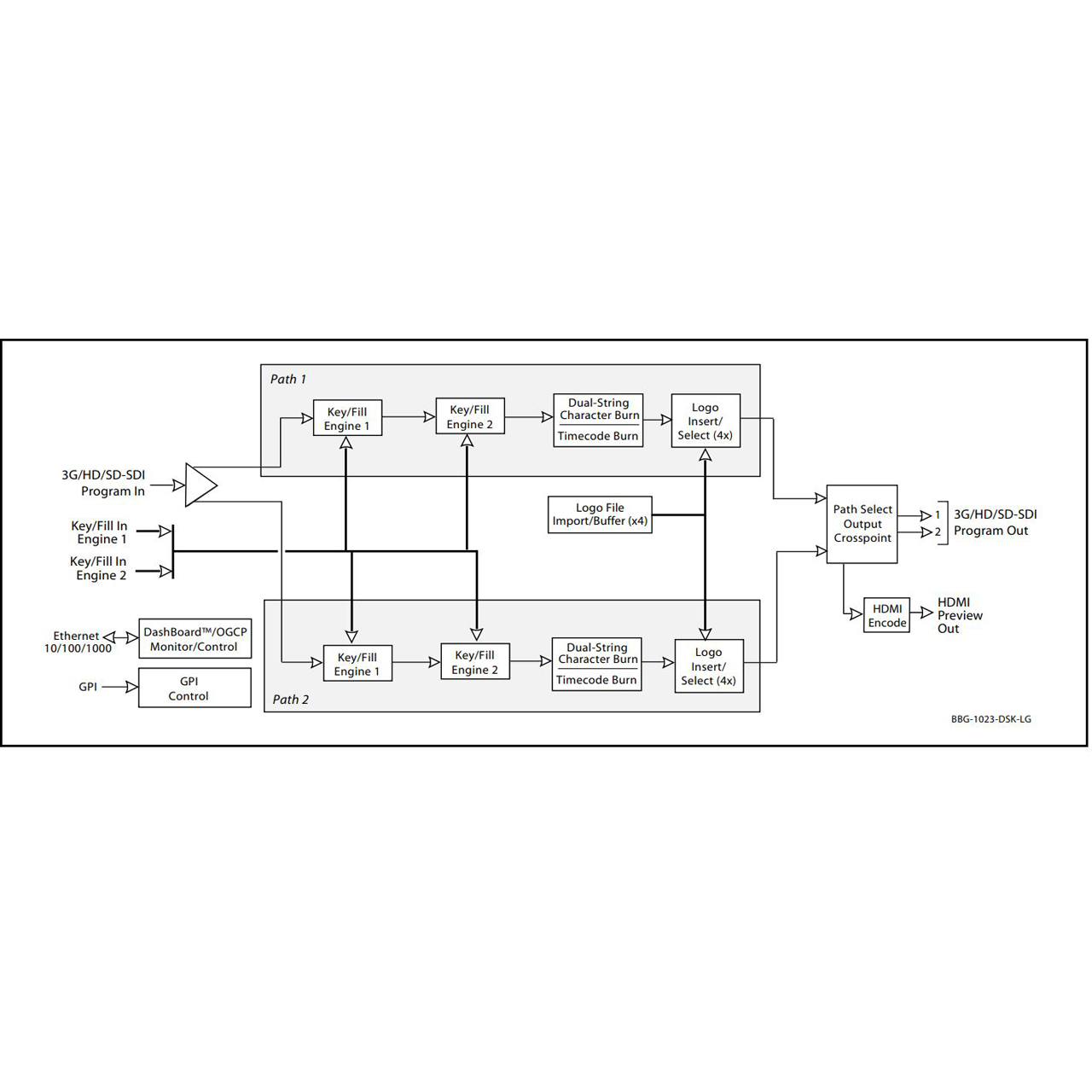

The Cobalt Digital BBG-1023-DSK-LG-C-DIN is a 3G/HD/SD-SDI Standalone Downstream Keyer with Dual Key/Fill Paths and Logo Insertion that provides flexible SDI downstream keying and logo insertion. The single program video input can be directed to either or both of two key/fill/logo insertion paths, allowing changing from one key/fill/insertion scheme to another in an instant. The BBG-1023-DSK-LG can also store up to four logo graphic files which can be flexibly inserted into either key/fill path. Two key/fill paths can be outputted simultaneously, with each path using uniquely different key/fill and logo insertions as desired. For each path, two discrete character burn strings and timecode can be inserted on output video. It is a perfect solution for flexible multi-market program branding and keyed character generator crawl insertion and can be remote-controlled using DashBoard. GPI allows direct control. The compact standalone form factor allows desktop usage, as well as the 1/3-rack size of the BBG-1023-DSK-LG allowing 3 units to be installed in a 1RU space (an optional mounting tray is available that provides secure mounting of the units to a standard 19" frame).

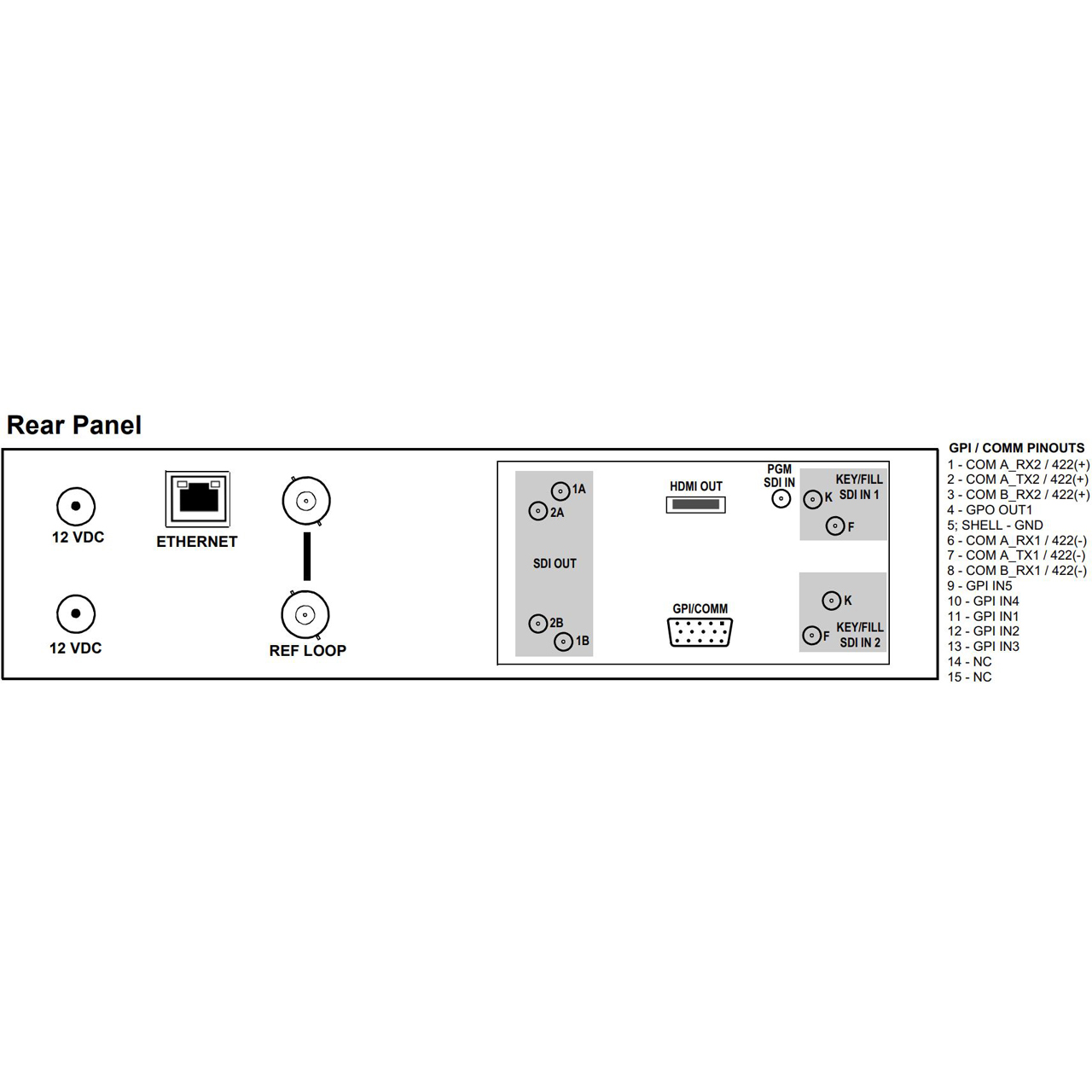

Please Note: The BBG-1023-DSK-LG-C-DIN consists of the following I/O's .... 1x 3G/HD/SD-SDI Program Video Input, 4x 3G/HD/SD-SDI Key/Fill Video Inputs (2 key/fill pairs), 2x 3G/HD/SD-SDI Program Video Outputs (user selectable as path 1 or path 2 key/fill program outputs), 1x HDMI/DVI Preview Output, 1x GPIO Port (HD-15). All coaxial connectors are DIN1.0/2.3.
