Black Box KV9604A-K DT Series ServSwitch DT DVI 4-Port with Transparent USB 2.0 Kit

ITEM #: BBX-KV9604A-K MFG #: KV9604A-K

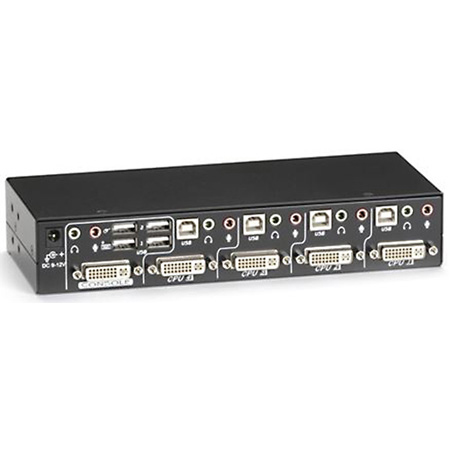

Primary Image

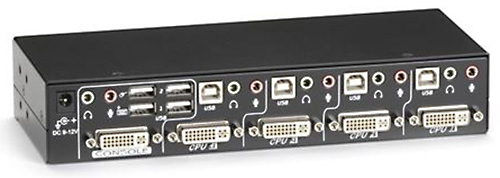

  • Product Image Thumbnail 1 of 2

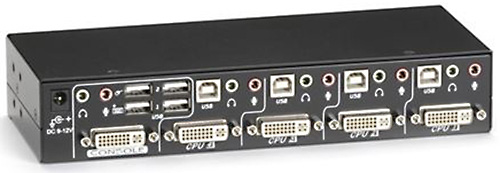

  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BBX-KV9604A-K

KV9604A-K - Overview

This four-port USB KVM switch enables you to access four CPUs with high-resolution DVI video connectors from a single workstation. Set up desktop KVM switching with high-quality DVI-D video.

The ServSwitch DT DVI 4-Port with Transparent USB 2.0 supports full DVI at resolutions up to 1920 x 1200 at 60 Hz. Plus, you can fine tune the signals, depending on signal strength. It enables you to switch DVI-D and audio signals with transparent USB 2.0 signals via push buttons. A built-in hub supports up to four USB peripherals. What's more, the switch supports stereo audio signal switching for speakers and microphones. Audio channels can be switched independently from USB and video.

Note: The KV9604A does not support hotkeys.

  • Features:

    • Switch up to four PCs.
    • Supports resolutions up to 1920 x 1200 at 60 Hz.
    • DDC EDID support via emulation.
    • Kit includes four (4) ServSwitch DT Series CPU cables (EHN900024U-0006).

  • Specifications:

    • CE Approval: Yes
    • Connectors: (1) Power; Console end: (1) DVI-I, (4) USB Type A, (2) 3.5-mm jacks for audio (speaker and microphone); Computer end: (4) DVI-I, (4) USB Type B, (8) 3.5-mm jacks for audio (speaker and microphone)
    • Power: From the interface or via a 5-VDC, 2-A power supply (included)
    • Resolution: 1600 x 1200 @ 60 Hz
    • Size: 1.7"H x 8.7"W x 5.1"D (4.4 x 2.2 x 13 cm)
    • Supported Operating Systems: Windows® 98 SE/Me/2000/XP, Windows Vista®, and Windows 7
    • Weight: 2.2 lb. (1 kg)

  • GTIN:

    0822088065487
