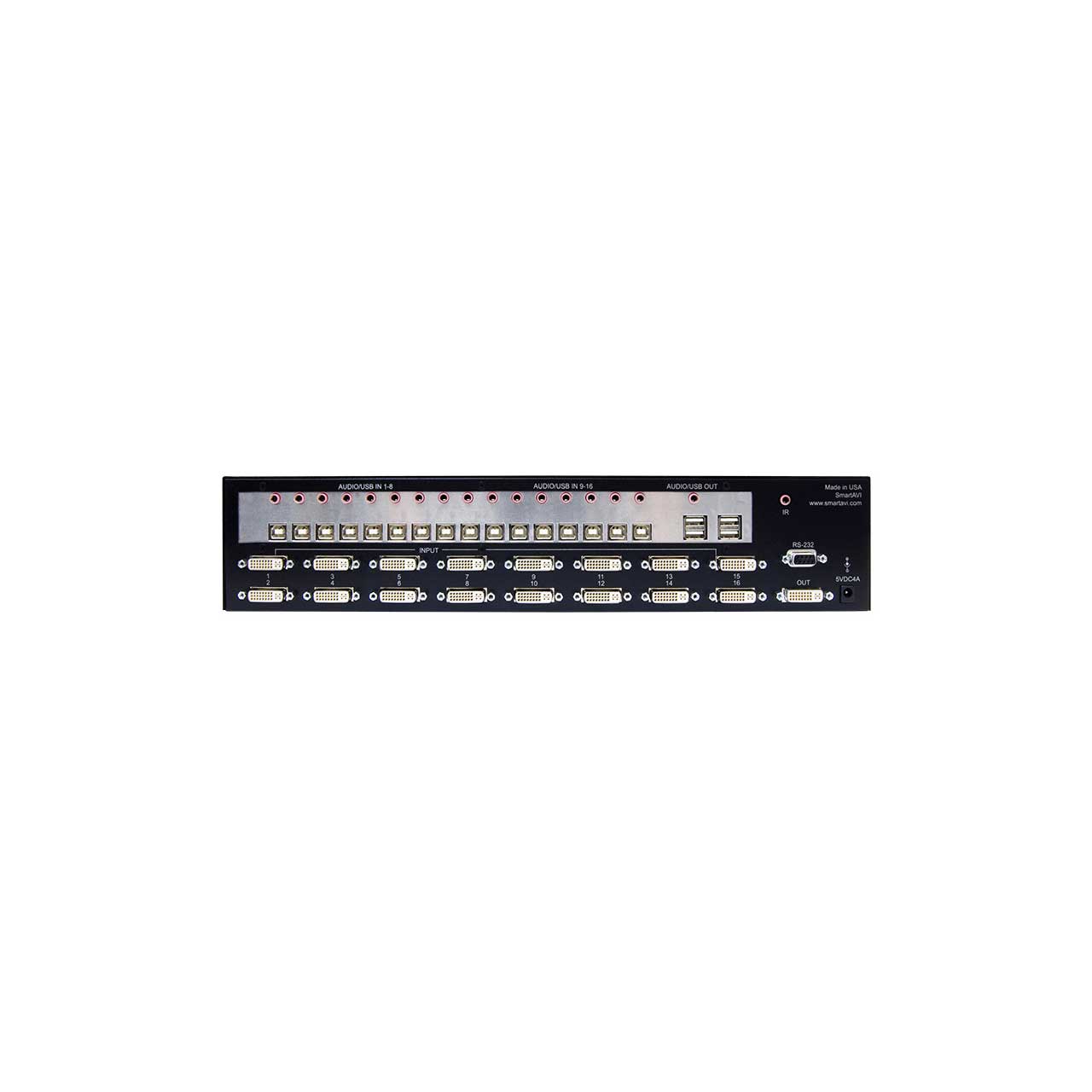

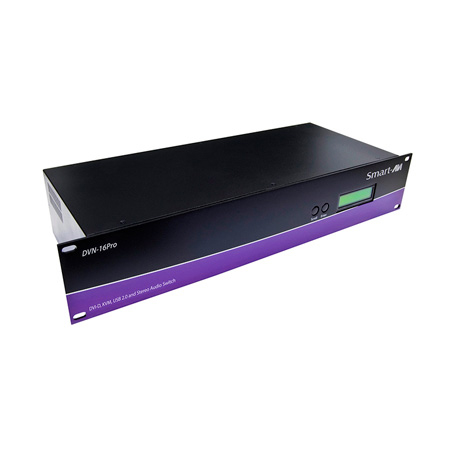

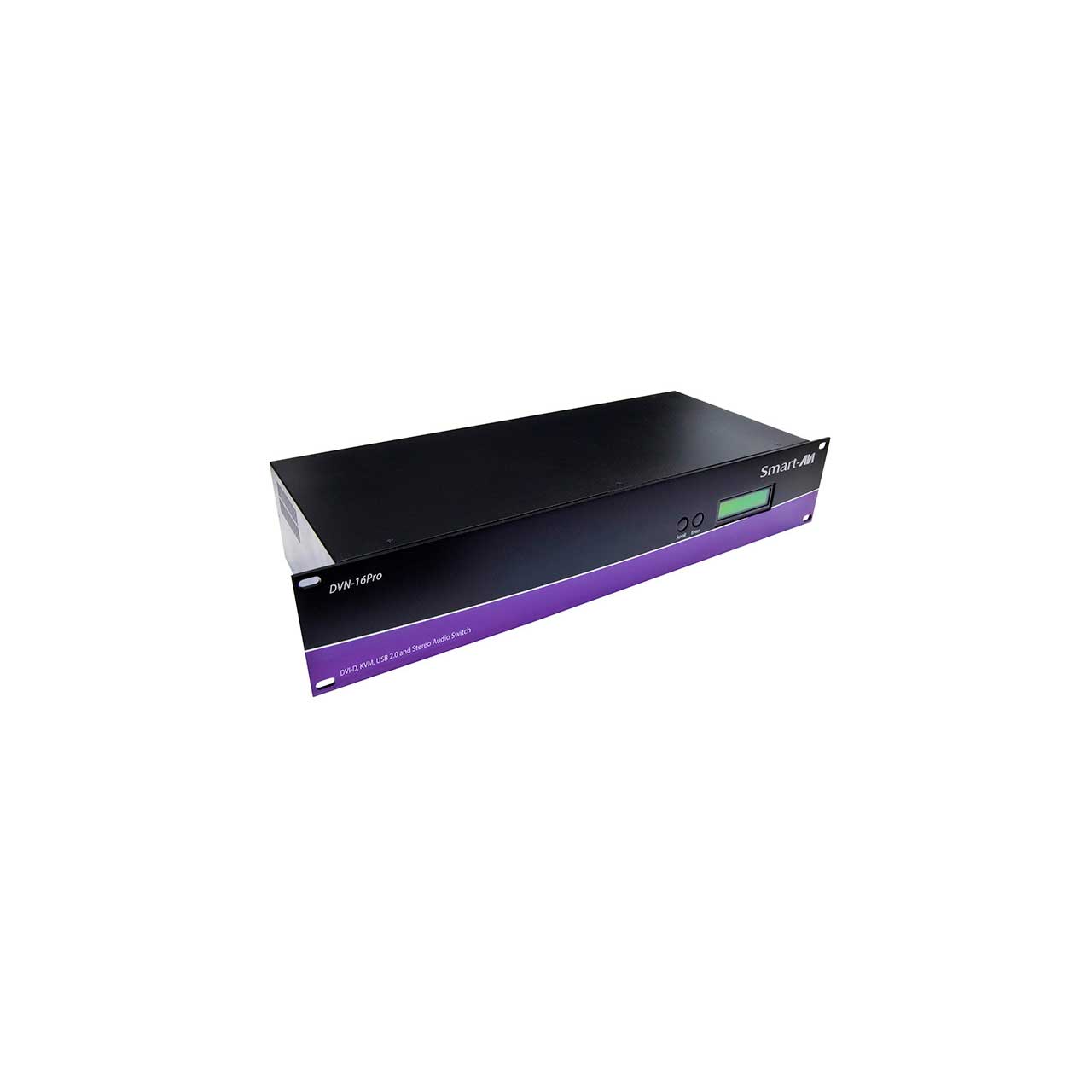

Smart-AVI DVN-16PRO-S 16x1 DVI-D & USB2.0 & Audio KVM Switch w/USB Emulation

DVN-16PRO-S - Overview

• Features:

  • Supports Windows, Mac, Linux, and Sun DVI-D
  • Source switching through USB keyboard and mouse emulation hotkeys
  • Supports High Resolution1920x1200 60Hz WUXGA

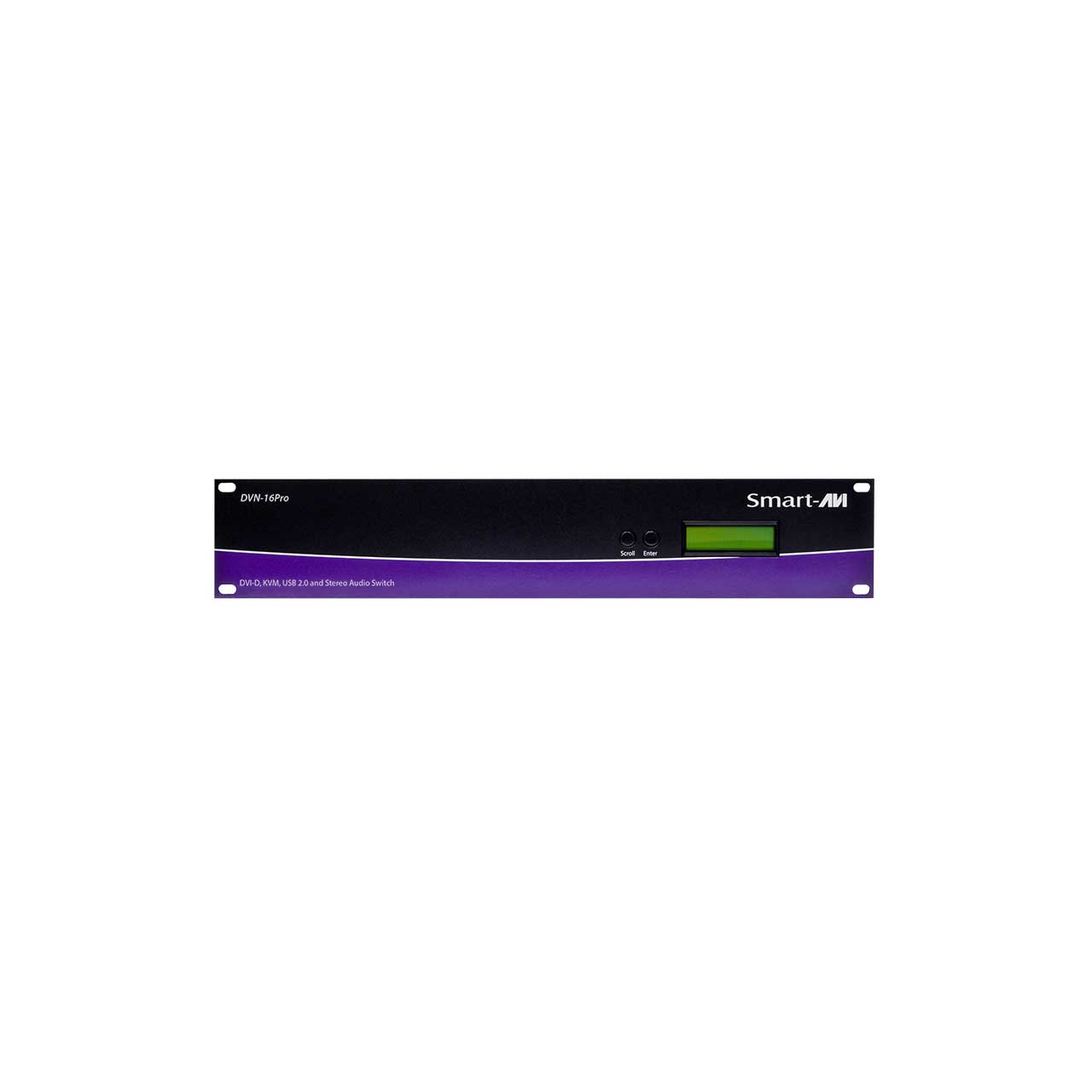

  • Front panel tactile switch with LCD display for local control
  • Universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 2.0 Devices
  • Balanced stereo audio output
  • RS-232 commands for remote control
  • Continuous DDC learning and correcting
  • Automatically recognizes keyboard settings from previous use
  • Constant USB keyboard and mouse driver support for selected and unselected ports


• Specifications:

  • Video
  • Format DVI-D Single Link
  • Maximum Pixel Clock 165 MHz
  • Input Interface (16) DVI-D 29-pin female
  • Output Interface (1) DVI-D 29-pin female
  • Resolution Up to 1920 x 1200 @60Hz
  • DDC 5 volts p-p (TTL)
  • Input Equalization Automatic
  • Input Cable Length Up to 20 ft.
  •
    Output Cable Length Up to 20 ft.
  • Audio
  • Frequency Response 20 Hz to 20 KHz
  • Impedance 600 ohm
  • Nominal Level 0-1.0V
  • Common Mode Rejection at 60dB
  • Input Interface (16) 3.5mm Stereo Audio
  • Output Interface (1) 3.5mm Stereo Audio
  • USB
  • Signal Type USB 2.0, 1.1 and 1.0w/Internal Hub
  • Input Interface (16) USB Type B (female)
  • Output Interface (2) USB Type A(female)for keyboard and mouse emulation;(2) for USB 2.0 Transparent
  • Control
  • Front Panel Tactile Switch
  • RS232 Via Control @ 115200 bps
  • Hotkeys Via Keyboard
  • IR Optional
  • Other
  • Power External 100-240 VAC/5VDC4A @20W
  • Dimensions 17"W x 3.5"H x 6.75"D
  • Weight 10 lbs.
  • Approvals UL, CE, ROHS Compliant
  • Operating Temp. 32-131°F (0-55 °C)
  • Storage Temp. -4-185 °F (-20-85 °C)
  • Humidity Up to 95%
  • Emulation Keyboard and Mouse


• Item Includes:

  • [DVN-16PRO & (PS5VD2A)]


• GTIN:

  0813280020978
