Modular, flexible transceivers for data communications equipment.

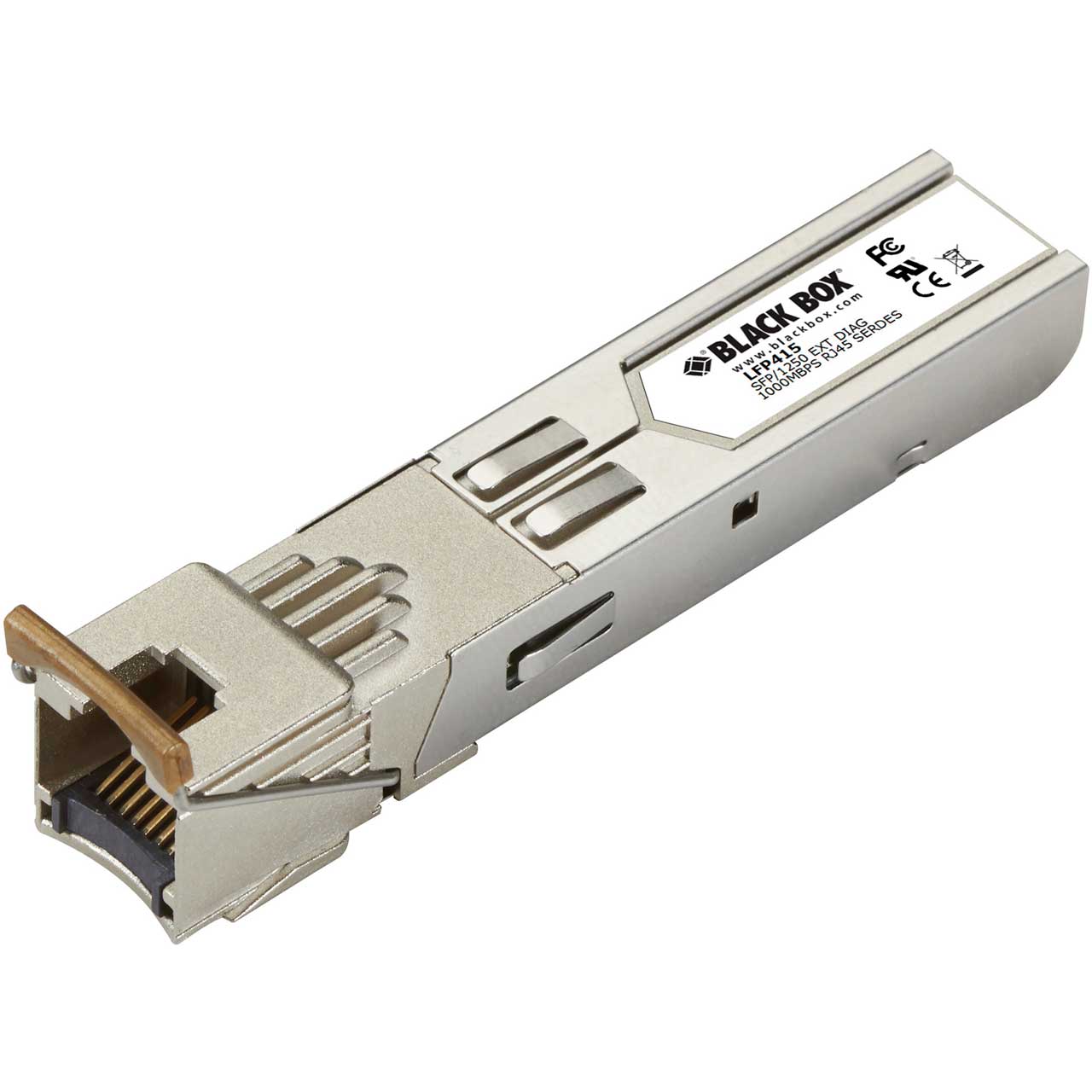

The Black Box LFP415 enables you to adapt an SFP slot to a fiber interface or copper interface. Because they're transparent to data, this SFP series is compatible with any network standard operating at speeds of up to 10 Gbps. The LFP415 works with the Black Box LE2721C switch module and the Black Box LE2722C switch module.
-
- This SFP copper transceiver enables you to adapt an SFP slot to a copper RJ45 interface.
- The deivce has a SerDes interface for 1000Mbps Ethernet.
- Supports an extended operating temperature of -40 to 176F (-40 to +85C).
- Autosensing for 1000-Mbps Ethernet.
- Link length up to 100 meters over CAT5 or better UTP cable.
- Throughput up to 1.25 Gbps.
- Reports basic link characteristics such as SFP type, length of the fiber link, wavelength, and bit rate.
- Great for industrial use. Offers an operating temperature range of -40° to +185° F (-40° to +85° C).
- A hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
- Auto-detects MDI/MDI-X.
- Complies with SFP Multi-Source Agreements standards (MSA)
- Comes with LOS (Loss of Signal) Detection.
-
- Altitude: 5905 ft. (1800 m)
- Approvals: CE, ULr, RoHS2, TUV, FCC
- Environmental: Operating Humiditiy: 85% non-condensing
- Input Power Watts: 1W
- Input Voltage: 3.3 VDC (3.1 V minumum to 3.5 V maximum) 330 mA
- Interface: Mac: Serdes
- Operating Humidity: 85% non-condensing
- Operating Temperature: -40°F to 185°F (-40°C to 85°C)
- Power: SFP Cage
- Speed: 1000-Mbps
- Connectors: (1) RJ45
- Dimensions(WxHxD): 0.59" x 0.69" x 2.75" (14.9 mm x 17.5mm x 69.85mm)
- Weight: 0.05lbs (0.022kg)
-
- 1x Black Box LFP415 Gigabit Extreme Temperature SFP with Extended Diagnostics
-
-
