Belden 10GX53F Plenum/CMP Flamarrest Cat 6A Enhanced Premise 4 Pair F/UTP Cable 23AWG Solid - Black - 1000 Ft

ITEM #: BL-10GX53F1000BK MFG #: 10GX53F 0101000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,619.30

Our Price:

$1,171.61

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


10GX53F 0101000 - Overview

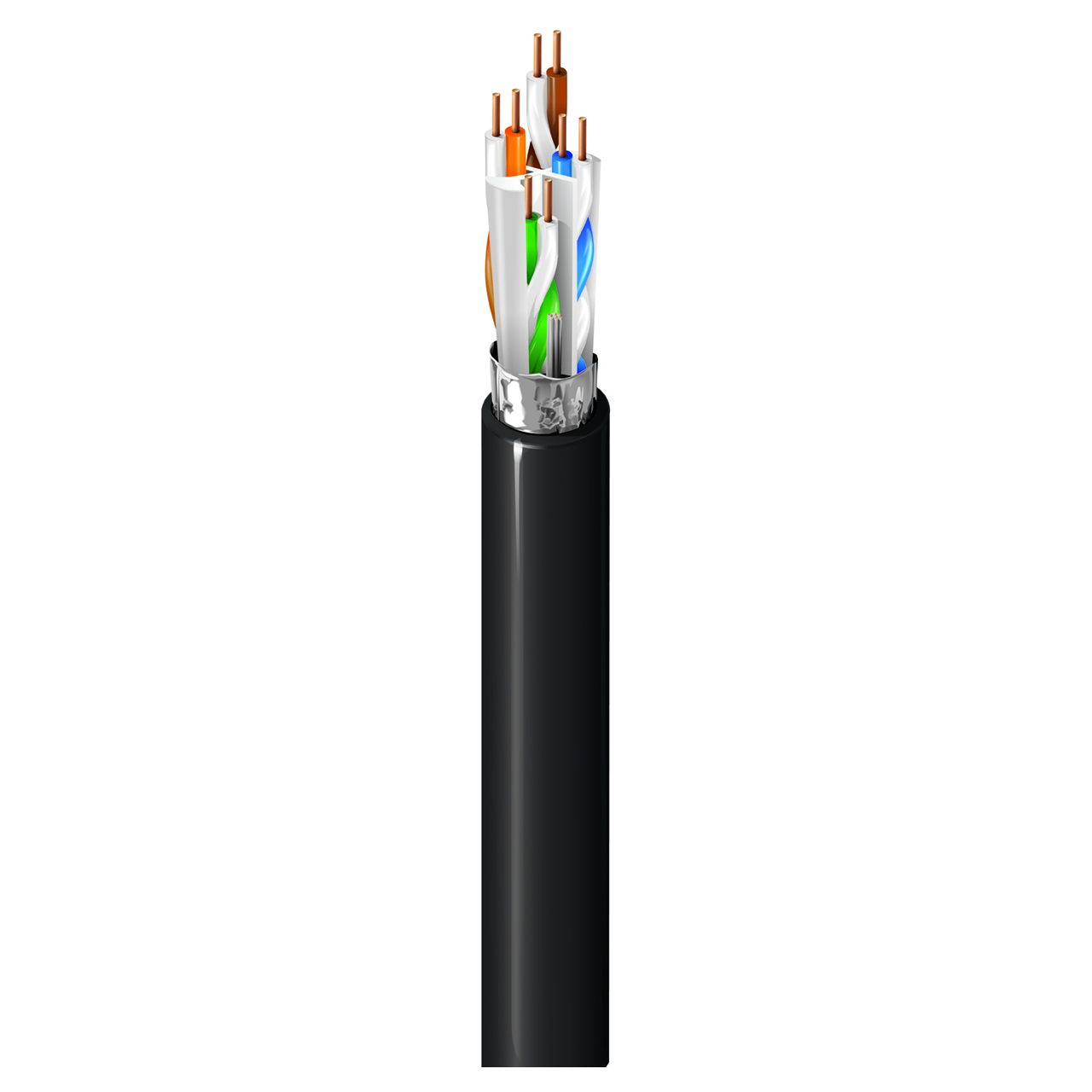

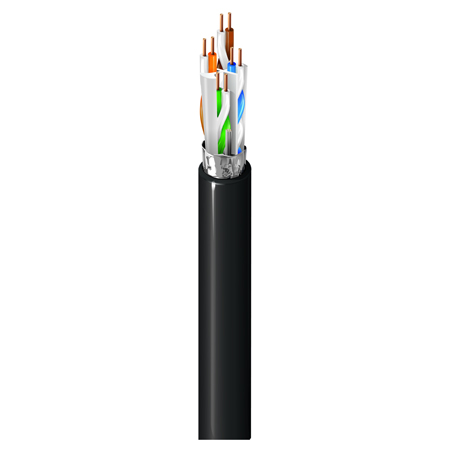

Plenum 10GX Category 6A Enhanced Cable in a PVC-LS Flamarrest Jacket

Belden 10GX53F is a Plenum-CMP Rated 10GX Category 6A Enhanced Premise Horizontal F/UTP Cable (625MHz). It features 4 Pair, 23 AWG Solid Bare Copper Foil Shielded Conductors in a Flamarrest® PVC-LS(low smoke) Jacket.

Through a unique combination of advanced engineering expertise and precision manufacturing, Belden has built upon the enabling technologies of its 10GX System to offer better noise immunity and performance that meets or exceeds Category 6A specifications. It not only gives you the performance you need to run current-day applications, but provides room for future growth and expansion.

Applications
Use as a Premise Horizontal Cable
Ethernet up to 10GBASE-T
Wi-Fi 6
Wi-Fi 5
Surveillance
HDBaseT
PoE++, PoE+, PoE
Noisy Environments

  • Features:

    • 23 AWG Solid Bare Copper Conductors
    • 625MHz Enhanced Premise Horizontal Cable
    • CMP Rated Indoor Plenum
    • Flamarrest® PVC-LS Jacket
    • Patented EquiSpline® Center Member
    • F/UTP - Foil Shielded

  • Specifications:

    • AWG: 23
    • Stranding: Solid
    • Material: Bare Copper
    • Pairs: 4
    • Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)
    • Insulation Material: FEP - Fluorinated Ethylene Propylene
    • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
    • Outer Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly) 100% Coverage
    • Outer Jacket: Flamarrest® PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.275 in (6.99 mm)
    • UL Voltage Rating: 300 V (CMP), 300 V (CL3P)
    • UL Rating Temp: 105°C
    • Operating Temp: -20°C To +75°C
    • Installation: 0°C To +50°C
    • Storage Temp: -20°C To +75°C
    • Environmental Suitability: Plenum, Indoor
    • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMP;CMP-LP (0.7A);CL3P-LP (0.7A)
    • CEC / C(UL) Compliance: CMP
    • ICEA Compliance: S-116-732-2013
    • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
    • NEMA Compliance: ANSI/NEMA WC-66
    • Data Category: Category 6A
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A

  • Item Includes:

    • 10GX53F Plenum/CMP F/UTP Cable 23AWG Solid - Black - 1000 Feet

  • Warranty:

    • Limited 10 Year Warranty

  • GTIN:

    0612825377795
