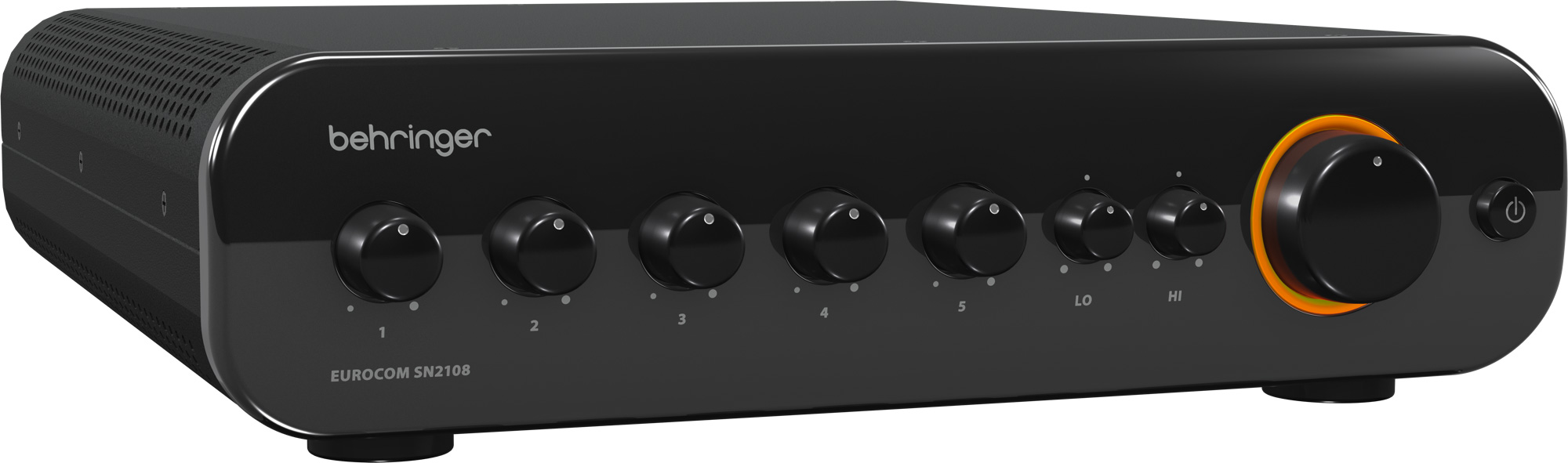

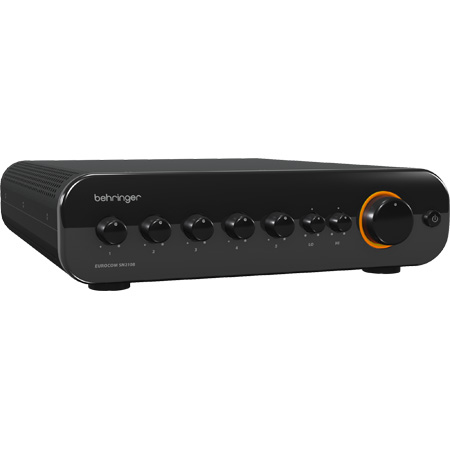

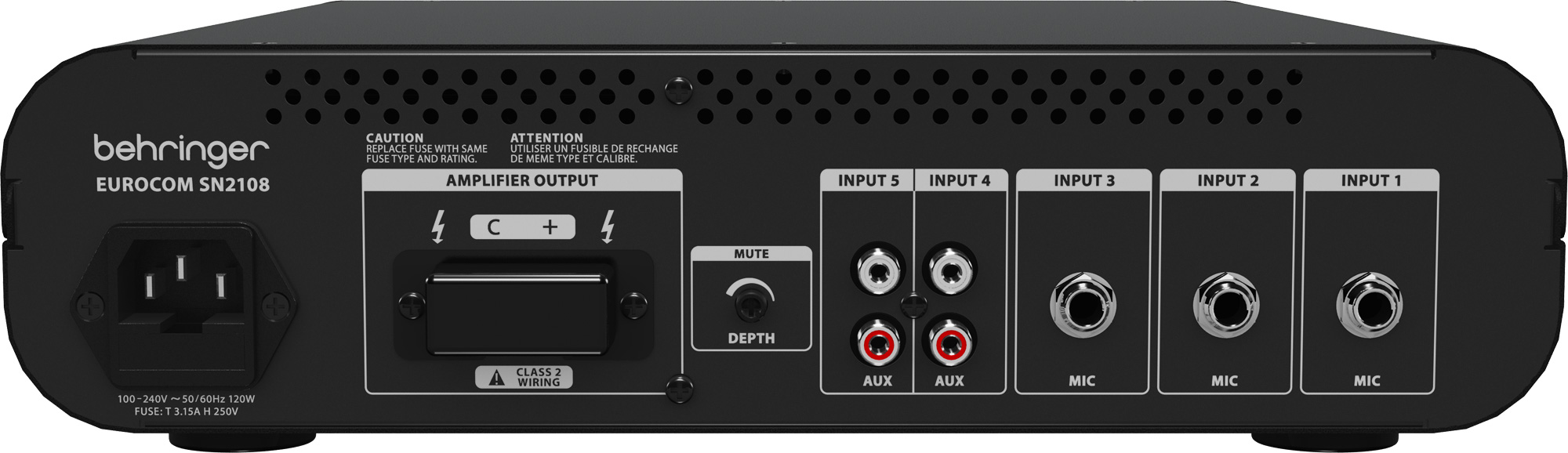

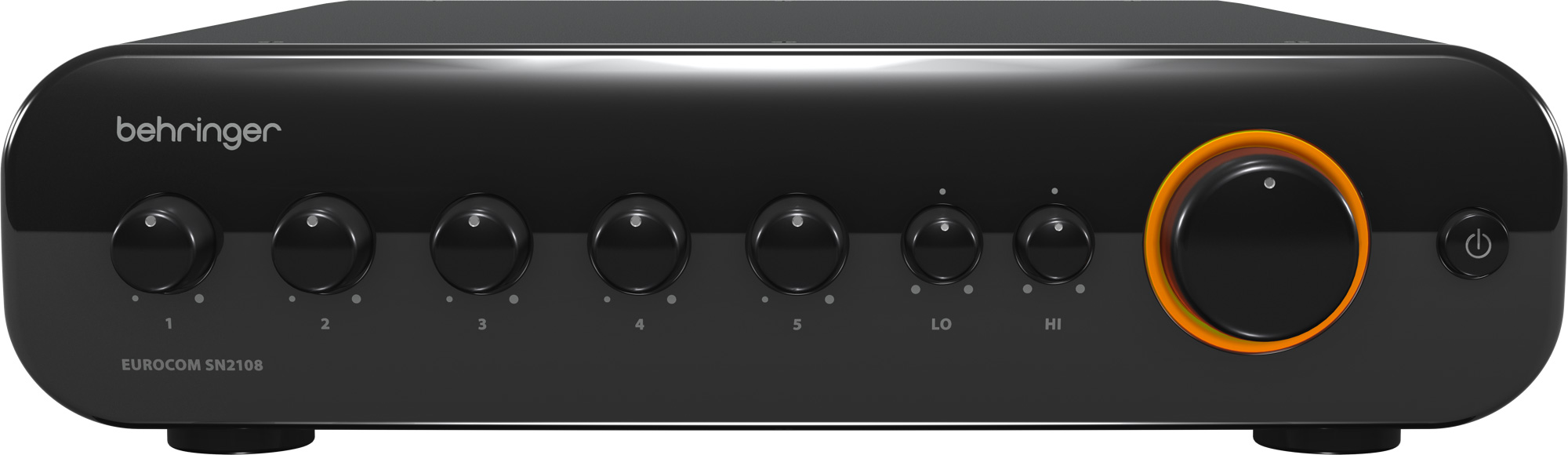

Behringer EUROCOM SN2108 80 Watt Mixer Amplifier (70V 3 plus 2 Inputs)

ITEM #: BEH-SN2108 MFG #: SN2108

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BEH-SN2108

SN2108 - Overview

The Behringer EUROCOM SN2108 is an energy-efficient 80-Watt mixer amplifier with 70V output for distributed music, paging and AV applications. Combining superior performance and ease-of-use with unprecedented value, the EUROCOM SN2108 mixer-amplifier is an innovative yet practical solution for distributed sound in low- complexity environments. Designed exclusively for Hi-Z systems, the SN2108 unites a 5-input mixer with an 80 W RMS mono amplifier engineered for continuous 70/100 V output. SN2108 is an ideal match for retail, hospitality,office, medical, educational and industrial spaces.

  • Features:

    • Multi-function 80-Watt mixer amplifier, designed for continuous operation in distributed music, paging and AV applications
    • State-of-the-art, energy-saving Switch-Mode Power technology with up to 80% power efficiency drastically reduces energy cost
    • Transformerless, cool-running Class-D amplifier drives 70 V loads directly
    • 3 balanced or unbalanced microphone inputs on TRS connectors
    • 2 Aux inputs for music or program signals on RCA connectors
    • Variable voice-activated music muting
    • Lo and Hi frequency EQ for ultimate sound adjustment
    • Intuitive front panel with dual-function indicator ring
    • Secure 2-position terminal strip speaker output connector
    • Independent DC and thermal overload protection plus automatic limiters for each amplifier prevent overload, clipping and distortion without shutting down audio
    • Ultra-light, ultra-low noise and ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
    • High-quality components and exceptionally rugged construction ensure long life
    • Conceived and designed by BEHRINGER Germany


  • Specifications:

    • Audio Inputs
    • Mic Inputs: 3x 1/4" TRS (-50dBv, 600Ω balanced)
    • Aux Inputs: 2x RCA, stereo summed (0dB, 10 kΩ unbalanced)

      Audio Outputs
    • Speaker Outputs: 2-position terminal block

      Amplifier
    • Amplifier Channels: HI-Z: 1x 70V
    • Power Output LO-Z: 80W RMS @ 70V, 1% THD, 1kHz sine wave
    • Min. Impedance: 62.5Ω

      System
    • Controls: 3x Mic/Line gain (Inputs 1 - 5), Lo tone: ±15dB @ 100Hz, Hi tone: ±15dB @ 10kHz, Master Volume, Mute Depth, Power ON/OFF, Voltage (100 - 240VAC~, 50/60Hz)
    • Indicators: Dual-function indicator ring (Volume Control): Yellow (Power ON) and Red (Clip)
    • Output Circuit Type: Class D, transformers
    • Amplifier Protection: Thermal and DC protection, Automatic limiters
    • Frequency Response: 50Hz - 18kHz, ±1dB @ 1W (70V)
    • Dynamic Range: MIc - 65dB, Aux - 80dB
    • THD+N: 0.05% @ 1W, 1kHz dBr into 62.5Ω load
    • Signal-to-Noise Ratio: 90dB @ 1% THD+N

      Power Supply
    • Mains Voltage: 100 - 240VAC~, 50/60Hz
    • Power Efficiency: 70%
    • Power Consumption: 38W @ 1/8 of max rate output

      Physical
    • Dimensions (HxWxD): 3.3" x 12" x 14.2"
    • Weight: 8.2lbs


  • GTIN:

    0736211844279
