UCA202B - Overview

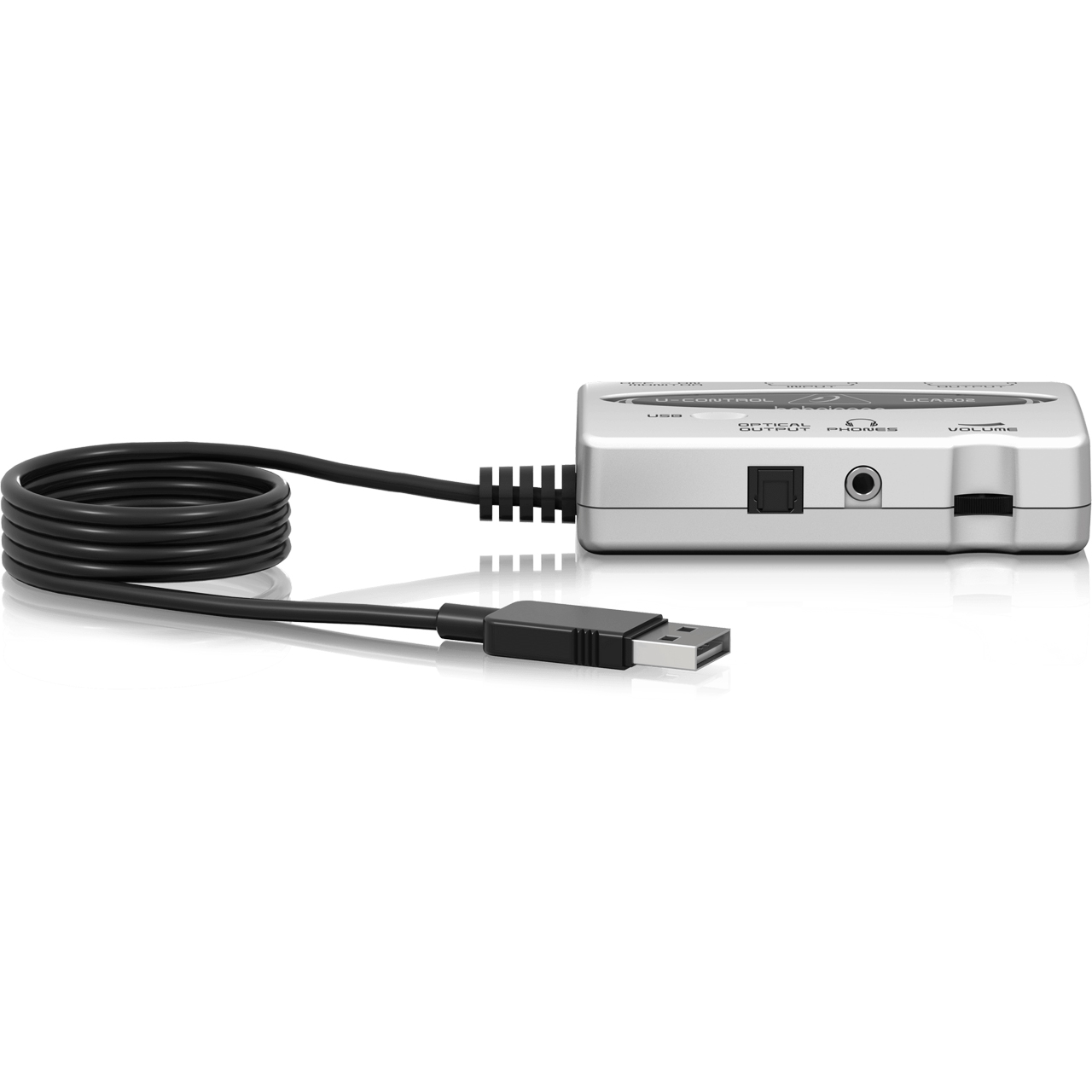

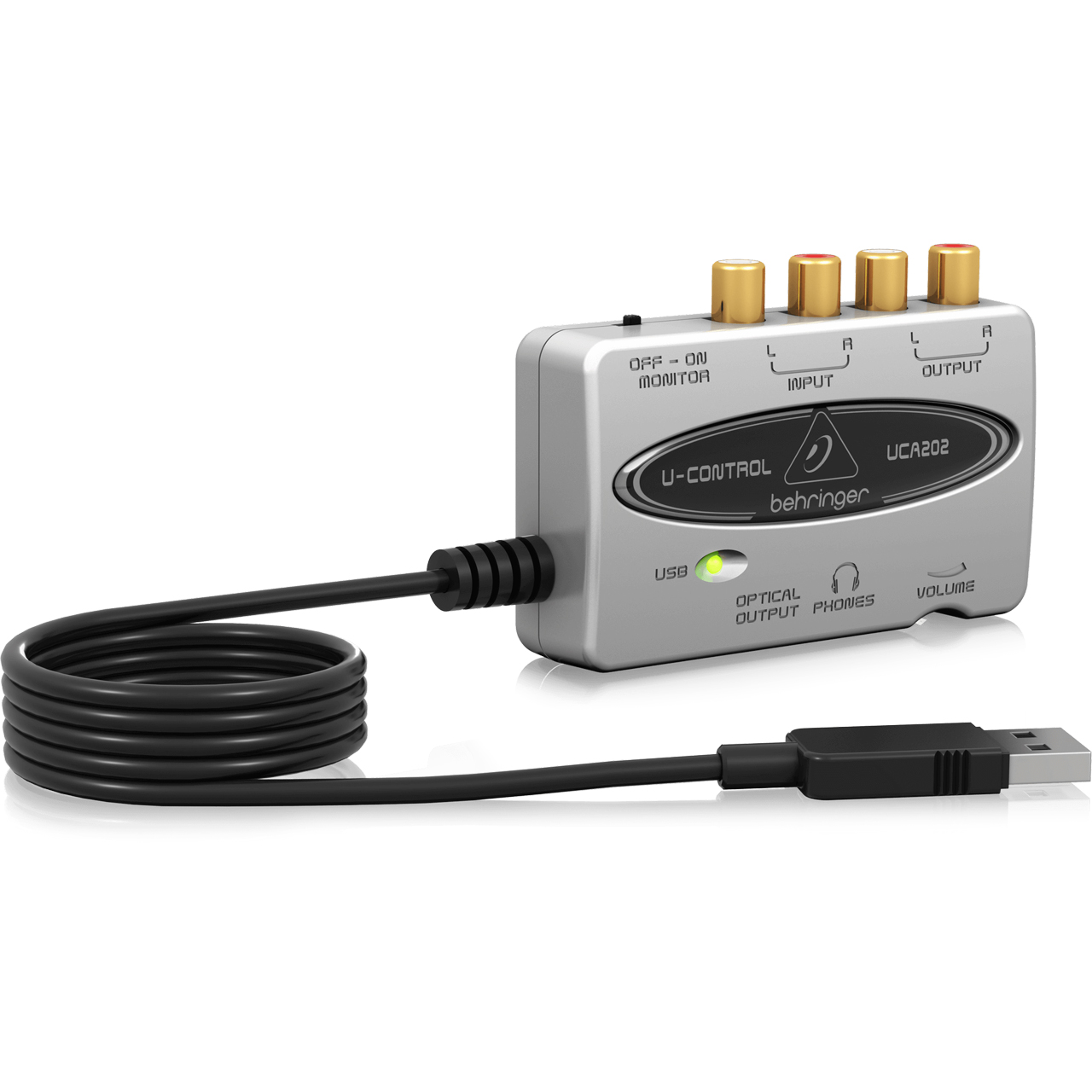

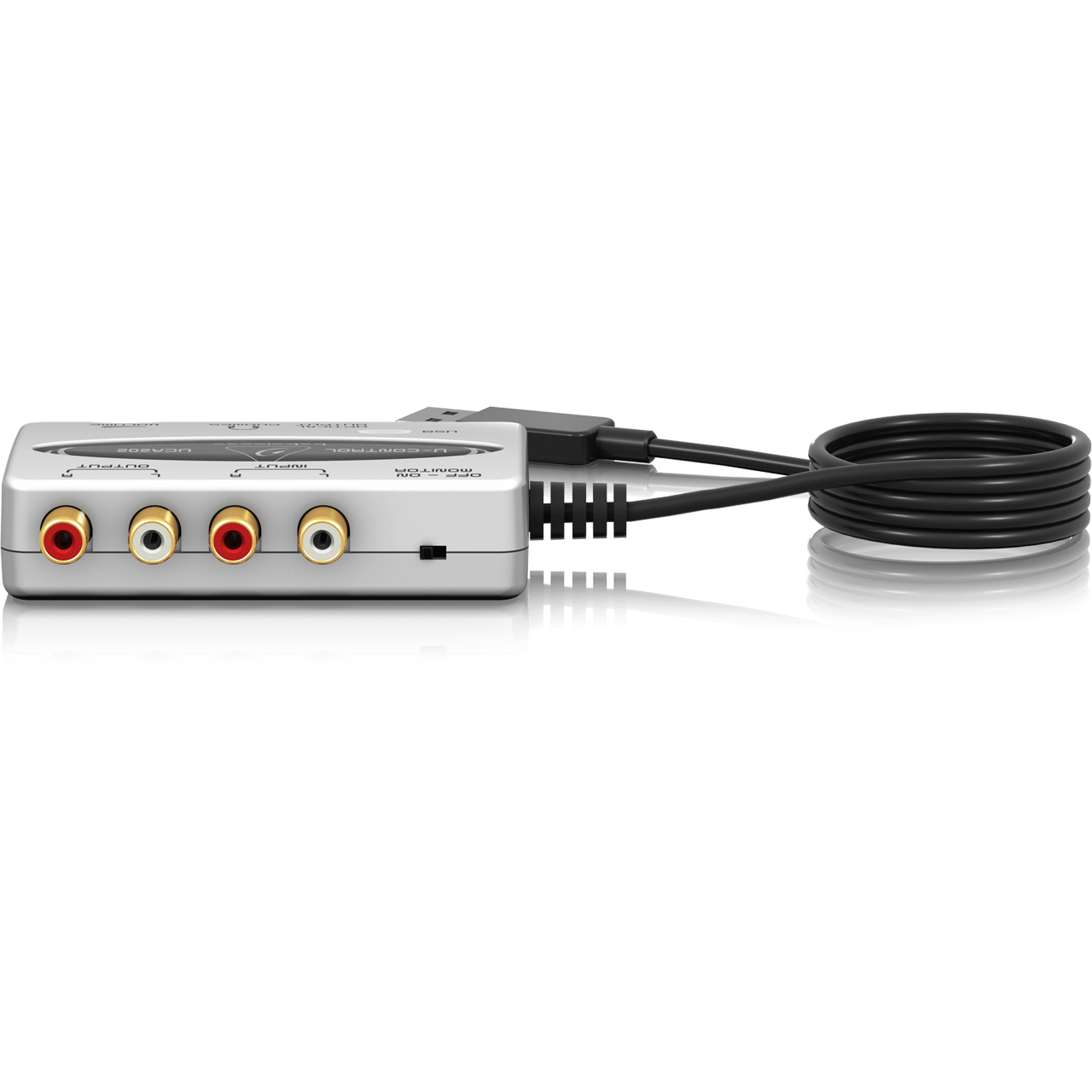

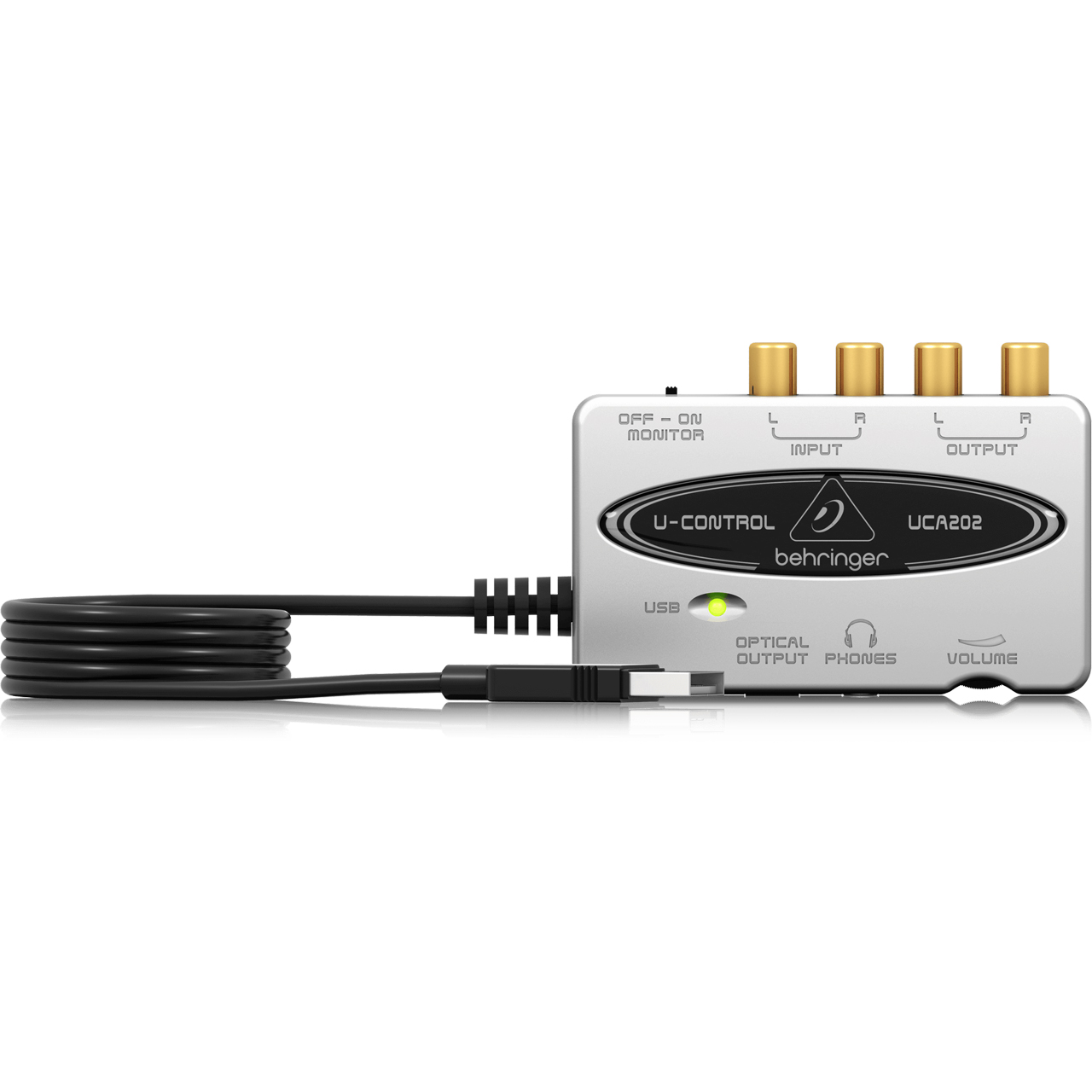

The Behringer UCA202 allows you to connect instruments and other audio devices to your computer, effectively merging the analog and digital worlds. It accomplishes this by providing two analog mono Inputs and Outputs (for monitoring), USB connectivity and an additional S/PDIF optical output. The stereo headphone output features a dedicated level control and lets you listen to both the input and output. They even give you all the software you'll need to get started!

Imagine the Possibilities

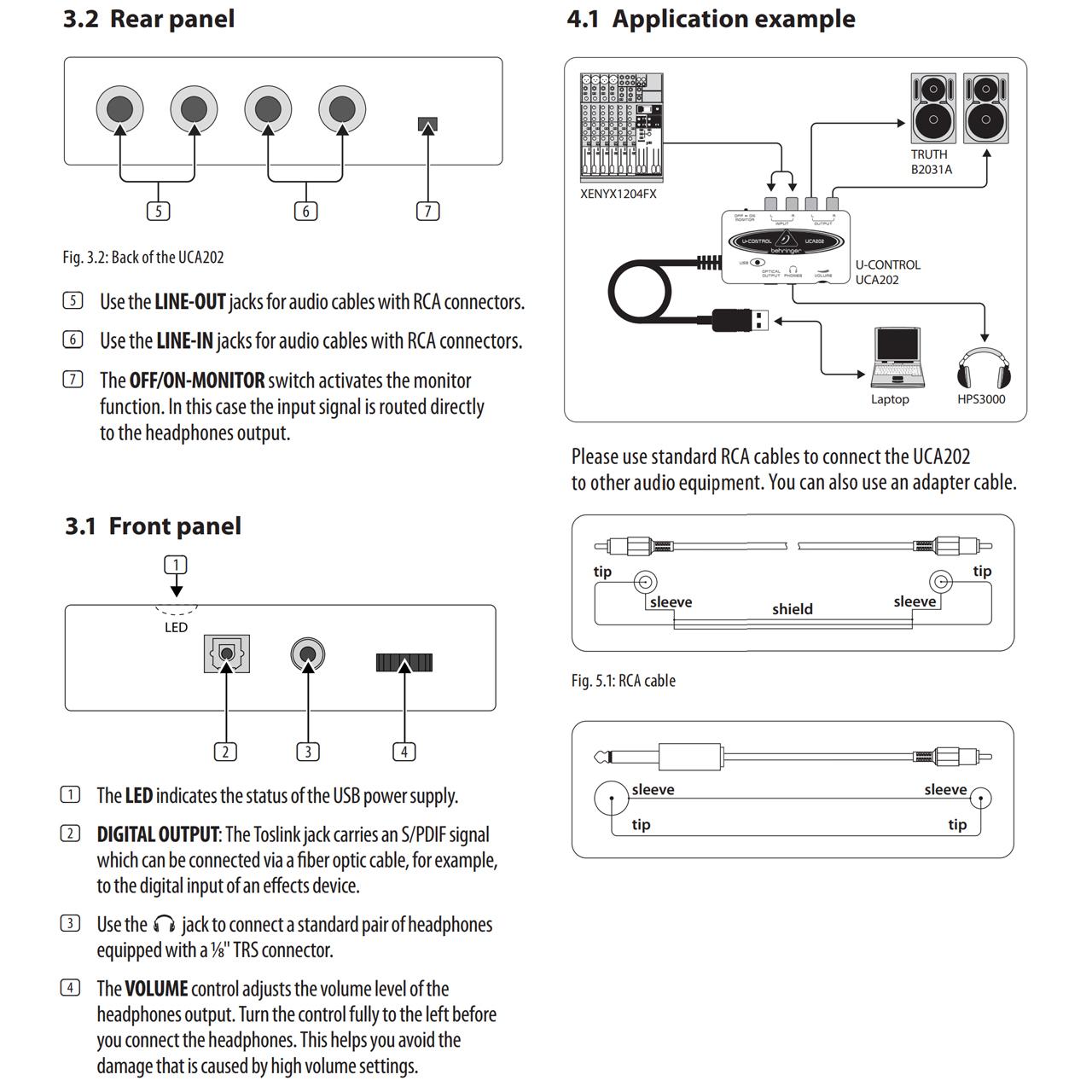

When used as a professional interface between a mixing console and your computer, a myriad of options become available. Some of these might include connecting the UCA202 RCA Outputs to the Tape Input jacks of your mixer or to your powered monitors. Connecting to the mixer input channels allows you to use your mixer's Aux Send feature to build an extremely versatile monitor mix for recording sessions.

Value
For a mere fraction of the cost of an USB audio interface from other brands, you can have state-of-the-art digital conversion and hassle-free connectivity between your PC or Mac Computer and any piece of audio equipment. Bridging the gap between your music and the rest of the world-the BEHRINGER U-CONTROL UCA202. Check one out at your local dealer today!

For a mere fraction of the cost of an USB audio interface from other brands, you can have state-of- the-art digital conversion, world-class recording and editing software and hassle-free connectivity between your PC or Mac Computer and any piece of audio equipment. Bridging the gap between your music and the rest of the world - the Behringer U-CONTROL UCA202.

  • Features:

    • Ultra-flexible audio interface connects your instruments, mixer, etc. with your computer for recording and playback
    • High-resolution 48 kHz converters for high-end audio quality
    • Works with your PC or Mac computer-no setup or drivers required. Free audio recording and editing software downloadable at www.behringer.com
    • Stereo Headphone output with dedicated Level control lets you monitor both input and output
    • Additional S/PDIF optical output for direct digital conversion
    • Powered via USB-no external power supply needed
    • Designed and engineered in Germany

  • Specifications:

      Line In/Out
    • Connectors: RCA, unbalanced
    • Input Impedance: 27kΩ
    • Output Impedance: 400Ω
    • Max. Input/Output Level: 2dBV

      Digital Output
    • Socket: Toslink, optical cable
    • Output Format: S/PDIF

      Phones Out
    • Socket: 1/8" TRS stereo jack
    • Output Impedance: 50Ω

      Digital Processing
    • Converter: 16-bit converter
    • Sample Rate: 32.0kHz, 44.1kHz, 48kHz

      General
    • USB 1.1 Connectors: Type A
    • Frequency Response: 10Hz - 20kHz, ±1dB @ 44.1kHz sample rate; 10Hz - 22kHz, ±1dB @ 48kHz sample rate
    • THD: 0.05% @ -10dBV, 1kHz
    • Crosstalk: -77dB @ 0dBV, 1kHz
    • Signal-to-Noise Ratio: A/D 89dB @ 1kHz, A-weighted; D/A 96dB @ 1kHz, A-weighted
    • Power Supply: USB Connection, 5V, 100mA max.
    • Dimensions (HxWxD): 0.87" x 2.36" x 3.46"
    • Weight: 0.22lbs

  • Warranty:

    • 3 Year

  • GTIN:

    0689076361262
