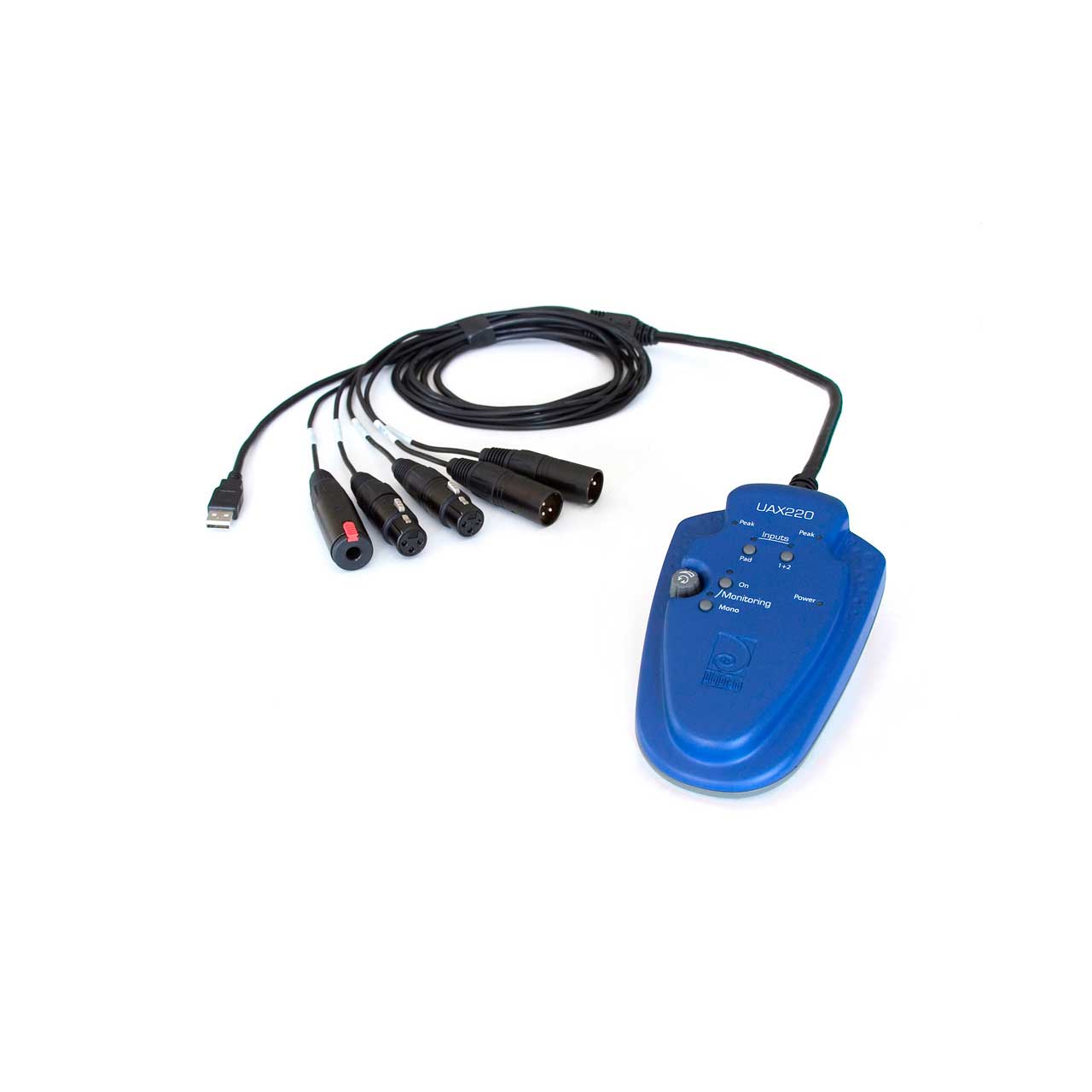

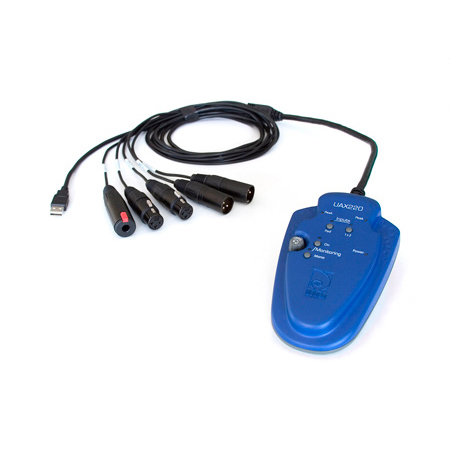

Digigram UAX220v2 USB Audio Interface

UAX220V2 - Overview

• Features:

  • Main Hardware Features
  • Switchable zero-latency direct hardware monitoring of the inputs on the outputs
  • Note: the input monitoring is mixed on the output with the sounds played by the application.
  • Possibility to switch the input monitoring to mono mode “left channel + right channel”
  • Possibility to record both inputs mixed


  • Software Features
  • UAX220v2 complies with the USB Audio specification. Therefore, and depending on the operating system used, it is compatible with WDM DirectSound, ALSA, and CoreAudio. Furthermore, it is possible to use a third-party ASIO driver (Asio4all, Ploytec).


  • Hardware Requirements
  • A USB port (standard 1.1 or higher)
  • Minimum Apple hardware configuration: PowerMac G3, G4 or G5 with 128 MB RAM
  • Minimum PC configuration: Pentium III (or equivalent), 256 MB RAM.


  • Supported operating systems
  • Windows
  • Mac OS X
  • Linux


• Specifications:

  • 2 balanced analog mono line inputs, with a maximum input signal of +22 dBu for UAX220v2, +10 dBu for UAX220-Mic
  • 2 balanced analog mono line outputs, with a maximum output signal of +10 dBu
  • Switchable -12 dB input signal level attenuator for UAX220v2, -20 dBu for UAX220-Mic
  • 1 stereo headphone output on female 1/4 '' jack with knob for gain adjustment
  • A/D and D/A conversions up to 24 bits/48 kHz
