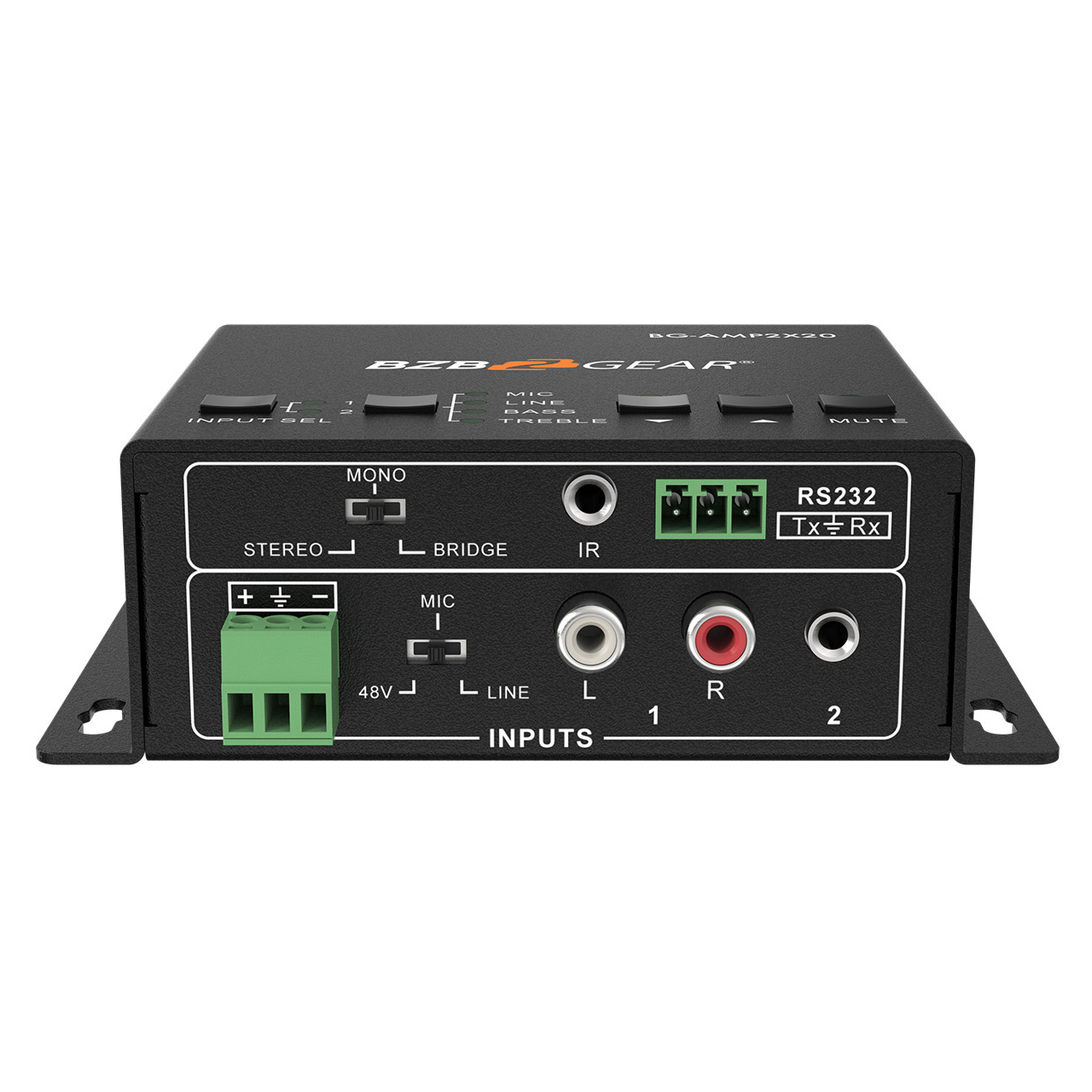

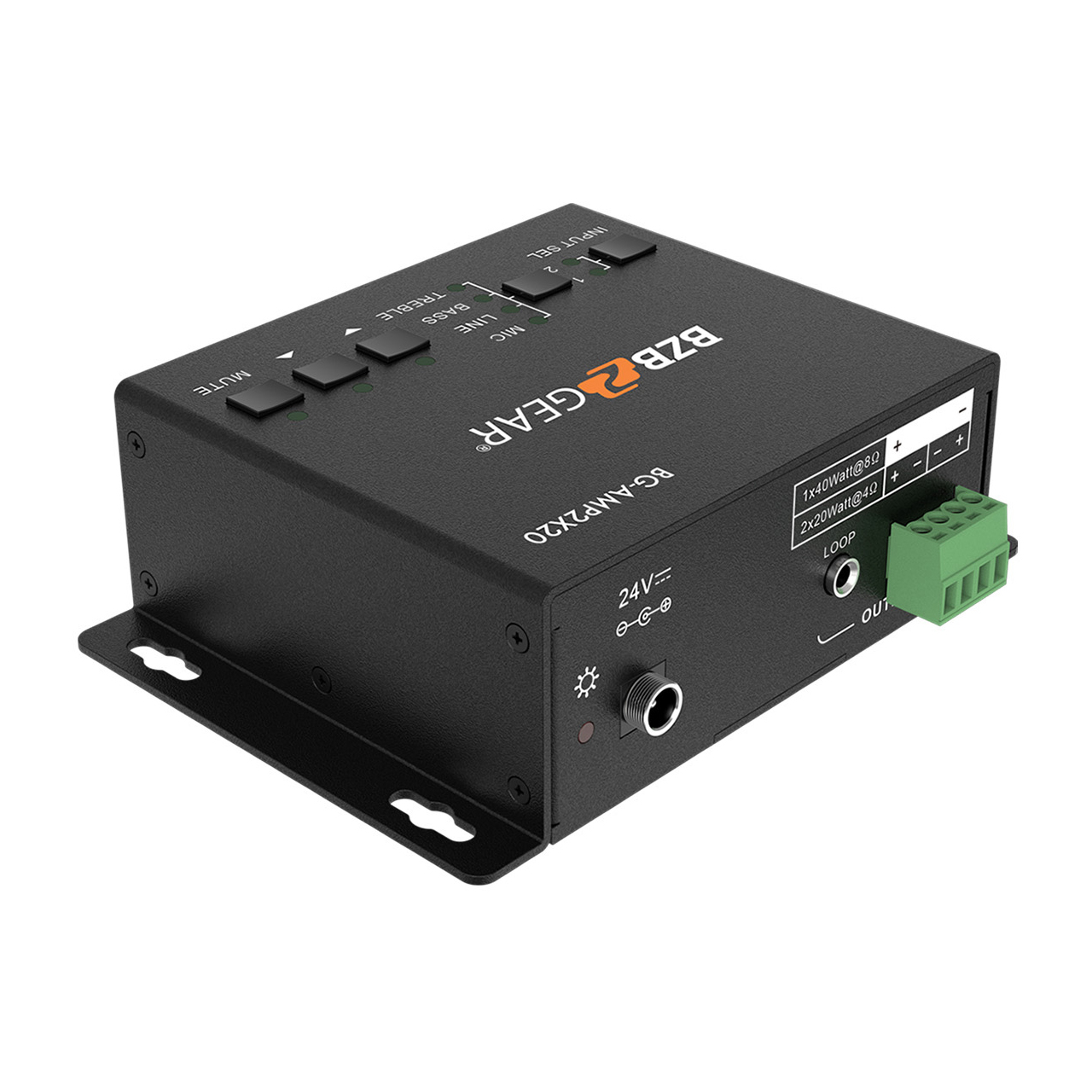

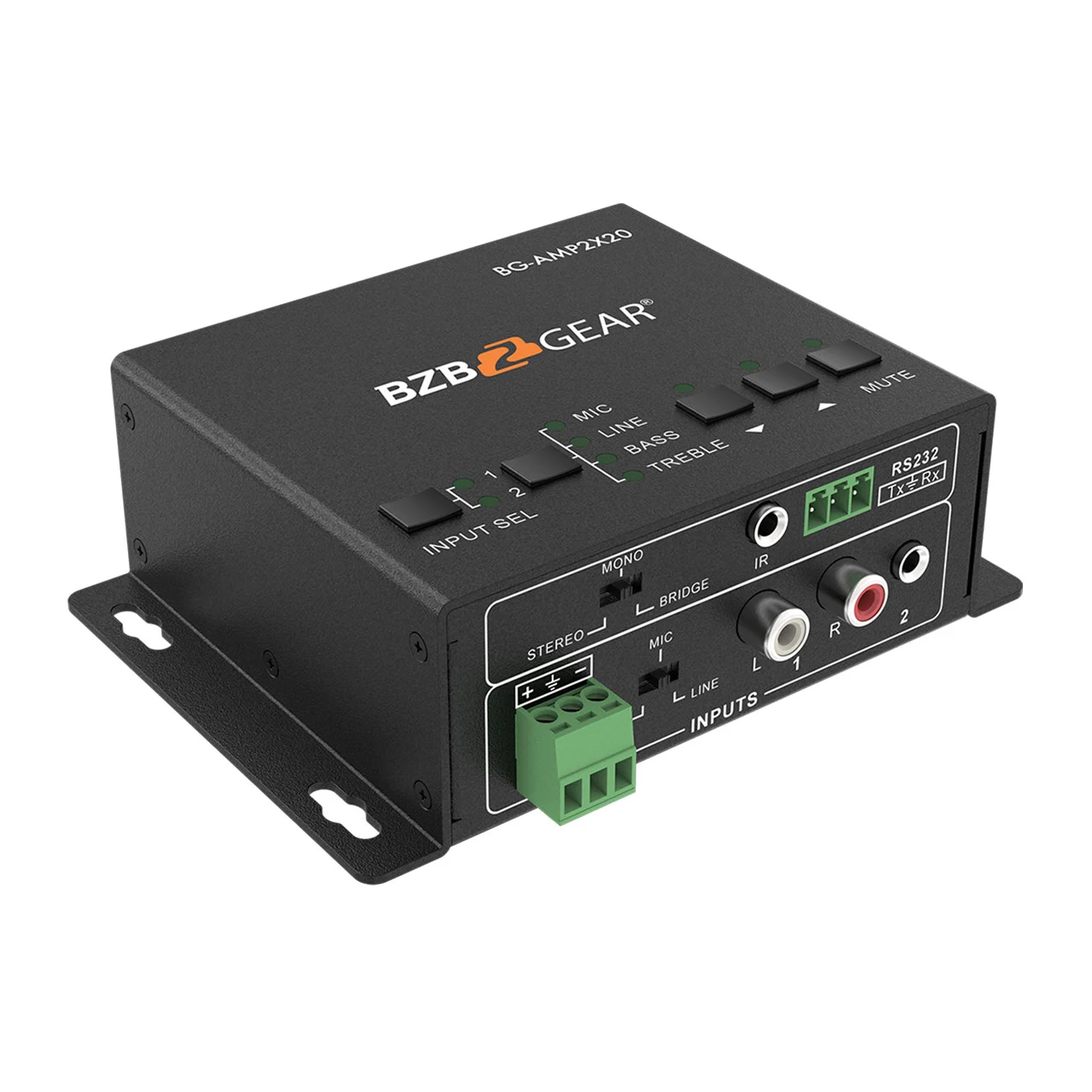

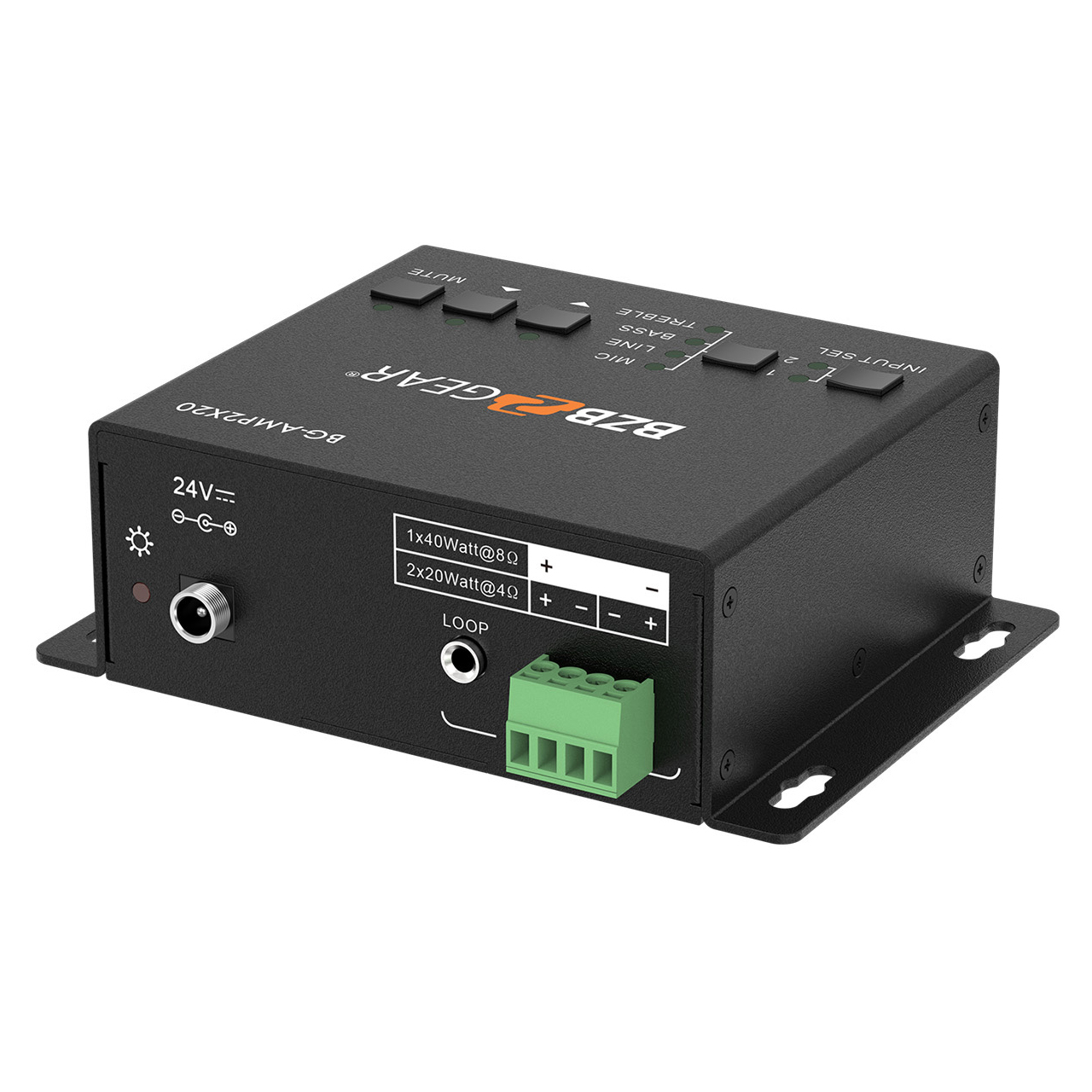

BZBGEAR BG-AMP2X20 2-Channel 40W 4/8 Ohms Stereo/Mono Audio Amplifier

ITEM #: BG-AMP2X20 MFG #: BG-AMP2X20

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BG-AMP2X20 - Overview

    The BZBGEAR BG-AMP2X20 is a versatile and compact bridgeable digital stereo amplifier (Class-D). Perfect for installations with limited space, it can be operated in three different configurations. In stereo configuration the amplifier outputs 2x20 watts at 4 Ohms. The selector switch also allows for dual-mono operation for distributed audio applications. In bridge-mono configuration it can double the output to 40 watts at 8 Ohms. Inputs include 1x stereo RCA, 1x 3.5mm, and a microphone input with switchable 48v phantom power. Bass, Treble, volume level, and input selection are all controllable via the integrated buttons on the bottom panel, IR remote control, or RS-232. The features and performance combined with its compact form factor make this amplifier the perfect solution for situations that don’t allow a full-sized amplifier.

    • Features:

      • Microphone Input 3-level Mic input with mixer function
      • Amplify Your Sound Outputs Stereo 20Watt@4 Ohms or bridged mono 40Watt@8 Ohms
      • Compact Small form factor ideal where full-sized amplifiers will not fit
      • Multiple Control Options Take control using RS232, IR, or push buttons
      • Durable Metal enclosure designed to last for years
      • Bass, Treble, & Volume Control bass, treble and volume levels conveniently using integrated push buttons
      • 2 switchable analog audio inputs Loop output to cascade to another PA2B Locking power adaptor

    • Specifications:

      • Audio Input
      • Input:
        - 2x Stereo audio
        - 1x MIC
      • Input Connector:
        - 2x RCA
        - 1x 3.5mm jack
        - 1x Pluggable terminal block (3P, 3.81mm)
      • Input Impedance: >10KΩ

        Audio Output
      • Output:
        - 1x Amplifier
        - 1x Stereo Audio
      • Output Connector:
        - 1x 3.5mm jack
        - 1x Pluggable terminal block (4P, 5.08mm)
      • Output Impedance: 50Ω/stereo, 4~8Ω/Amplifier

        Audio General
      • Frequency Response: 20Hz - 20KHz
      • SNR: 80dB at maximum output
      • Stereo Channel Separation: >75dB@20Hz to 20KHz
      • Voltage Gain: 32dB
      • CMRR: >70dB@20Hz - 20KHz
      • Bandwidth: 20Hz - 25KHz
      • THD + Noise: 1%@1KHz, 0.3%@20KHz at nominal level
      • Power Output: 2x20 Watts (4 Ohms)

        Control Function
      • RS232 Control: 3-hole phoenix connector
      • IR Remote: Optional IR remote
      • Panel Control: Optional button control

    • Item Includes:

      • 1x BZBGEAR Mini Digital Amplifier (the mounting ears and Mini Digital Amplifier are as a whole)
      • 2x Pluggable Terminal Blocks
      • 1x RS232 Cable
      • 1x Power Adapter
      • 1x Power Cord
      • 4x Plastic Cushions
      • 1x User Manual

    • Warranty:

      • 5 Year Limited Warranty

    • GTIN:

      0850009357212
