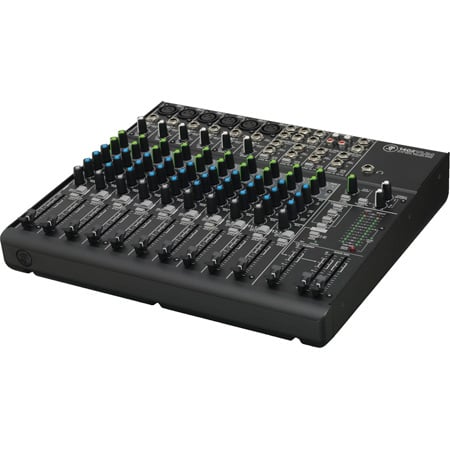

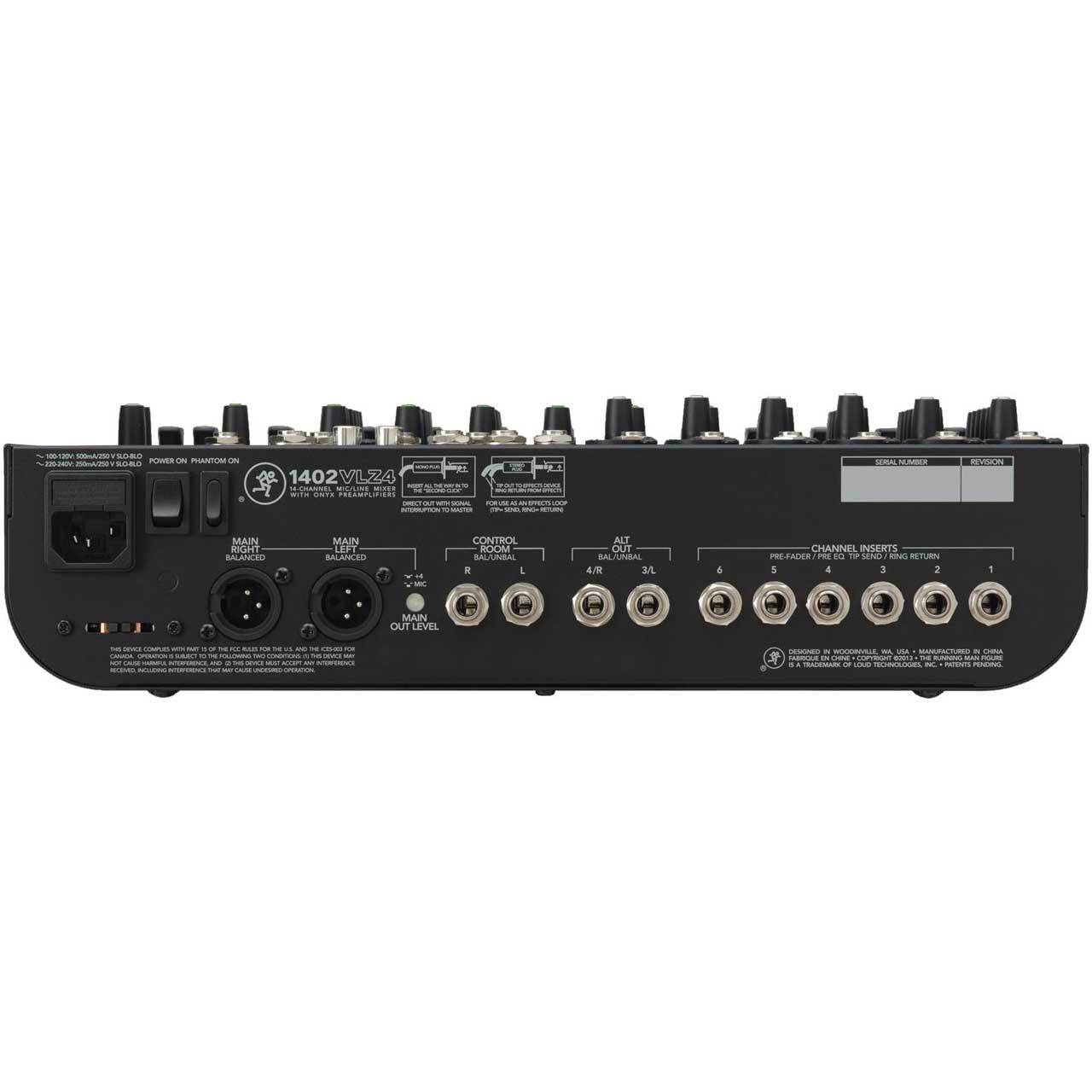

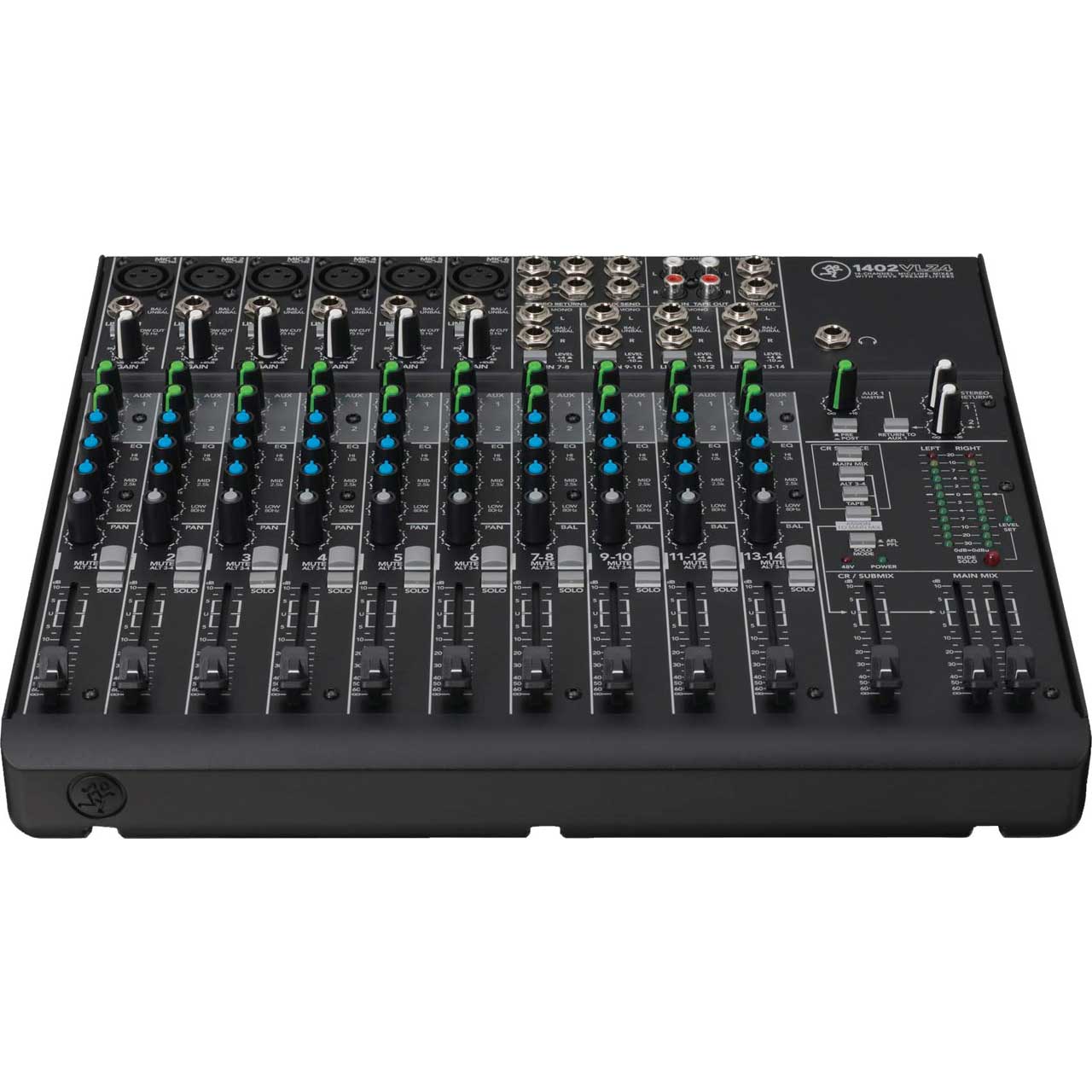

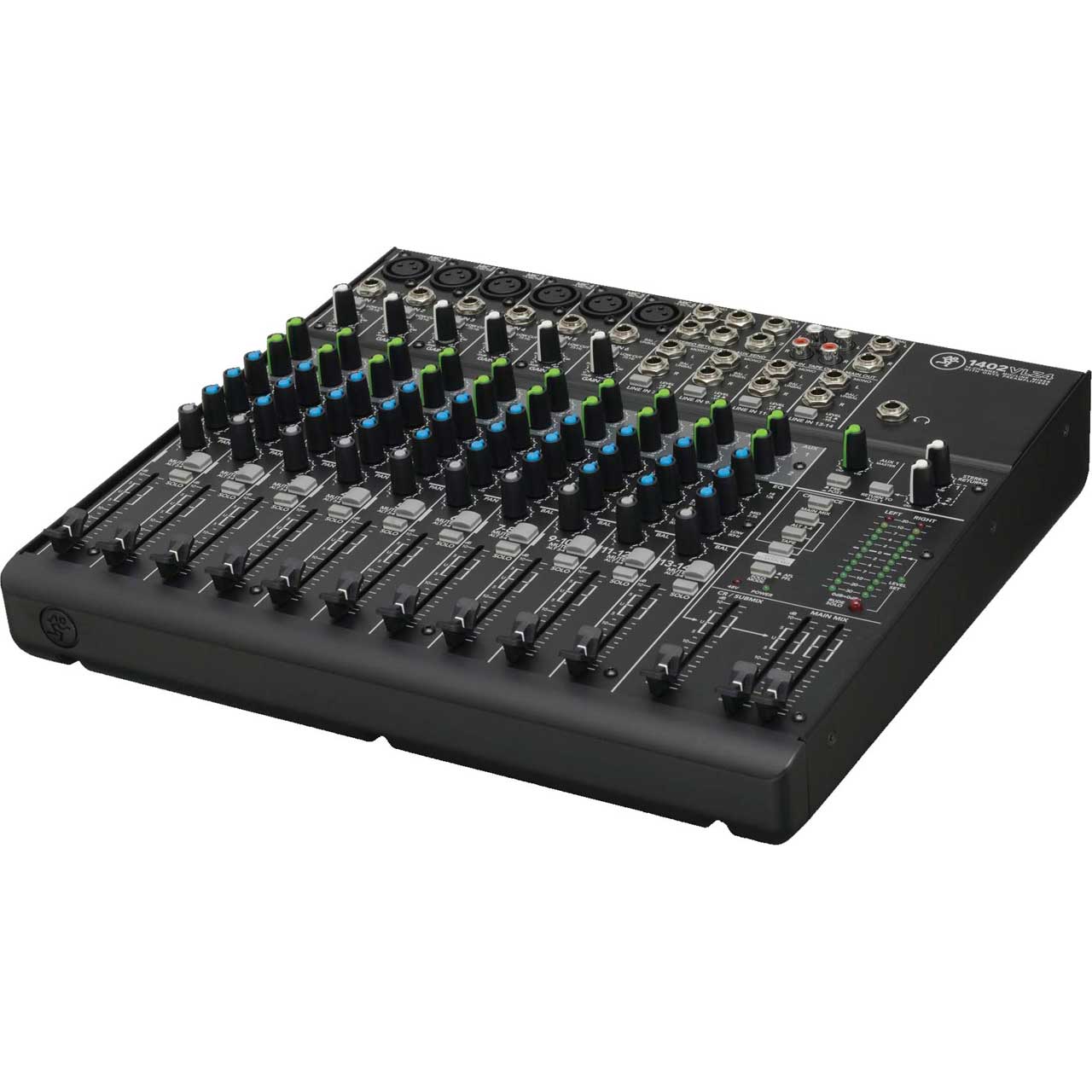

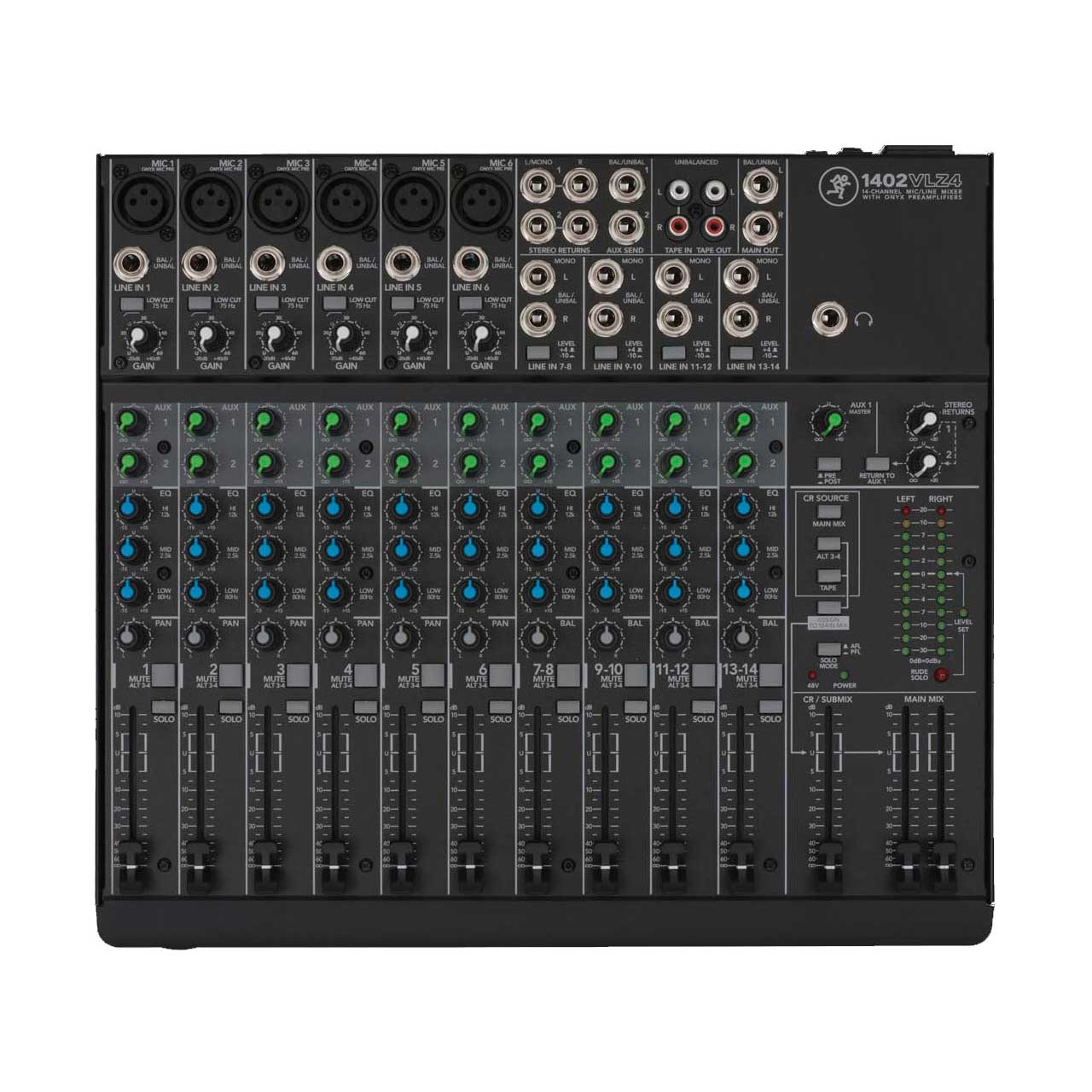

Mackie 1402VLZ4 Compact 14-Channel Audio Mixer with Onyx Mic Preamps

ITEM #: MCK-1402VLZ4 MFG #: 1402VLZ4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$449.99

Availability: In Stock
iAvailability Description Popup


1402VLZ4 - Overview

The Mackie 1402VLZ4 14-channel mixer brings the proven performance of their flagship Onyx mic preamps in a professional compact mixer design great for applications that demand flexibility.

From every input to every output, the 1402VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it truly is "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis and high contrast controls for ultimate tactile control.

And with features like a dedicated control room section and smooth, accurate fader control, the 1402VLZ4 is the premium choice for anybody who demands the professional performance.

Perfection Of Compact Analog Mixer Design
Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

The Original No-Nonsense Compact Mixer Series
Now featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

  • Features:

    • 14-channel mixer featuring Mackie's signature high-headroom, low-noise design
    • 6 boutique-quality Onyx mic preamps
    • Improved RF rejection, perfect for broadcast applications
    • Phantom power for condenser mics
    • 14 high-headroom line inputs with +4/-10 operation control
    • 3-band EQ (80Hz, 2.5kHz, 12kHz)
    • 18dB/oct 75Hz low-cut filter on mic input channels
    • 2 aux sends, level, pan and PFL solo on each channel
    • 60mm long-wearing log-taper faders
    • 2 stereo returns for connecting FX processor or other stereo source
    • ALT 3/4 stereo bus for added routing flexibility
    • Control room/phones source matrix
    • High-resolution 12-segment stereo meters
    • Sealed rotary control resist dust and grime
    • "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
    • High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
    • Rack-mountable design using an optional rack ear kit
    • Multi-voltage power supply for worldwide use

  • Specifications:

    • Main Mix Noise
    • Main Mix Fader Down, Channel Fader Down: -101dBu
    • Main Mix @ Unity, Channel Fader Down: -91dBu
    • Main Mix Fader @ Unity, Channel Fader @ Unity: -86dBu

      Total Harmonic Distortion (THD)
    • Mic Pre @ Insert: <0.0007%

      Attenuation/Crosstalk
    • Main MIx Fader Down: -100dBu
    • Channel Alt/Mute Switch Engaged: -90dBu
    • Channel Fader Down: -90dBu

      Equivalent Input Noise (EIN)
    • 150Ω Termination: -128.5dBu, 20Hz - 20kHz

      Common Mode Rejection Ratio (CMRR)
    • 1kHz: better than -70dB

      Max. Levels
    • Mic In: +22dBu
    • Tape In: +16dBu
    • All Other Inputs: +22dBu
    • Main Mix XLR Out: +28dBu
    • All Outputs: +22dBu

      EQ
    • High Shelving: ±15dB @ 12kHz
    • Mid Peaking: ±15dB @ 2.5kHz
    • Low Shelving: ±15dB @ 80Hz

      Power
    • Power Consumption: 25W, 100 - 120V AC, 50 - 60HZ
    • AC Connector: 2-pin IEC 250V AC
    • Operating Temperature: 32°F - 104°F

      Physical
    • Dimensions (HxWxD): 12.5" x 14" x 3.2"
    • Weight: 9.5lbs

  • Warranty:

    • 1 year

  • GTIN:

    0663961039795
