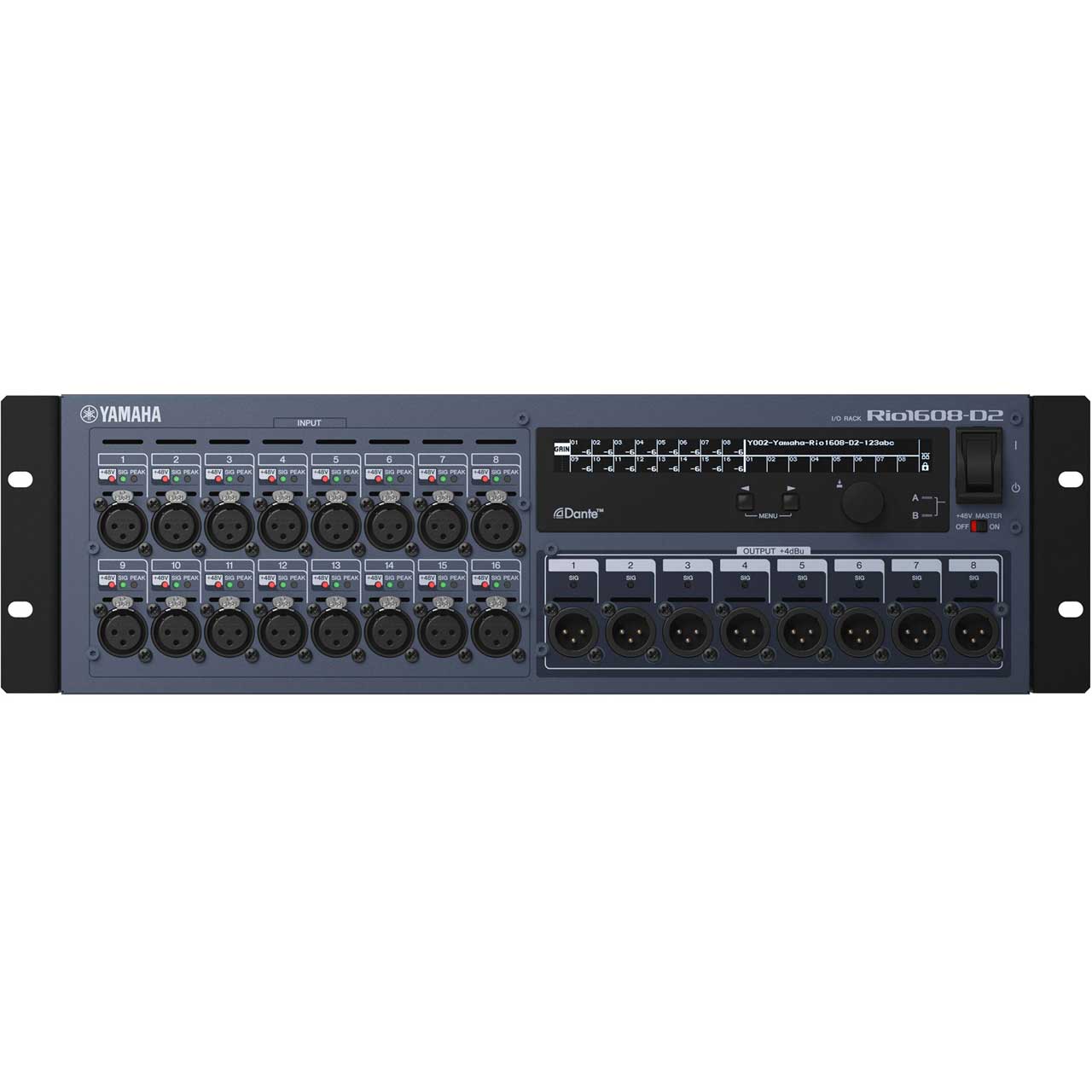

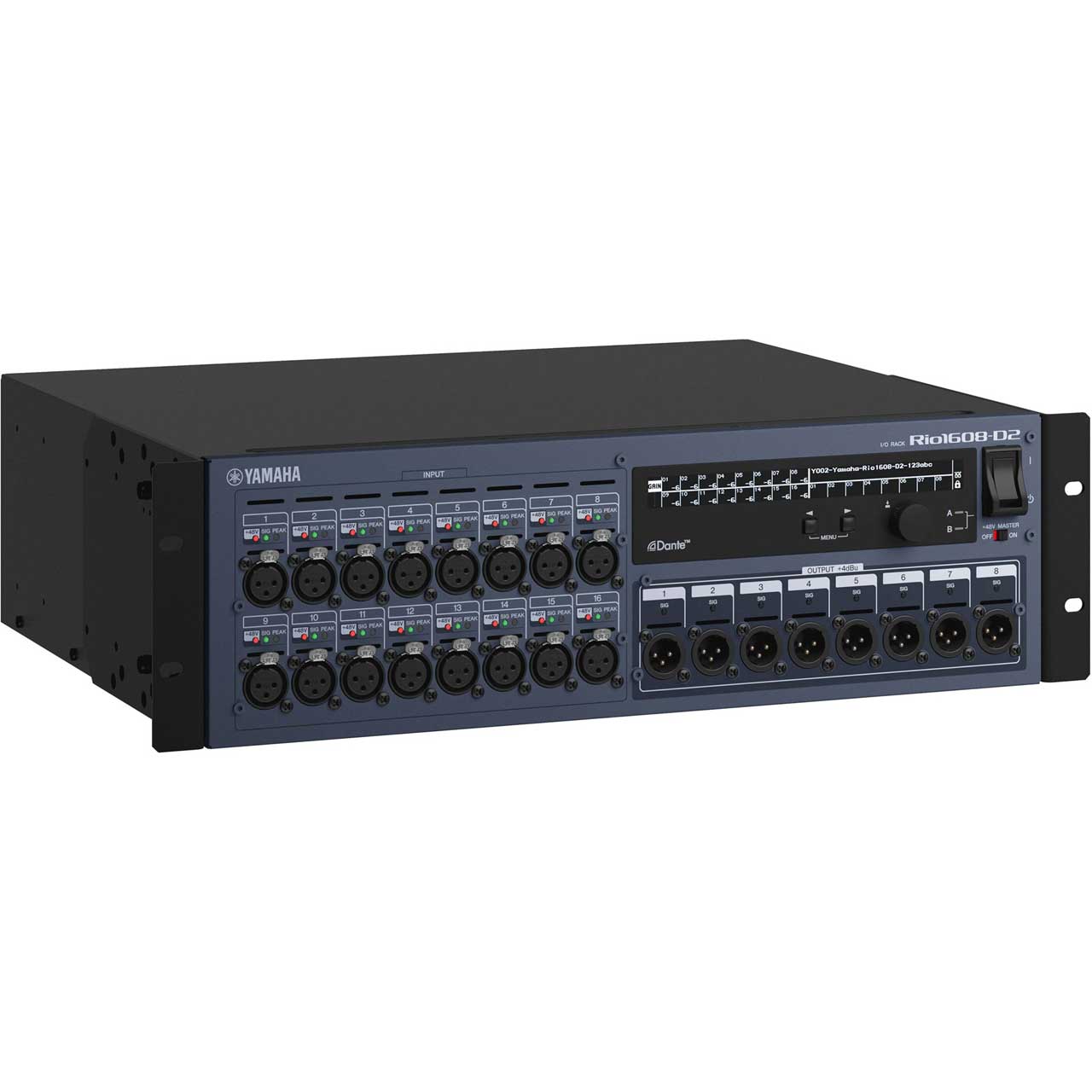

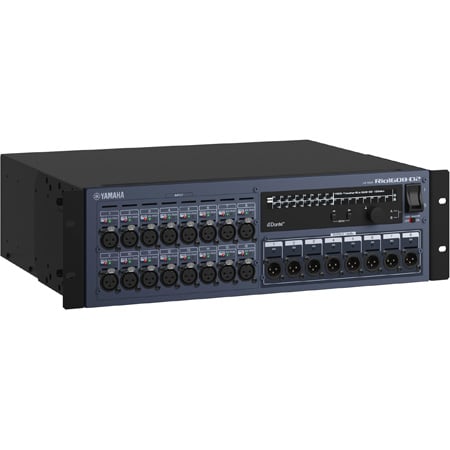

Yamaha RIO1608-D2 High-Performance I/O Rack with 16 Analog Inputs and 8 Outputs

RIO1608-D2 - Overview

• Features:

  • Supports SMPTE ST2210-30 with the latest firmware (v5.7) installed.
  • Long-distance Dante Network Capability
  • Display and Encoder for Improved Visibility and Operability
  • Remotely Controllable Internal Head Amplifiers


• Specifications:

  • External Sampling Frequency: 44.1kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm, 48kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm, 88.2kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm, 96kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm,
  • Signal Delay: Less than 1.7 ms Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz. Dante Receive Latency set to 0.25 msec
  • Frequency Response: +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz +0.5, -1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
  • Total Harmonic Distortion (measured w/ 18dB/octave filter @80kHz): Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600Ω, Fs= 48 kHz Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600Ω, Fs= 96 kHz INPUT to OUTPUT, Input Gain= Min.
  • Hum & Noise (measured w/ A-Weight filter): -128 dBu typ., Equivalent Input Noise, Input Gain= Max. -88 dBu Residual output noise, ST master off.
  • Dynamic Range: 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
  • Crosstalk @ 1kHz (measured w/ a 30dB/octave filter @22kHz): -100dB, adjacent INPUT/OUTPUT channels, Input Gain= Min.
  • Dimensions (WxHxD): 18.90 x 5.20 x 14.47"
  • Net Weight: 21.16 lbs
  • Power Requirements (wattage): 72W
  • Power Requirements (voltage and hertz): 100-240V 50/60 Hz
  • Temperature Range: Operating: 32 to 104°F Storage: -4 to 140°F
  • NC Value: FAN MODE LOW: NC=15 / HIGH: NC=25; Measurement position: 1m from the front of the unit


• Item Includes:

  • Owner's Manual
  • AC power cord
  • Dante Virtual Soundcard Token leaflet
