Yamaha MY16MD64 16-Channel MADI Interface Card

Name: Yamaha MY16MD64 16-Channel MADI Interface Card
Brand: Yamaha Corporation
SKU: YMH-MY16MD64
Price: 1849.99 USD
Availability: InStock

ITEM #: YMH-MY16MD64 MFG #: MY16MD64

Yamaha Corporation

List Price:

$2,092.00

Our Price:

$1,849.99

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MY16MD64 - Overview

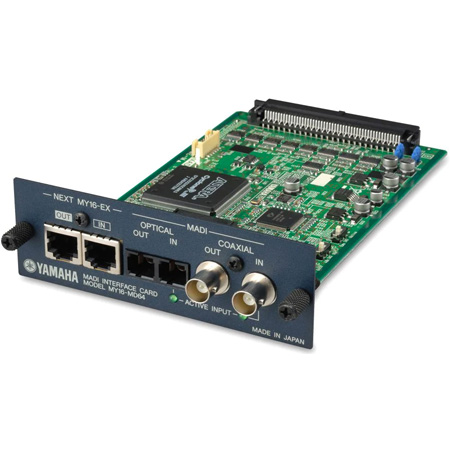

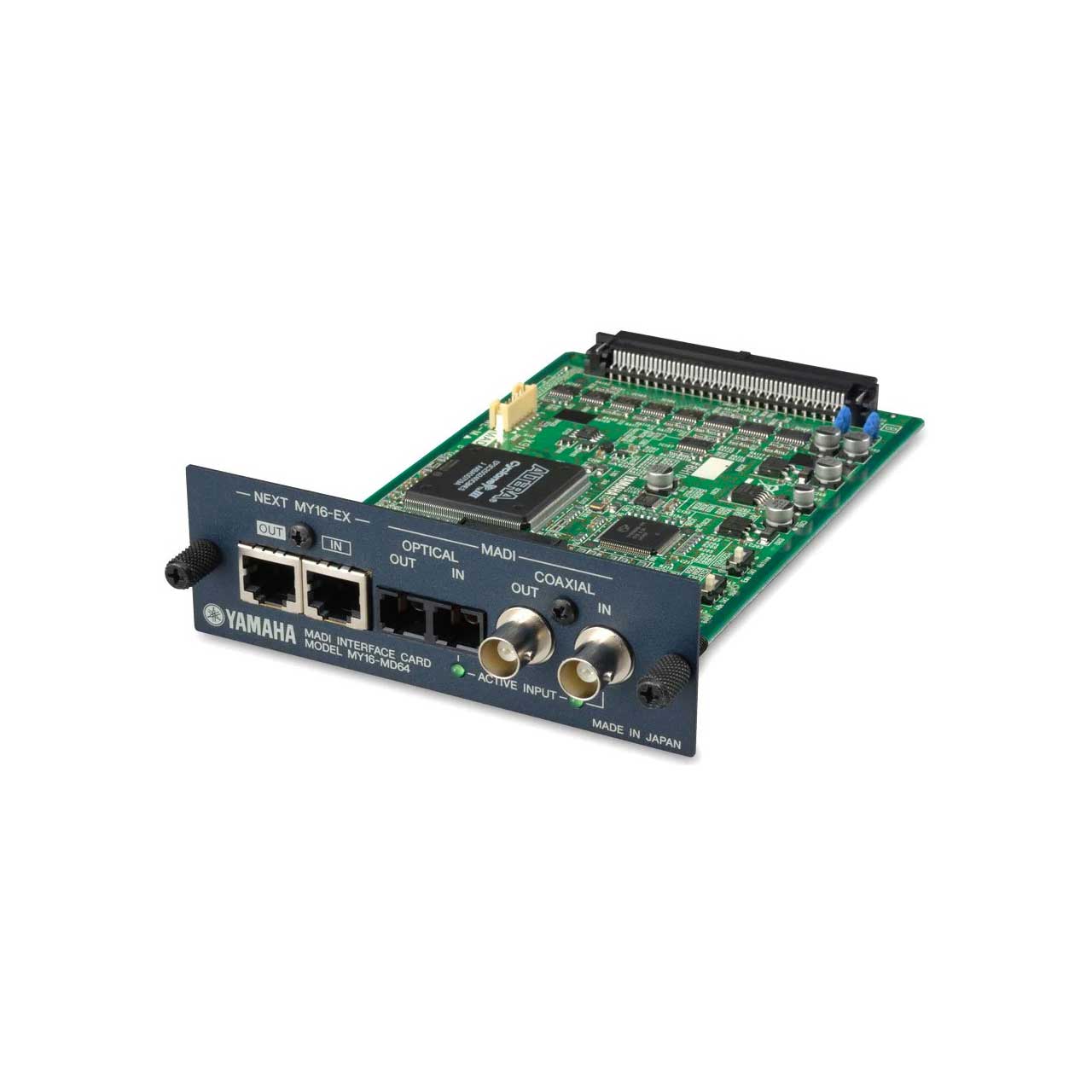

The Yamaha MY16-MD64 is an optional MADI interface card for compatible Yamaha digital mixing consoles and signal processors. It supports 16 input channels and 16 output channels of uncompressed MADI format digital audio.

Features:
- 24bit resolution, 16-in/16-out MADI interface

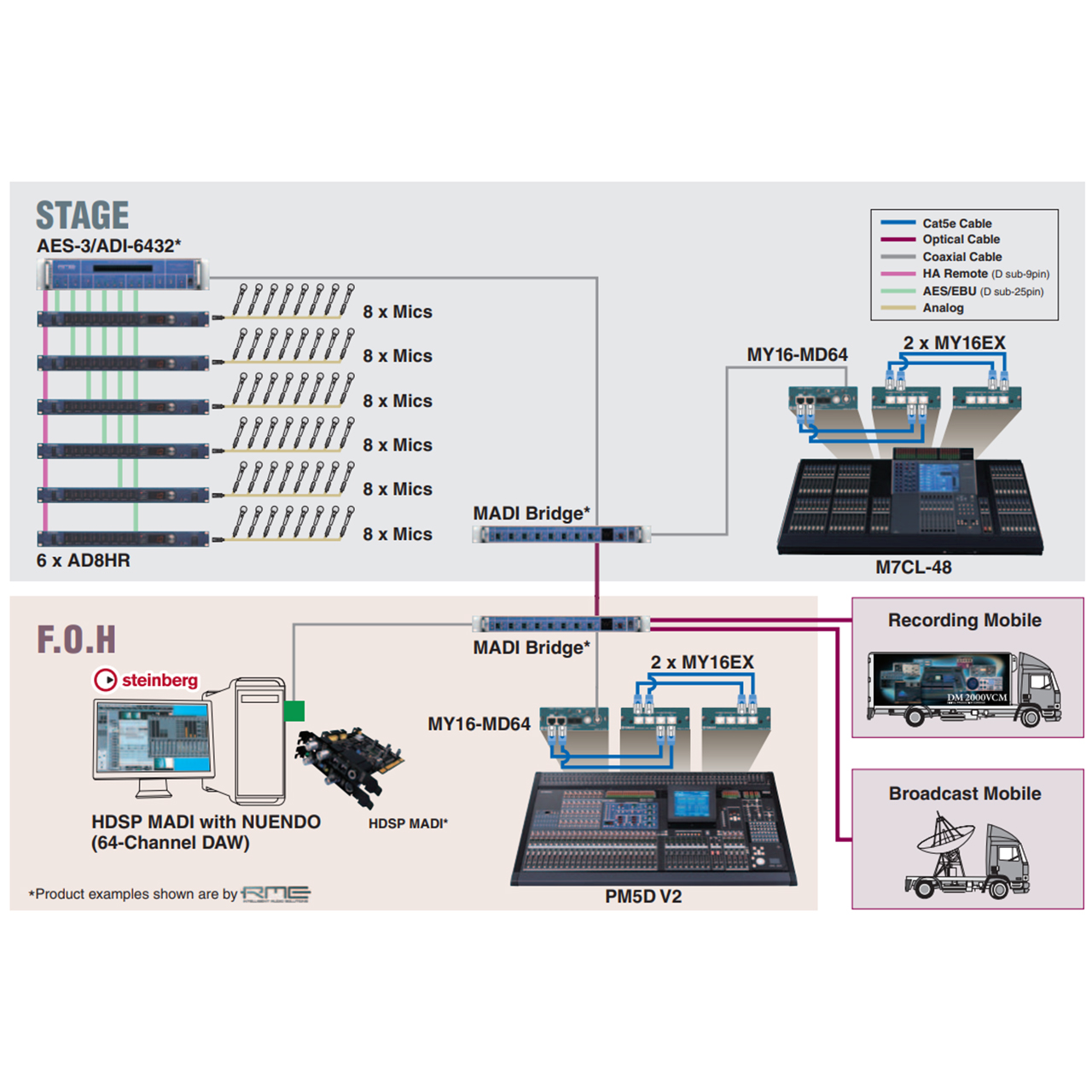

- Expandable to up to 64-in/64-out with MY16-EX expansion cards
- 2 x BNC connectors and 2 x Optical connectors for MADI I/O, 2 x RJ45 connectors for MY16-EX connection
Specifications:
- Channel Count: 16IN / 16OUT
- Format: MADI
- Resolution: 24bit
- Connector: 2 x BNC (MADI coaxial), 2 x MADI optical, 2 x RJ-45 (for MY16-EX) *expandable to 64IN/64OUT with MY16-EX cards
- Dimensions (WxHxD): 4.7 x 1.6 x 6.9"
GTIN:
0086792881980
