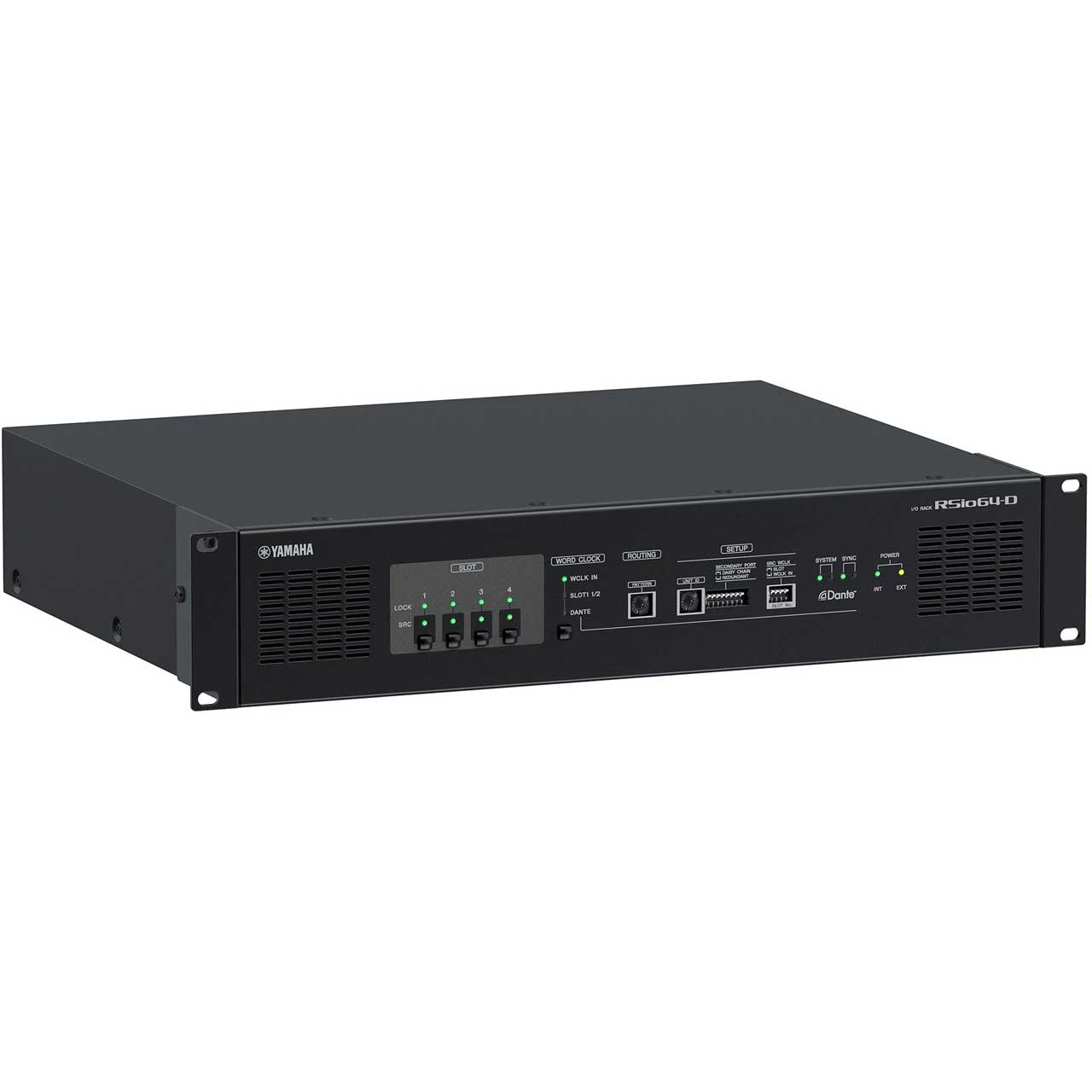

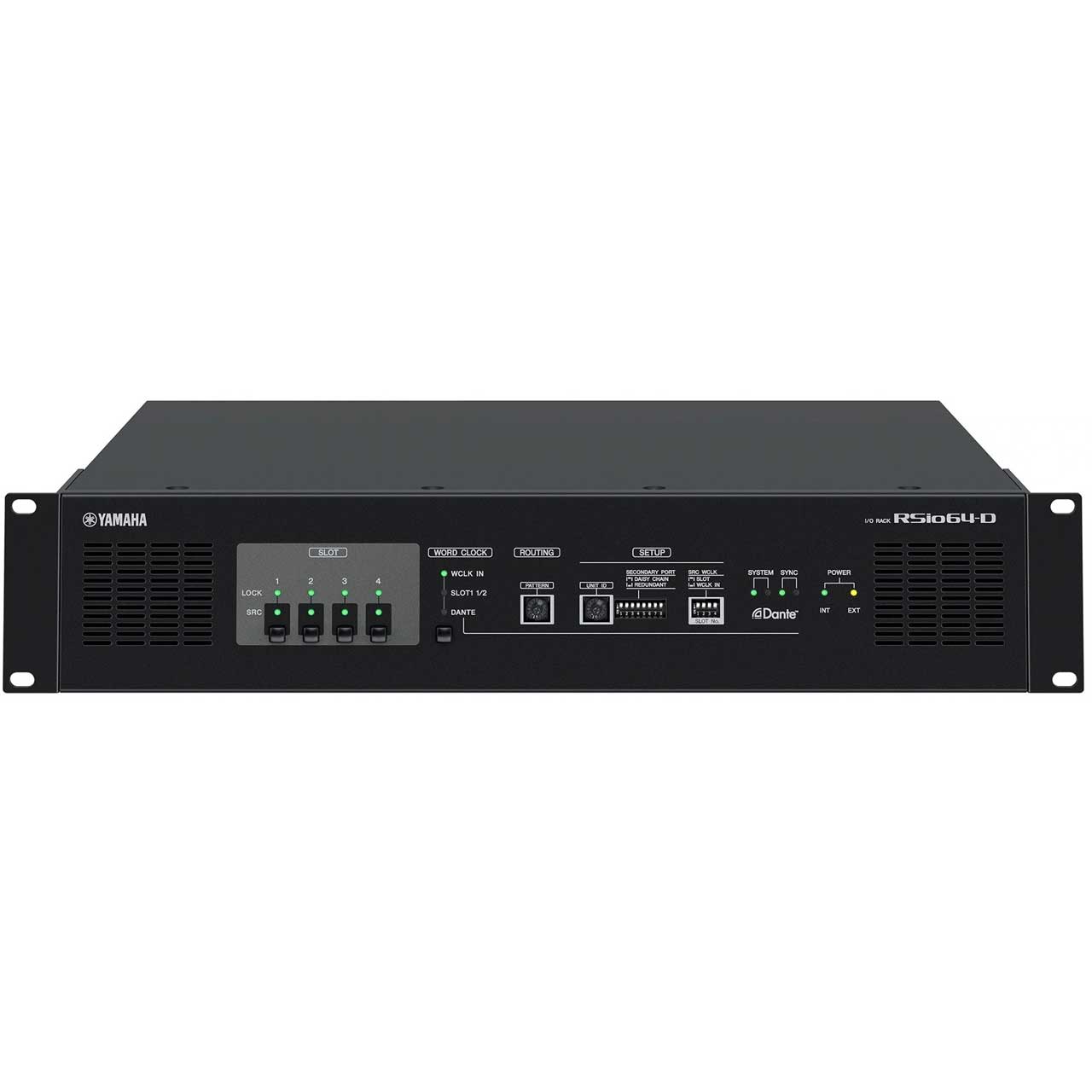

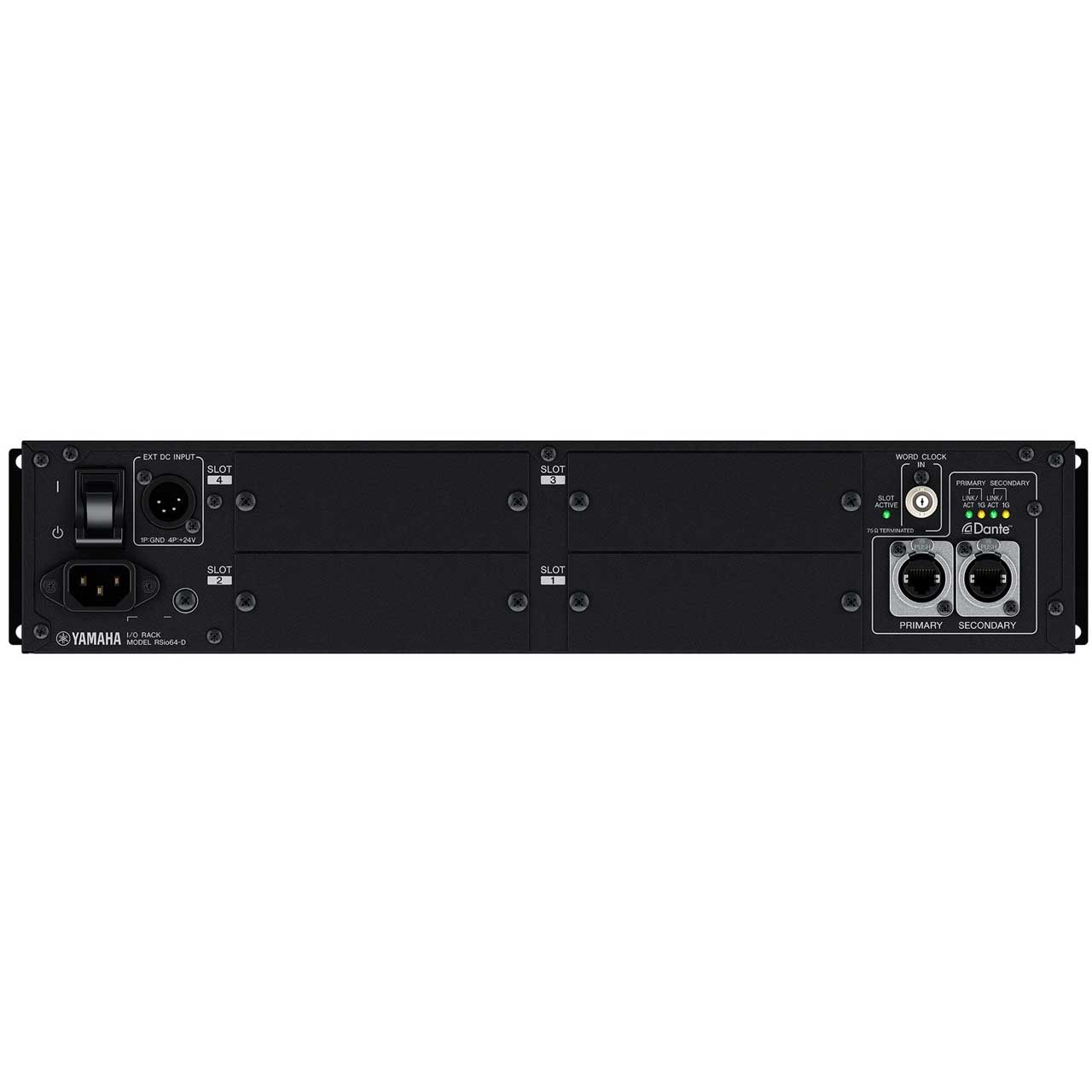

Yamaha RSIO64-D Audio Interface Converts Between Dante and Mini-YGDAI Formats 64 Inputs and 64 Outputs

RSIO64-D - Overview

• Features:

  • Mini-YGDAI cards offer a multitude of I/O and processing options
  • Seven general routing presets, including routing between Mini-YGDAI cards
  • Supports matrix patching from R Remote V3 or a CL/QL series console
  • Sample rate converters for all four Mini-YGDAI slots
  • EXT DC INPUT for redundant power supplies
  • Supports Dante redundancy


• Specifications:

  • Sampling Frequnecy Range (External Clock): 44.1kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm, 48kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm, 88.2kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm, 96kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
  • Signal Delay: SLOT IN (MY8-AE96) to SLOT OUT (MY8-AE96) (@fs=96kHz, SRC off, Internal Routing) Less than 0.2 ms; SLOT IN (MY8-AE96) to Rio3224-D AES OUT (@ fs=48 kHz, through Dante, SRC off) (Dante Receive Latency set to 0.25 ms) Less than 0.8 ms; SLOT IN (MY8-AE96) to Rio3224-D AES OUT (@ fs=96 kHz, through Dante, SRC off) (Dante Receive Latency set to 0.25 ms) Less than 0.5 ms; SLOT IN (MY8-AE96) to Rio3224-D AES OUT (@ fs=96 kHz, through Dante, SRC on, SLOT fs=48 kHz) (Dante Receive Latency set to 0.25 ms) Less than 1.1 ms
  • SRC: SRC Lock Range: 39.7 kHz - 101.7 kHz, Sample Rate Ratio Limit: 1:2.6 to 2.6:1
  • Dimensions (WxHxD): 18.90 x 3.46 x 14.37"
  • Net Weight: 13.45 lbs.
  • Power Requirements (wattage): 60W
  • Power Requirements (volts and hertz): 100-240 V 50/60 Hz
  • Temperature Range: Operating: 32 to 104°F Storage: -4 to 140°F


• Item Includes:

  • Owner's Manual
  • AC power cord


• GTIN:

  0086792998961
