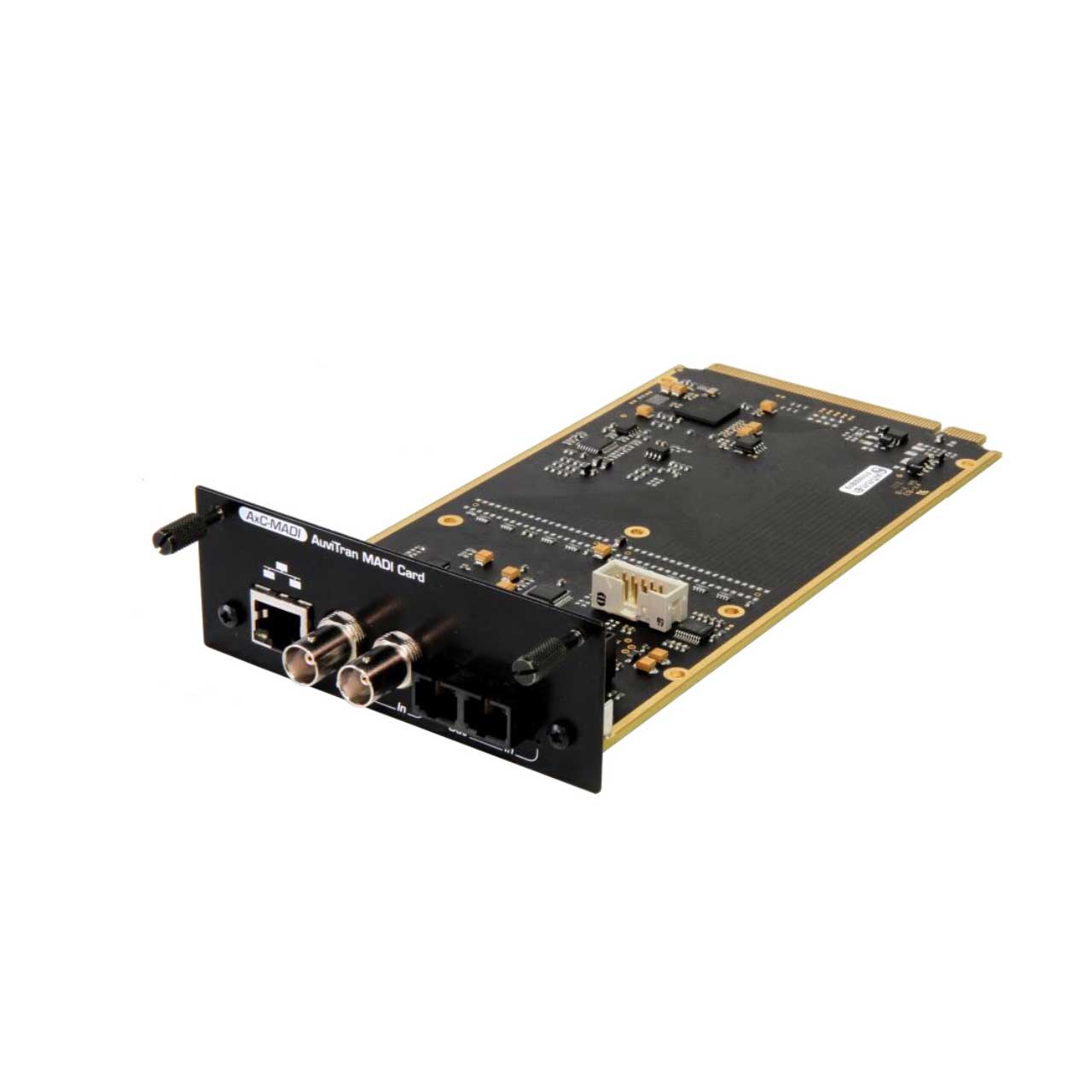

AuviTran AxC-MADI 64-I/O MADI Audio Card

AXC-MADI - Overview

• Features:

  • MADI interface on both optical and coaxial connectors
  • 64 or 56 channels modes supported
  • Audio 24 bits, at 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Remote management with AVS-Monitor software
  • Dedicated control page for monitoring and controlling all the card parameters


• Specifications:

  • General
  • Size: 200 mm x 100 mm x 40 mm - Format AuviTran Audio ToolBox platform cards
  • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
  • Storage: Temp/Humidity (non-condensing): -5°C to 70°C / Max 95% (non-condensing)
  • Operating: Temp/Humidity (non-condensing): 0°C to 50°C / 5% to 90% (non-condensing)

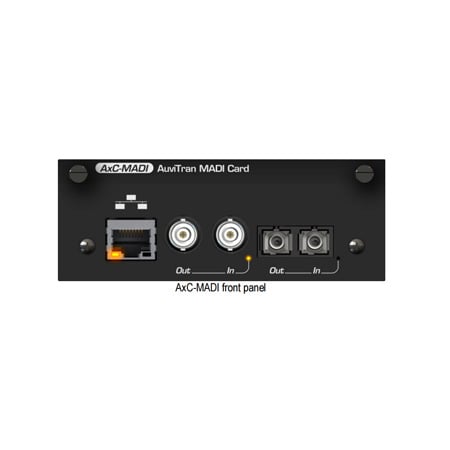

  • Connectors: 2 x BNC and 2 x SC Optical connectors (or SFP cage for /SFP version)

    Audio I/O Specifications
  • Number of i/o: Up to 64 digital inputs/outputs routed through the AuviTran Audio ToolBox backplane to the other cards of the AuviTran Audio ToolBox range
  • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
  • A/D Resolution: 24 bit
  • Input specification: MADI 56 / 64 channels mode S-Mux or Multiple Rate

    Integration Environment
  • Audio ToolBox platform: AxC-MADI is one the cards for the AuviTran Audio ToolBox platform
  • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor any audio network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
  • OS Supported: Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions
