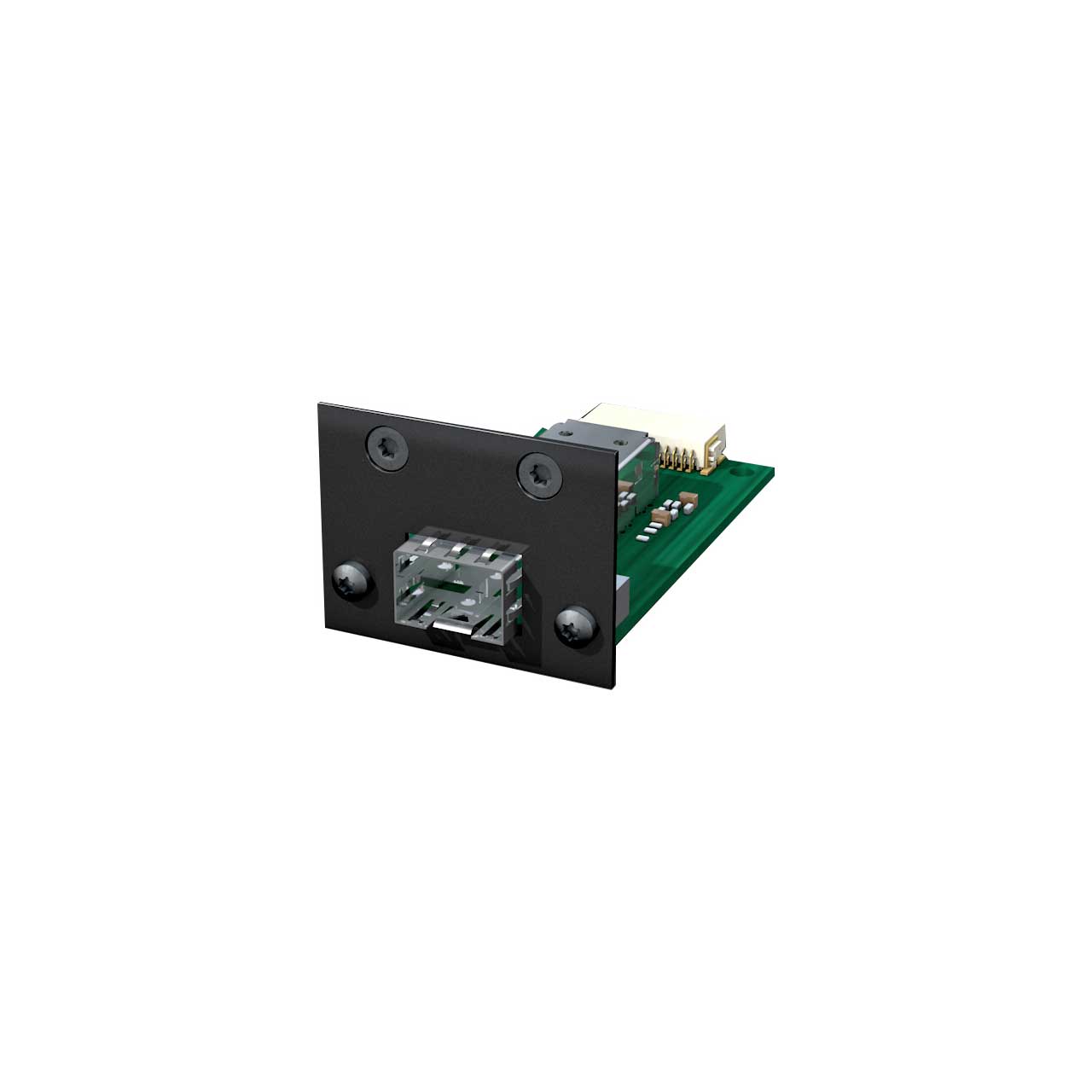

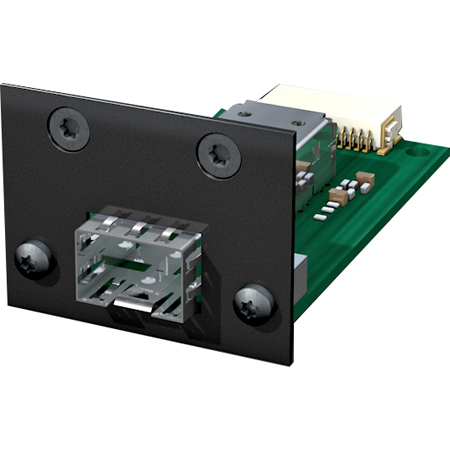

The DirectOut Technologies SFP.IO is a MADI module for the PRODIGY and EXBOX Series. The MADI port connects 64 audio channels of digital input and output signals via an SFP transceiver. The transceiver is pluggable to the SFP cage and can be exchanged to match the required connection type. E.g. LC optical multi-mode or single mode for optical transmission or HD-BNC for coaxial transmission.
The amount of audio channels is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.
The transmission via fiber cable typically allows for long distance connections depending on the fiber mode (up to 2000 m, multi-mode or 10000 m, single mode) and the sender / receiver device.
The fiber modes of transceiver and cabling are required to match.
The transmission via coaxial cable typically allows connections of up to 100 m depending on the quality of the cabling and the sender / receiver device.
Transceivers for optical and coaxial transmission are available from DirectOut as an accessory.
The PRODIGY Series offers low latency sample rate conversion (FastSRCT) for input and output.
