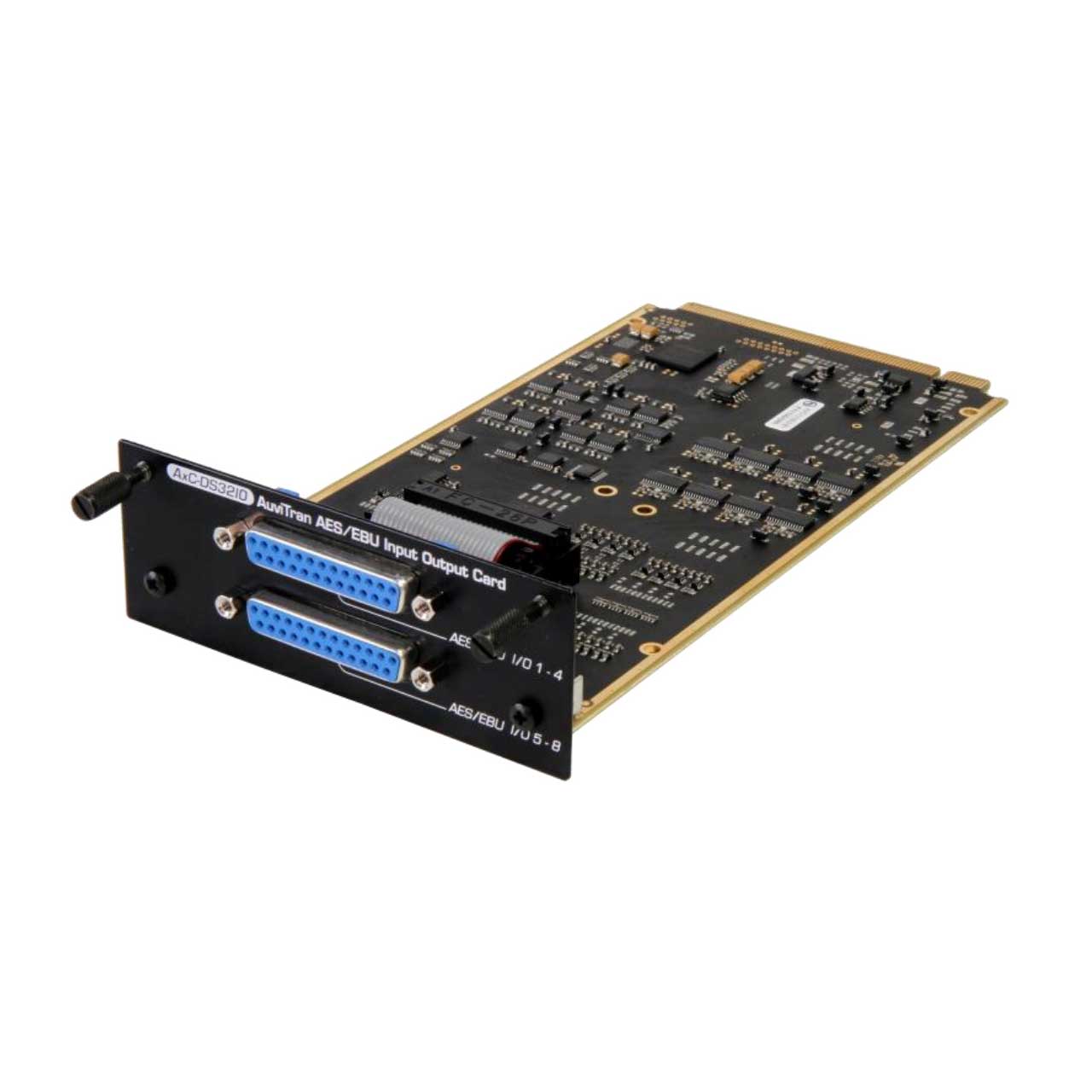

AuviTran AxC-D32IO 8 Stereo AES/EBU I/O on D-Sub Connectors with SRC

AXC-DS32IO - Overview

• Features:

  • Up to 8 stereo AES/EBU digital inputs and 8 stereo AES/EBU digital outputs on two D-Sub 25 pins connectors (4 stereo AES/EBU digital inputs and 4 stereo AES/EBU digital outputs on each DSub connector)
  • High performance Sample Rate Converter available on each input (individually on/off) for solving multi sampling rate input frequencies and synchronization issues.
  • Clock Synchronization on each AES input
  • Remote management with AVS-Monitor software
  • Dedicated control page for monitoring and controlling all the card parameters


• Specifications:

  • General
  • Size: 200 mm x 100 mm x 40 mm - Format AuviTran Audio ToolBox platform cards
  • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
  • Storage: Temp/Humidity (non-condensing): -5°C to 70°C / Max 95% (non-condensing)
  • Operating: Temp/Humidity (non-condensing): 0°C to 50°C / 5% to 90% (non-condensing)

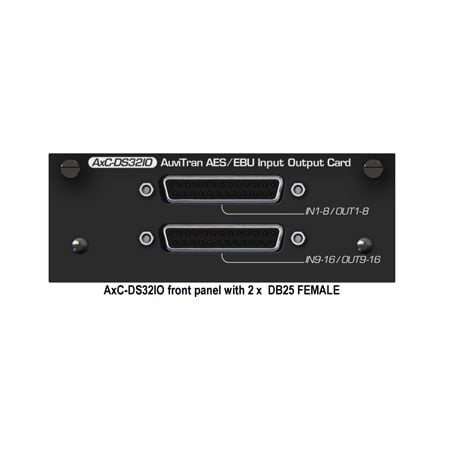

  • Connectors: 2 x Female DB25 connectors ( 8 Stereo AES/EBU inputs and 8 Stereo AES/EBU Outputs on each DB25)

    Audio Inputs
  • Number of inputs: 16 Stereo AES/EBU digital inputs routed through the AuviTran Audio ToolBox backplane from the other cards
  • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
  • A/D Resolution: 24 bit
  • Input Impedance: 110ω
  • Input Specification: >AES balanced
  • Clock Synchro Sources: All AES Inputs
  • SRC (Sample Rate Converter): Asynchronous SRC available on each input (individually on/off)
  • SRC Specifications: -140dB THD+N / Frequency Range 8 kHz - 192 kHz

    Audio Outputs
  • Number of outputs: 16 AES/EBU Stereo digital outputs routed through the AuviTran Audio ToolBox backplane from the other cards
  • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
  • A/D Resolution: 24 bit
  • Output Impedance: 110ω
  • Output Specification: AES balanced on DB25 connector (RS422 Level)

    Integration Environment
  • Audio ToolBox platform: AxC-DS32IO is one the cards for the AuviTran Audio ToolBox platform
  • AVS-ESMonitor: AVS-ESMonitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
  • OS Supported: Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions
