AuviTran Audio ToolBox in StageBox Version 19INx2U with 7 Card Slots/Internal Audio Matrix & Integrated Redundant PSU

Name: AuviTran Audio ToolBox in StageBox Version 19INx2U with 7 Card Slots/Internal Audio Matrix & Integrated Redundant PSU
Brand: AuviTran
SKU: AVBX7-SB-R
Price: 2129.00 USD
Availability: PreSale

ITEM #: AVBX7-SB-R MFG #: AVBX7/SB+R

AuviTran

Our Price:

$2,129.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AVBX7/SB+R - Overview

Audio ToolBox in StageBox version 19"x2U with 7 card slots + internal audio Matrix + Integrated redundant PSU

AuviTran has designed the AVBx7 to address both live and installation purposes, when you need to combine different networking technologies to make them work together. Smoothly, with no latency. Simply insert the cards of your choice into the ToolBox backbone to allow compatibility between networks using different protocols. The channels distribution over the cards will be operated automatically.

Applications
Convert AVB to Dante
Convert MADI to Dante
Matrix Digital Audio

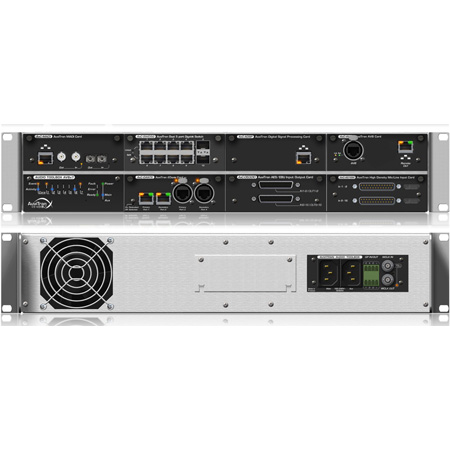

Please note! AxC cards sold separately. Image is for reference only!

Features:
- Embedded Audio Matrix
- Integrated Redundant PSU
Specifications:
- Size: 483 x 253x 88 mm - Standard 19'' rack, 2U Height
- Slots: 7 slots up to 2x64 channels for integration of any AxC interface card
- Audio Matrix: Integrated full matrix of 448x448 channels to exchange input/output between any of 7 slots
- Main Power Supply: 100-240 VAC - Maximum 110W
- Aux Power Supply: 100-240 VAC - Maximum 110W
- Storage Temp/Humidity: -5°C to 70°C / 0% to 95% (no condensing)
- Operating Temp/Humidity: 0°C to 40°C / 5% to 90% (non condensing)
- Display Panel: Power Main/Aux - Fault/Error/Ready - Networks and interface card Events/Activities
- Connections
  2x IEC power inlet for integrated Main and Aux
  AC power supply
  2x BNC for Word Clock In and Out
  1x Euroblock 6 poles for GPIO
  7x Slots to insert up to 7x AxC cards
- GPIO: 4 configurable GPIO, Can be set as 4x VCA (ADC 8 bits 0-12V level input) for fader control or
  level trigger actions
- AVS_Monitor: Remote control and monitoring of Audio ToolBox and inserted cards over Dante, IP and EtherSound network

AVBX7/SB+R - Recommended Accessories

AuviTran Audio Toolbox AxC-AS16Mo v2 High Density Mic/Line Card with 8 In and 8 Out on Two DSUB DB25
AUT-AXC-AS16MOV2
Our Price: $1,899.00
AuviTran AXC-AE8IO 4 Analog In and 4 Analog Out PCI Card for Audio Toolbox on Euroblock
AUT-AXC-AE8IO
Our Price: $999.00
AuviTran AxC-Dante 64-I/O Dante Audio Card
AUT-AXC-DANTE
Our Price: $1,999.00
AuviTran AxC-D32IO 8 Stereo AES/EBU I/O on D-Sub Connectors with SRC
AUT-AXC-DS32IO
Our Price: $1,469.00
AuviTran AXC-ES100 64-I/O EtherSound Audio Card
AUT-AXC-ES100
Our Price: $1,169.00
AuviTran AxC-MADI 64-I/O MADI Audio Card
AUT-AXC-MADI
Our Price: $1,299.00
AXC-ADSP 64-I/O ADRC or DSP Converter - 64 x 64 Channels for Audio Toolbox
AXC-ADSP
Our Price: $1,849.00
AuviTran AXC-AVB AVB 32-Channel In and 32-Channel Out AVX Network Card
AXC-AVB
Our Price: $1,599.00
Laird Belden 1694A SDI/HDTV RG6 BNC Cable - 6 Foot
1694-B-B-6
Our Price: $23.95
Laird Belden 1855A SDI/HDTV Sub-Mini RG59 BNC to Right-Angle BNC Cable Black - 3 Foot
1855-B-BRA-3
Our Price: $41.49
Sescom Digital Audio Cable Canare RF-Protected 3-Pin XLR Male to RF-Protected 3-Pin XLR Female - 6 Foot
SC6DXXJ
Our Price: $42.49
Sescom DB25 DA-88 Digital 25-Pin D-Sub Male to 8 XLR Female Audio Cable - Tascam/Digi - 5 Foot
25MD-XF-05
Our Price: $141.49
Sescom DB25 DA-88 Digital Audio Cable 25-Pin D-Sub Male to 8 XLR Male - Tascam/Digi - 5 Foot
25MD-XM-05
Our Price: $135.95
Canare L-4E6S Star-Quad Microphone Cable by the Foot - Black
L-4E6S BK
Our Price: $0.59
Canare L-2T2S Audio Cable Black per foot
L-2T2S BK
Our Price: $0.49
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 50 Foot
CAT5XTRM-50
Our Price: $82.49
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 100 Foot
CAT5XTRM-100
Our Price: $140.49
Connectronics CAT6A Snagless Molded 600MHz UTP 10 Gigabit Ethernet Patch Cable - 10 Foot - Black
CAT6A-010-BK
Our Price: $7.95
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 7 Foot
D9M-M-7
Our Price: $50.95
Camplex Premium Bend Tolerant Fiber Patch Cable OM3 Multimode Duplex SC to SC - Aqua - 10 Meter
MMD50-SC-SC-010
Our Price: $35.95
Camplex 2-Channel SC Multimode OM3 Fiber Optic Tactical Cable on Reel - 1000 Foot
HF-TR02SCM3-1000
Our Price: $2,817.49
CAIG Products K-FO79 Fiber Optic Cleaning Kit
CAIG-K-FO79
Our Price: $59.95
Neutrik NE8FF RJ45 etherCON Feedthrough Coupler
NE8FF
Our Price: $20.77
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Remote Audio APPKITPRO Adapt-a-Pak Pro Kit Featuring 55 Adapters of 30 Types
REM-APPKITPRO
Our Price: $240.00
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Pro Tapes 001UPCG255MBLA Pro Gaff Gaffers Tape BGT-60 - 2 Inch x 55 Yards - Black
BGT-60
Our Price: $19.95
Black 5 Inch Soft cinch VELCRO® Brand Polytie Cable Tie - 25 Pack
3105-25
Our Price: $10.18
Rip-Tie H-06-10 CableWrap 1x6 Black - 10 Pack
RT6-10
Our Price: $28.56
Techflex PTN0.75 3/4-Inch Flexo PET Expandable Tubing - Black - 100-Foot
PET4-C-BK
Our Price: $40.00
CAIG Products DeoxIT® Audio Video Survival Cleaning Kit
SK-AV35
Our Price: $42.35
Techspray 1673-10S Ozone Safe Economy Duster 10 Ounce (Flammable)
TESP-1673-10S
Our Price: $8.42

AVBX7/SB+R - Reviews

AVBX7/SB+R - Attachments

See the AuviTran AVBx7 User Manual.pdf

Overview

AVBX7/SB+R - Overview

Audio ToolBox in StageBox version 19"x2U with 7 card slots + internal audio Matrix + Integrated redundant PSU

Applications
Convert AVB to Dante
Convert MADI to Dante
Matrix Digital Audio

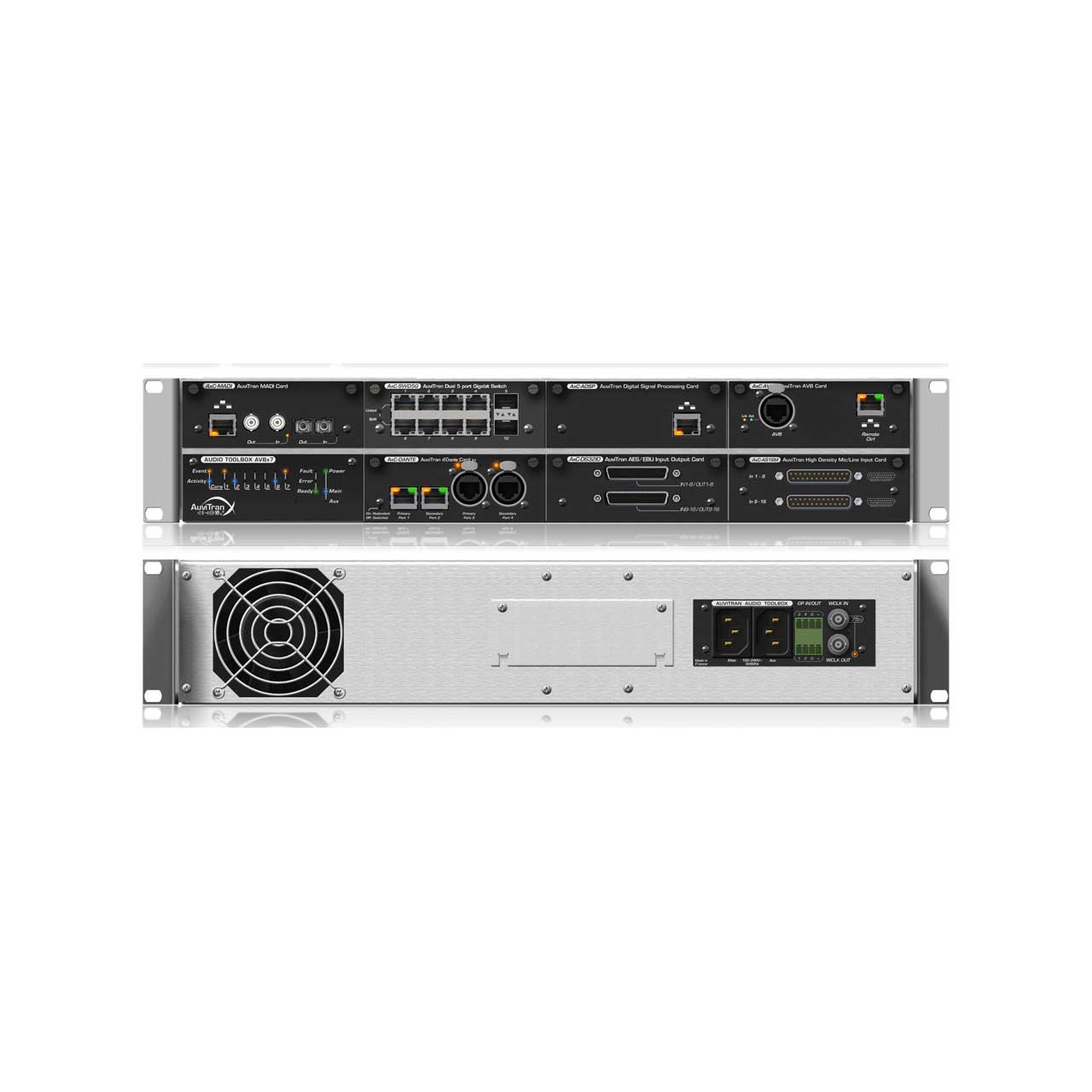

Please note! AxC cards sold separately. Image is for reference only!
