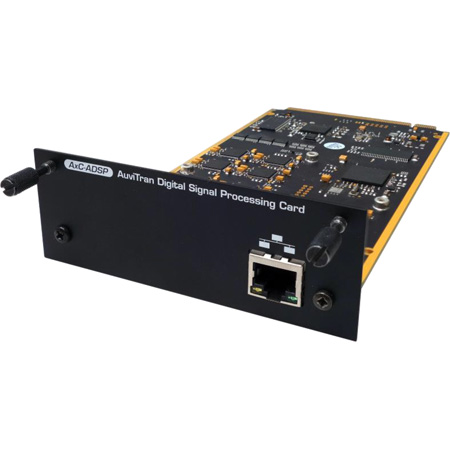

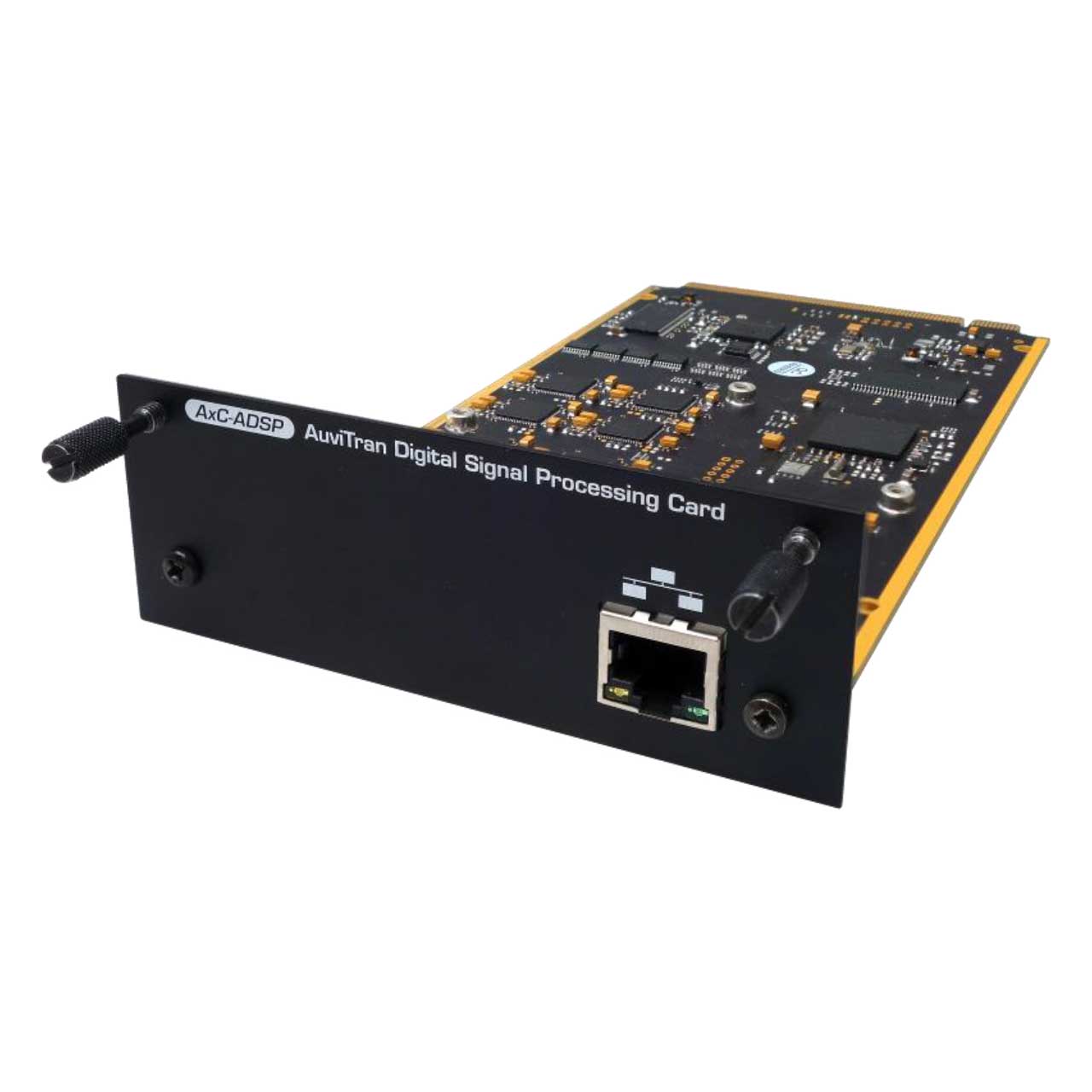

AXC-ADSP - Overview

Just as every AxC card within the Audio ToolBox range, the AxC-ADSP can equally be used in AVBx3 or AVBx7 platforms.
Using one slot of either ToolBox, the AxC-ADSP can acts as an Asynchronous Sample Rate Conversion (ASRC) card or as a Digital Signal Processing card.

ASRC enables to exchange audio channels between an AxC-Card working with at different frequency or with other clock domain than the other cards.

An AxC-ADSP card enables to exchange 128 IO channels at 2 different frequencies. It is an ASRC interface between one of the AxC audio network or digital interface card and any other Audio/Network AxC cards of an AVBx3 or AVBx7.

Up to 3xAxC-ADSP cards can be used in an AVBx7. They manage audio exchanges of up to 4x 128 IO channels with up to 4x different Audio Clock frequencies domain in only a 2U 19" frame. Each clock domain can be connected via an AxC audio network (Dante, AES67, CobraNet, EtherSound) or an AxC digital interfaces, (Madi, AES/EBU, ADAT).

  • Features:

    • 64 mixers with 64 audio inputs
    • 128x 8-band Equalizations
    • 128x Limiter/compressors
    • 128x 2.7s of delay for audio Inputs/Outputs
    • Quick scenes management to change DSP processing
    • HTML5/Web2.0 universal interface
    • W10, Mac OS, IOS, Android, Linux compatible


  • Specifications:

    • General
    • Size: 200 mm x 100 mm x 40 mm - AuviTran Audio ToolBox platform format
    • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
    • Storage Temp/Humidity: - 5°C to 70°C / 0% to 95% (non-condensing)
    • Operating Temp/Humidity: 0 °C to 50°C / 5% to 90% (non-condensing)

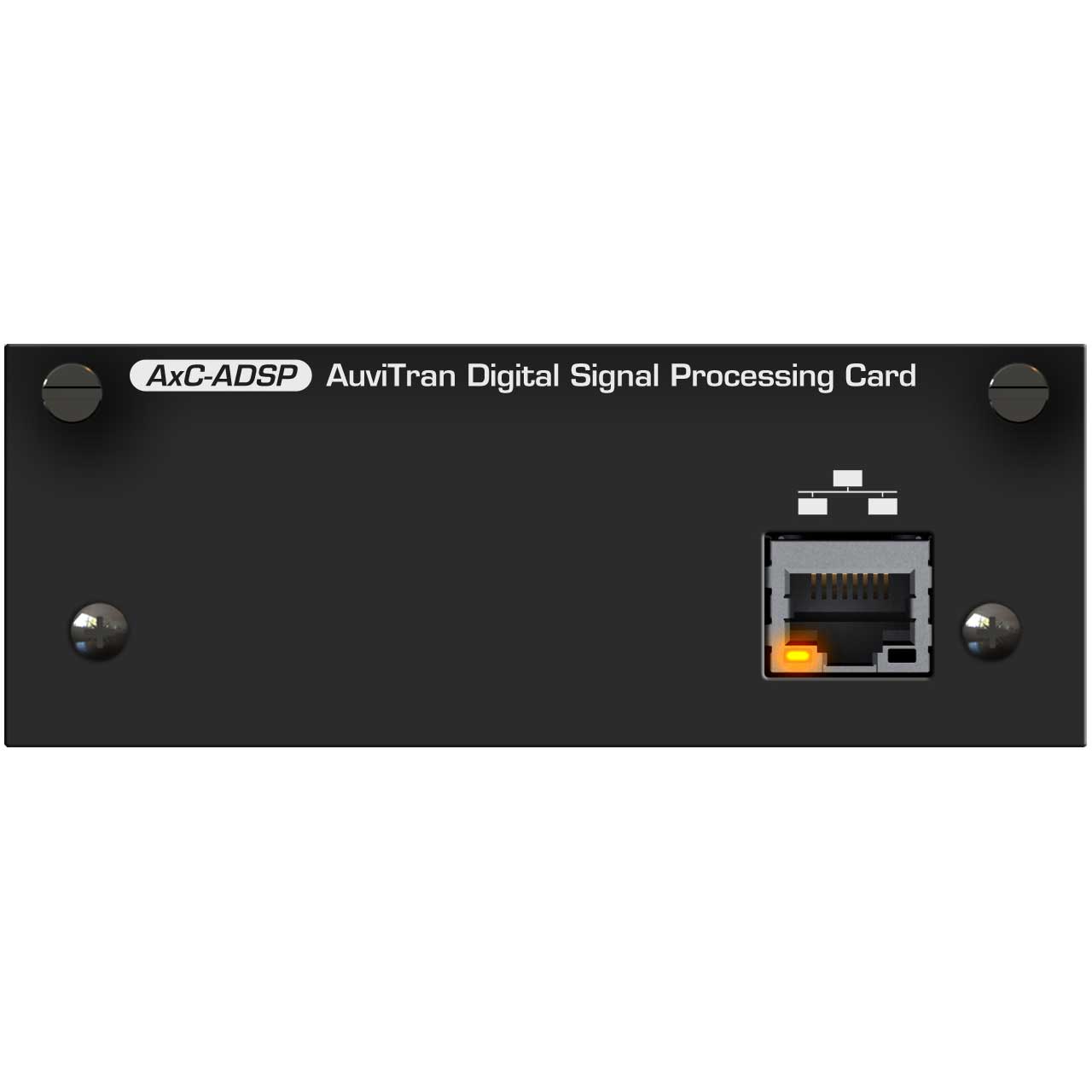

    • Connector(s): 1x RJ45 connector for direct control of Audio ToolBox

      Processing Specifications
    • CPU (Management): Dual Core ARM processor @ 204MHz, 192KB SRAM, 32MB flash, 8MB SDRAM
    • DSP (Processing): 8x 32bits Sigma DSP @ 295MHz with integrated 139dB SNR ASRC for up to 2x 64 channels
    • FPGA (Audio Mixing): Dedicated FPGA to process 64 mixers on 64 inputs at single speed 44.1kHz / 48kHz or 32 mixers on 32 inputs at
      double speed 88.2kHz / 96kHz
    • SDRAM (Delays): Dedicated SDRAM for 350s of audio delays shareable for 64 inputs and 64 outputs at 48kHz or 175s of audio delays
      shareable for 32 inputs and 32 outputs at 96kHz

      ASRC Specifications
    • Number of channels: 64 inputs + 64 outputs channels at single speed (44.1kHz or 48kHz) or 32 inputs + 32 outputs channels at double
      speed (88.2kHz or 96kHz)
    • THD+N(dB): -130dB for an ASRC 48kHz - 96kHz / -128dB for an ASRC 48kHz - 48kHz

      Integration Environment
    • Audio ToolBox Platform: AxC-ADSP can be inserted in any slot of any AuviTran Audio ToolBox platform.
      Up to 3x AxC-ADSP can be inserted in an AVBx7 audio ToolBox frame for ASRC
    • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor a Dante or an EtherSound network and provides enhanced
      control pages to manage the AxC-ADSP card specific parameters
    • Supported OS: Windows 10/8/7, Mac OS, IOS, Android, Linux for AxC-ADSP control via any web interface Windows 10/8/7/Vista/XP for 32
      or 64-bit versions for Audio ToolBox controls via AVSMonitor
