AuviTran AXC-AVB AVB 32-Channel In and 32-Channel Out AVX Network Card

ITEM #: AXC-AVB MFG #: AXC-AVB

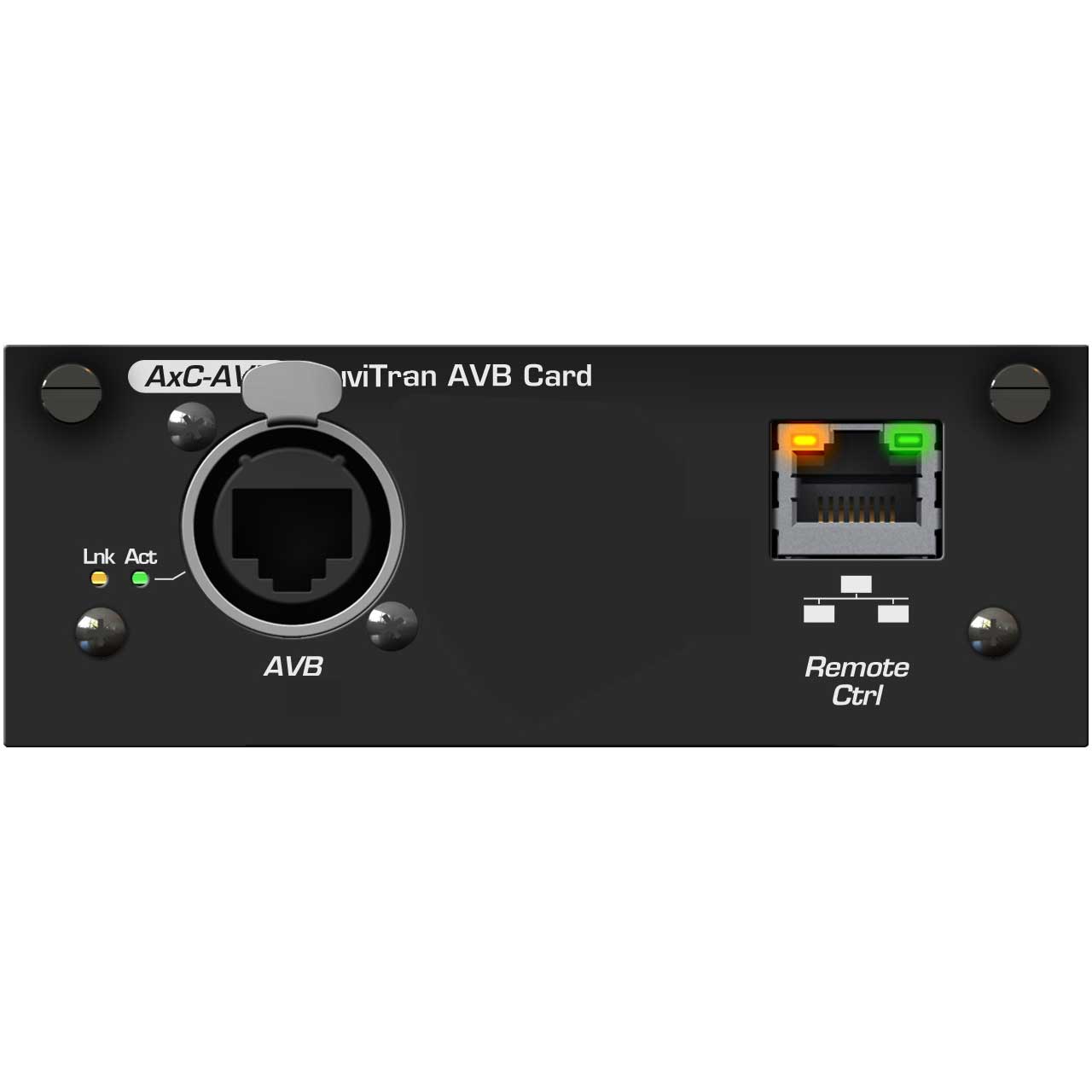

Primary Image
AuviTran
Free Shipping with $49 Minimum Order

Our Price:

$1,599.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AXC-AVB - Overview

Just as every AxC card within the Audio ToolBox range, the AuviTran AxC-AVB can equally be used in AVBx3 or AVBx7 platforms. Using one slot of either ToolBox, the AxC-AVB allows to bridge them with any other network configurations. Coupled to an AuviTran Audio ToolBox platform, AxC-AVB card provides a cost-effective gateway between AVB devices to other audio interfaces.

Applications:
Live applications (stage-box mode):
Live concerts and recording
Live broadcast studios and OB Vans
Recording studios
Stadiums, concert halls

Fixed installations (installation mode):
Public Address, paging systems, theme parks and resorts
Broadcast rack in central room
Theatres, bars, pubs discos
Exhibitions and conference centres

  • Features:

    • 32x AVB input channels and 32x AVB output channels @ 48kHz or 16x AVB input channels and 16x AVB output channels @ 96kHz
    • One EtherCon connector for Audio and remote-control connection over AVB network
    • One Ethernet RJ45 connector for remote control over standard IP/Ethernet network
    • Remote management with AVS-Monitor or via UDP/IP for sub party remote control
    • Combined with other AuviTran Audio ToolBox cards, the AxC-AVB card opens exciting possibilities to the professional audio systems:
    • Build a flexible analog StageBox, when combined with a ToolBox (AVBx3 or AVBx7), AxC-AX4M high class mic/line preamps cards and AxC-AX4O analog output card
    • Create an AVB bridges in combination with any other network AxC card such as AVB-Dante, AVB-MADI, AVB-Cobranet, AVB-EtherSound bridges, thus smartly mixing connectivity


  • Specifications:

    • General
    • Size: 200 mm x 100 mm x 40 mm -AuviTran Audio ToolBox platform cards format
    • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
    • Temp / Humidity Storage: -5°C to 70°C / 0% to 95% (non-condensing)
    • Operating: 0°C to 50°C / 5% to 90% (non-condensing)
    • AVB Connections: 1x Neutrik EtherCon for AVB
    • Remote Connection: 1x RJ45 connectors for remote control over any standard Ethernet IP network

      Inputs and Outputs
    • Number of Input Channels:
      32x input channels @ 48kHz or 44.1kHz
      16x input channels @ 96kHz or 88.2kHz
    • Number of Output Channels:
      32x output channels @ 48kHz or 44.1kHz
      16x output channels @ 96kHz or 88.2kHz
    • Number of Input Streams:
      4x AVB input streams of 8 channels @ 48kHz or 44.1kHz
      2x AVB input streams of 8 channels @ 96kHz or 88.2kHz
    • Number of Output Streams:
      4x AVB output streams of 8 channels @ 48kHz or 44.1kHz
      2x AVB output streams of 8 channels @ 96kHz or 88.2kHz

      Audio Format
    • Audio Sampling Frequency: 44.1kHz, 48 kHz, 88.2 kHz, 96 kHz
    • Audio Sample Resolution: 24 bits and 32 bits depending of AVB audio format

      Integration Environment
    • Audio ToolBox Platform: AxC-AVB is one the cards for the AuviTran Audio ToolBox platform
    • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor any Audio ToolBox interface and provides enhanced control pages to manage the AxC-AVB card parameters.
    • OS Supported: Windows 10 for 32 or 64-bit versions


  • Item Includes:

    • 1x AuviTran AXC-AVB AVB 32-Channel In and 32-Channel Out AVX Network Card
