Mackie HM-400 4-Channel Headphone Amplifier

ITEM #: MCK-HM-400 MFG #: HM-400

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Mackie
Free Shipping with $49 Minimum Order

Our Price:

$199.99

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HM-400 - Overview

Expand Your Versatility!
Perfect for studios, practice spaces, quiet stages, and more, the HM Series offers everything you need whether it is just splitting a single signal to your band, or more complex headphone distribution.

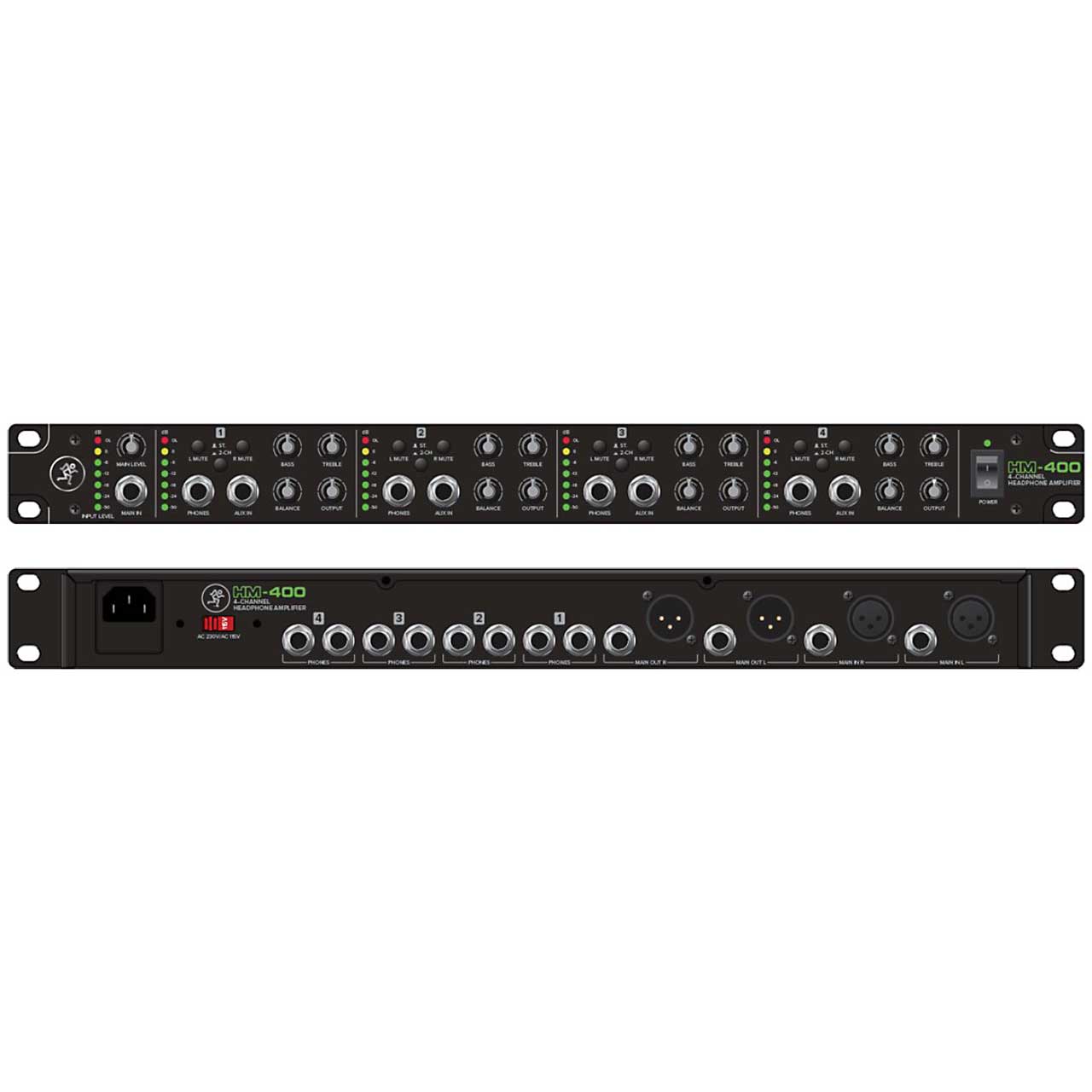

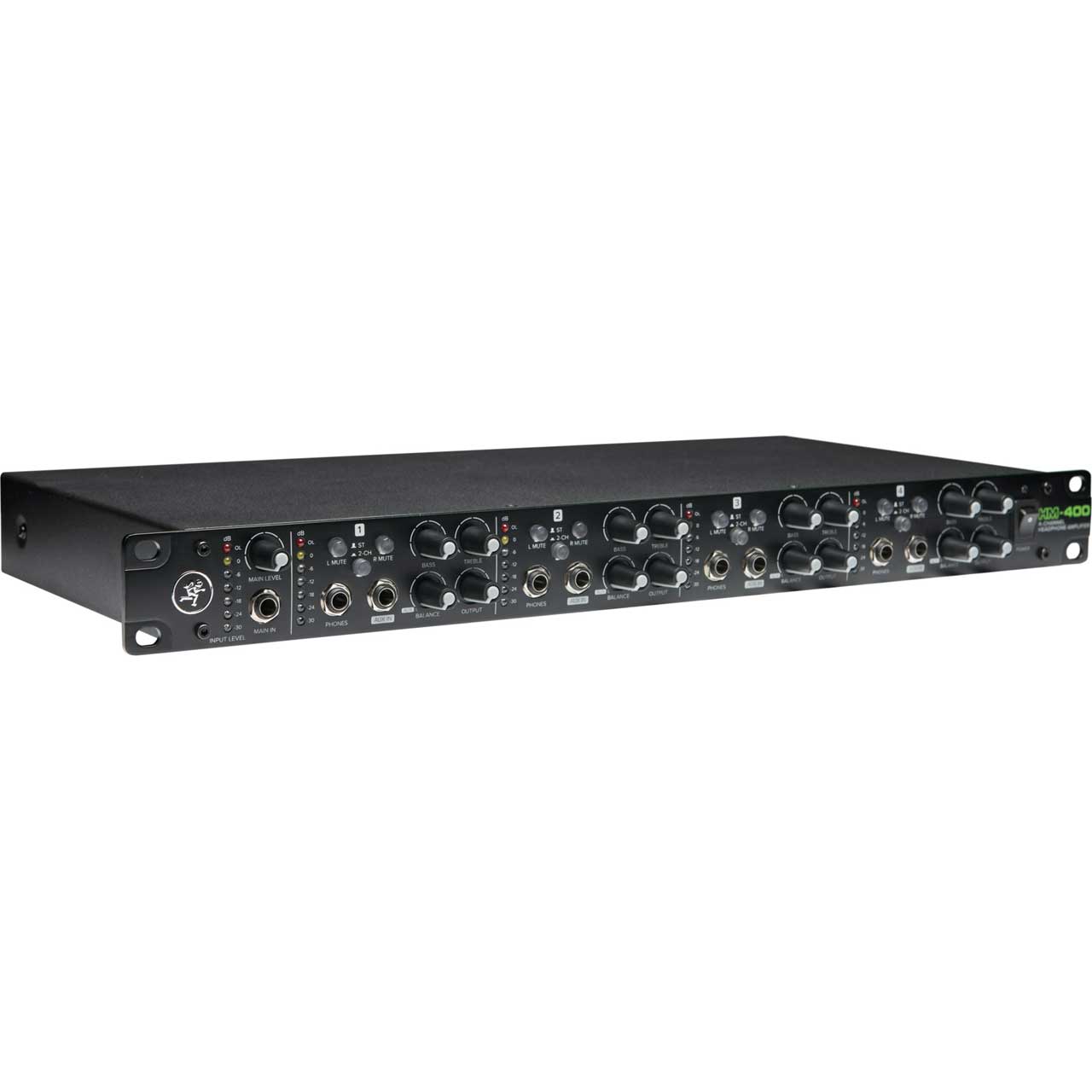

The 19" rackmount HM-400 4-Channel Headphone Amplifier offers an incredible amount of versatility and excellent sound quality in a single rack space.

Perfect for professional applications including studios, Houses of Worship, practice spaces and more. The HM-400 features a main input with level control plus stereo outs, aux inputs and EQ per channel with 12 total headphone outputs.

  • Features:

    • L/R Main stereo inputs plus L/R stereo outputs
    • 7-segment LED metering per channel plus main
    • 3 headphone outputs per channel
    • Aux input on each channel with balance control to mix main and aux signal
    • Mute and stereo/2-ch mode switches per channel
    • 12 total headphone outputs
    • Built-Like-A-Tank™ construction


  • Specifications:

    • Frequency Response: 20Hz - 20kHz, ±1dB
    • Noise: -66dB
    • Distortion: <0.01%
    • Main Input (max level): +15dBu balanced/unbalanced
    • Aux Input (max level): +20dBu unbalanced
    • Headphone Output: 550mW/channel @ 47Ω (+21dBu)
    • CMRR (Main Input): >42dB @ 1kHz
    • Gain Range (Main Input): -66 to 18dBu
    • Input Type: Female XLR Balanced, Female 1/4" Balanced - Unbalanced
    • Main Input Impedance: 20kΩ balanced, 10kΩ unbalanced
    • Aux Input Impedance: 10kΩ unbalanced
    • Output Type: Male XLR Balanced, Female 1/4" Balanced - Unbalanced
    • Headphone Output Impedance: 3Ω unbalanced
    • Detachable line power cord: -100 - 120V, 50/60Hz, 24W; -220 - 240V, 50/60Hz, 24W
    • AC Connector: 3-pin IEC 250VAC, 10 A male
    • Display LEDs: Front power on/off, Front input level meter, Front output level meters, L/R mute switches, St./2-Ch swithes
    • Dimensions (HxWxD): 1.8" x 19.0" x 8.8"
    • Weight: 8.0lbs


  • GTIN:

    0663961054071
