BZBGEAR BG-AMPC40 2-Channel 40W 70/100V Stereo/Mono Audio Amplifier

Name: BZBGEAR BG-AMPC40 2-Channel 40W 70/100V Stereo/Mono Audio Amplifier
Brand: BZBGEAR
SKU: BG-AMPC40
Price: 399.00 USD
Availability: PreSale

ITEM #: BG-AMPC40 MFG #: BG-AMPC40

BZBGEAR

Our Price:

$399.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BG-AMPC40 - Overview

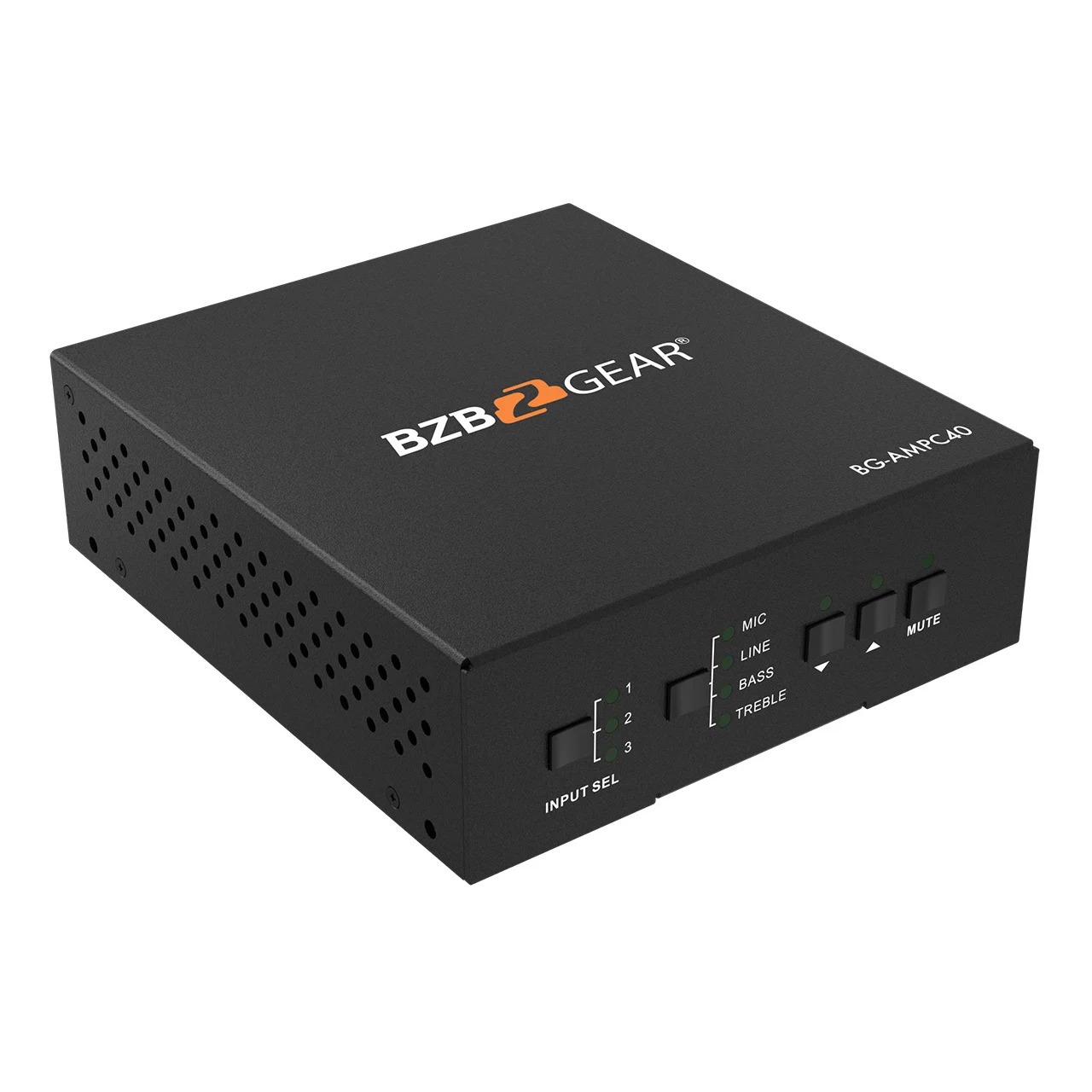

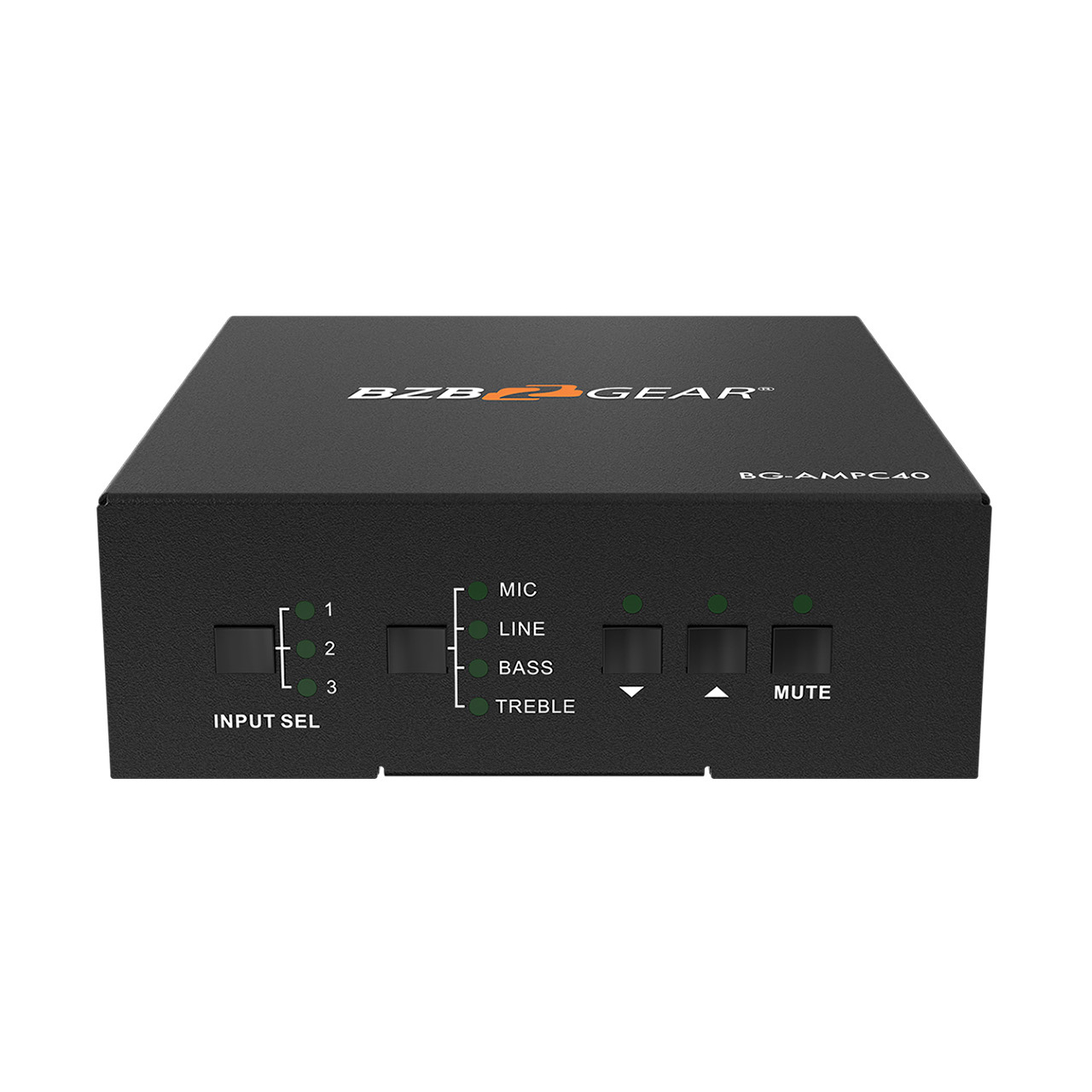

The BZBGEAR BG-AMPC40 is a 40-Watt digital stereo amplifier (Class-D) with switchable output of 70V or 100V. Inputs include 2 stereo inputs (1x3.5mm port for line in, 2xRCA for L&R), 1 TOSLINK input, and 1 balanced MIC input. The 3-pin MIC input has selectable 48V phantom power, supports balanced or unbalanced signals, and features external noise suppression.Integrated functions include ducking, EQ control, and MIC mixer. The rotary knob allows users to choose from 16 IR ID codes for easy control of multiple amplifiers. The front panel has controls for input selection, volume level for MIC and Line inputs, and bass/treble adjustment. This amplifier can be controlled with RS232 commands in addition to the front panel buttons and IR commands.

Features:
- Microphone Input 3-level Mic input with mixer function
- Amplify Your Sound Outputs 40Watts at either 70V or 100V
- Compact Small form factor ideal where full-sized amplifiers will not fit
- Multiple Control Options Take control using RS232, IR, or push buttons
- Durable Metal enclosure designed to last for years
- Control levels conveniently using integrated push buttons
Specifications:
- Audio Input
- Input:
  - 2x Stereo Audio
  - 1x MIC
  - 1x Digital Fiber Audio
- Input Connector:
  - 2x RCA
  - 1x 3.5mm Jack
  - 1x 3-pole 3.81mm Captive Screw Connector
  - 1x SPF Fiber Connector
- Input Impedance: >10KΩ

  Audio Output
- Output: 1x Mono Amplifier
- Output Connector: 1x 3-pole 3.81mm Captive Screw Connector
- Output Type: Constant Voltage 70V or 100V

  Audio General
- Frequency Response: 120Hz - 20KHz
- CMRR: >70dB@20Hz - 20KHz
- SNR: 80dB (Max)
- Bandwidth: 120Hz - 20KHz
- Rated Power: Output 40Watt
- THD + Noise: 1%@1KHz, 0.3%@20KHz at nominal level
- Voltage Gain: 26dB

  Control Function
- RS232 Control: 1x 3-pole 3.81mm Captive Screw Connector
- Front Panel: Control Buttons
- ID Code Control: 16 ID Codes for control

  General
- Temperature: 14°F - 104°F (-10°C - 40°C)
- Humidity: 10% - 90%
- Power Supply DC: 24V 2.71A Power Adapter
- Standby Power Consumption: 5W
- Case Dimension (WxHxD): 5.1" x 1.7" x 5.7" (130mm x 44mm x 144mm)(1U high)
- Weight: 1.9lbs (860g)
Item Includes:
- 1x BZBGEAR BG-AMPC40 40 Watt Power Amplifier
- 2x Mounting Ears with 4 Screws
- 4x Plastic Cushions
- 2x Pluggable Terminal Blocks
- 1x RS232 Cable
- 1x Power Adapter (DC 24V 2.71A)
- 1x User Manual
Warranty:
- 5 Year Limited Warranty
GTIN:
0850023208651
