    BG-COMMANDER-PRO - Overview

    Demand perfection. Command with precision.

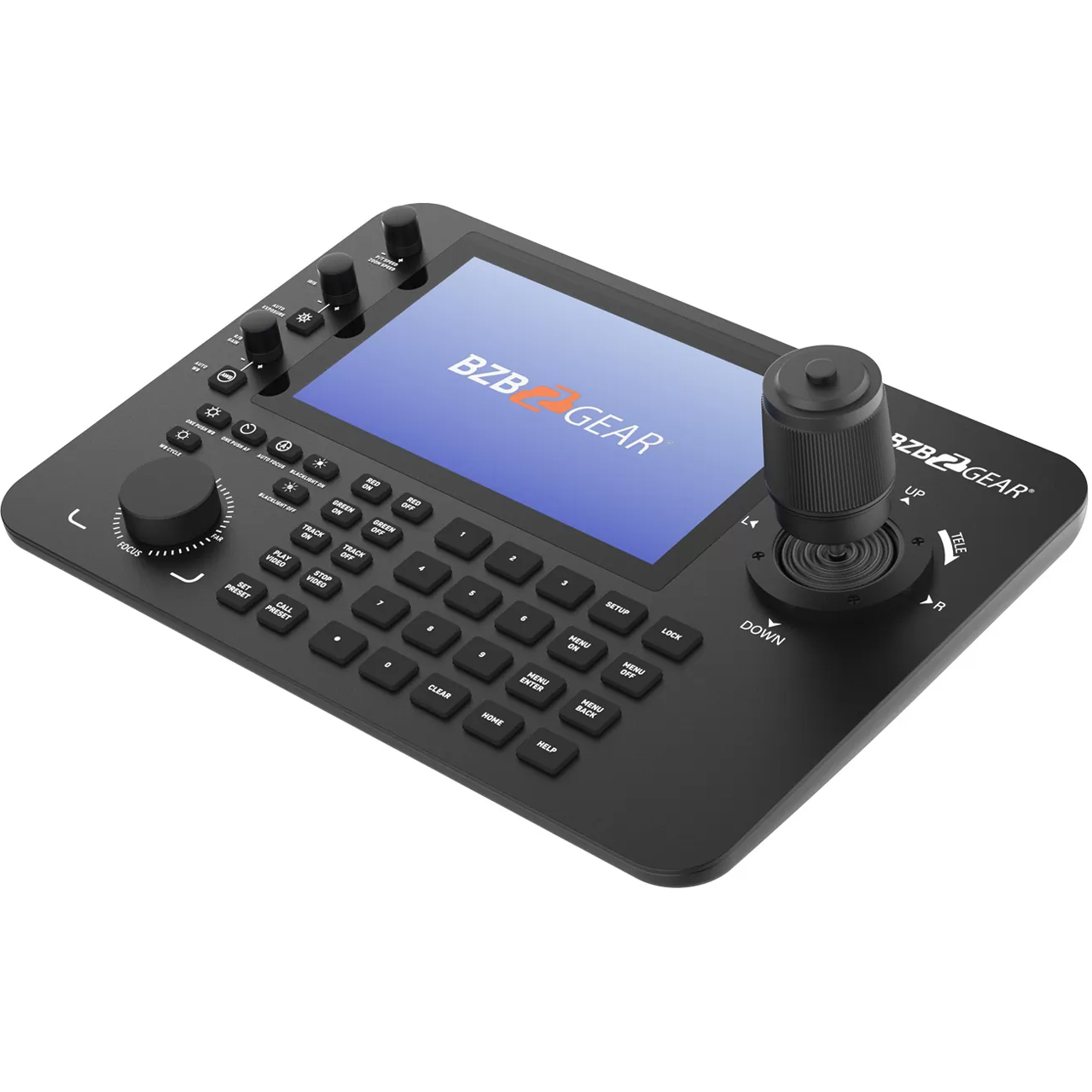

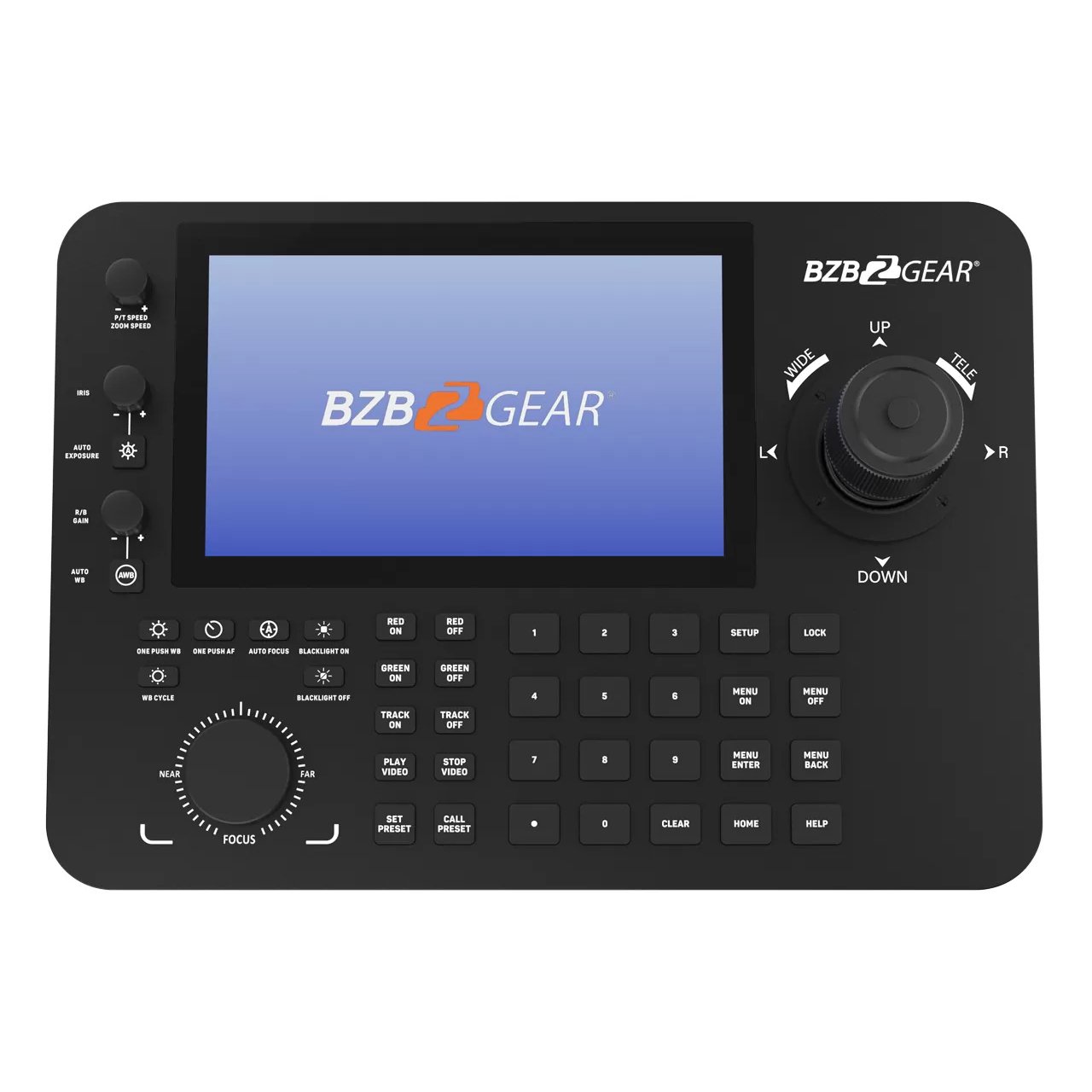

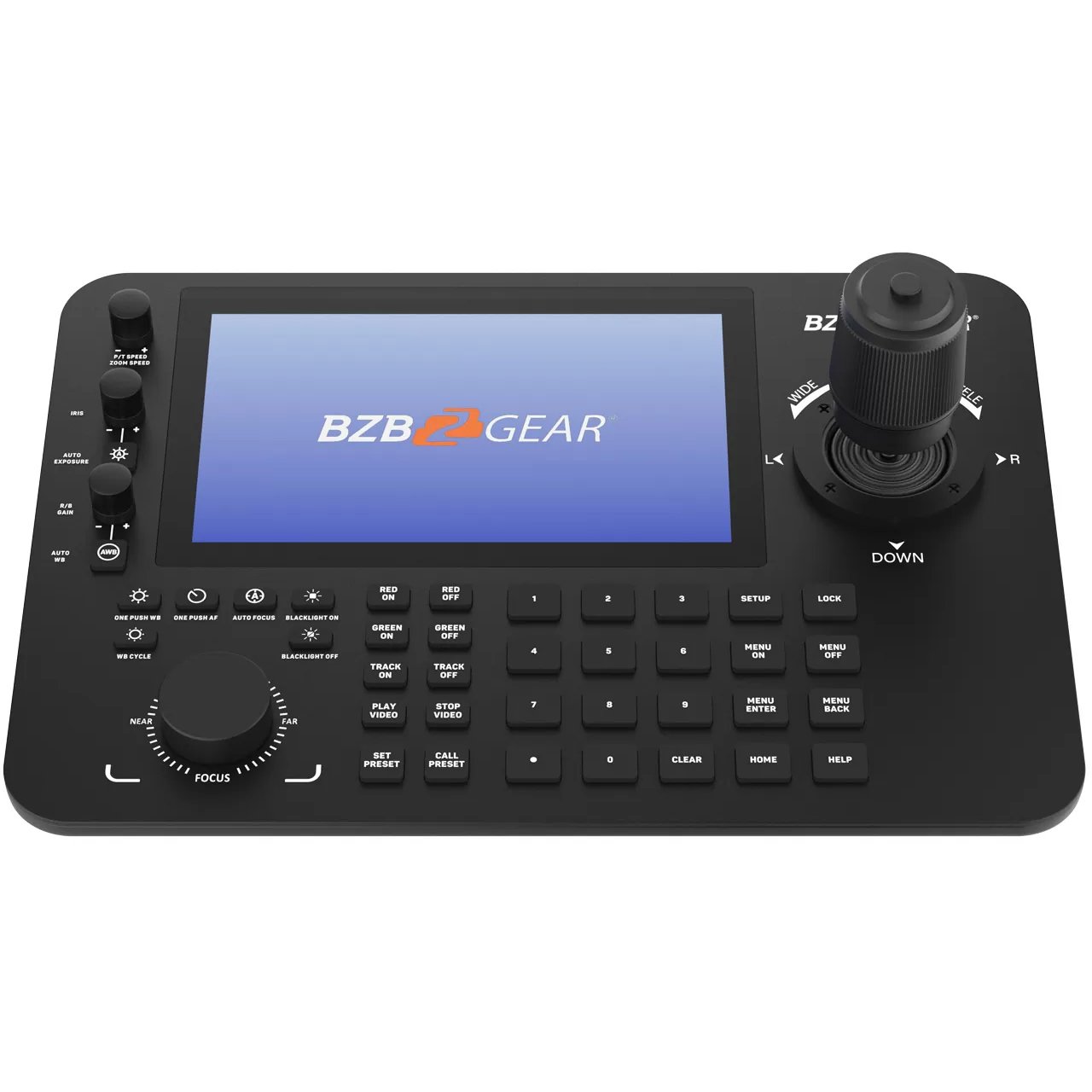

    The BZBGEAR BG-COMMANDER-PRO is a versatile PTZ camera joystick controller featuring a 7" touch screen, real-time video previews, and Android 11 OS. It supports simultaneous viewing of 4 RTSP streams or a single full-screen image. With H.265/H.264 decoding, it offers efficient video processing.

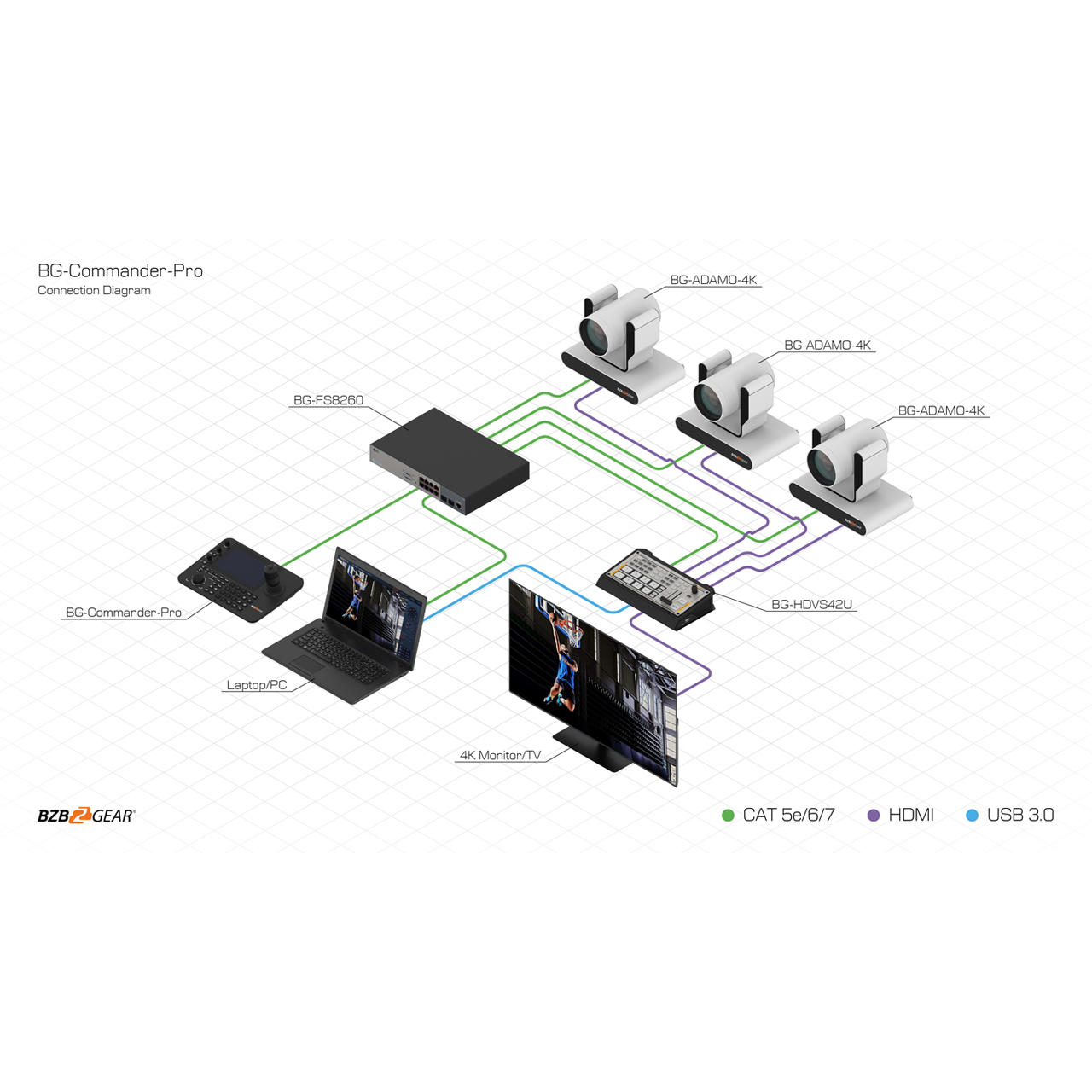

    The BG-COMMANDER-PRO also facilitates HDMI projection and can output 4 additional RTSP streams to an external display for simplified monitoring. It provides seamless PTZ control for preset positions, focus, zoom, and exposure settings, and can even access a camera's web interface. Designed for BG-ADAMO cameras, the unit offers quick access to red/green tally lights control and auto tracking activation.

    Designed with their award-winning BG-ADAMO line of cameras in mind, the BG-COMMANDER-PRO offers quick access buttons to control their red/green tally lights and toggle auto-tracking on and off.

    • Features:

      • 7" Capacitive touchscreen with Android 11 operating system
      • H.264/H.265 compression
      • Live view up to 8 RTSP streams when an HDMI display is connected (4 directly on the device, and 4 other streams using the TV Wall function)
      • PTZ control including presets, focus, zoom, exposure, and more
      • Integrated Patrol feature to have cameras automatically path between presets
      • Built with the BG-ADAMO in mind and allows for easy tracking and tally light control
      • Capture photos and video directly on the controller or to a connected USB flashdrive or micro SD card.
      • Integrated search functions assist in easily adding cameras
      • Most popular control protocols supported: VISCA (TCP/UDP), Pelco-P, Pelco-D, ONVIF, and NDI
      • Supports over 2000 devices
      • Firmware is easily upgradable using a USB or Micro-SD storage device
      • 1 RS232 port to support legacy system


    • Specifications:

      • Operating System: Android 11
      • Screen Size: 7" capacitive touchscreen / resolution 1024x600
      • Video Output: HDMI 4K@30Hz
      • Video Output Connectors: 1x HDMI Type A, 19-pin, female
      • Decoding:
        - 1. Supports H264/H265
        - 2. Max supported H264 4x1080p@30fps
        - 3. Max supported H264 16x720p@30fps
        - 4. Max supported H265 1x4K@60fps
      • Protocols: IP VISCA, ONVIF, NDI, VISCA, Pelco-P, Pelco-D
      • Power: Standard 5.5/2.1 power interface, DC 12V2A±10%

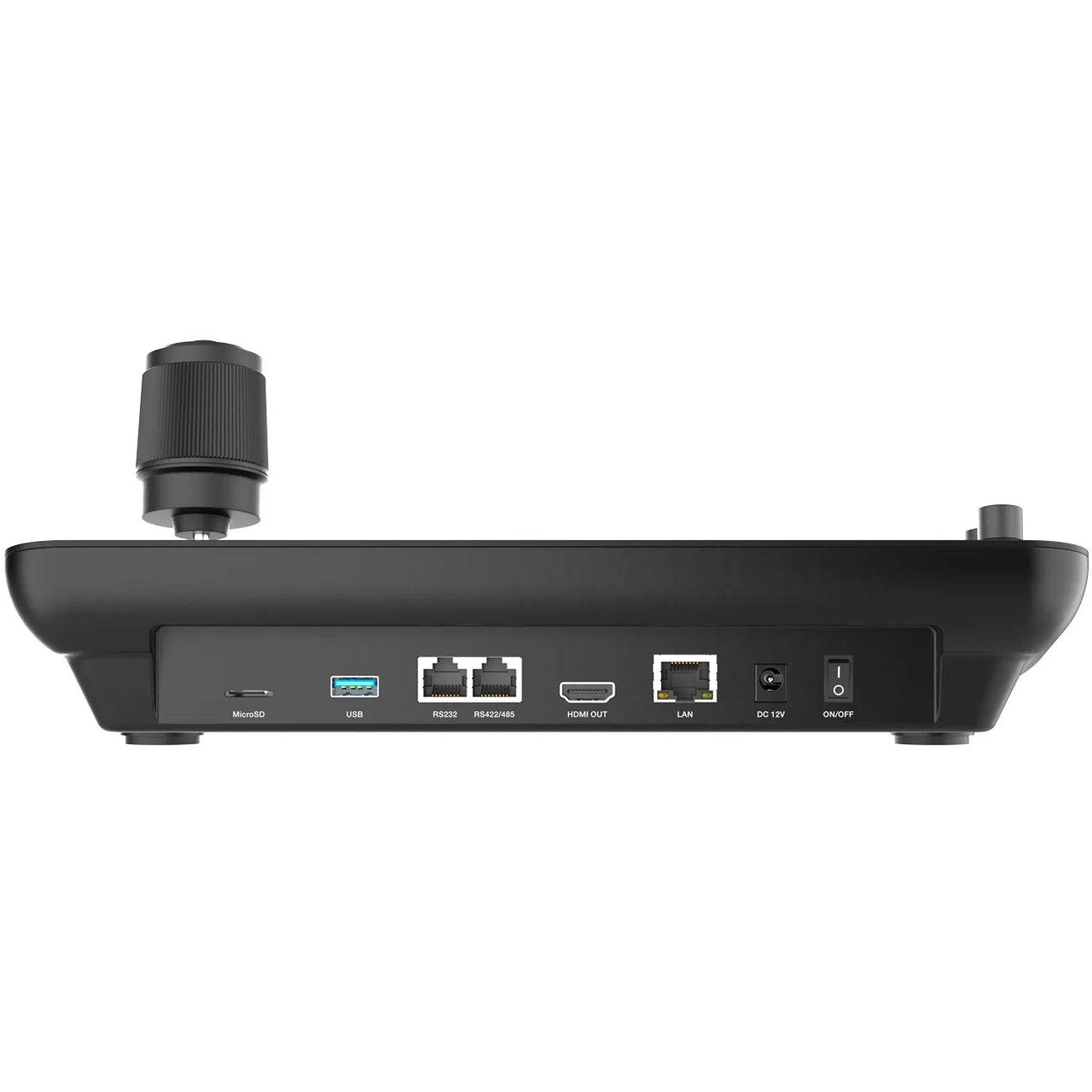

      • Interface Ports:
        - 1x RJ45 (Network)
        - 1x RS232 (RJ45)
        - 1x RS422/485 (RJ45)
        - 1x HDMI output
        - 1x USB 3.0
        - 1x Micro-SD card slot

        Mechanical
      • Power Consumption: <1.5W
      • Working Humidity: 10%-90%RH(no frost)
      • Working Temperature: 14°F - 122°F (-10°C - 50°C)
      • Storage Temperature: -40°F - 140°F (-40°C - 60°C)
      • Package Dimension: 14" x 9.6" x 6.1" (365mm x 245mm x 155mm)
      • Weight: 3.75lbs (1.7kg)


    • Item Includes:

      • 1x BG-COMMANDER-PRO
      • 1x Power Adapter (12V DC 2A)
      • 1x User Manual


    • Warranty:

      • 3 Year
