Demand perfection. Command with precision.

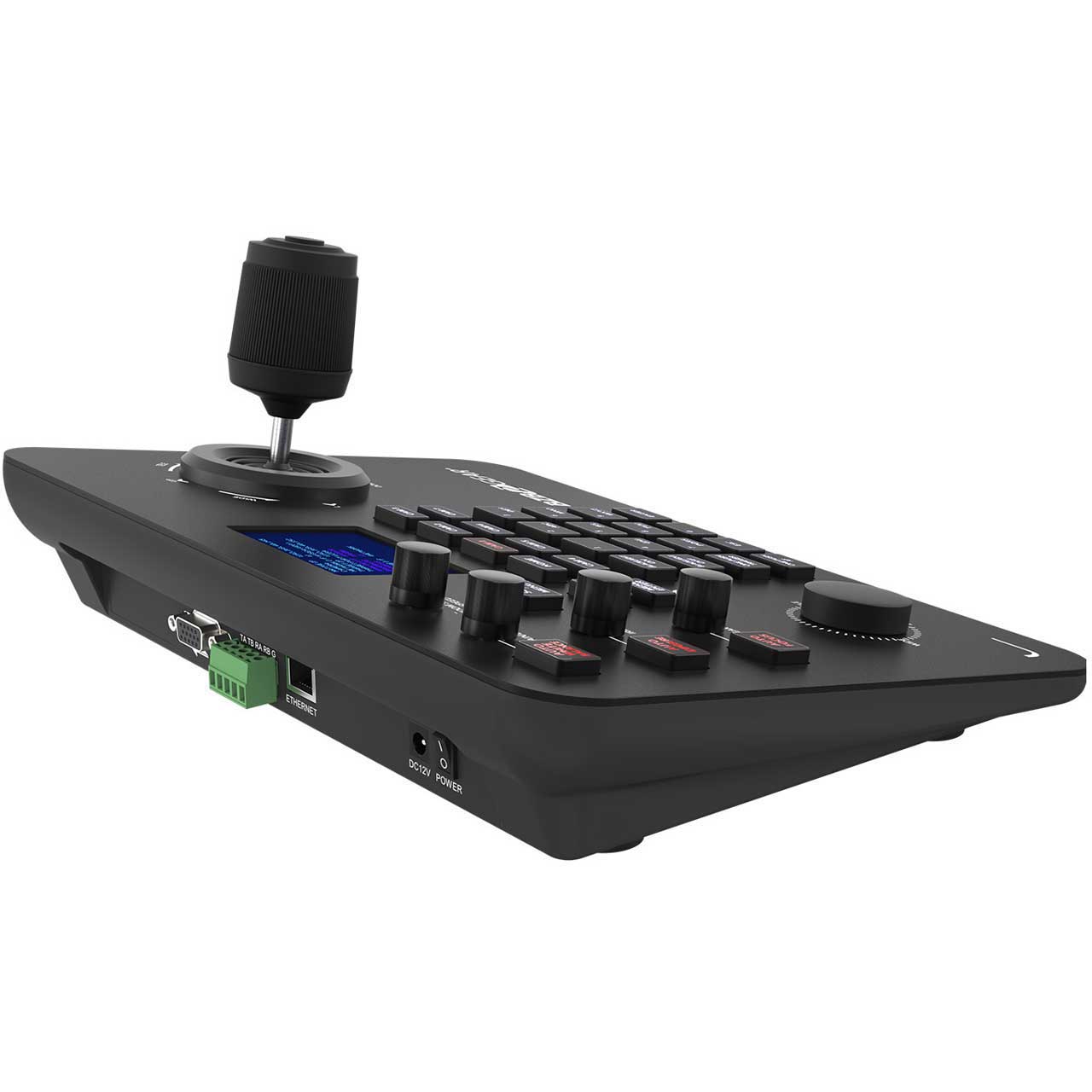

The BG-Commander PTZ joystick controller delivers precise control for both IP and serial PTZ cameras. With high-quality backlit buttons, the BG-Commander offers a pleasing user experience - even in low-light conditions. The solid metal chassis provides a durable, stable platform and is designed to stand up to years of heavy use, regardless of the setting. This controller is a great choice for live events, houses of worship, and broadcasting scenarios.
Control

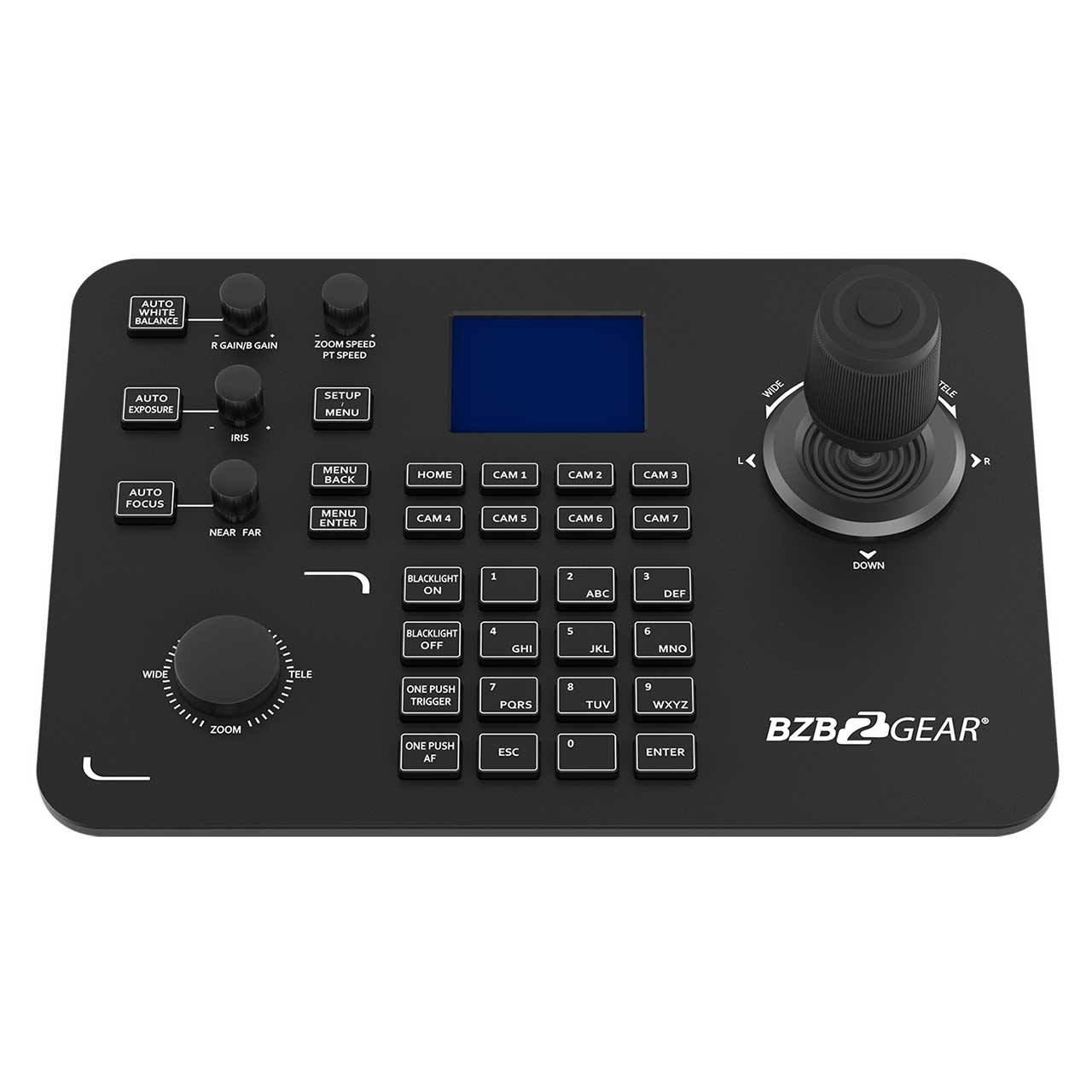

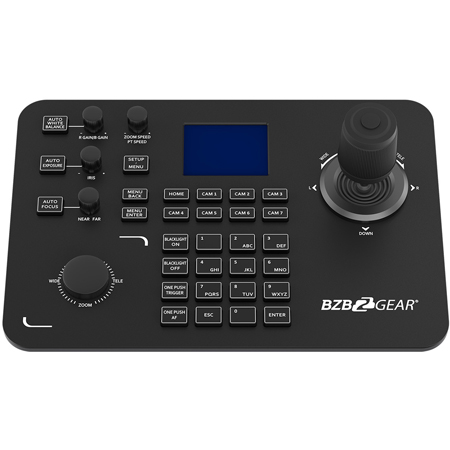

With control for up to 7 cameras, the BG-Commander provides a clean and uncluttered platform ideally suited for small to medium-scale productions. The controller has up to 10 quick access presets by tapping the 0-9 keys but it can support up to 255 presets by pressing the "Enter" key before recalling a preset position. Controls for white balance, focus, iris, and backlight settings allow quick image adjustments, while the high-contrast LCD screen provides camera information at a glance.

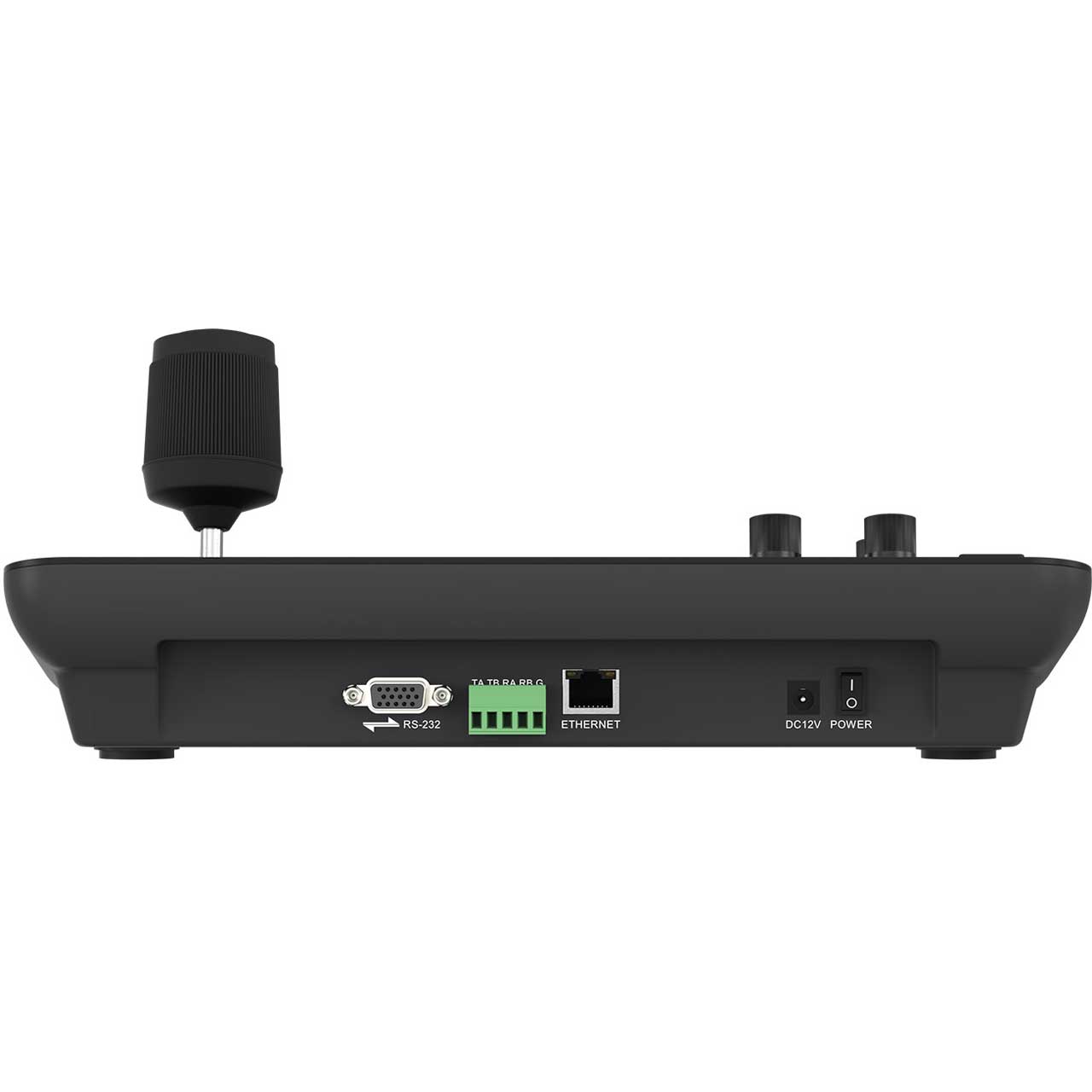

Control for either IP or serial based PTZ cameras is provided by a LAN port or RS232, RS422, and RS485 connections. The BG-Commander supports IP VISCA, ONVIF, VISCA, PELCO-D, and PELCO-P control protocols.
Instant Control at Your Fingertips
Instantaneous and accurate pan, tilt, and zoom control for both IP and serial controllable PTZ cameras. Variable PTZ speed control for tailoring pan, tilt, and zoom motor movements. The push-button preset function makes it simple to switch between static shots. Four control modes for long distance PTZ camera control: two IP modes (IP VISCA, ONVIF) and two analog modes (RS422, RS232)
Synergetic Technologies & Connections.

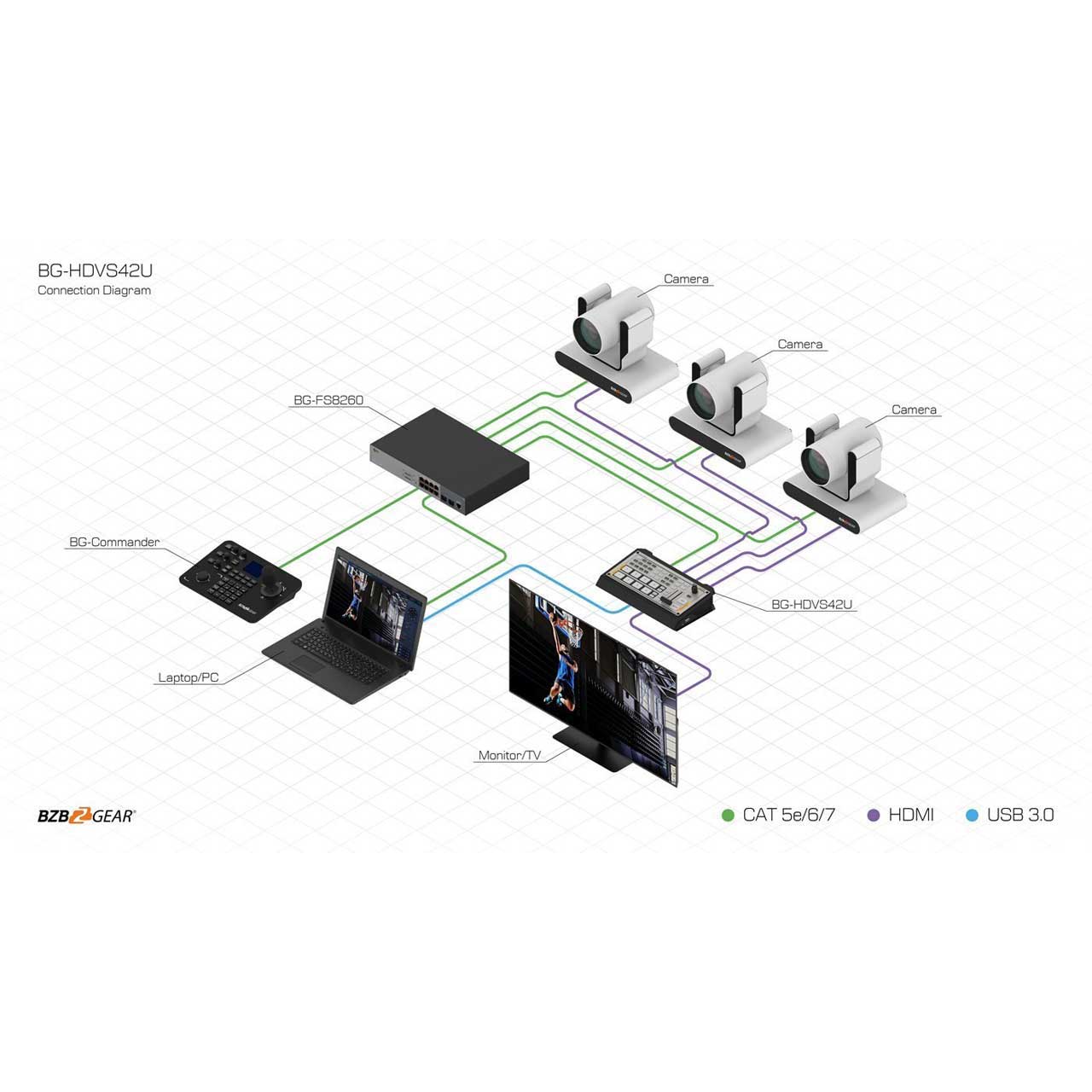

Power over Ethernet (PoE) functionality enables power and control via a single ethernet cable. IP control easily controls any compatible IP camera. Utilize IP and serial protocol connections simultaneously
Quality Construction and Detail
Solid, durable case ensures reliability for mobile production and permanently installed environments. Access intuitive setup menu via the brilliant on-screen display to quickly adjust parameters Enhanced buttons & LCD backlights.
