BZBGEAR BG-ExUF 4-Port USB3.1/2.0/1.1 SuperSpeed Fiber Extender up to 1000-Foot

Name: BZBGEAR BG-ExUF 4-Port USB3.1/2.0/1.1 SuperSpeed Fiber Extender up to 1000-Foot
Brand: BZBGEAR
SKU: BG-EXUF
Price: 1199.00 USD
Availability: PreSale

ITEM #: BG-EXUF MFG #: BG-EXUF

BZBGEAR

Our Price:

$1,199.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BG-EXUF - Overview

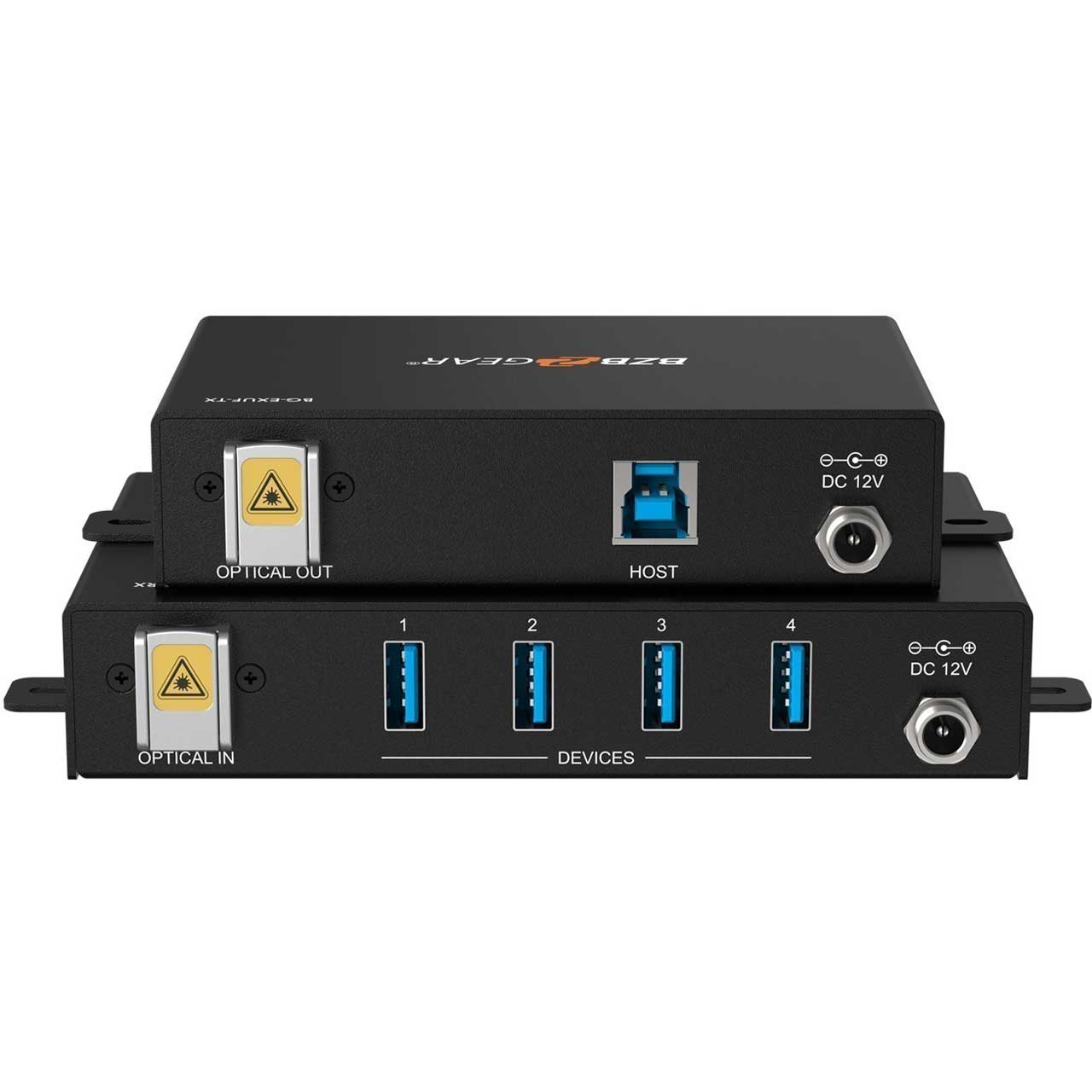

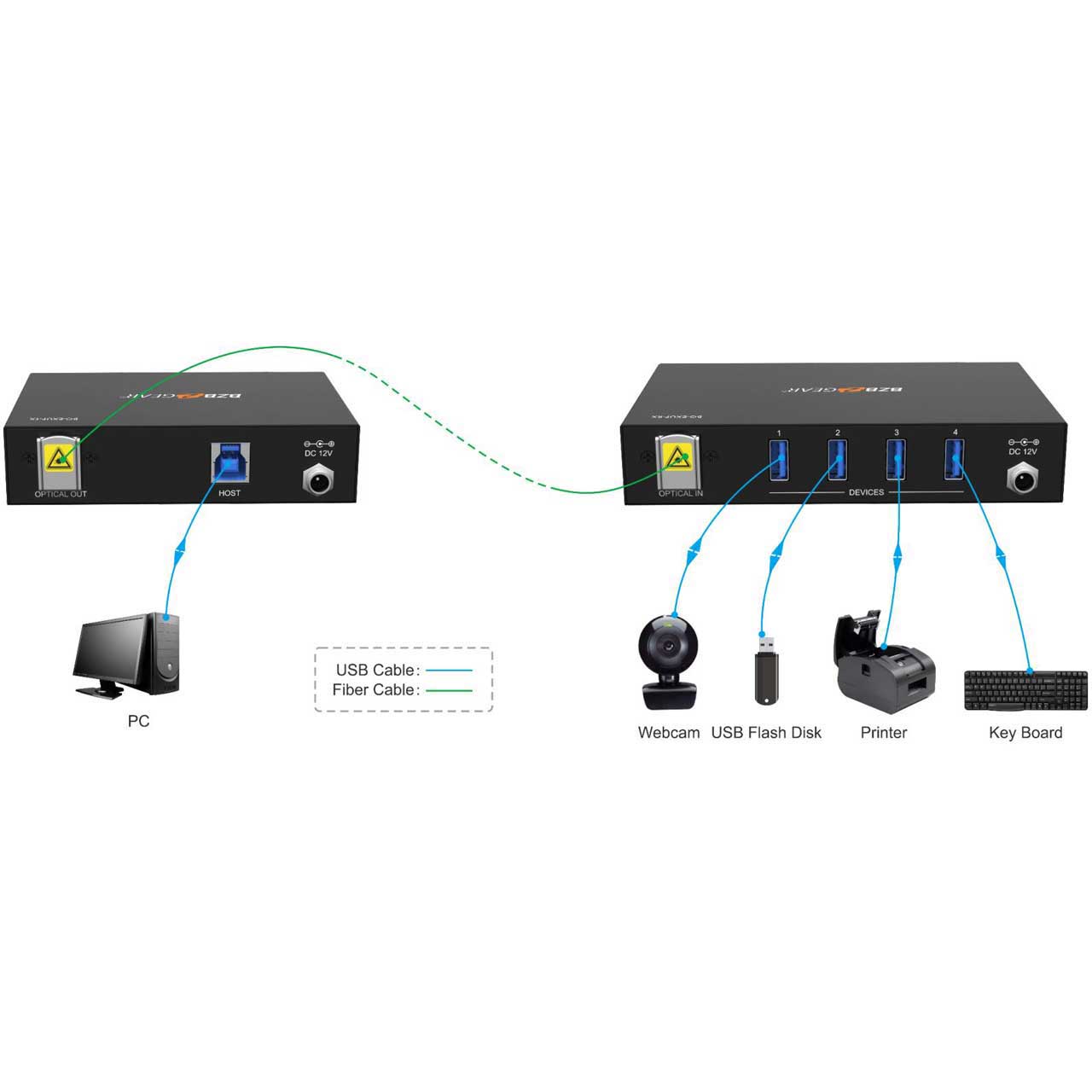

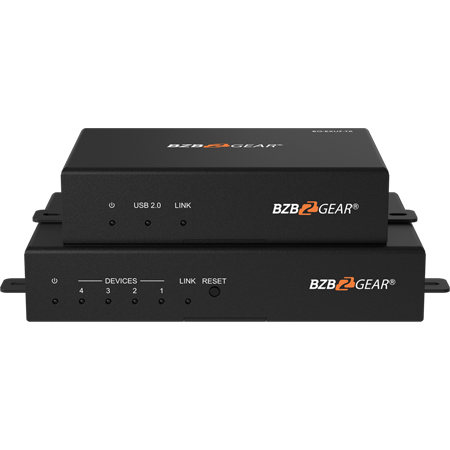

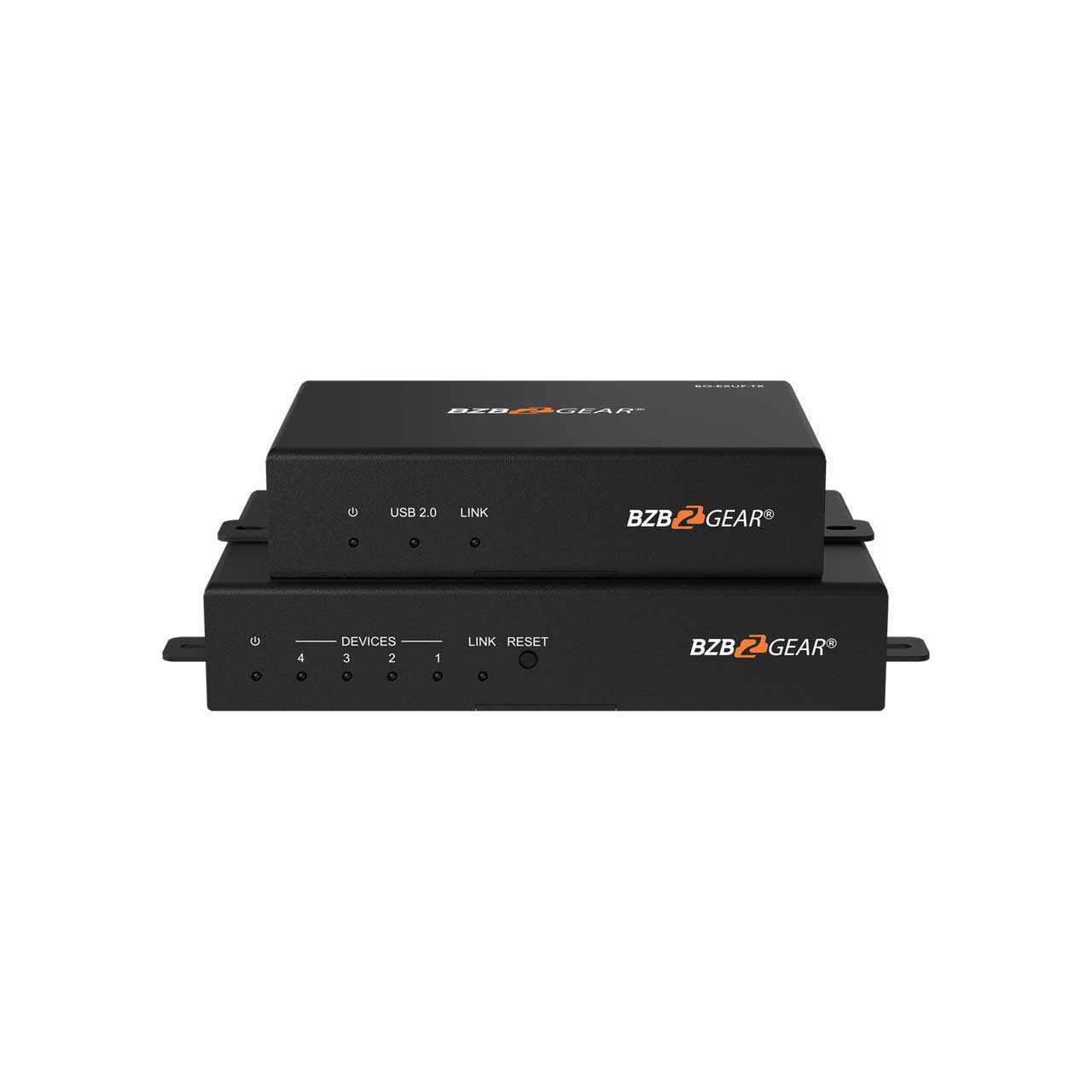

The BZBGEAR BG-ExUF is a 4-port fiber optic USB 3.1/2.0/1.1 extender that extends USB 3.1 up to 328ft (100m) and USB 2.0/1.1 up to 6.2mi (10Km) over single-mode or multi-mode fiber optic cabling. Designed with a four-port hub to extend up to four USB devices without the need for an additional device. Each port supports data transfer speeds up to 5Gbps (USB 3.1).

Installation and use of the BG-ExUF is effortless with four mounting holes built into its sturdy metal chassis and no requirements for drivers. The advanced optical fiber transmission technology eliminates electromagnetic interference.

Features:
- Compatible with USB 3.1/2.0/1.1
- USB 2.0 data transfer rate: 480Mbps
- USB 1.1 data transfer rate: 12Mbps
- Converts USB 3.1 to optical fiber without latency
- Transmits audio and video signals over single-mode or OM3 multi-mode fiber
- Anti-electromagnetic interference
Specifications:
- Distance
- USB 3.1 Gen1: Single-mode fiber or OM3 multi-mode fiber:
- Non-real-time transmission: 300m
- Real-time transmission: 100m
- USB 2.0/1.1: Single-mode fiber:
- Non-real-time transmission:10km
- Real-time transmission:6km
- OM3 multi-mode fiber: 500m

  Data Rate
- USB 3.1 GEN1: 5Gbps
- USB 2.0: 480Mbps
- USB 1.1: 12Mbps
- Transmitter (BG-ExUF-Tx)
- USB Interface: 1x USB 3.0 type-B male connector
- Fiber Interface: 1x LC
- Dimensions: 5.31 x 2.95 x 1.02" (135 x 75 x 26mm)
- Installation: 4 mounting holes for fixing
- Enclosure Material:: Metal
- Power Supply: External DC 12V
- Receiver (BG-ExUF-Rx)
- USB Interface: 4x USB 3.0 type-A female connector
- Fiber Interface: 1x LC
- Dimensions: 6.30 x 3.34 x 1.02" (160 x 85 x 26mm)
- Installation: 4 mounting holes for fixing
- Enclosure Material: Metal
- Power Supply: External DC 12V

  Environment
- Operating Temperature: +50° to +140°F (-10° to +60°C)
- Storage Temperature: -49° to +185°F (-45° to +85°C)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 80% relative humidity
Item Includes:
- 1x Transmitter
- 1x Receiver
- 2x Power Adapter (12V DC 1A)
- 4x Mounting Ears
- 4x Mounting Screws
- 8x Silicone Cushions
- 1x User Manual
GTIN:
0850033687361
