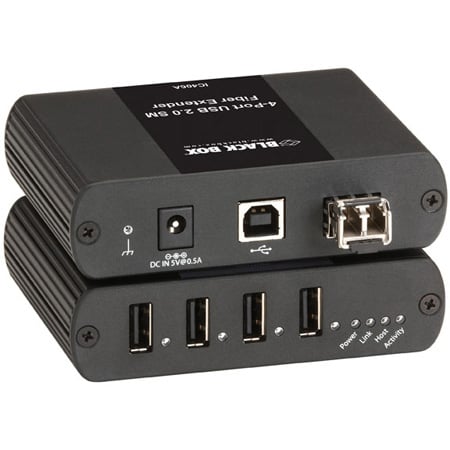

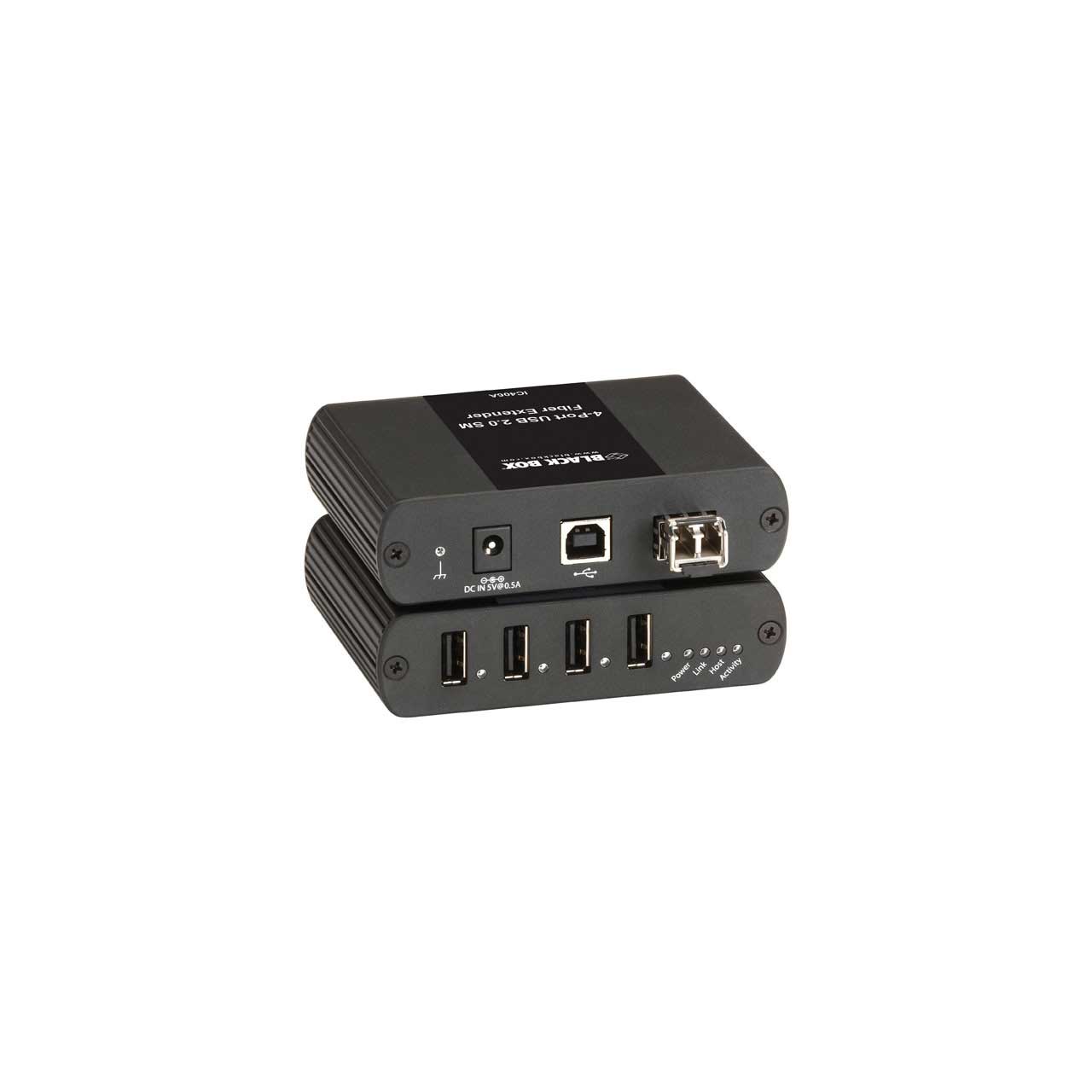

Black Box IC406A USB Ultimate Extender Over Single-Mode Fiber - 4-Port

IC406A - Overview

• Features:

  • Extends both USB 2.0 and USB 1.1 up to 10 kilometers (6.2 mi.) over single-mode fiber.
  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows, MacOS, and Linux operating systems. No new driver installation is required.
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!


• Specifications:

  • Connectivity: 30 USB devices
  • Connectors: Local unit: (1) USB Type B, (1) pair of LC;
  • Remote unit: (4) USB Type A, (1) pair of LC
  • Dimensions (Each Extender): 1"H x 3.9"W x 3"D (2.5 x 10 x 7.6 cm)
  • Operating Humidity: 20 to 80%, noncondensing
  • Operating Temperature: 32 to 122° F (0 to 50°C)
  • Power: Local unit: not required for normal operation
  • Available at remote unit: 24 VDC at 1A provides 4 x 600mA for devices
  • Range: 6.2 miles (10 kilometers) over single-mode fiber
  • RoHS2: Yes
  • Standards: FCC (Class B), IC (Class B), CE (Class B);
  • ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
  • Storage Humidity: 10 to 90%, noncondensing
  • Weight (Each Extender): 3.1 lb (1.4 kg)


• Item Includes:

  • Local extender module
  • Remote extender module
  • USB Cable (2-meter)
  • Power adapter
  • US power cord


• GTIN:

  0822088130260
