NTI ST-FOUSB2DARS-LC - USB Extender with DVI Video - Audio and RS232 via Fiber

ITEM #: ST-FOUSB2DARS-LC MFG #: ST-FOUSB2DARS-LC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,415.00

Our Price:

$3,141.80

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ST-FOUSB2DARS-LC - Overview

The XTENDEX transparent USB Extender with DVI Video, Audio and RS232 via Fiber extends four USB devices, RS232, speakers and a single link digital DVI display up to 6,500 feet via two duplex singlemode LC fiber optic cables.

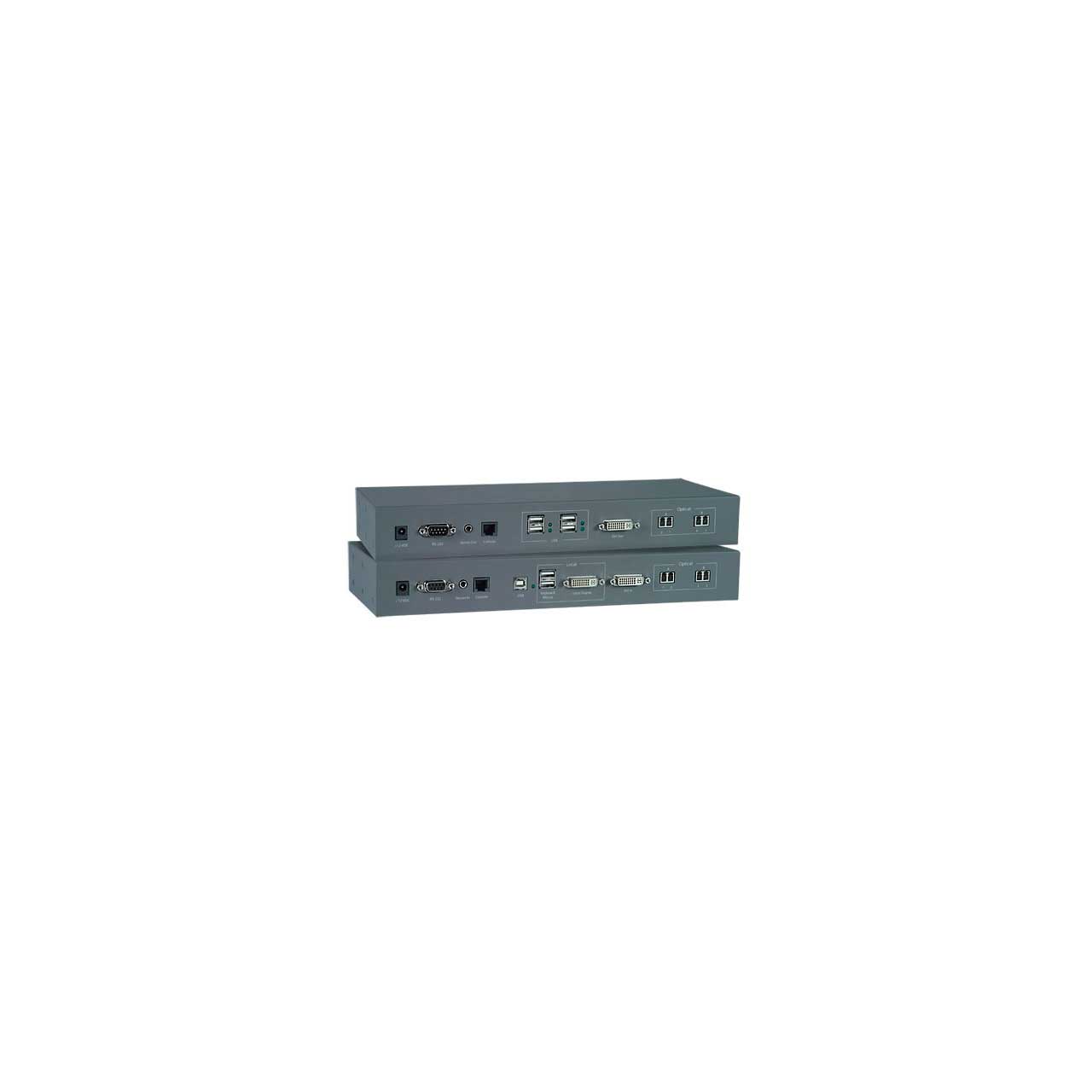

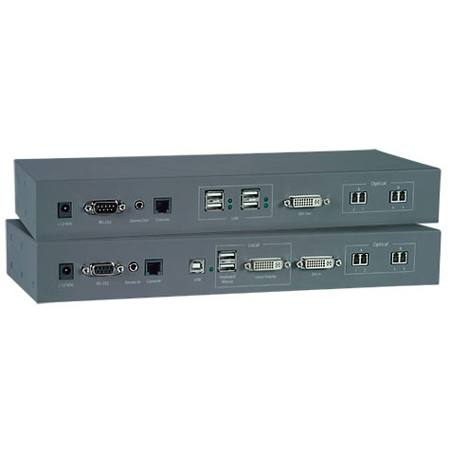

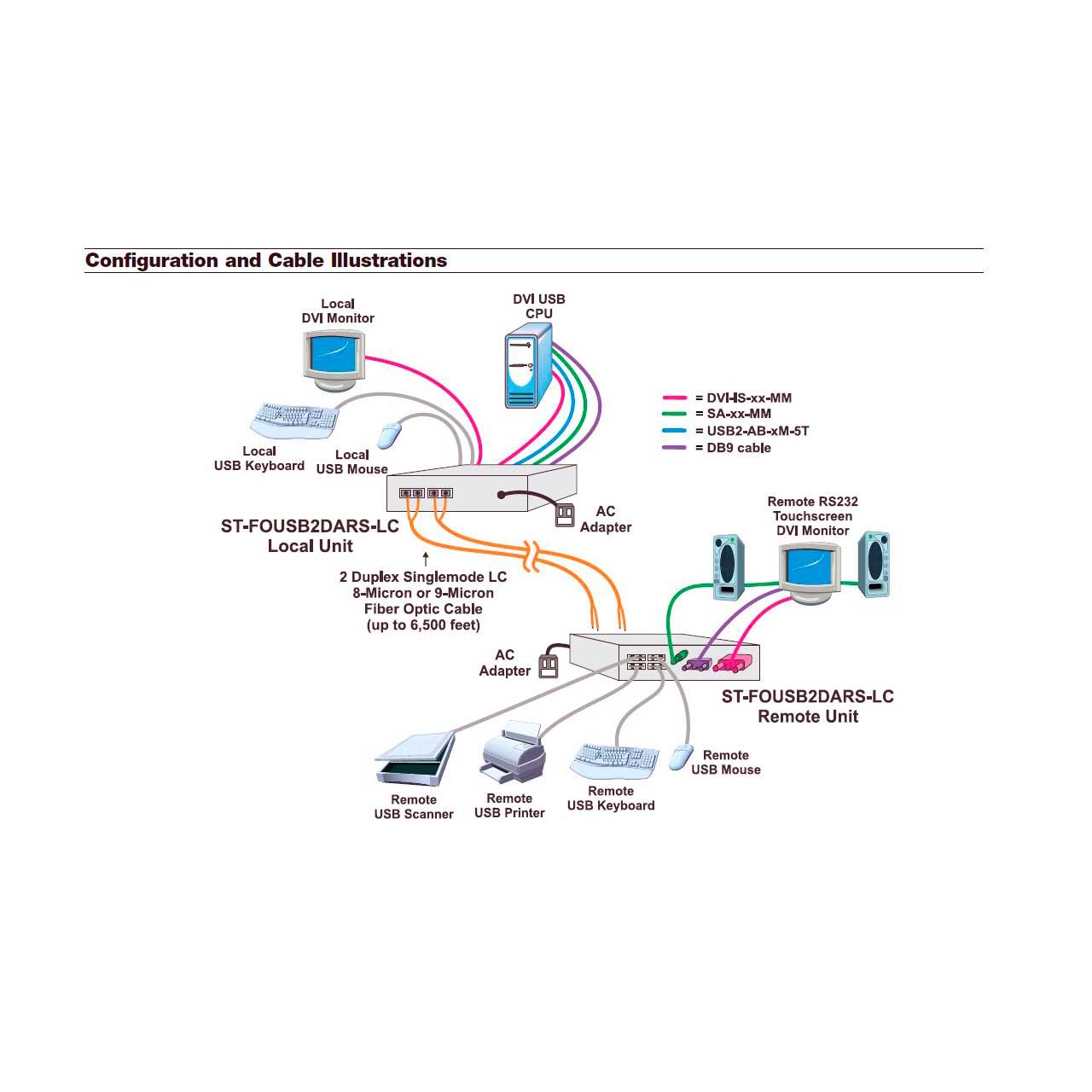

Each DVI USB KVM Extender consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to four USB devices, a DVI display, and analog stereo audio speakers.

  • Features:

    • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
    • Signal transmission via four-strand singlemode or multimode LC fiber optic cable. ?Using singlemode cable, extend to 6,500 feet (1,981 meters).
    • Using multimode cable, extend to 1,650 feet (503 meters).
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
    • Two modes of USB operation. ?Local mode - computer sees USB devices connected to the transmitter.
    • Remote mode - computer sees USB devices connected to the receiver.
    • Cables can be installed in conduit prior to extender installation.
    • Extend USB devices such as keyboards, mice, printers, game controllers, flash drives, touch screen monitors, whiteboards, etc.
    • Compliant with USB 2.0 (low/full/high speed) standards.
    • Low RFI/EMI for sensitive applications.
    • Optical link is not susceptible to eavesdropping or electromagnetic interference
    • Includes rack mounting kit.

  • Specifications:

    • Local Unit Host Connection:
    • Supports USB computers (PC, SUN and MAC) with single link digital DVI video.
    • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • One female DVI-I, one female USB Type B, one 3.5 mm stereo audio jack, and one female DB9 connectors.

    • Local Access:
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
    • One female DVI-I and two female USB Type A connectors.

    • Remote Unit:
    • One female DVI-I, four female USB Type A, one 3.5 mm stereo audio jack, and one male DB9 connectors.
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
    • Video signal: single link digital DVI.
    • Provides support for hi-speed (480 Mbps), full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices. ?Compatible with USB touch screen monitors, including HP Compaq L2105tm.
    • Audio signal: analog stereo audio. ?Audio sampling rate: 48 KHz
    • Input impedance: >25Kohm
    • Output impedance: 100ohm
    • Frequency response: 40 Hz to 15 KHz ±1dB
    • Signal-to-Noise Ratio (SNR): >79 dBA
    • Total Harmonic Distortion + Noise (THD+N): <0.05%
    • Stereo crosstalk: -67dB @ 1 KHz
    • Supports RS232 up to 250Kbps
    • Compliant with DDWG DVI standard.
    • Supports the DDC2B protocol.

    • Cables:
    • Use a FIBER-2D-LCLC-50-xxM (2 duplex multimode LC 50-micron) multimode fiber optic cable to extend the receiver from the transmitter up to 1,650 feet (503 meters).
    • Use two duplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 6,500 feet (1,981 meters).
    • Use SA-xx-MM male to male 3.5mm stereo audio cables to connect speakers.
    • Includes 6 ft (1.8 m) male to male DVI-I cable to connect a DVI source or display.
    • Includes 6 ft (1.8 m) male USB Type A to male USB Type B cable to connect source.
    • Includes 6 ft (1.8 m) male to male RS232 cable to connect a controller.

    • Power
    • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter (US AC adapter included).
    • Power consumption: 40W (each - transmitter and receiver).

    • Environmental
    • Operating temperature: 32 to 122°F (0 to 50°C)
    • Storage temperature: -14 to 185°F (-10 to 85°C)
    • Operating and Storage Relative Humidity: 5 to 85% non-condensing RH.

    • Dimensions WxDxH (in): 12.6x5.1x1.75
    • Regulatory Approvals - CE, FCC, RoHS.
    • Warranty -Two years

  • Warranty:

    • 2 Years
