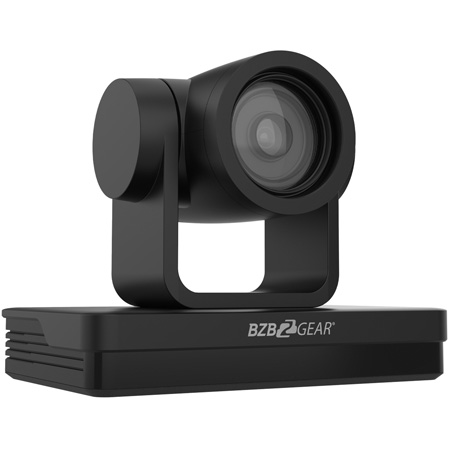

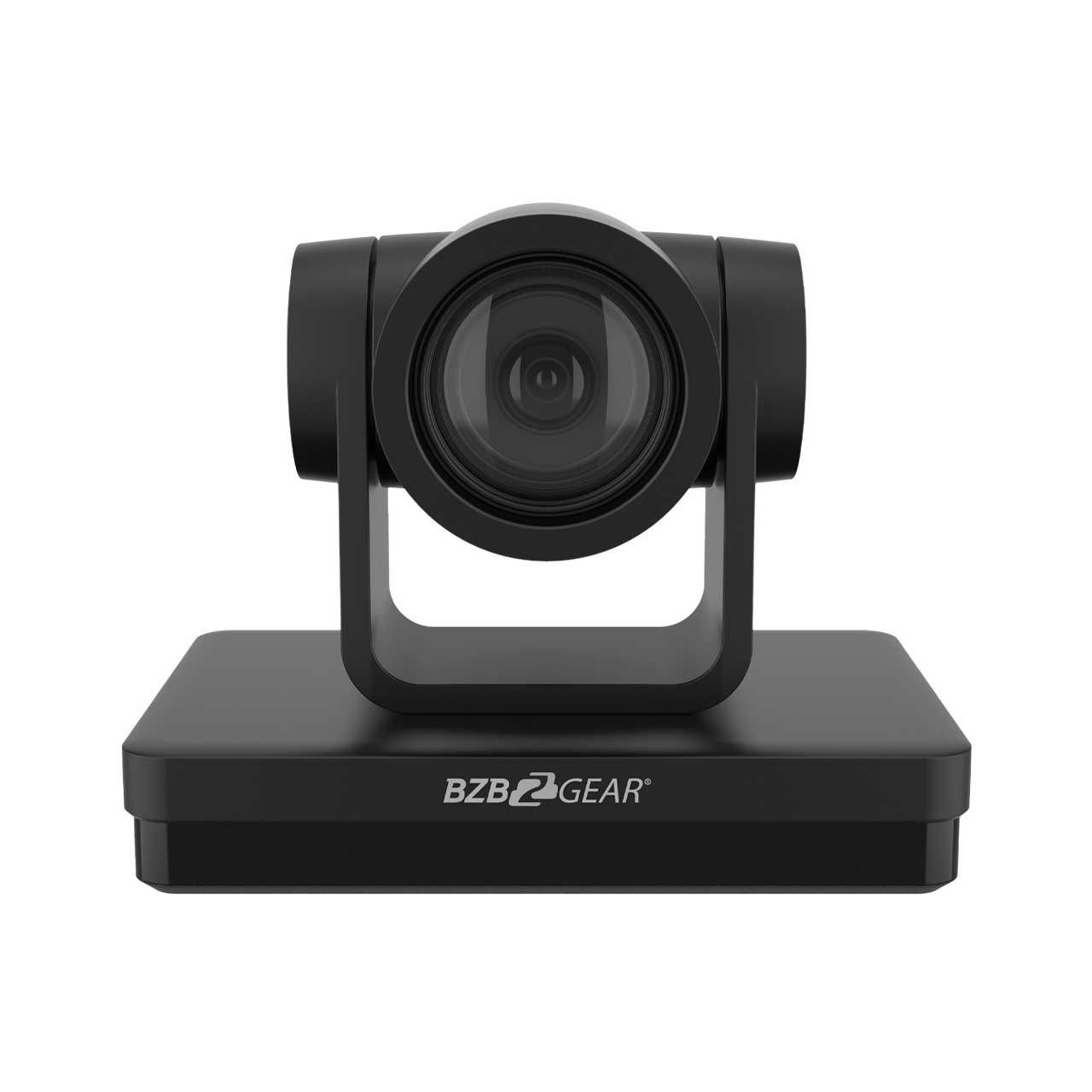

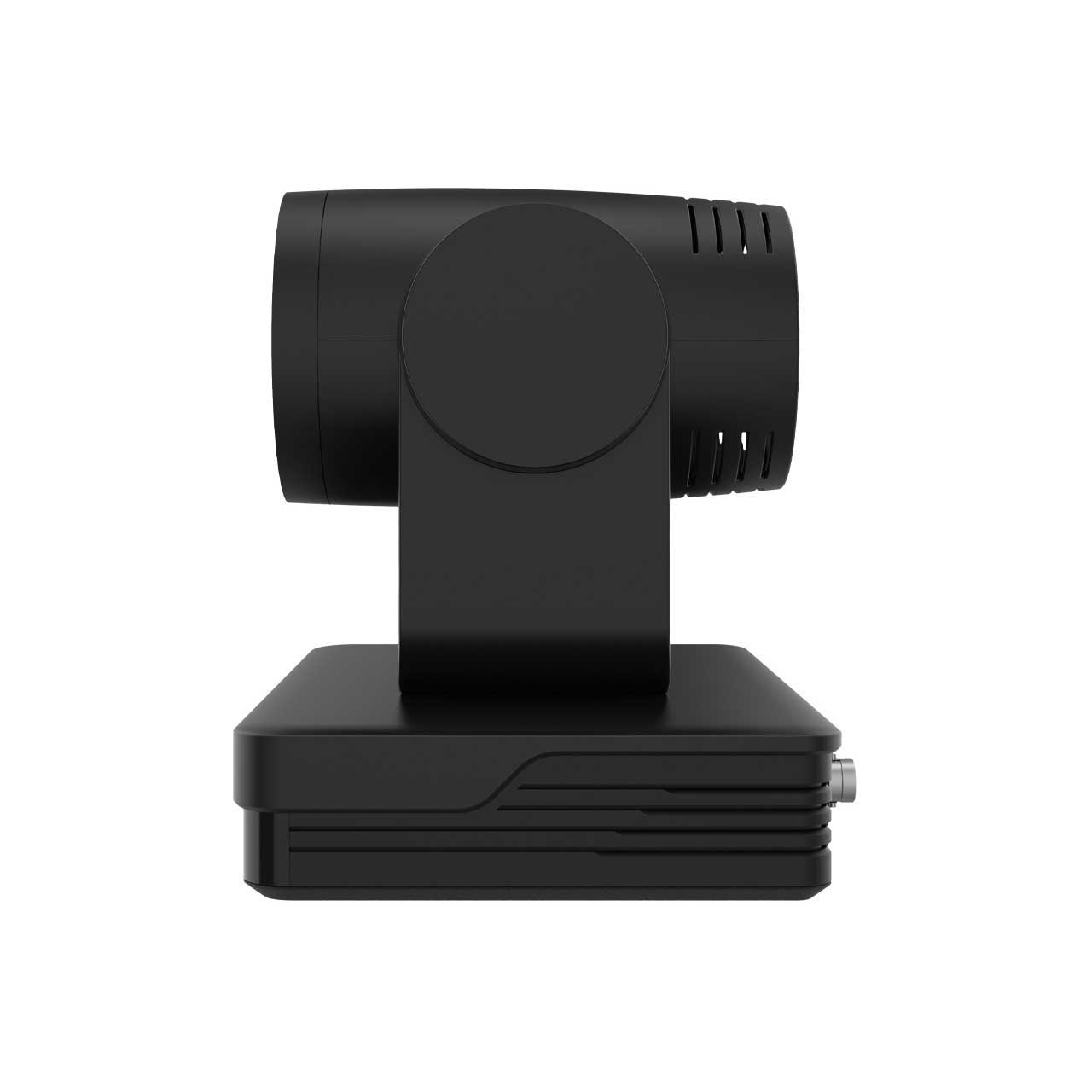

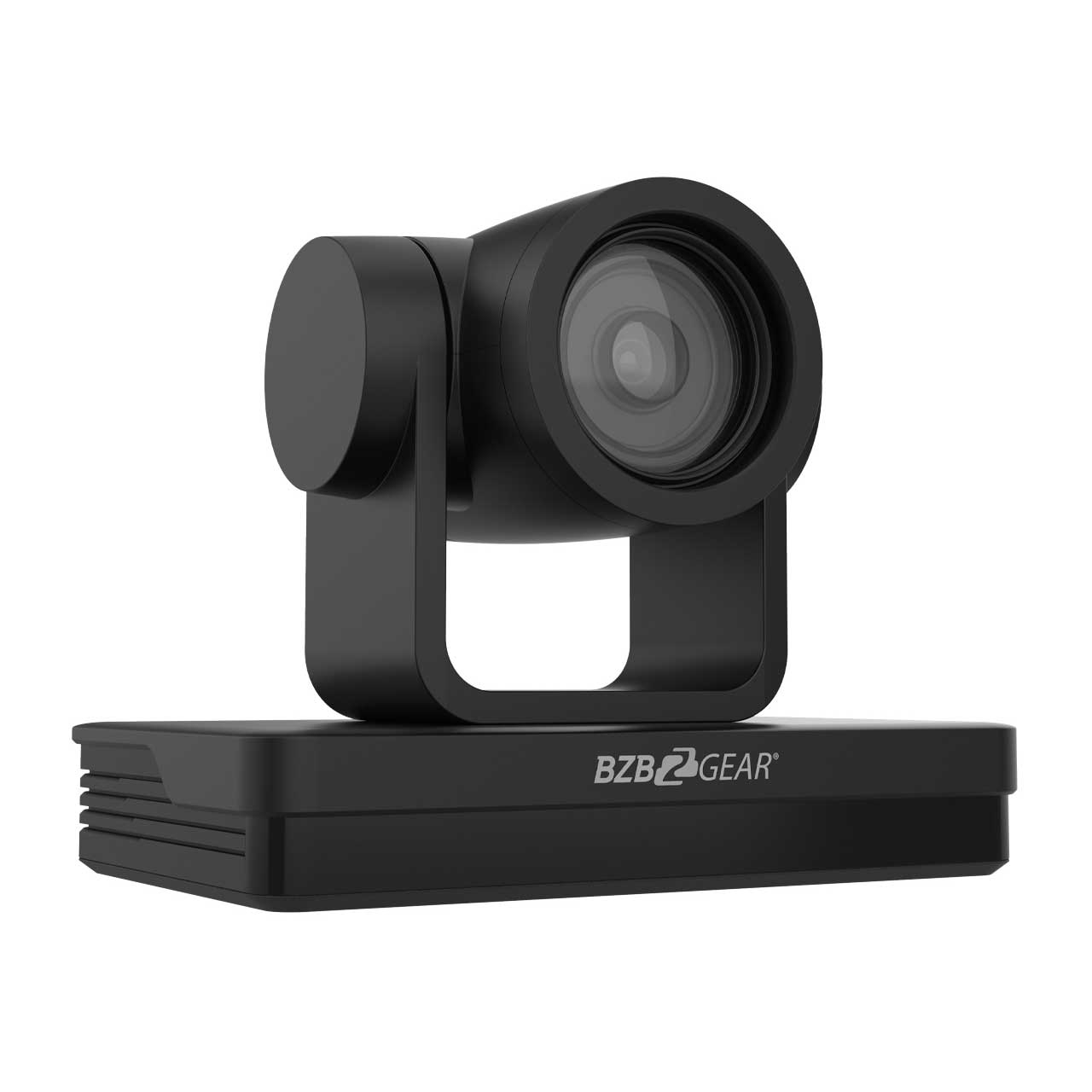

BZBGEAR BG-UPTZ Universal 12X HDMI/SDI/USB3.0/RS232/485 Live Streaming PTZ Camera - Black

ITEM #: BG-UPTZ-12XHSU-B MFG #: BG-UPTZ-12XHSU-B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$849.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-UPTZ-12XHSU-B - Overview

The BZBGEAR BG-UPTZ series cameras are truly universal and cover almost any possible application you can imagine. High grade lenses give you pristine image quality. Exceptional mechanical craftsmanship and high-grade components result in responsive and quiet operation. The latest compression algorithms and diverse array of video outputs give you the ability to use these cameras with nearly any setup. From video conferencing and tele-education, to broadcasting events and streaming to multiple online platforms - you can do it all with BZBGEAR BG-UPTZ cameras.

  • Features:

    • Crystal Clear Image -1/2.8in 2.07 megapixel Low-Noise CMOS sensor insures High SNR (Signal to Noise Rate). Resolution up to 1080p@60fps
    • Wide FOV: Field of view up to 72.5° - enough for the whole room (72.5° for 12X, 56° for 20X and 65° for 30X lenses)
    • Add a Mic - supports stereo audio input and embedding
    • Extremely quiet - using high quality step driving motor and precise motor drive controller ensures whisper quiet and smooth rotation and zooming
    • Rich Network Protocol Support - RTMP and RTMPS for Youtube, Facebook live streaming or other CDN. RTP and RTSP for streaming over your network. ONVIF and GB/T28181 - for your security applications, Visca - to enable control over network

  • Specifications:

    • Lens: 12X Optical zoom
    • Horizontal View Angle: 72.5 °(W)~6.3°(T)
    • Image Sensor: 1/2.8" Progressive CMOS
    • Effective Pixels: 2.07 Megapixels (16:9)
    • Resolution: 1080p60/50, 1080i60/50, 1080p30/25,720p60/50

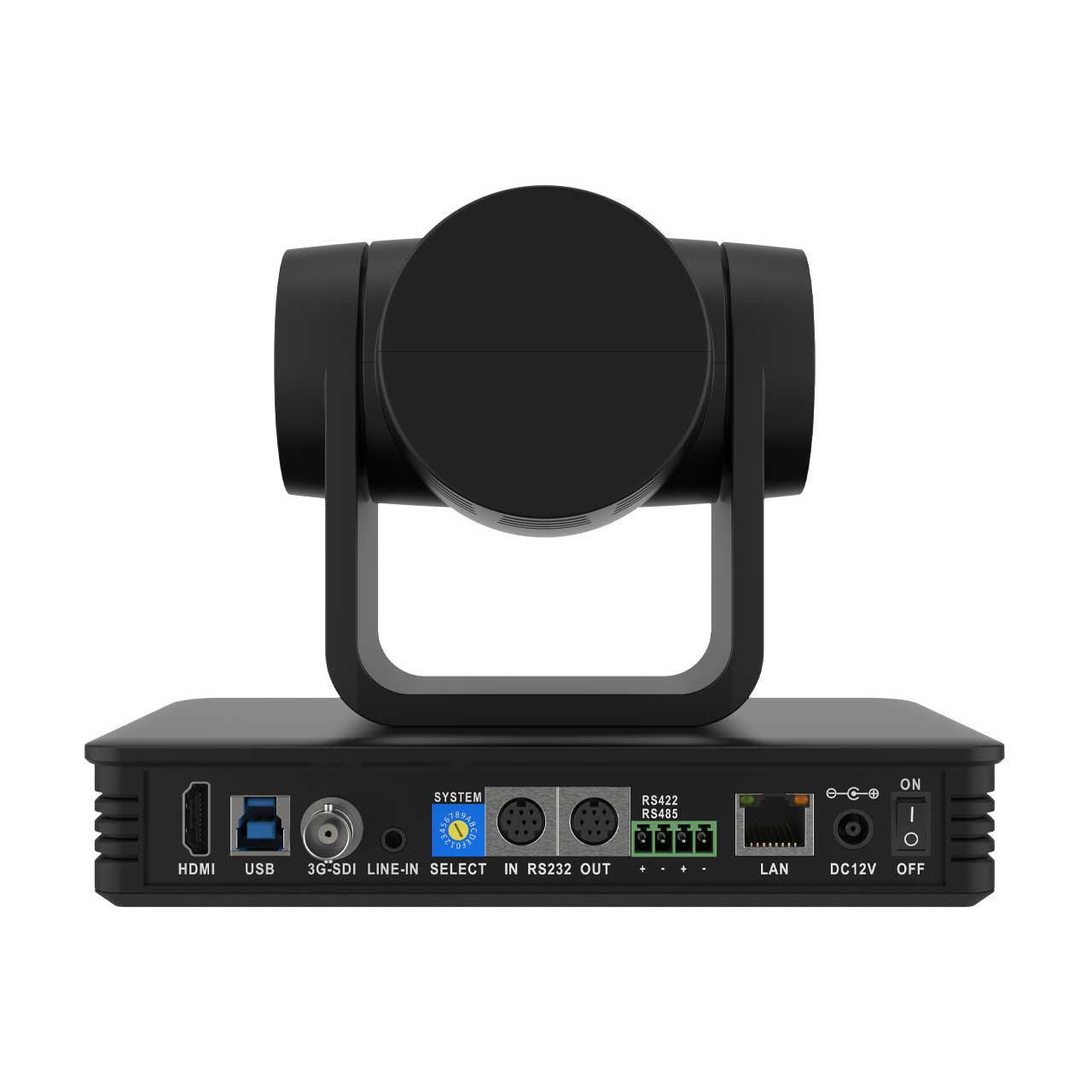

    • Interface: USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
    • Pan Rotation: 340°(max. speed: 80°/s)
    • Tilt Rotation: -30° to +90° (max. speed: 60°/s)
    • Focus System: Auto/Manual
    • S/N Ratio: =50db
    • Preset Position: 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
    • Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
    • Exposure Control: Auto/Manual/Priority AE/Exposure Compensation/Bright
    • Shutter Speed: 1/1~1/10,000s
    • Gain: Auto/Manual
    • White Balance: Auto/Manual/ATW/One-click/Indoor/Outdoor
    • Image Effect: Full color/black and white/Electronic flip
    • Video Output HD: HDMI, 3G-SDI, IP, USB 3.0
    • Control Protocol: RTSP, RTMP, ONVIF, GB/T28181
    • Power: 12V DC
    • Power Consumption Max.: 30W(DC 12V)
    • Operating Temperature: 0°C~40°C
    • Storage Temperature: -20°C-60°C
    • Camera Dimensions: (L)178x (W)115.5 x(H)150.9mm
    • Weight: 1.38KG
    • Color: Black

  • Item Includes:

    • 1x BZBGEAR BG-UPTZ Camera
    • 1x 12V/1.5A Power supply
    • 1x RS232 control cable
    • 1x IR Remote Control
    • 1x User Manual

  • Warranty:

    • 3 years

  • GTIN:

    0850009357823
