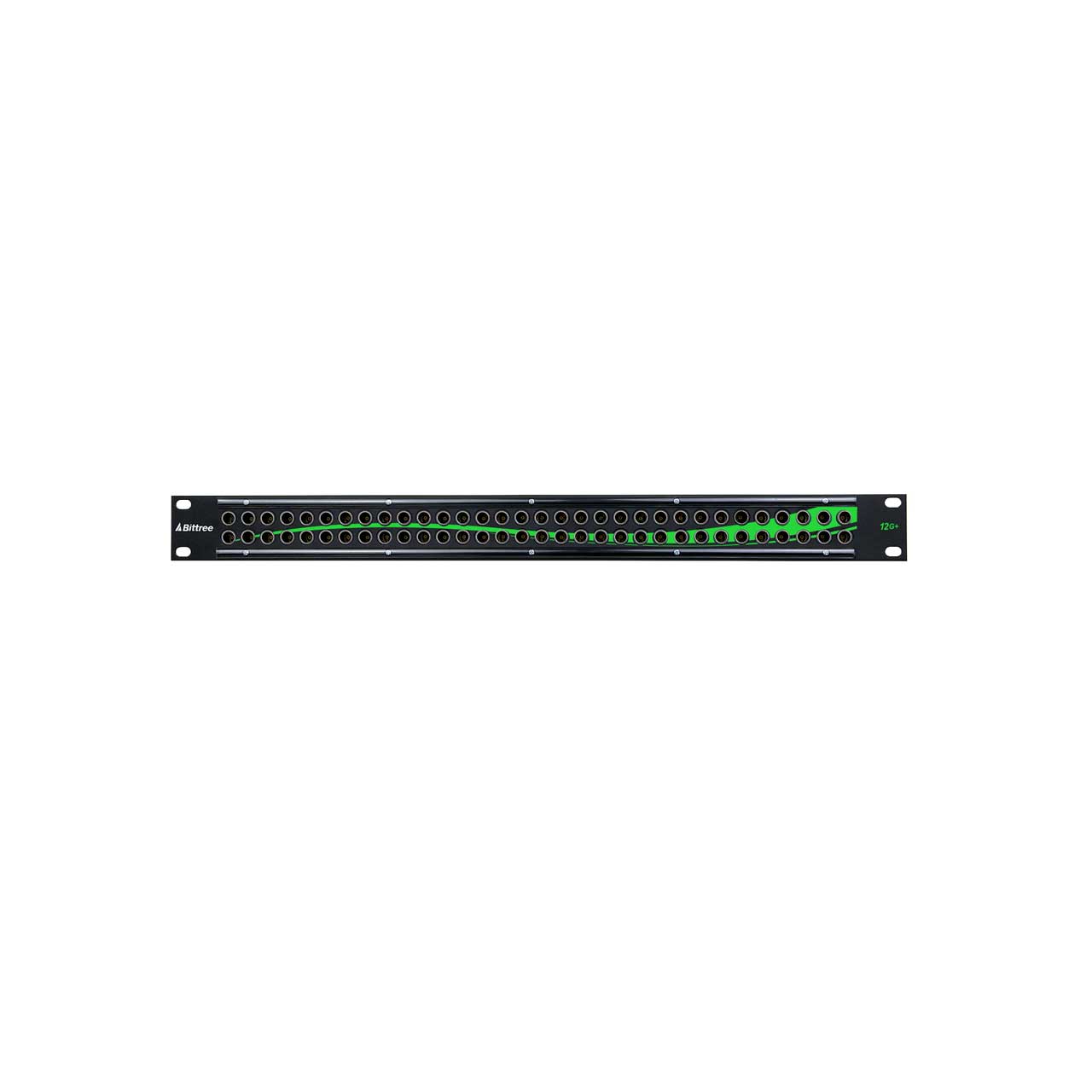

Bittree S64S-1MWNBK 64-Point 12GHz 4K/8K Mini-WECO Mid-Size Video Patchbay - 2x32 1RU

Name: Bittree S64S-1MWNBK 64-Point 12GHz 4K/8K Mini-WECO Mid-Size Video Patchbay - 2x32 1RU
Brand: Bittree
SKU: BIT-S64S-1MWNBK
Price: 1636.00 USD
Availability: PreSale

ITEM #: BIT-S64S-1MWNBK MFG #: S64S-1MWNBK

Bittree

Our Price:

$1,636.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

S64S-1MWNBK - Overview

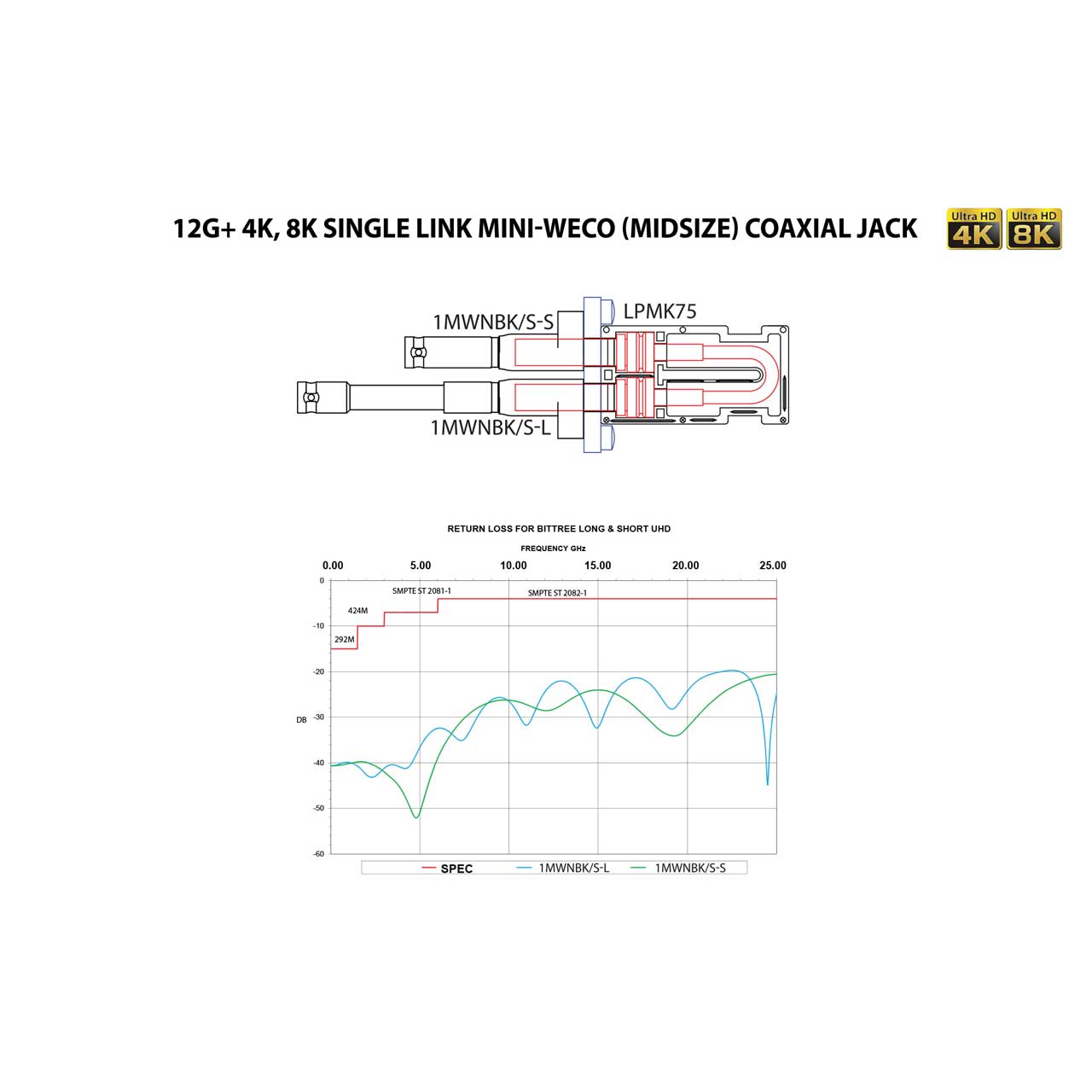

Delivering 24GHz, high-bandwidth-performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K, and 8K single-link video applications, Bittree’s 12G+ Mini-WECO (Midsize) Coaxial Patchbays are compliant with SMPTE 292M, 424M, ST2081-1 and ST2082-1 and provide true 75-ohm impedance with low return loss. 1x32, 2x32 and 3x32 configurations feature stylized front panels for easy identification.

Features:
- 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
- Single link compatible
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- True 75 ohm impedance with low return loss
- Life Cycle Rating: 30,000 cycles
- 3/16" (0.187 in. / 4.76 mm) machined aluminum panel with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 2 x DS250-10 Designation Strips: Extruded aluminum bars with clear plastic snap-over caps
- Staggered BNC Rear Interface
- Normalling and termination can be achieved through the use of looping and termination plugs
- RoHS Compliant

S64S-1MWNBK - Recommended Accessories

Bittree LB-17500 6 Inch Lacing Bar for Patchbay Cable Dressing
BIT-LB-17500
Our Price: $15.00
Canare BCJ-MVP 75 Ohm Mid Size Video Patch Plug to BNC Female Adapter
BCJ-MVP
Our Price: $5.75
Bittree VPCMK1200-75 12GHz Mini-WECO Midsize 75-Ohm Video Patch Cable - 12-Inch - Black
BIT-VPCMK1200-75
Our Price: $39.00
Bittree MWTPK75 Mini-Weco Mid-Size Termination Plug 75 Ohm 12G plus
BIT-MWTPK75
Our Price: $24.00
BNC Removal Tool / BNC Extraction Tool with 12 Inch Blade
85-0008
Our Price: $13.39
Middle Atlantic 5-43 Slim 5 Series Equipment Rack Enclosure - 43RU
5-43
Our Price: $670.50
Middle Atlantic RK Series 8RU Rack - Black Laminate
RK-8
Our Price: $223.20
CAIG Products CCS-503 Screen Cleaning Kit
CCS-503
Our Price: $16.95
Techspray 1673-10S Ozone Safe Economy Duster 10 Ounce (Flammable)
TESP-1673-10S
Our Price: $8.42
Middle Atlantic Essex MMR-1220 MMR Series Rack 12 RU - 20 Inch Depth
MAP-MMR-1220
Our Price: $483.30
Middle Atlantic Cable Management Straps - 12 Pack
TW12
Our Price: $22.50
Rip-Tie H-06-10 CableWrap 1x6 Black - 10 Pack
RT6-10
Our Price: $28.56
Furman M-8X2 15A Rackmount Power Conditioner w/8 Rear Switched Outlets
M-8X2
Our Price: $71.99
Brady M210-LAB 210 Series Portable Label Printer - Multi-Line
BDY-M210-LAB
Our Price: $109.99
HellermannTyton TYHC1-33 Carded Adhesive Cable Markers 1-33
TYHC1-33
Our Price: $4.92
Belden 4855R CMR Rated 12G-SDI 75 Ohm 4K UHD Mini RG-59 Coax Video Cable 23 AWG - Black - 1000 Foot
BL-4855R-1000BK
Our Price: $933.00
Bittree VPCMK2400-75 12GHz Mini-WECO Midsize 75-Ohm Video Patch Cable - 24-Inch - Black
BIT-VPCMK2400-75
Our Price: $39.00
Bittree VPCMK3600-75 12GHz Mini-WECO Midsize 75-Ohm Video Patch Cable - 36-Inch - Black
BIT-VPCMK3600-75
Our Price: $39.00
Bittree VPCMK4800-75 12GHz Mini-WECO Midsize 75-Ohm Video Patch Cable - 48-Inch - Black
BIT-VPCMK4800-75
Our Price: $40.00
Bittree VPCMK6000-75 12GHz Mini-WECO Midsize 75-Ohm Video Patch Cable - 60-Inch - Black
BIT-VPCMK6000-75
Our Price: $41.00
Bittree VPCMK7200-75 12GHz Mini-WECO Midsize 75-Ohm Video Patch Cable - 72-Inch - Black
BIT-VPCMK7200-75
Our Price: $42.00

S64S-1MWNBK - Reviews

Overview

S64S-1MWNBK - Overview

Features:
- 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
- Single link compatible
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- True 75 ohm impedance with low return loss
- Life Cycle Rating: 30,000 cycles
- 3/16" (0.187 in. / 4.76 mm) machined aluminum panel with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 2 x DS250-10 Designation Strips: Extruded aluminum bars with clear plastic snap-over caps
- Staggered BNC Rear Interface
- Normalling and termination can be achieved through the use of looping and termination plugs
- RoHS Compliant
