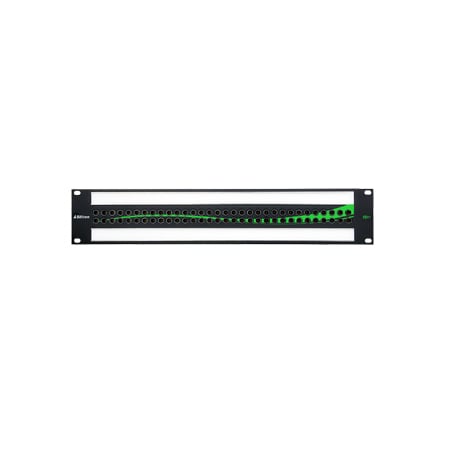

Bittree S64T-1MWNBK 64-Point 12GHz 4K/8K Mini-WECO Mid-Size Video Patchbay - 2x32 2RU

Name: Bittree S64T-1MWNBK 64-Point 12GHz 4K/8K Mini-WECO Mid-Size Video Patchbay - 2x32 2RU
Brand: Bittree
SKU: BIT-S64T-1MWNBK
Price: 1636.00 USD
Availability: PreSale

ITEM #: BIT-S64T-1MWNBK MFG #: S64T-1MWNBK

Bittree

Our Price:

$1,636.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

S64T-1MWNBK - Overview

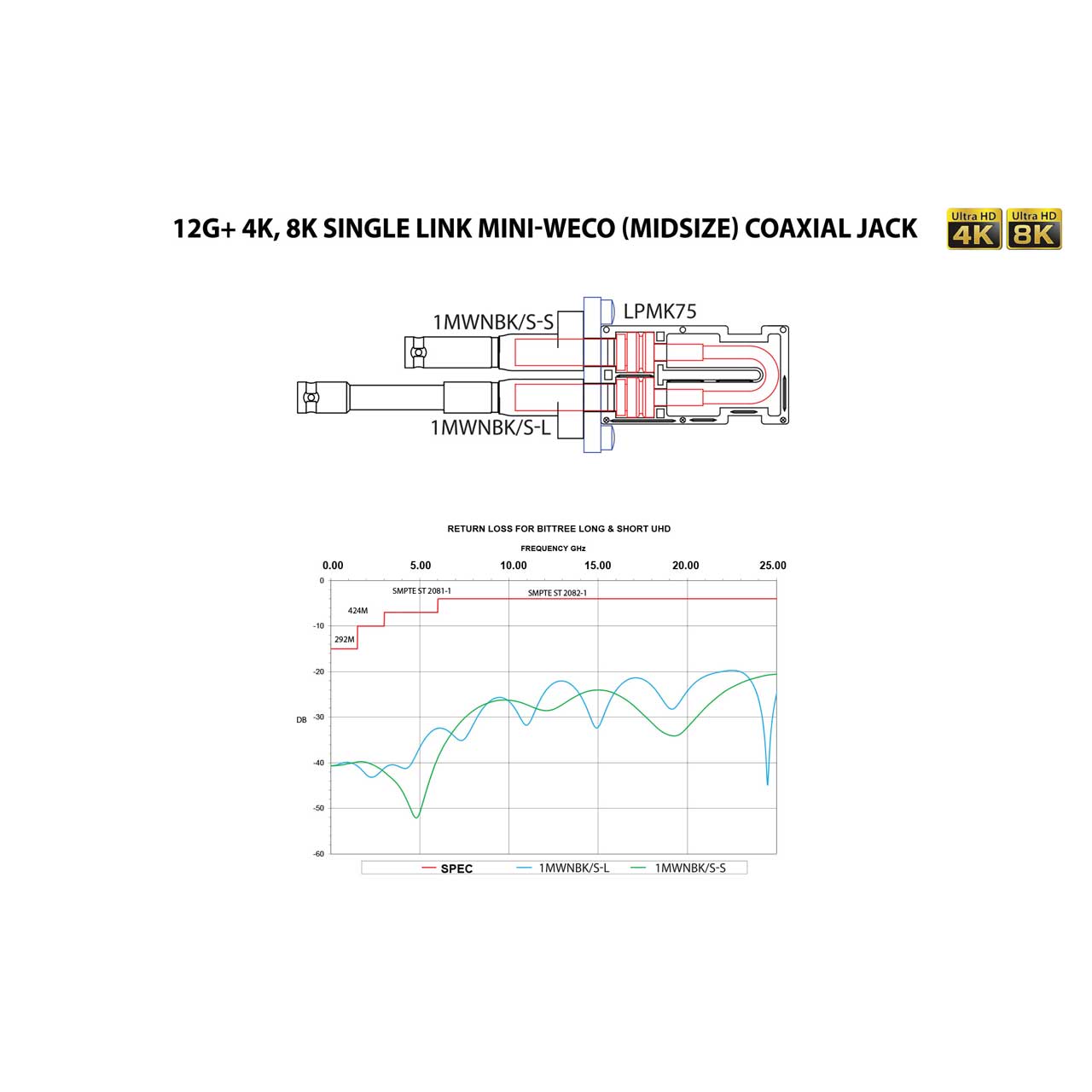

Delivering 24GHz, high-bandwidth-performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K, and 8K single-link video applications, Bittree’s 12G+ Mini-WECO (Midsize) Coaxial Patchbays are compliant with SMPTE 292M, 424M, ST2081-1 and ST2082-1 and provide true 75-ohm impedance with low return loss. 1x32, 2x32 and 3x32 configurations feature stylized front panels for easy identification.

Features:
- 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
- Single link compatible
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- True 75 ohm impedance with low return loss
- Life Cycle Rating: 30,000 cycles
- 3/16" (0.187 in. / 4.76 mm) machined aluminum panel with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 2 x DS870-10 Designation Strips: Stainless-steel sliders with white styrene and non-glare Lexan inserts
- Staggered BNC Rear Interface
- Normalling and termination can be achieved through the use of looping and termination plugs
- RoHS Compliant
