Belden 1190A RG6 18AWG Broadband Coax CATV Cable - Black - 1000 Foot

ITEM #: BL-1190A-1000BK MFG #: 1190A 0101000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$368.30

Our Price:

$301.31

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


1190A 0101000 - Overview

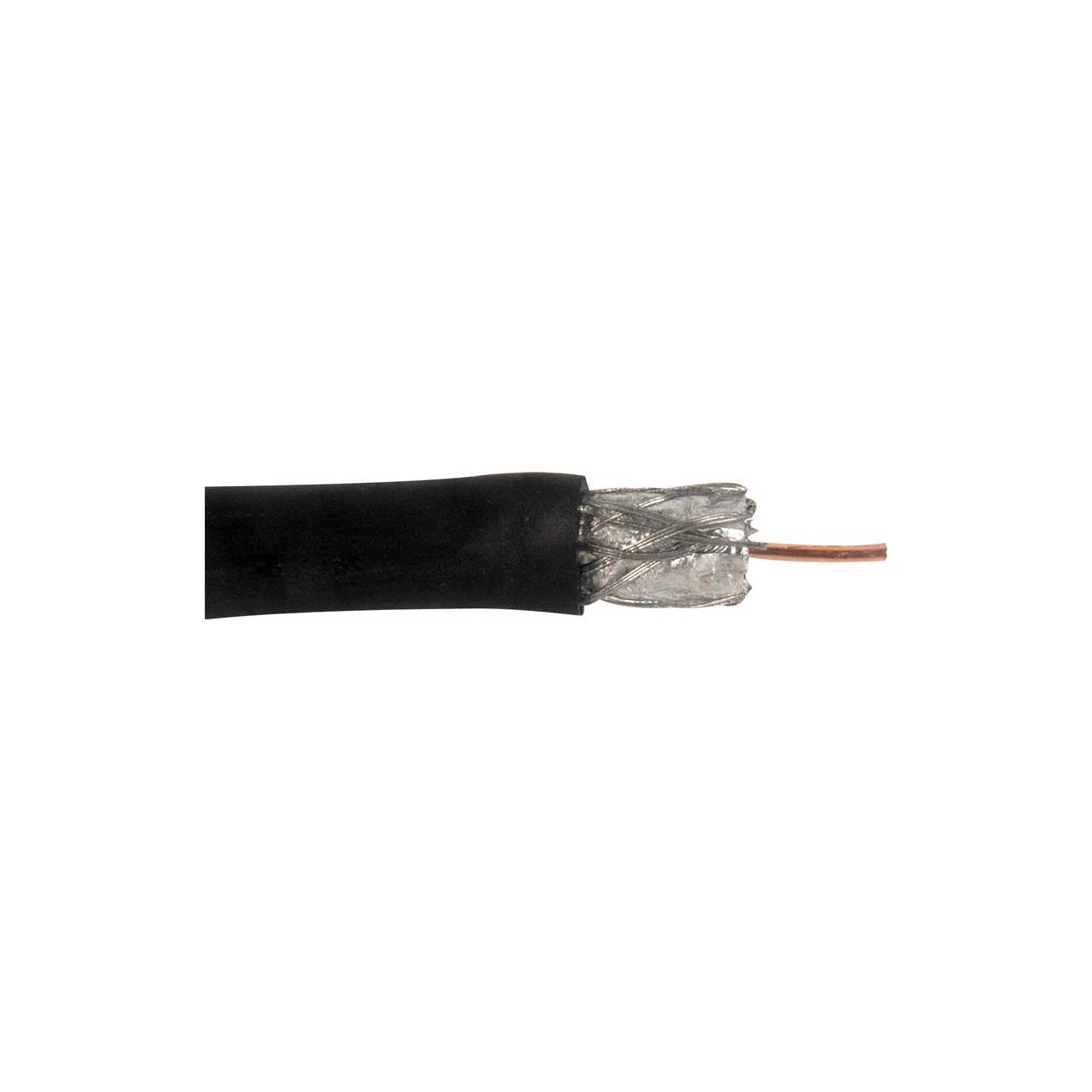

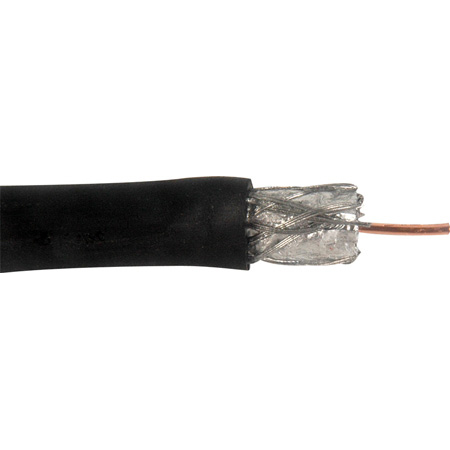

Belden 1190A Series 6, 18 AWG solid .040" bare copper-covered steel conductor with Coreguard, gas-injected foam polyethylene insulation, with Coreguard and flooding compound, Duobond IV quad shield (60% and 40% coverage), polyethylene jacket. Suitable for CATV, Broadband applications.

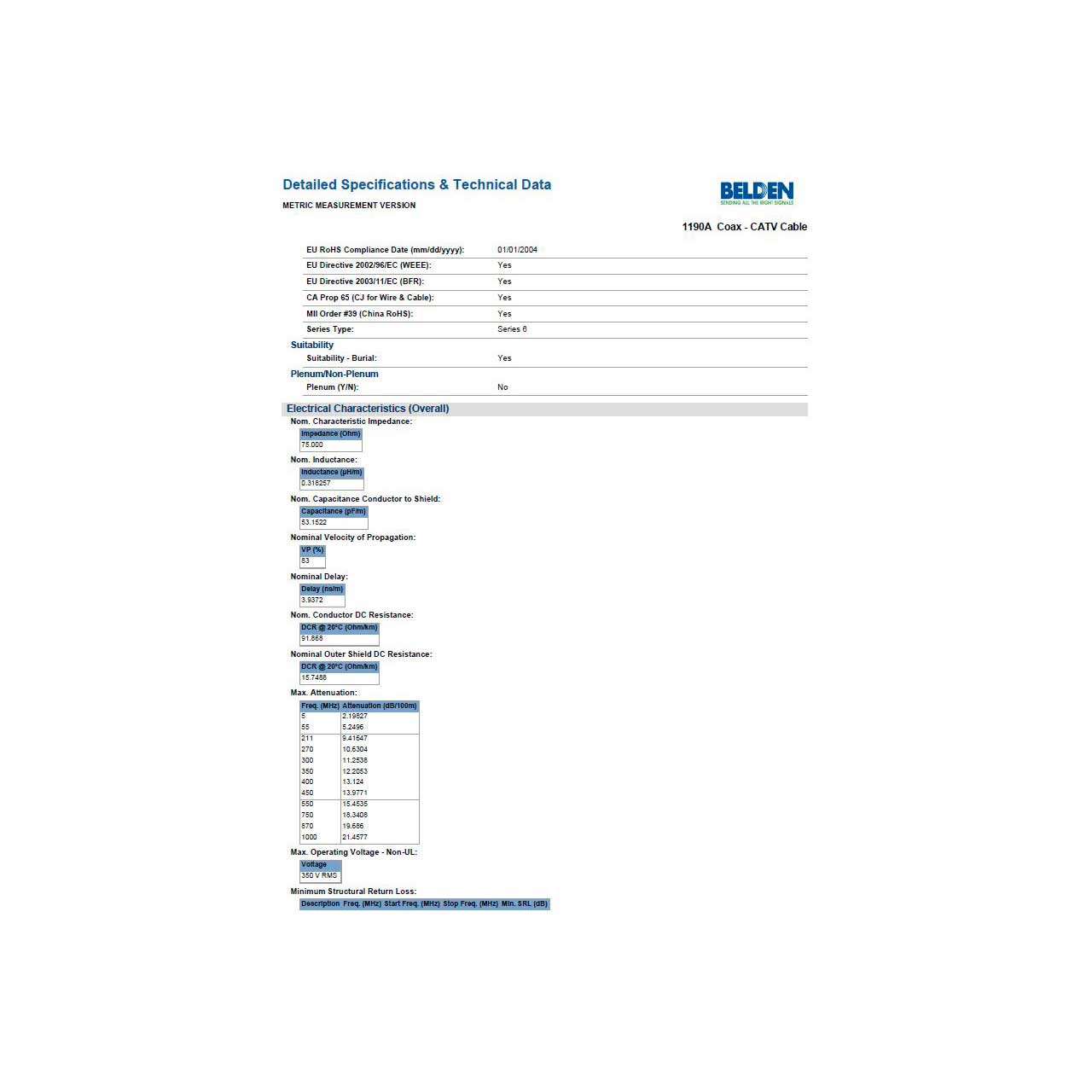

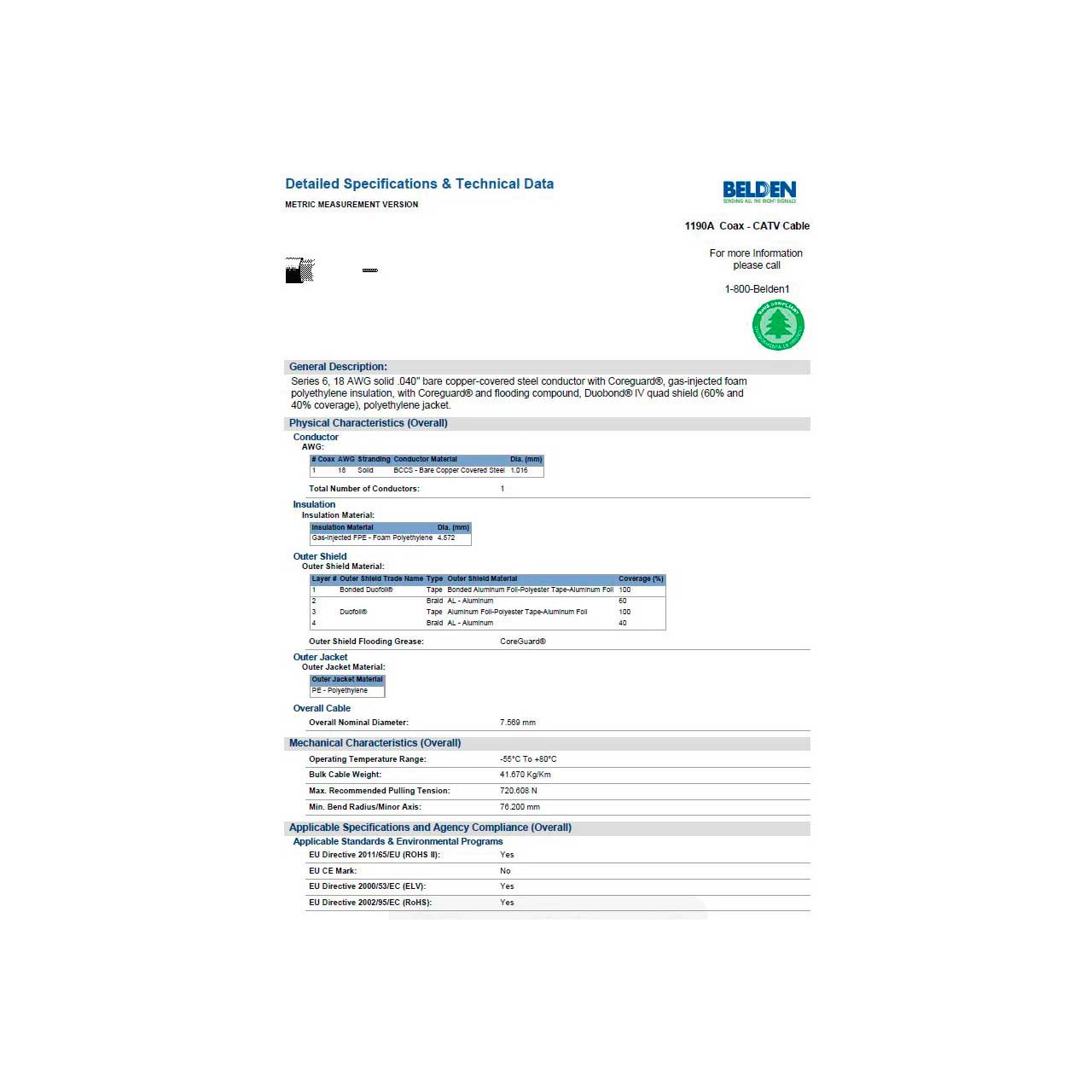

  • Specifications:

    • AWG: 18
    • Stranding: Solid
    • Material: Bare Copper Covered Steel
    • Nominal Diameter: 0.04in
    • No. of Coax: 1
    • Nominal Conductor DCR: 28 Ohm/1000ft
    • Nominal Outer Shield DCR: 4.8 Ohm/1000ft
    • Outer Conductor DCR: 4.8 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 16.2 pF/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • Non-UL Voltage Rating: 350 V RMS
    • Operating Temp Range: -55°C To +80°C
    • Bulk Cable Weight: 28 lbs/1000ft
    • Max. Pull Tension: 162 lbs
    • Min Bend Radius/Minor Axis: 3 in
    • RG Type: 6/U Type
    • Series Type: 6

  • GTIN:

    0612825309727
